Summary of Contents for Clarke WOODWORKER CON1020

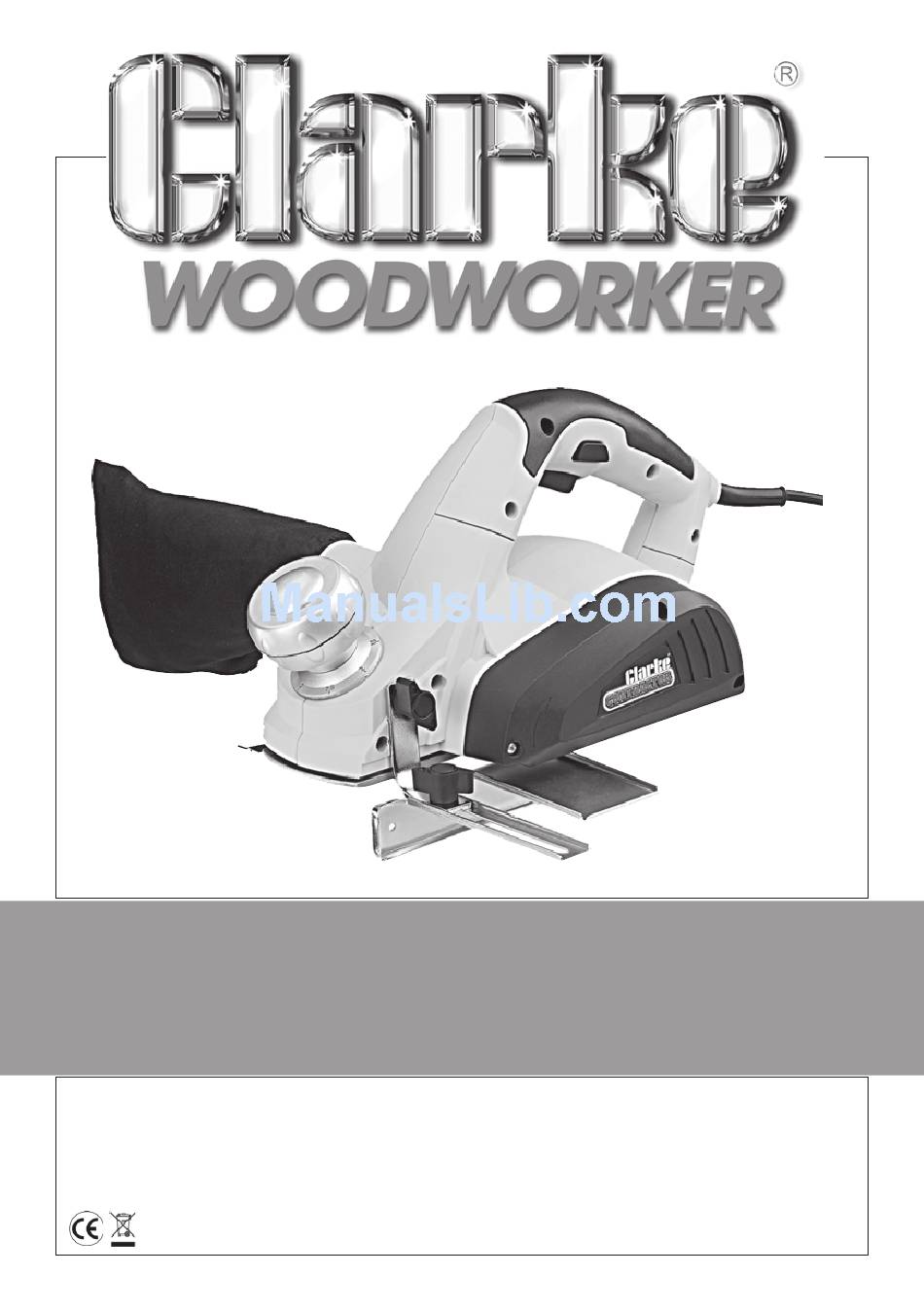

- Page 1 PLANER PLANER Part No. 6460200 MODEL Nos. CON1020 Part No. 6462026 OPERATING & MAINTENANCE INSTRUCTIONS LS0610...
-
Page 2: Specifications
** See Notes on page 14 & 15 Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machines data bracket... -
Page 3: Table Of Contents
Please read these instructions carefully before operating the tool Thank you for purchasing this CLARKE Planer designed for trade use. Before using the device, please read this manual thoroughly and carefully follow all instructions given. This is for your own safety and that of others around you, and is also to help you achieve a long and trouble free service from your new tool. -
Page 4: General Safety Precautions
GENERAL SAFETY PRECAUTIONS WARNING: As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator or damage to property, may result. ALWAYS Learn the machines’... -
Page 5: Additional Precautions For Planers
14. ALWAYS wear proper apparel. Loose clothing or jewellery may get caught in moving parts. Wear protective hair covering to contain long hair. 15. ALWAYS use recommended accessories, the use of improper accessories could be hazardous and invalidate your guarantee. 16. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS Connect the mains lead to a domestic, 230 volt (50Hz) electrical supply through a fused good quality 13 amp BS 1363 plug, or a suitable fused isolator switch. THIS PRODUCT IS DOUBLE INSULATED IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue - Neutral Brown -... -
Page 7: Unpacking And Carton Contents
Rebating Depth Gauge Side fence Bracket 1 x Drive Belt Set of Carbon Brushes Hex. Wrench - 3mm When unpacking, check to ensure that no transit damage has been incurred. Please contact your Clarke dealer immediately should any damage be apparent. -
Page 8: Operation
OPERATION Fig.2 Lock - OFF switch ON/OFF switch Planing Depth Adjuster knob Adjustable plate Rebate Fence Assembly Drive Gear Cover Dust Bag Rebate Depth Gauge • Ensure the workpiece is securely clamped. • To switch the tool ON, press the lock-off button (A) fully and pull the ON/OFF switch (B). To switch the tool OFF, release the ON/OFF switch. -
Page 9: Rebating
Rebating Rebates (see Fig.4) may be produced using the rebate fence in conjunction with the depth gauge. The maximum rebate depth is 20mm. Attach the depth gauge (5, Fig. 1) to the machine in the manner shown at H, Fig.2, using the securing knob provided. -
Page 10: Maintenance
CLEANING AND MAINTENANCE The machine does not require any special maintenance except for ensuring it is kept perfectly clean, including the motors ventilation slots. It may be necessary however to replace the cutter blades, drive belt and motor carbon brushes from time to time. These actions are described below. Replacing the cutters (fig. -
Page 11: Replacing The Drive Belt
Replacing the Drive Belt Should the cutter bind in the workpiece, it is probable that the drive belt needs changing. Should this be the case, please proceed as follows: • Remove the three securing screws, arrowed in Fig. 8 and pull off the cover. •... -
Page 12: Parts Diagrams And Lists
PARTS DIAGRAM... - Page 13 PARTS LIST No. Description Part No. No. Description Part No. Baffle KPCON102001 34 Belt cover KPCON102034 35 Label Spring KPCON102002 Capacitor 0.22µF KPCON102003 36 Screw KPCON102036 Right Housing KPCON102004 37 Screw 13 KPCON102037 Dustproof gasket KPCON102005 38 Small pinion KPCON102038 Adjustable base KPCON102006 39 Bearing cover...
-
Page 14: Vibration Emissions
HAND-ARM VIBRATION Employers are advised to refer to the HSE publication “Guide for Employers”. All hand held power tools vibrate to some extent, and this vibration is transmitted to the operator via the handle, or hand used to steady the tool. Vibration from about 2 to 1500 herz is potentially damaging and is most hazardous in the range from about 5 to 20 herz. -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY...
