Summary of Contents for Electro-Voice Zx1-Sub

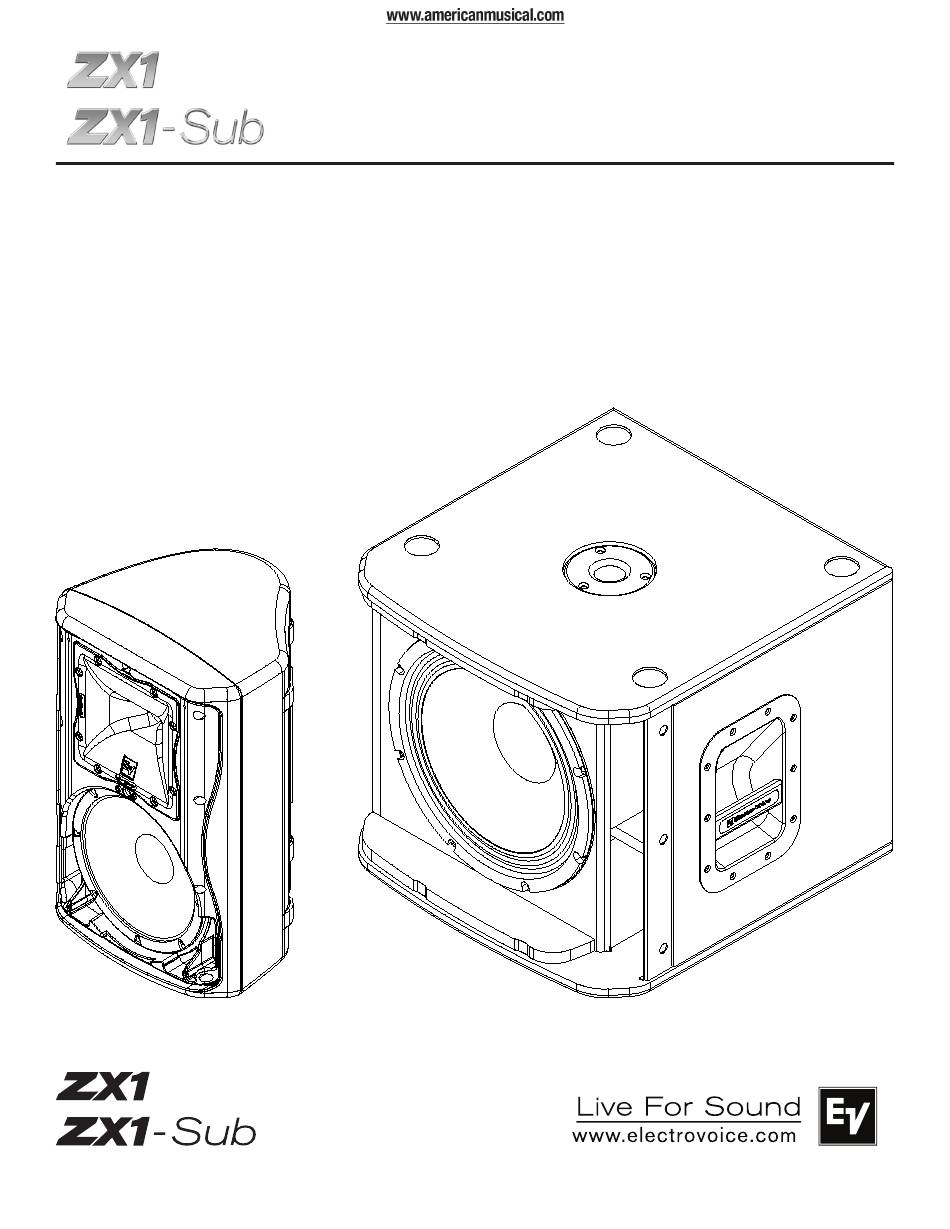

- Page 1 Zx1 Series Loudspeaker Owner’s Manual...
-
Page 2: Important Safety Instructions
Union and other European countries with individual national policies on the management of WEEE) The symbol on the product or on its packaging indicates that this product may not be treated as regular household waste, but has to be disposed through returning it at an Electro-Voice dealer. Electro-Voice Zx1 Series Owner’s Manual... -
Page 3: Table Of Contents
Never expose a Zx1 loudspeaker to rain, water, or high moisture. • Electro-Voice Zx1 loudspeakers are easily capable of generating sound pressure levels sufficient to cause permanent hearing damage to anyone within normal coverage distance. Caution should be taken to avoid prolonged exposure to sound pressure levels exceeding 90 dB. -
Page 4: Description
Zx1 wraps Electro-Voice technology in a durable, lightweight cabinet, resulting in the most powerful and versatile compact loudspeaker available today. Match Zx1 with the Zx1-Sub to create a truly exceptional professional sound system. -
Page 5: Specifications
8.4 kg (18.5 lb) 19.8 kg (43.6 lb) Shipping Weight: 10.2 kg (22.5 lb) 25.4 kg (56.0 lb) 1. Half-Space Measurement 2. Maximum SPL is measured in 1m using broadband pink noise at rated peak power rating. Electro-Voice Zx1 Series Owner’s Manual... -
Page 6: Tripod And Floor Monitor Operation
Tripod and Floor Monitor Operation Floor Monitor Electro-Voice Zx1 loudspeakers may be used as a floor monitor by placing the speaker on the integral monitor angle. Make sure to: • Place the speaker on a level, stable surface that is solid and secure. - Page 7 Tighten the set screw to minimize rattling and to prevent the speaker from rotating during use. Pole Mount Electro-Voice Zx1-Sub speakers include 35mm (1-3/8 inch) pole mount cups to allow mounting a full range speaker above it. Make sure to: •...
-
Page 8: Suspending Zx1 Loudspeakers
Suspending Zx1 Loudspeakers Electro-Voice Zx1 loudspeakers may be safely suspended with single stud fittings by using the MP1 suspension kit, or quickly attached to a truss by using the CA-Zx truss clamp adaptor (both sold seperately). See MP1 or CA-Zx instruction sheets for proper assembly and use. -
Page 9: Rotating The 90° Horn
Rotating the Zx1-90 Horn Rotating the Logo All versions of the Zx1 (except the Zx1-Sub) allow for the logo badge to be rotated, if desired. The logo badge is square and can be rotated in 90° increments. To rotate the logo badge, follow the steps below: 1. -
Page 10: Recommended Configurations
7 Ω 4 Ω 3.5 Ω 2.7 Ω 2.3 Ω 2 Ω 1.8 Ω Caution: Do not exceed the maximum load rating of the amplifier. 45 Hz high pass filter (from mixer or processor) Amplifier Mixer Electro-Voice Zx1 Series Owner’s Manual... - Page 11 Recommended Configurations (cont’) Linking Zx1-Sub subwoofers to Zx1’s This configuration allows a user to increase the low frequency performance without using additional amplifier channels. NL4 Pin Configuration Pins 1+ and 1- Used Pins 2+ and 2- Not Used Amplifier Load (per Output Channel)
-
Page 12: Dimensions
Dimensions Left View Front View Right View Rear View Bottom View Zx1-Sub Top View Left View Front View Right View Rear View Electro-Voice Zx1 Series Owner’s Manual... -
Page 13: Frequency Response Graphs
Mounting Plate Kit, Black Finish Carrying Bag, Convertible, Black Finish ZX-ZXA-CVR for Zx1 Slip Cover, Black Finish ZXA1-SUB-CVR for Zx1-Sub CA-ZX Truss Clamp Adapter, Black Finish TSS-1 Tripod Speaker Stand TSP-1 (2) TSS-1 Tripod Speaker Stands with Carrying Case Electro-Voice Zx1 Series Owner’s Manual... -
Page 14: Troubleshooting
Poor system Check and correct the system grounding, as required. grounding or ground loop If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or Electro-Voice distributor. Electro-Voice Zx1 Series Owner’s Manual... -
Page 15: Warranty Information
Warranty Information Visit www.electrovoice.com/warranty for warranty information. Electro-Voice Zx1 Series Owner’s Manual... - Page 16 Electro-Voice U.S.A. and Canada only. For customer orders, contact Customer Service at: 800/392-3497 Fax: 800/955-6831 Europe, Africa, and Middle East only. For customer orders, contact Customer Service at: 12000 Portland Avenue South, Burnsville, MN 55337 + 49 9421-706 0 Fax: + 49 9421-706 265 Phone: 952/884-4051, Fax: 952/884-0043 Other International locations.
