Summary of Contents for Electro-Voice ZX5

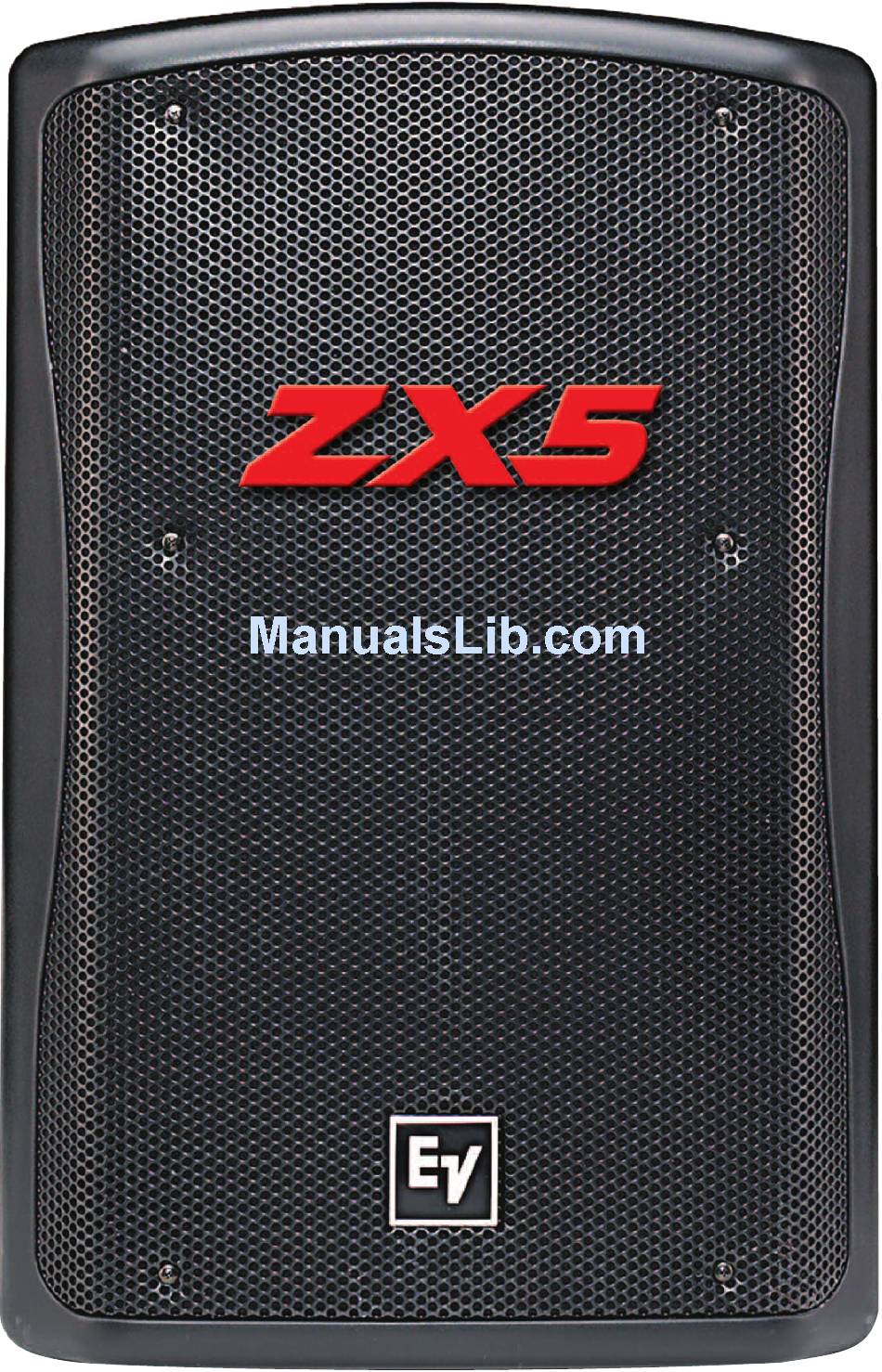

- Page 3 Zx5 sional look options anywhere near its size and weight. All new DVX3150 Full line of acces- 15”...
- Page 4 Capability, Lower Distortion own loudspeaker components to ensure the highest possible audio performance of a loudspeaker system. The Zx5 is the first speaker to feature EV’s all-new DVX series of woofers, as well as the ND2 neodymium compression driver.
- Page 5 For Installations The Zx5 is available in black or white finish. Both have a cloth-backed, full-face grille for a clean pro- fessional look. For outdoor applications there is a PI with stainless steel grille, hydrophobic cloth, and waterproofed gland nut at the output.
- Page 6 The MB-5 mounting bracket allows for quick, easy and safe mounting of the Zx5 on to walls or ceilings. The CB-5 cluster bracker kit is used to create larger arrays with Zx5. Both angles 60° and 90° are pro- vided.
-
Page 7: Specifications
Specifications Zx5-60 Zx5-90 Frequency Response* (-3 dB) 58 Hz - 15 kHz Frequency Response* (-10 dB) 41 Hz - 20 kHz Power Handling (long term/Peak) 600W/2400W Sensitivity 1W/1m 98 dB Max SPL (calc.) 132 dB Low Frequency Driver DVX3150, 15” woofer High Frequency driver ND2, 2”...
