- Page 1 96i I/O ™ Version 8.0...
- Page 2 Digidesign. This equipment has been tested to comply with the limits for a 003, 96 I/O, 96i I/O, 192 Digital I/O, 192 I/O, 888|24 I/O, Class A digital device. Changes or modifications to this product 882|20 I/O, 1622 I/O, 24-Bit ADAT Bridge I/O, AudioSuite, not authorized by Digidesign, Inc., could void the Certification...
-
Page 3: Table Of Contents
About www.digidesign.com ........ - Page 4 96i I/O Guide...
-
Page 5: Chapter 1. Introduction To The 96I I/O
The 96i I/O requires a Digidesign-qualified S/PDIF RCA input and output Pro Tools|HD system. • Loop Sync In and Out for synchronizing addi- The 96i I/O can be used as the only audio inter- ® tional Pro Tools|HD interfaces and peripher-... -
Page 6: Digidesign Registration
Important Notices include information that could affect your data or the performance of About this Guide your system. This guide describes the 96i I/O features and connectors. Shortcuts show you useful keyboard or mouse shortcuts. For complete instructions on connecting and configuring your Pro Tools|HD system, see the HD Setup Guide. -
Page 7: About Www.digidesign.com
Development Partners and their plug- ins, applications, and hardware. News and Events Get the latest news from Digidesign or sign up for a Pro Tools demo. Pro Tools Accelerated Videos Watch the series of free tutorial videos. Accelerated Videos are de- signed to help you get up and running with Pro Tools and its plug-ins. - Page 8 96i I/O Guide...
-

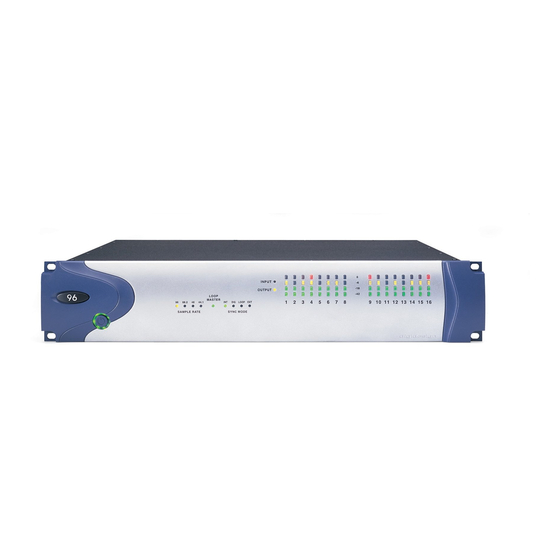

Page 9: Chapter 2. 96I I/O Hardware Overview
This chapter describes the front and back panel features of the 96i I/O. See the HD Setup Guide for complete system installation and configuration instructions. If you are add- ing the 96i I/O to an existing system, see the Expanded Systems Guide . The 96i I/O Front Panel Figure 1. - Page 10 The LOOP MASTER LED indicates which 16 sets of four-segment LEDs indicate signal Pro Tools|HD audio interface is the master level for each of the 96i I/O input channels. Pro Tools peripheral. Loop Master defaults to These meter LEDs indicate –42 dB, –18 dB, the first Pro Tools|HD I/O connected to the core –6 dB, and 0 dB (from bottom to top), refer-...
-
Page 11: 96I I/O Back Panel
–8 dB(V). –10 dB(V) operating levels. Inputs 5–16 are software-switchable between The 96i I/O is factory calibrated at +14 dB head- –8 dBV and +4 dBu operating level sensitivity. room, yielding a maximum output level of The 96i I/O inputs can accommodate a wide +18 dBu when in +4 dBu operating mode. - Page 12 (Pro Tools|HD for PCI systems). together. Loop Sync uses a Word clock signal • When the 96i I/O is used as an additional I/O based on sample rates of either 44.1 kHz or in an expanded Pro Tools|HD system, the 48 kHz.
