Summary of Contents for CycleOps PowerTap SL

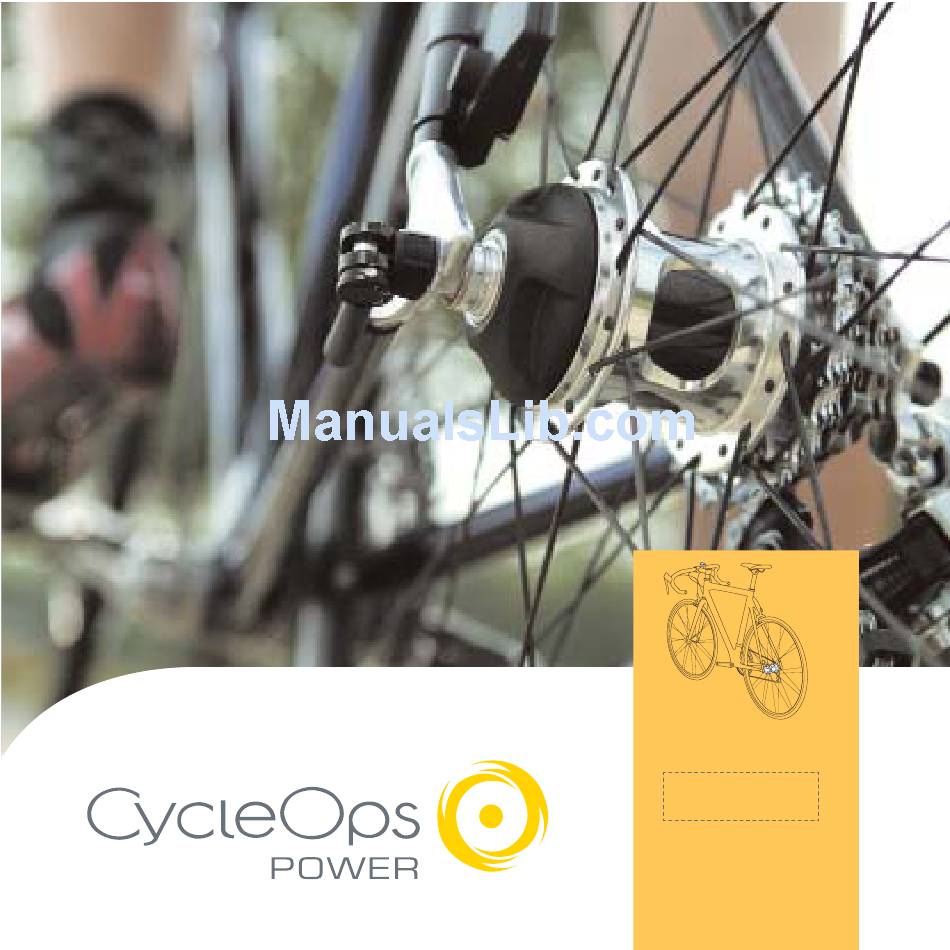

- Page 1 OWNER’S MANUAL PowerTap SL...
- Page 2 Copyright Copyright 2005. All rights reserved. No part of this publication may be copied, photographed, reproduced, translated, transmitted electronically or placed on digital media without the prior written consent of Saris Cycling Group, Inc. Trademarks Saris Cycling Group, Inc , PowerTap and the PowerTap logo, are all registered trademarks of Saris Cycling Group, Inc.
-
Page 3: About This Manual
This manual describes the proper use and maintenance of the PowerTap SL. Every person, inde- pendent of skill level, should read at least PRECAUSTION: IMPORTANT prior to use of the PowerTap. -
Page 4: Table Of Contents
Table of Contents Maintenance & Specifications..31 About this Manual Precautions: Important..5 Bearings..31 Freehub..31 System Overview..7 Freehub Replacement..31 The PowerTap System..7 Preparing for Installation..7 Computer Batteries..33 Technical Specifications..33 Compatibility..8 Wheel Building..8 Range of Measurement..33 Hub Batteries..34 System Installation..9 General Computer Operation..12 Battery Replacement..34 Test Mode..35 Display Levels..12... -
Page 5: Precautions: Important
Precautions: Important • Before beginning any exercise program, consult your physician. • Keep your eyes on the road. Do not become overly engaged with the PowerTap display. We recommend familiarizing yourself with computer functions while stationary. • The computer, receiver, and hub are water resistant, not water proof. - Page 6 Precautions: Important, cont. • The PowerTap wheel does not include a quick release skewer. CycleOps recommends using a steel skewer. • Both sides of the PowerTap should be built using a 3x spoke lacing pattern. Because of the design of the PowerTap, torque is transmitted through the hub to the non-drive side. For additional questions please consult WHEEL BUILDING.
-
Page 7: System Overview
PREPARING FOR INSTALLATION The PowerTap SL hub comes either alone or in a pre-built wheel. If purchased alone, the hub must be built into a complete wheel prior to use. Other items necessary for installation and not provided include a cassette, spoke protector, reflectors, skewer, rim strip, tire, and tube (clincher rim) or glue and tubular tire (tubular rim). -
Page 8: Compatibility
System Overview cont. COMPATABILITY The PowerTap SL hub is compatible with Shimano 8, 9, and 10 speed systems or Campagnolo 8, 9, and 10 speed systems. Freehub bodies may be interchanged. Reference FREEHUB REPLACEMENT for further instructions. The PowerTap is available in 130mm and 135mm axle lengths. Only insert the correctly spaced PowerTap hub into your frame. -
Page 9: System Installation
FIGURE 1 SYSTEM INSTALLATION 1. Insert Wheel Into Frame Insert the PowerTap SL wheel into the frame. Make sure the axel is correctly positioned in the dropouts and secure the wheel in place with a steel skewer. 2. Attach Receiver to Seat Stay Attach the Shark Fin receiver a maximum of 3 inches from the PowerTap hub using cable ties. - Page 10 For best results slightly moisten the electrodes where contact is made with skin. The heart rate strap must be worn to enable the heart rate function. NOTE: The chest strap for the PowerTap SL uses a non-coded frequency and is not compatible with other manufacturer’s chest straps.
- Page 11 7. Verify Installation Check to make sure all components are properly secured. Spin FIGURE 7 the rear wheel and verify that in the upper left hand corner of the computer the transmission icon illuminates (FIGURE 7). This indi- cates the hub is properly transmitting a signal to the receiver and computer.
-
Page 12: General Computer Operation
General Computer Operation DISPLAY LEVELS The computer has three (3) main display levels: TRANS. POWER ICON DISPLAY • Power Middle • Speed SPEED INTERVAL DISPLAY Bottom • Multi-Function DISPLAY Display MULTI DISPLAY NOTE: These locations only apply to trip and interval modes and does not apply to Cycle Computer or Heart Rate Monitor... -
Page 13: Power Conservation
2) Hold [MODE] or [SELECT] - a single button press and hold of either [MODE] or [SELECT] for 2 sec. 3) Press [MODE] and [SELECT] - simultaneously press and release of both [MODE] and [SELECT]. 4) Hold [MODE] and [SELECT] - simultaneously press and hold both [MODE] and [SELECT] for 2 sec. -
Page 14: Computer Navigation
Computer Navigation POWER FUNCTION The top level of the main display shows current, max, and average power readings. 1) Press [MODE] to scroll the cursor to the top line of the main display 2) Press [SELECT] to toggle through the power function options. For accurate power readings it is important to frequently zero the torque, see ZERO TORQUE. -
Page 15: Torque Function
TORQUE FUNCTION FIGURE 12 Shows the torque placed on the hub in inch-pounds. To display torque in trip mode: 1) Press [MODE] to scroll the cursor to the top line of the main display. 58.I0 2) Press [SELECT] until the current power function is displayed. 3) Hold [SELECT] until the word ‘WATTS”... -
Page 16: Speed Function
SPEED FUNCTION The middle level of the main display shows current, max, and average speed readings. 1) Press [MODE] to scroll the cursor to the middle line of the main display. 2) Press [SELECT] to toggle through the speed function options. FIGURE 13 Current Speed Speed is displayed in either miles per hour (MI) or kilometers per hour (KM) up to... -
Page 17: Multi-Function
MULTI-FUNCTION DISPLAY FIGURE 16 Distance (D) WATTS Total trip or the selected interval distance in interval mode is displayed in miles or kilometers from 0.00 to 999.99 (FIGURE 16). 58.I0 1) Press [MODE] to scroll the cursor to the bottom line of the main display. 2) Press [SELECT] to toggle through the multi-function displays until the “D”... -
Page 18: Cycle Computer Mode
Cadence (C) FIGURE 18 Cadence can be measured via two methods, wired (pedal) and wireless (hub). Wired cadence utilizes a magnet placed on the crank arm and wireless is deter- WATTS mined by natural power differences in the pedal stroke. The rate of pedaling is shown from 20 to 240 RPM. - Page 19 Average Cadence (C & AVG) FIGURE 19 The average cadence displays data since the last time data was cleared in trip mode or the selected interval in interval mode. Average cadence is displayed in RPM. WATTS 1) Press [MODE] to scroll the cursor to the bottom line of the main display. 2) Press [SELECT] to toggle through the multi-function displays until the “C”...
-
Page 20: Heart Rate Monitor Mode
Current heart rate is shown up to 255 beats per minute (BMP). You must wear the heart rate chest strap to enable the heart rate measurement function. NOTE: The PowerTap SL uses a non-coded chest strap. WATTS 1) Press [MODE] to scroll the cursor to the bottom line of the main display. -
Page 21: Interval Mode
Average Heart Rate ( FIGURE 23 This value is a running average of the heart rate in BPM. If there is no heart rate information this will display as 0. WATTS 1) Press [MODE] to scroll the cursor to the bottom line of the main display. 2) Press [SELECT] to toggle through the multi-function displays until the “... -
Page 22: Interval Memory Mode
INTERVAL MEMORY MODE To access stored interval data for the previous 9 intervals only: 1) Enter the interval mode hold [MODE] until “INT” appears on the left hand side of the display. 2) Press [MODE] to scroll until the “INT” flashes. NOTE: INT now constitutes a fourth level of dis- play. -
Page 23: Computer Setup
1) Press either [MODE] or [SELECT] to activate the computer. NOTE: The version of firmware is displayed upon startup. The most updated firmware version is available at www.cycleops.com. (FIGURE 1 2 3 4 2) Extended hold of [MODE] and [SELECT] simultaneously enters com- puter setup function indicates by a flashing “E”... -
Page 24: Computer Setup 1
COMPUTER SETUP 1 This setup menu includes: time of day, date, storage rate, wheel circumference, units of measure, odometer. NOTE: You are unable to move back to a previously viewed settings. You must restart setup 1 to make corrections. 1) From the computer setup main menu press [SELECT] and scroll until the number one (1) is flashing. - Page 25 Changes to the storage rate does not effect display information. Refer to TABLE 3 for appropriate storage rate. TABLE 3 - PowerTap SL Storage Rate 8) Press [SELECT] to toggle through digit values to set the wheel circumfer- ence.
- Page 26 TABLE 4 - Common Wheel Circumferences 9) Press [SELECT] to toggle between English or Metric units. Press [MODE] to save. 10) Press [SELECT] to set starting odometer reading. Press [MODE] to save. NOTE: Odometer settings are saved during battery changes. 0 0 0 0 0...
-
Page 27: Computer Setup 2
COMPUTER SETUP 2 This setup menu includes: rate of display for watts, speed, cadence, and heart rate. NOTE: You are unable to move back to a previously viewed settings. You must restart setup 2 to make correc- tions. NOTE: These settings do not effect the data stored for download. This function can be used to allow better pacing during time trial efforts. -
Page 28: Computer Setup 3
6) Press [SELECT] then [MODE] to reset default settings. Press [MODE] to save changes. COMPUTER SETUP 3 This setup menu includes: zero readings for power, speed, and cadence. NOTE: You are unable to move back to a previously viewed setting. You must restart setup 3 to make corrections. NOTE: These settings are useful for determining you average when pedaling only and do not effect the data that is stored for download. -
Page 29: Computer Setup 4
5) Press [SELECT] then [MODE] to reset default settings. Press [MODE] to save changes. COMPUTER SETUP 4 This setup menu includes: sleep time, locations of display, cadence source, cycle computer mode, heart rate monitor, and auto start/stop. You are unable to move back to a previously viewed set- tings. - Page 30 4) The PowerTap can be used as a cycle computer or heart rate monitor. Press [SELECT] to toggle through mode options. watts watts, mi, and (heart icon) = power meter mode mi, and (heart icon) = cycle computer mode (heart icon) = heart rate monitor mode Press [MODE] to save.
-
Page 31: Maintenance & Specifications
Maintenance & Specifications The following information will help you keep your PowerTap SL running properly. If you are not familiar with hub maintenance please consult a professional bicycle mechanic before servicing. During the course of any repair do not remove the torque tube. There are no user serviceable parts inside. - Page 32 -Install spacers per the illustration. -Install axle. -Apply 2 grams of high quality freehub grease to the ratchet ring. -Grease the V seal and place it on the freehub and install onto shaft. -Replace end nuts. Torque end nuts to 12 lbs-ft. FIGURE 28...
-
Page 33: Computer Batteries
COMPUTER BATTERIES FIGURE 29 The PowerTap SL has batteries in the hub and computer. Computer batteries typically need to be changed every 400 hours of use. The computer will also say “low bat” when the computer battery needs to be changed. This message is displayed after a “clr”... -
Page 34: Hub Batteries
HUB BATTERIES Normal battery life in the hub is 400 hours of actual ride time. Use #357 or EPX76 Silver Oxide type batteries and always replace batteries in pairs. Alkaline type batteries give shorter life and poorer performance. BATTERY REPLACEMENT - Unscrew the plastic battery cover. -
Page 35: Test Mode
TEST MODE 1) From the computer setup main menu press [SELECT] and scroll until the letter “t” is flashing. Press [MODE] to enter setup mode. 2) Press [MODE] to scroll through the different test modes as shown by the number. NOTE: Press and hold [MODE] and [SELECT] simultaneously returns to standard operation. - Page 36 6- Torque Information NOTE: The T icon is displayed. This displays information about the internal workings of the torque readings. The bottom display is the offset torque value directly sent by the hub torque with no correction applied. The hub sends a value of approximately 512 as the zero point.
-
Page 37: Troubleshooting
Troubleshooting No display on computer screen · Computer is asleep – Press [MODE] or [SELECT] on the computer to wake up the computer. · Batteries need replacement - replace the computer batteries as shown on pages 14-15 of the User Manual. ·... - Page 38 · Interference with other devices - make sure you are not setting up the PowerTap inside a building with a lot of electrical noise, neon signs, or near power lines. Bring the PowerTap outside or away from the electrical disturbance to see if signal returns. Also make sure you don’t have any other devices on your bike such as lights, magnets or cycle computer sensors.
-
Page 39: Glossary
Glossary Computer - Refers to the yellow handlebar or stem mounted device. Heart Rate (HR) - This displays current HR. Max and average values are displayed if [MAX] or [AVG] is selected. NOTE: A non-coded chest strap must be used in order for the console to pick up heart rate. - Page 40 POWERTAP SL COMPUTER NAVIGATION MAIN MENU Hold [MODE] INTERVAL MODE Hold [SELECT] INTERVAL MEMORY MODE Press [MODE] Press [MODE] Press [MODE] Top Display Middle Display Bottom Display Hold [SELECT] Torque Current Power Current Speed Distance Function Press [MODE] Press [MODE]...
