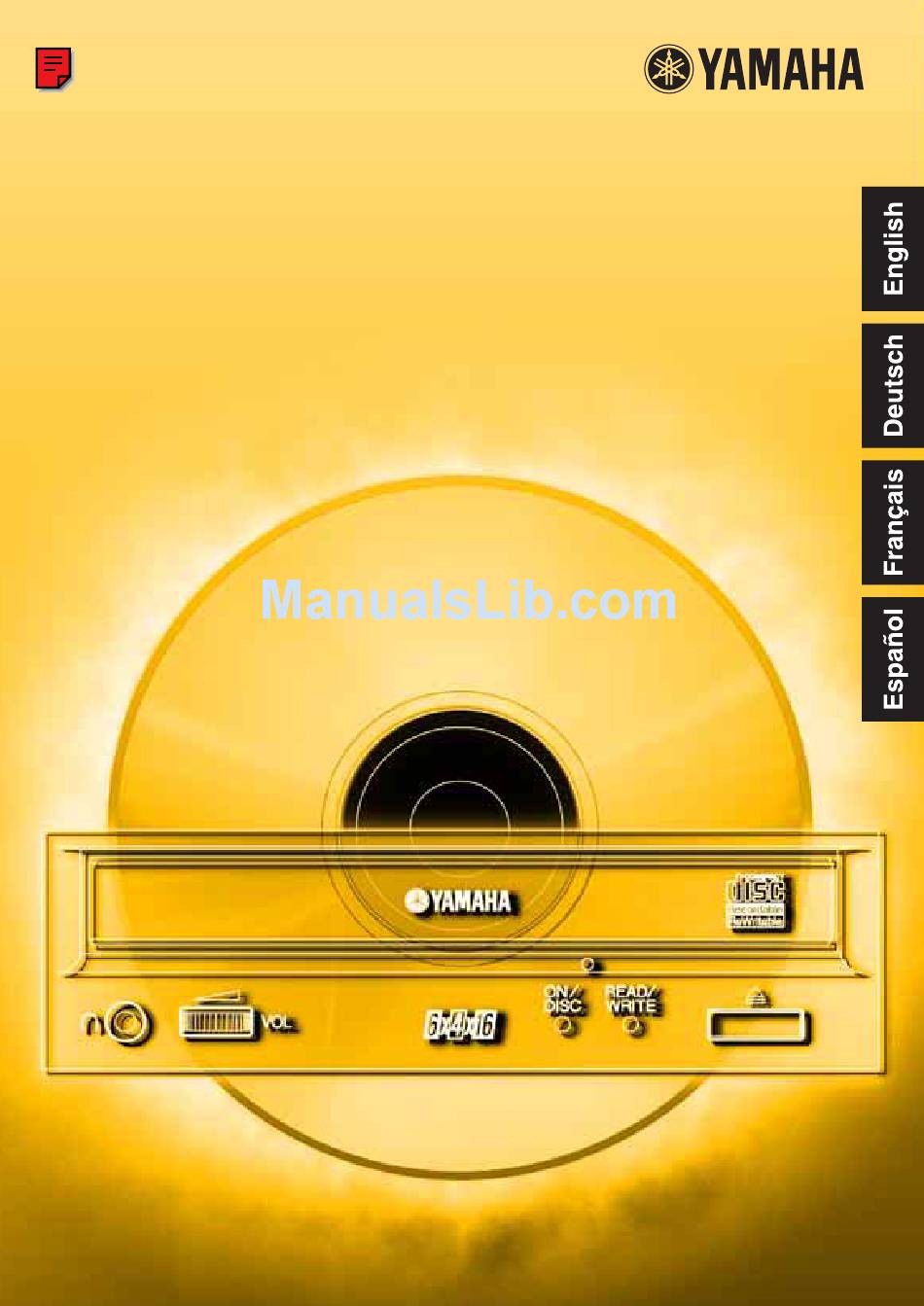

- Page 1 CD-R/RW Drive CD-R/RW Drive CRW6416S CRW6416S SERIES SERIES OWNER’S MANUAL OWNER’S MANUAL BEDIENUNGSANLEITUNG BEDIENUNGSANLEITUNG MODE D’EMPLOI MODE D'EMPLOI MANUAL DE INSTRUCCIONES MANUAL DE INSTRUCCIONES...
- Page 2 If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Systems Technology, Inc. 100 Century Center Court, San Jose, CA95112, U.S.A.
- Page 3 CD-R/RW Drive CD-R/RW Drive CRW6416S CRW6416S SERIES SERIES OWNER’S MANUAL...
-
Page 4: Safety Precautions
Otherwise, there is an increased risk of electrical shock, fire or damage to the device. Return the device immediately to the store at which it was purchased or alternatively, to the nearest Yamaha Service Center (listed at the back of this manual). - Page 5 Otherwise, dust can build up inside the device, increasing the risk of fire or damage. For information about servicing charges, contact the store at which the device was purchased or alternatively, the nearest Yamaha Service Center (listed at the back of this manual). The device should be serviced about once a year.
- Page 6 WARRANTY YAMAHA AND SUPPLIERS ACCEPT NO LIABILITY FOR THE LOSS OF ANY DATA OR ANY PROBLEMS CAUSED AS A RESULT. AS A PRECAUTION, IT IS RECOMMENDED THAT THE DISCS ARE TESTED AFTER THEY HAVE BEEN WRITTEN TO. FURTHERMORE, UNDER NO CIRCUMSTANCES DOES YAMAHA AND SUPPLIERS GUARANTEE THE RELIABILITY OF THE MEDIA.
-
Page 7: Table Of Contents
This document may not, in whole or in part, be copied, photocopied, reproduced, translated, transmitted or reduced to any electronic medium of machine readable form without prior consent in writing from Yamaha. MS-DOS and Windows are registered trademarks of Microsoft Corporation. -
Page 8: Setup Flowchart
Setup Flowchart This flowchart shows the procedure for setting up the CRW6416S drive. For easy cross-referencing, the relevant pages in this manual are also given. STEP STEP Obtain a SCSI adapter card Do you have a SCSI adapter Recommended models: card? Adaptec AHA2940-series (PCI) Check that the SCSI adapter... -
Page 9: Introduction
Introduction Features of the CRW6416S Drive 6X Speed Writing to CD-R, 4X Speed Writing to CD-RW and 16X Speed Reading The CRW6416S drive can write to CD-R at 6X, 4X or 1X speed and write/overwrite to CD-RW at 4X or 2X speed. It can also read from CD-R and CD-ROM media at up to 16X speed. -
Page 10: System Configuration
A spare PCI expansion slot for a SCSI card (if one hasn’t been installed yet). A SCSI card to connect SCSI devices (including the CRW6416S) to your computer. Make sure it has an internal bus connector. Yamaha recommends any of Adaptec’ s AHA2940-series cards (PCI slot). -
Page 11: Media
System Configuration Media The CRW6416S drive is compatible with discs which meet the following specifications: CD-R discs: Use discs that conform to the Orange Book Part 2 standards. When writing to CD-R at 4X or 6X speed, you should use discs that have been designed for high-speed recording. -
Page 12: Tools
System Configuration Tools You will need the following tools at hand when installing the CRW6416S drive. Philips Screwdriver You will need to use this when removing the cover of your computer and when mounting the drive. You may also need to temporarily remove the sound card to gain access to the CD audio connectors. -
Page 13: Front And Rear Of Unit
Front and Rear of Unit Front Panel The CRW6416S drive’ s front panel features the following: Manual eject hole Only use this if no other method is available for unloading a disc. Disc tray Eject button The tray is used to hold the disc. Press this button when you need It slides out from the drive unit when to unload a disc. -
Page 14: Rear Panel
Front and Rear of Unit Rear Panel The CRW6416S drive’ s rear panel features the following: SCSI connector SCSI connector Insert the connector of the SCSI ribbon Insert the connector of the SCSI ribbon cable here. Make sure you align the cable here. -
Page 15: Installation
Installation This section gives a step-by-step guide to installing the CRW6416S drive. Make sure you have all the necessary tools. First Steps Once you have taken the CRW6416S drive out of its packaging, you should immediately note down the serial number shown on the top of the drive together with a barcode. -
Page 16: Rear Panel
Installation To set each jumper switch, you have to bridge the two pins in the respective column of the grid with a plastic shunt. Shunts are already attached to the jumper switches in their default configurations. Rear Panel ID SELECT PARITY TERMINATOR BLOCK SIZE... - Page 17 Installation 1 SCSI ID number Each of the SCSI devices connected to the computer is identified by its SCSI ID number. You need to assign a number from “0” to “7” for each SCSI device. Commonly, ID number “7” is reserved for the computer’ s SCSI adapter card itself.
- Page 18 Installation 2 Parity Check The parity check is used for error correction during data transmissions. If parity-checking has to be disabled, the shunt on the Parity jumper switch should be removed. Parity on (Default) Parity off ID SELECT ID SELECT PARITY PARITY TERMINATOR...
-
Page 19: Block Size
Installation Termination on (Default) Termination off ID SELECT ID SELECT PARITY PARITY TERMINATOR TERMINATOR BLOCK SIZE BLOCK SIZE 1 2 4 1 2 4 Set to “on” if CRW6416S drive is last device on SCSI chain 4 Block Size The data block size of the CRW6416S can be set to 512 bytes per sector by setting the Block Size jumper switch to “on.”... -
Page 20: Installing The Crw6416S Drive
Installation Installing the CRW6416S Drive You can install the CRW6416S drive in one of two possible ways: As an additional drive If the casing of your computer has a spare 5.25-inch drive bay available, such as with many tower-type designs, you can fit the CRW6416S drive in addition to the computer’... -
Page 21: Fitting The Crw6416S As An Additional Drive
Installation Fitting the CRW6416S as an Additional Drive 1 Power down your computer and unplug it from the AC outlet. If you proceed without doing this, you run the risk of receiving an electric shock and/or short-circuiting and damaging components including the CRW6416S drive. - Page 22 Installation 3 Touch a metal part of the computer’ s chassis or power supply unit to drain any static charge that may have built up inside your body. Drain any static charge You can permanently damage equipment if you touch it while there is any static charge in your body.
- Page 23 Installation 5 Leave enough room behind the drive for connecting the power, SCSI and audio cables. Then tighten the four fastening screws on the sides of the unit by hand to hold the drive in place. 6 Remove the SCSI adapter card from the computer and turn its termination OFF so that internal SCSI devices may be connected.
- Page 24 Installation 7 Connect one end of the 50-pin SCSI flat cable to the computer’ s SCSI adapter card. Align the red line of the cable with Pin 1 of the card’ s SCSI connector. Next, connect a free 50-pin connector on the SCSI flat cable to the back of the CRW6416S drive such that the red line on the cable is aligned with pin 1, marked “SCSI INTERFACE CONNECTOR 1.”...
- Page 25 Installation 8 Connect the audio cable between the CRW6416S drive and the computer’ s sound card, or the motherboard’ s audio connector if it has built-in audio. One end of the audio cable has two connectors: a smaller type and a larger type.
- Page 26 Installation 9 Connect a 4-pin power cable to the power supply connector of the CRW6416S marked “DC INPUT.” A U D IO O ID S E L E C P A R IT Y T E R M IN A T B L O C K S IZ E...
- Page 27 Installation ! Attach the outer casing of the computer and any screws that were removed. @ Reconnect the computer to the AC outlet and power it up. n When you power up the computer, make sure both LEDs on the front panel of the CRW6416S drive are lit.
- Page 28 For more information about how to use the operating system, refer to the documentation that came with it. $ Double-click “YAMAHA CRW6416S” listed under CDROM, and click the Settings tab. Check the “Sync data transfer” checkbox. With “Sync data transfer”...
-
Page 29: Replacing An Existing Cd-Rom Drive With The Crw6416S
Installation Replacing an Existing CD-ROM Drive with the CRW6416S n The existing CD-ROM drive in the computer is assumed to be an IDE-type. 1 Power down your computer and unplug it from the AC outlet. If you proceed without doing this, you run the risk of receiving an electric shock and/or short-circuiting and damaging components including the CRW6416S drive. - Page 30 Installation 3 Touch a metal part of the computer’ s chassis or power supply unit to drain any static charge that may have built up inside your body. Drain any static charge You can permanently damage equipment if you touch it while there is any static charge in your body.
- Page 31 Installation 5 Remove the four screws holding the CD-ROM drive in place, then slide the drive forward and out from the drive bay. Slide the CRW6416S drive backwards into the now-vacant bay without applying excessive force. CD-ROM drive CRW6416S 6 Leave enough room behind the drive for connecting the power, SCSI and audio cables.
- Page 32 Installation 7 Remove the SCSI adapter card from the computer and turn its termination OFF so that internal SCSI devices may be connected. Refer to the documentation that came with your SCSI adapter card for further details. SCSI adapter card n Some SCSI adapter cards are capable of auto-termination.
- Page 33 Installation 8 Connect one end of the 50-pin SCSI flat cable to the computer’ s SCSI adapter card. Align the red line of the cable with Pin 1 of the card’ s SCSI connector. Next, connect a free 50-pin connector on the SCSI flat cable to the back of the CRW6416S drive such that the red line on the cable is aligned with pin 1, marked “SCSI INTERFACE CONNECTOR 1.”...
- Page 34 Installation 9 Connect the audio cable between the CRW6416S drive and the computer’ s sound card, or the motherboard’ s audio connector if it has built-in audio. One end of the audio cable has two connectors: a smaller type and a larger type.
- Page 35 Installation ) Connect the 4-pin power cable to the power supply connector of the CRW6416S marked “DC INPUT.” A U D IO O ID S E L E C P A R IT Y T E R M IN A T B L O C K S IZ E...
- Page 36 Installation @ Attach the outer casing of the computer and any screws that were removed. # Reconnect the computer to the AC outlet and power it up. n When you power up the computer, make sure both LEDs on the front panel of the CRW6416S drive are lit.
- Page 37 For more information about how to use the operating system, refer to the documentation that came with it. % Double-click “YAMAHA CRW6416S” listed under CDROM, and click the Settings tab. Check the “Sync data transfer” checkbox. With “Sync data transfer”...
-
Page 38: Operation
Operation This section explains how to operate the CRW6416S drive after you have installed it. Loading a Disc 1 Press the Eject button on the CRW6416S drive’ s front panel. 2 Place the disc onto the tray with its label or printing facing upward. 3 Press the Eject button to close the tray. -
Page 39: Manually Ejecting A Disc
Operation n The disc tray will not open if the computer is not switched on. Also, depending on the SCSI adapter card settings, it may not open if the drive is busy reading a disc. n Only remove the disc after the disc tray has opened fully. Otherwise, you risk damaging the drive or the disc. -
Page 40: Troubleshooting
Troubleshooting Please also refer to the Yamaha web site for more information. Yamaha web site URL: http://www.yamaha.co.jp/english/product/computer/ The drive does not power up. Is the 4-pin power cable from the computer’ s power supply attached correctly? The computer does not start up. - Page 41 Troubleshooting Is the terminator on the CRW6416S drive set correctly? It should be set to ON only if it is the last device on the SCSI chain. Otherwise, it should be set to OFF. ( P . 11) Is the termination on the SCSI card set such that internal SCSI devices can be connected? Please read the instructions that came with your SCSI card for details.
- Page 42 You may be trying to write to an unusable disc. If the drive fails to write to a variety of different discs, it may be faulty and you should contact your nearest Yamaha dealer. The “Buffer Underrun” error message is displayed.
-
Page 43: Appendix
Appendix Writing Modes Disc-at-Once (DAO) This mode is used when writing a complete disc in a single pass without pausing. Data cannot be added later, even if the full capacity of the blank disc has not been used. Although the data written from start to finish is known as a “session,”... -
Page 44: About The Firmware
URL for Yamaha’s web site http://www.yamaha.co.jp/english/product/computer/ The most recent user support information, including firmware updates, can be found in the CD-R area of Yamaha’ s web site. Please check this information regularly. n The firmware is completely unrelated to the CD writing application software. -
Page 45: Led Indicator Messages
Appendix Determining the firmware version of the CRW6416S drive (in Windows 95/98) Go to Control Panel | System | Device Manager tab, double-click on CDROM, then double-click on Yamaha CRW6416S. LED Indicator Messages Status ON/DISC LED READ/WRITE LED Power on (reset) -
Page 46: Crw6416S Specifications
Appendix CRW6416S Specifications Supported Write/Read Format CD-DA CD-ROM CD-ROM XA CD-I CD-Bridge CD Extra Video CD Note) Excludes ADPCM Encode/Decode & Video Encode/Decode functions. Writing Methods Disc-at-Once (DAO) Session-at-Once (SAO) Track-at-Once (TAO) Packet writing (variable, fixed) Writing/Reading Speed Writing CD-R 1X, 4X, 6X CD-RW 2X, 4X... - Page 47 25% ~ 80% RH (no condensation) Dimension Width: 146.0 mm Height: 41.3 mm (excludes 0.5 mm projection at bottom) Depth: 193.1 mm (excludes front panel) Weight 0.95 kg The CRW6416S series complies with the following specifications. Compliance Specifications Country / Region Details Category Item Standards...
-
Page 48: Index
Index 4-pin power cable ........19, 28 ON/DISC LED..........6 Active Desktop ..........35 additional drive ..........13 Packet Writing..........37 audio cable ..........18, 27 packet ............37 AUDIO OUT ..........7 parity ............7, 11 Phillips Screwdriver ........5 power connector ..........23 BIOS ............33 block size ..........7, 12 Buffer Underrun ..........35 random ............37 read-only discs ..........4... - Page 49 B.P. 70, 77312 Marne-la Vallée Cedex 2, Pour plus de détails sur les produits, veuillez FRANCE vous adresser à Yamaha ou au distributeur le TEL: +33 1 6461 4060 plus proche figurant dans la liste suivante : FAX: +33 1 6461 4097 Bei weiteren Fragen wenden Sie sich Sitte an Ihren Händler oder eine der folgenden Firmen.
- Page 50 XW387B0...
