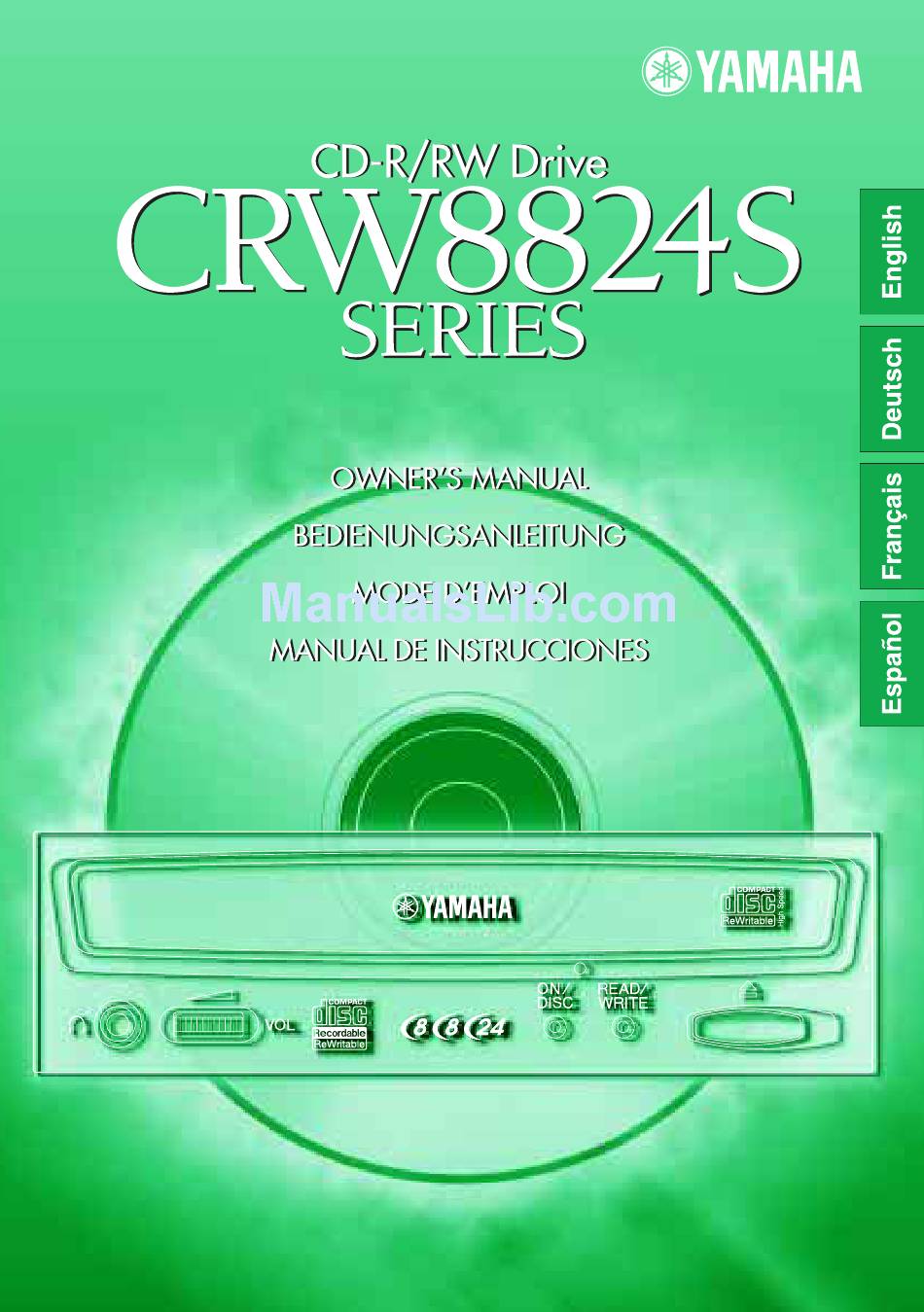

Yamaha CD REWRITABLE DRIVE CRW8824S Owner's Manual

Yamaha CD REWRITABLE DRIVE CRW8824S Owner's Manual

Crw8824s series cd-r/rw drive

Advertisement

Advertisement

Table of Contents
loading

Summary of Contents for Yamaha CD REWRITABLE DRIVE CRW8824S

  • Page 2: Fcc Information

    This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
  • Page 3: Laser Information

    Laser Diode Properties Material: GaAlAs Wavelength: 780-787 nm Emission Duration: Continuous Laser Output Power: Less than 44.6 W* * This output is value measured at a distance 200 mm from the objective lens surface on the optical pick-up block. ANSI Class : Class 1 Eigenschaften der Laserdiode Material: GaAIAs Wellenlänge: 780-787 nm...
  • Page 4 OWNER’S MANUAL...
  • Page 5: Computer

    Otherwise, there is an increased risk of electrical shock, fire or damage to the device. Return the device immediately to the store at which it was purchased or alternatively, to the nearest Yamaha Service Center (listed at the back of this manual).
  • Page 6 Otherwise, dust can build up inside the device, increasing the risk of fire or damage. For information about servicing charges, contact the store at which the device was purchased or alternatively, the nearest Yamaha Service Center (listed at the back of this manual). The device should be serviced about once a year.
  • Page 7: Software

    WARRANTY YAMAHA AND SUPPLIERS ACCEPT NO LIABILITY FOR THE LOSS OF ANY DATA OR ANY PROBLEMS CAUSED AS A RESULT. AS A PRECAUTION, IT IS RECOMMENDED THAT THE DISCS BE TESTED AFTER THEY HAVE BEEN WRITTEN TO. FURTHER- MORE, UNDER NO CIRCUMSTANCES DOES YAMAHA AND SUPPLIERS GUARANTEE THE RELIABILITY OF THE DISCS.
  • Page 8: Table Of Contents

    This document may not, in whole or in part, be copied, photocopied, reproduced, translated, transmitted or reduced to any electronic medium of machine readable form without prior consent in writing from Yamaha. Windows is a registered trademark of Microsoft Corporation.
  • Page 9 This flowchart shows the procedure for setting up the CRW8824S drive. For easy cross-referencing, the relevant pages in this manual are also given. STEP Do you have a SCSI adapter card? Check that the SCSI adapter STEP card is recognized correctly Go to Control Panel | System | Device Manager tab.
  • Page 10 Technology that reduces phase interference of the laser beam, so that it shines accurately on the disc. Jitter value An important measure of recording quality. This has been improved 25% compared with Yamaha models not using this technology. Running OPC CD-R/RW discs vary by manufacturer in their recording characteristics, and the laser output required to write data differs by disc.
  • Page 11 A spare PCI expansion slot for a SCSI card (if one hasn’t been installed yet). A SCSI card to connect SCSI devices (including the CRW8824S) to your computer. Make sure it has an internal bus connector. Yamaha recommends any of Adaptec’s AHA-2940-series cards (PCI slot).
  • Page 12 • Refer to the page at the URL below before attempting to read these discs on a Yamaha CD-R/RW drive not bearing the High Speed CD-RW logo. URL: http://www.yamaha.co.jp/english/product/computer/ The Orange Book standard defines how all recordable discs (including CD-R and CD-RW) are written.
  • Page 13: Tools

    About CD-ROM A CD-ROM disc is a compact disc containing high-density read-only data. It has many applications, including the playback of music and video, the archiving of data, as well as on-line documentation. The following are descriptions of each CD-ROM format: CD-DA: Up to 74 minutes of stereo audio is written in 16-bit resolution at a sampling rate of 44.1kHz (for a 74 minutes disc).
  • Page 14: Front Panel

    The CRW8824S drive’s front panel features the following: Disc tray The tray is used to hold the disc. It slides out from the drive unit when a disc needs to be loaded or unloaded. Headphone Headphone jack volume control You can Adjust this control connect stereo to set a suitable...
  • Page 15: Rear Panel

    The CRW8824S drive’s rear panel features the following: ID SELECT PARITY AUDIO OUT TERMINATOR BLOCK SIZE 1 2 4 AUDIO OUT AUDIO OUT connector connector Connect one end Connect one end 1 2 4 of the supplied 4- of the 4-pin audio pin audio cable cable to this and to this and the...
  • Page 16: Operation

    This section gives a step-by-step guide to installing the CRW8824S drive. Make sure you have all the necessary tools. Once you have taken the CRW8824S drive out of its packaging, you should immediately note down the serial number shown on the top of the drive together with a barcode.
  • Page 17: Rear Panel

    To set each jumper switch, you have to bridge the two pins in the respective column of the grid with a plastic shunt. Shunts are already attached to the jumper switches in their default configurations. Rear Panel ID SELECT PARITY TERMINATOR BLOCK SIZE 1 2 4...
  • Page 18 Each of the SCSI devices connected to the computer is identified by its SCSI ID number. You need to assign a number from “0” to “7” for each SCSI device. Commonly, ID number “7” is reserved for the computer’s SCSI adapter card itself. Therefore, the CRW8824S can actually be assigned an ID number from “0”...
  • Page 19 The parity check is used for error correction during data transmissions. If parity- checking has to be disabled, the shunt on the Parity jumper switch should be removed. Parity ON (Default) Normally leave this setting alone. ID SELECT PARITY TERMINATOR BLOCK SIZE 1 2 4 By factory default, the Parity switch is set to “ON”...
  • Page 20 Termination ON (Default) ID SELECT PARITY TERMINATOR BLOCK SIZE 1 2 4 Set to “ON” if CRW8824S drive is last device on SCSI chain The data block size of the CRW8824S can be set to 512 bytes per sector by setting the Block Size jumper switch to “ON.”...
  • Page 21 You can install the CRW8824S drive in one of two possible ways: As an additional drive If the casing of your computer has a spare 5.25-inch drive bay available, such as with many tower-type designs, you can fit the CRW8824S drive in addition to the computer’s existing CD-ROM drive.
  • Page 22 Power down your computer and unplug it from the AC outlet. If you proceed without doing this, you run the risk of receiving an electric shock and/or short-circuiting and damaging components including the CRW8824S drive. Remove the outer casing of the computer. If you need to remove screws in the process, make sure you don’t lose them.
  • Page 23 Touch a metal part of the computer’s chassis or power supply unit to drain any static charge that may have built up inside your body. Drain any static charge You can permanently damage equipment if you touch it while there is any static charge in your body.
  • Page 24 Leave enough room behind the drive for connecting the power, SCSI and audio cables. Then tighten the four fastening screws on the sides of the unit by hand to hold the drive in place. About SCSI adapter card termination To connect internally-mounted SCSI devices, the SCSI adapter card’s on-board internal SCSI termination must be switched ON.
  • Page 25 Connect one end of the 50-pin SCSI flat cable to the computer’s SCSI adapter card. Align the red line of the cable with Pin 1 of the card’s SCSI connector. Next, connect a free 50-pin connector on the SCSI flat cable to the back of the CRW8824S drive such that the red line on the cable is aligned with pin 1, marked “SCSI INTERFACE CONNECTOR 1.”...
  • Page 26 Connect the audio cable between the CRW8824S drive and the computer’s sound card, or the motherboard’s audio connector if it has built-in audio. One end of the audio cable has two connectors: a vertically-mounted type (PH) and a horizontally-mounted type (MPC). Choose one that matches your sound card’s connector.
  • Page 27 Connect a 4-pin power cable to the power supply connector of the CRW8824S marked “DC INPUT.” There may be more than one 4-pin power cable available. Any may be used. These connectors are D-shaped so it is only possible to connect the power cables the correct way round.
  • Page 28 ) Attach the outer casing of the computer and any screws that were removed. ! Reconnect the computer to the AC outlet and power it up. When you power up the computer, make sure both LEDs on the panel of the CRW8824S light up together for brief moment.
  • Page 29 For Windows 2000, double-click System in the Control Panel, select the Hardware tab, and click the Device Manager button in System Properties. # Double-click “YAMAHA CRW8824S” listed under “CDROM” (in Windows 95/98/98SE) and click the Settings tab. Check the “Sync data transfer”...
  • Page 30 The existing CD-ROM drive in the computer is assumed to be an IDE-type. 1 Power down your computer and unplug it from the AC outlet. If you proceed without doing this, you run the risk of receiving an electric shock and/or short-circuiting and damaging components including the CRW8824S drive.
  • Page 31 3 Touch a metal part of the computer’s chassis or power supply unit to drain any static charge that may have built up inside your body. You can permanently damage equipment if you touch it while there is any static charge in your body. 4 Disconnect all the cables connected to the rear of the existing CD-ROM drive, and also disconnect the audio cable from the sound card or motherboard’s audio connector.
  • Page 32 5 Remove the four screws holding the CD-ROM drive in place, then slide the drive forward and out from the drive bay. Slide the CRW8824S drive backwards into the now-vacant bay without applying excessive force. CD-ROM drive 6 Leave enough room behind the drive for connecting the power, SCSI and audio cables.
  • Page 33 About SCSI adapter card termination To connect internally-mounted SCSI devices, the SCSI adapter card’s on- board internal SCSI termination must be switched ON. With most cards, this is done automatically. If your SCSI adapter card requires that you manually disable internal termination, refer to the documentation that came with it. 7 Connect one end of the 50-pin SCSI flat cable to the computer’s SCSI adapter card.
  • Page 34 8 Connect the audio cable between the CRW8824S drive and the computer’s sound card, or the motherboard’s audio connector if it has built-in audio. One end of the audio cable has two connectors: a vertically-mounted type (PH) and a horizontally-mounted type (MPC). Choose one that matches your sound card’s connector.
  • Page 35 9 Connect the 4-pin power cable to the power supply connector of the CRW8824S marked “DC Input.” There may be more than one 4-pin power cable available. Any may be used. These connectors are D-shaped so it is only possible to connect the power cables the correct way round.
  • Page 36 ! Attach the outer casing of the computer and any screws that were removed. @ Reconnect the computer to the AC outlet and power it up. When you power up the computer, make sure both LEDs on the panel of the CRW8824S light up together for brief moment.
  • Page 37 For Windows 2000, double-click System in the Control Panel, select the Hardware tab, and click the Device Manager button in System Properties. Double-click “YAMAHA CRW8824S” listed under “CDROM” (in Windows 95/98/98SE) and click the Settings tab. Check the “Sync data transfer”...
  • Page 38 This section explains how to operate the CRW8824S drive after you have installed it. Make sure the computer is powered up. Press the Eject button on the CRW8824S drive’s front panel. Place the disc onto the tray with its label or printing facing upward. Press the Eject button to close the tray.
  • Page 39 It may not be possible to eject the disc tray while a disc is being read or in other situations, depending on the SCSI command. Only remove the disc after the disc tray has opened fully. Otherwise, you risk damaging the drive or the disc. If the disc tray fails to open for some reason, such as a power outage, it can be opened manually.
  • Page 40 Please also refer to the YAMAHA CD-R/RW Drives web site for more information. YAMAHA CD-R/RW Drives web site URL: http://www.yamaha.co.jp/english/product/computer/ http://www.yamaha-yste.com/ (Europe) The drive does not power up. Is the 4-pin power cable from the computer’s power supply attached correctly? The computer does not start up.
  • Page 41 Is the drive’s SCSI ID number the same as that of another device on the SCSI chain? ( P. 10) Are the pins and holes on the SCSI connectors straight and not deformed? Check the connectors. Is the terminator on the CRW8824S drive set correctly? It should be set to ON only if it is the last device on the SCSI chain.
  • Page 42 CDs, CD-ROMs and blank CD-R/RW discs (the ON/DISC LED remains lit in orange after any discs have been inserted), you should contact your nearest Yamaha dealer. Errors occur when backing up at 6X or 8X speed from a separate CD-ROM drive to the CRW8824S drive.
  • Page 43 This mode is used when writing a complete disc in a single pass without pausing. Data cannot be added later, even if the full capacity of the blank disc has not been used. Example: General CD-ROM Session 1 Lead-in Example: Audio CD Audio Audio Audio...
  • Page 44 As a writing method that combines the advantages of the above-mentioned “Disc- at-Once” and “Track-at-Once,” you can combine multiple tracks into one session and write them, and then add additional data. For example, this is the writing method used to create a CD EXTRA format CD. The music tracks will be recorded in the first session, and the data will be recorded in the second session.
  • Page 45 (Europe) The most recent user support information, including firmware updates, can be found in the CD-R area of Yamaha’s web site. Please check this information regularly. The firmware is completely unrelated to the CD writing application software. Go to Control Panel | System | Device Manager tab, double-click on CDROM, then double-click on YAMAHA CRW8824S.
  • Page 46 Status Power on (reset) Ready (no disc) Loading disc Ejecting disc Ready (disc loaded) Seeking Preparing to write Writing Writing (test mode) Reading Lit: Orange Blinking: Orange Lit: Green Blinking: Green ON/DISC LED READ/WRITE LED —: Off...
  • Page 47 Supported Formats CD-DA CD-G CD TEXT CD-ROM (*1) Mixed Mode CD-ROM (CD-ROM+CD-DA) CD-ROM XA (*1) Photo CD (*1) Video CD CD-i CD EXTRA *1: includes multisession *2: suitable disc required Note) Excludes ADPCM Encode/Decode & Video Encode/Decode functions Writing Methods Writing/Reading Speed Writing Reading...
  • Page 48 Data Buffer Size Average Random Access Time Sector Size Interface Installing style Disc Loading Type Audio Out Power Consumption Power Supply Operating Environment Dimension Weight The CRW8824S series complies with the following specifications Compliance Specifications Country / Region Category Safety Canada Safety Safety...
  • Page 49: Loading A Disc

    Symbols 4-pin power cable ... 19, 27 Active Desktop ... 34 additional drive ... 13 audio cable ... 18, 26 AUDIO OUT ... 7 BIOS ... 32 block size ... 7, 12 Buffer Underrun ... 34 CD-DA ... 5 CD-R discs ... 4 CD-RW discs ...
  • Page 50 If you have any questions, please contact your dealer or one of the following companies. Pour plus de détails sur les produits, veuillez vous adresser à Yamaha ou au distributeur le plus proche figurant dans la liste suivante : Bei weiteren Fragen wenden Sie sich Sitte an Ihren Händler oder eine der folgenden Firmen.
