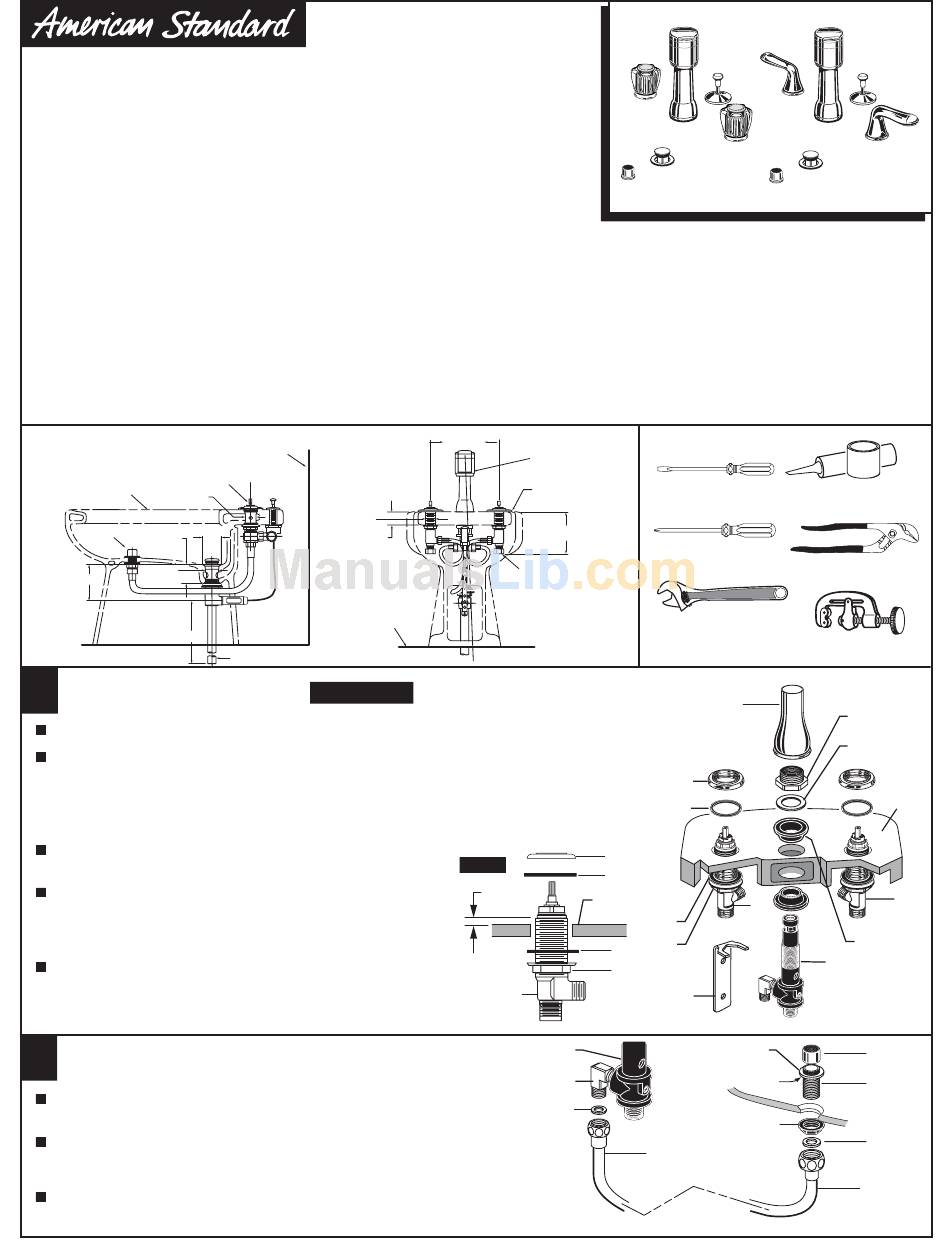

COLONY/COLONY SOFT
Bidet Faucet and Transfer Valve
with SpeedConnect™ Drain
Congratulations on purchasing your American
Standard faucet with Speed Connect drain, a
feature found only on American Standard faucets.
SpeedConnect Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the SpeedConnect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Roughing-in Dimensions
TRANSFER VALVE
(FOR FLUSHING
RIM OR SPRAY)
BIDET OUTLINE
IS SYMBOLIC
7/8 DIA.
DOUCHE
ADJ. 1-1/4
2-1/8
SPRAY
DIA.
TO 2-1/4
1-3/8
3-7/8
DIA.
5-1/2
1
BIDET FAUCET INSTALLATION
Place RUBBER RING (10) into ADAPTER (4).
Install LOCKNUT (1) and RUBBER WASHER (2) onto VALVE BODIES (3, 3a). From
under side of mounting surface, install VALVE BODY (3, 3a) through valve mounting
holes. Threads of VALVE BODY (3, 3a) should extent at least 5/16 of a inch above
mounting surface top. Fig. A. Thread ADAPTER (4) onto VALVE BODIES (3, 3a)
until snug against internal stop. If necessary, adjust LOCKNUT (1).
Tighten LOCKNUTS (1) with WRENCH (5) (supplied)
to secure VALVE BODIES (3, 3a).
Remove MOUNTING NUT (6), WASHER (7) and
UPPER GASKET (8) from TRANSFER VALVE (9).
Insert TRANSFER VALVE (9) into the center forward
hole of BIDET.
Replace UPPER GASKET (8) and WASHER (7) . Position
the side threaded outlet rearward and secure MOUNTING
NUT (6). Thread ESCUTCHEON (11) onto TRANSFER
VALVE (9) until it seats against the BIDET LEDGE.
2
SPRAY INSTALLATION
Assemble SPRAY BODY (1) to BIDET. Using putty, seal underside
of SPRAY BODY FLANGE (2) and secure with NUT (3).
Thread SPRAY HOSE (4) with SEAL WASHER (5) to SPRAY BODY (1).
Connect other end of HOSE (4) with SEAL WASHER (6) to side outlet
NIPPLE (7) of the TRANSFER VALVE (8).
Thread SPRAY CAP (9) onto SPRAY BODY (1).
Installation
Instructions
FINISHED
WALL
1-3/16 DIA.
1-1/4 MAX.
FINISHED
FLOOR
1-1/4 O.D. TAILPIECE
CAUTION
3475.301
3475.501
8 TO 12
DIVERTER AND
VACUUM BREAKER
ASSEMBLY
2-1/4
(C)
(H)
DIA.
4-1/4
FOR GROUND JOINT
CONNECTION OR 1/2 "
O.D. SLIP (INLETS)
REAR VIEW WITH
WALL REMOVED
Turn off hot and cold water
supplies before beginning.
Fig. A.
5/16''
MIN.
3, 3a
8
7
6
1
Certified to comply with ANSI A112.18.1
Required tools
Screwdriver
Phillips Screwdriver
Adjustable Wrench
11
4
10
4
10
MOUNTING
3
SURFACE
2
HOT
1
2
1
5
2
PUTTY
3
4
M 9 6 8 7 9 6 R e v. 1 . 1
Plumbers' Putty or
Caulking
Channel Locks
Tubing Cutter
6
7
BIDET
LEDGE
3a
COLD
8
9
9
1
5
4
