COLONY SOFT

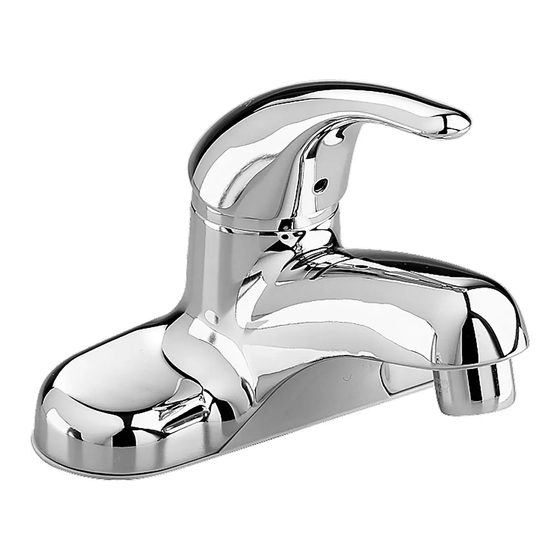

SINGLE CONTROL LAVATORY FAUCET
WITH SPEED CONNECT
Congratulations on purchasing your American Standard faucet
with Speed Connect drain, a feature found only on American
Standard faucets.
Speed Connect
Drain*
®
• 1/3 of the parts, installs in 1/3 of the time
• No tools needed
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Screwdriver
CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
1

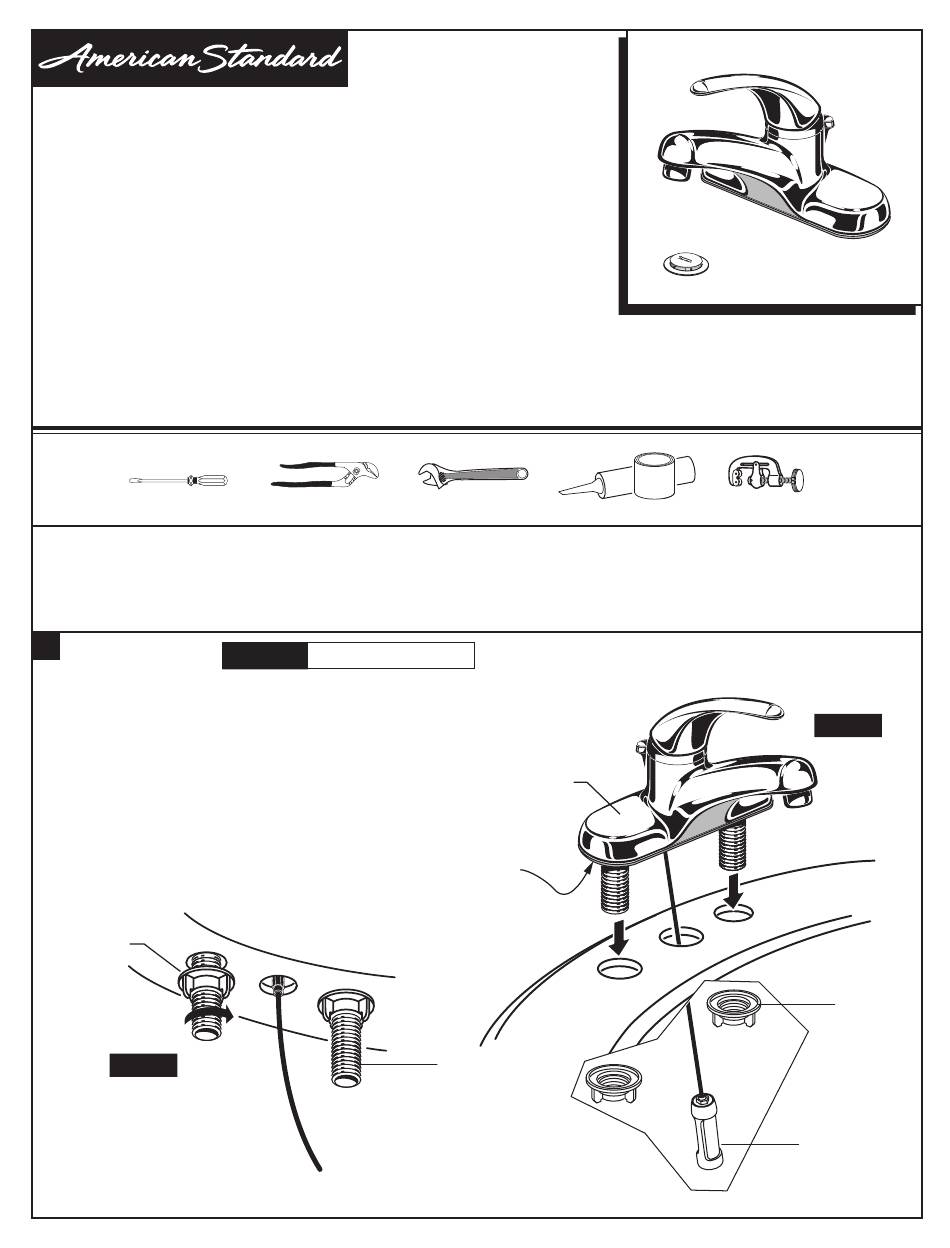

INSTALL FAUCET
• Apply a bead of putty along the edge of the underside of the FAUCET (1).
• Insert FAUCET (1) and CABLE CONNECTOR (2) through center hole
of mounting surface. Fig. A.
• From under side of mounting surface thread the two MOUNTING
NUTS (2) onto FAUCET SHANKS (4). Fig. B.
• Center FAUCET (1) and hand tighten MOUNTING NUTS (3) to
secure FAUCET (1).
3
(HAND TIGHTEN)
Fig. B.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
INSTALLATION
INSTRUCTIONS
DRAIN
®
Channel Locks
Turn off hot and cold water
CAUTION
supplies before begining.
2175.503
Adjustable Wrench
Plumbers' Putty or Caulking
1
PUTTY
4
- 1 -
Certified to comply with ANSI A112.18.1M
Tubing Cutter
Fig. A.
3
2
M968882 Rev. 1.7 (11/17)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for American Standard COLONY SOFT 2175.503
Summary of Contents for American Standard COLONY SOFT 2175.503
- Page 1 • Never needs adjustment • Guaranteed to seal properly the first time, every time. *Your new American Standard faucet is designed to work only with the Speed Connect drain. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
- Page 2 INSTALL POP-UP DRAIN Fig. A. Fig. B. REAR OF • Remove CLEAR PLASTIC COVER (1). Remove SINK CARDBOARD SPACER (2) from under DRAIN POP-UP (3). Fig. A. • Drop DRAIN BODY (4) through sink drain hole. Make sure WHITE FOAM GASKET (5) is under flange of DRAIN BODY (4).
- Page 3 ATTACH CABLE CONNECTOR Fig. A. Fig. B. • Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tail piece on pop-up drain is 1-1/4"...
- Page 4 TEST INSTALLED FITTING • With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. • Ensure that AERATOR (3) is tightened completely. • Operate HANDLE (1) to allow water flow. CHECK DRAIN CONNECTIONS •...
- Page 5 Speed Connect Drain ® Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...
-
Page 6: Unlocked Mode
STOPPER INSTALLATION PROCEDURE The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed) or “Unlock” Mode (Stopper is removable). Locked Mode: • Look at the Plastic Loop at the bottom of the Stopper and notice that the Fig. -
Page 7: Model Numbers
COLONY SOFT SINGLE CONTROL CENTERSET LAVATORY FAUCET WITH SPEED CONNECT ® DRAIN MODEL NUMBERS 2175.503 M961627-YYY0A HANDLE KIT M907265-0070A PLUG BUTTON 030746-0070A HANDLE SCREW KIT M907301-YYY0A M918506-0070A Replace the “YYY” with CARTRIDGE SCREWS appropriate finish code POLISHED CHROME BRASS M951471-0070A CARTRIDGE M950158-0020A LIFT ROD...
