American Standard Colony Soft 3-Handle Bath/Shower Fitting 3375.302 Specification Sheet

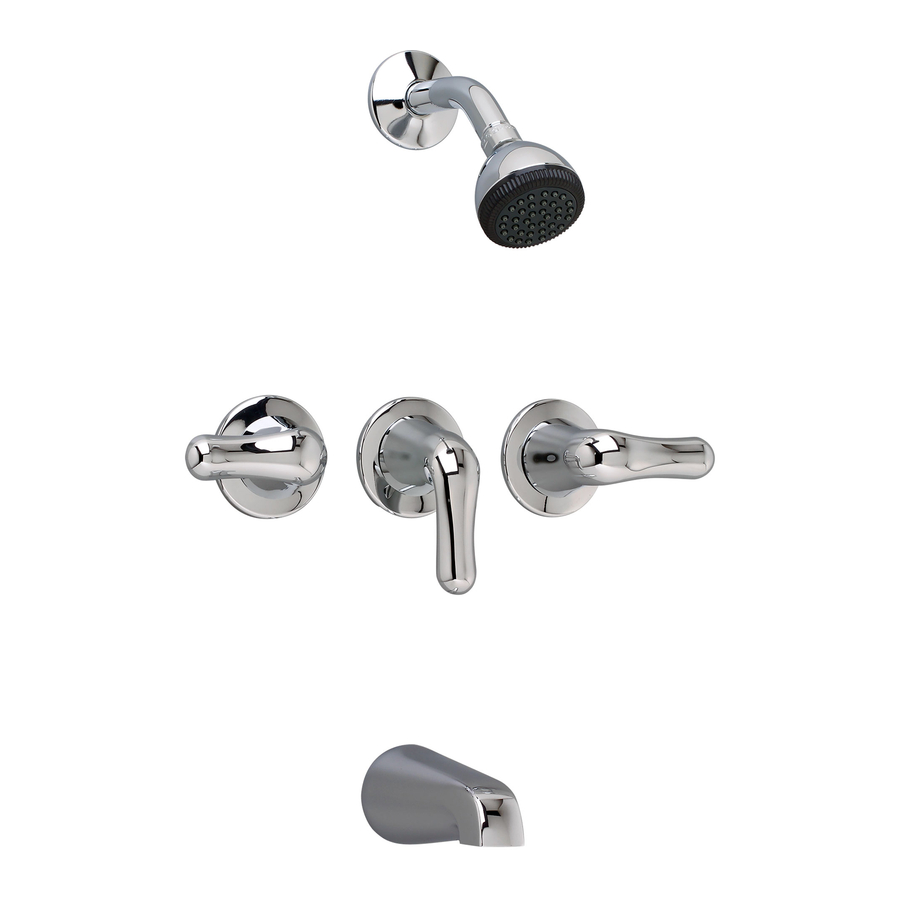

3375.502 Shown
GENERAL DESCRIPTION:
Cast brass valve body on 8 inch centers. 1/4 turn
washerless ceramic disc valve cartridges - reversible for
use with either lever or knob handles. 1/2" N.P.T. female
threaded inlets and outlets. Easy clean showerhead with
2.5 gpm/9.5L/min. flow restrictor.
PRODUCT FEATURES:
Brass Construction:
Durable - Ideal for prolonged
contact with water. Provides the finest surface for
application of all finishes.
Ceramic Disc Valve Cartridges:
of smooth handle operation and drip-free performance.
Integral Unions:
No soldering required.
Exclusive Handle Alignment System:
tuning of handle position.
Choice of Finishes:
Wide range of durable finishes.
Exclusive Plaster Guard:
to test for leaks prior to handle installation.
SUGGESTED SPECIFICATION:
Three handle bath/shower fitting shall feature cast brass construction. Shall also feature 1/4 turn washerless ceramic disc valve
cartridges that are reversible for use with lever or knob handles. Fitting shall be American Standard Model # 3375.___.___.
© 2008 AS America Inc.
Assures a lifetime
Allows fine
Plaster guard can be used

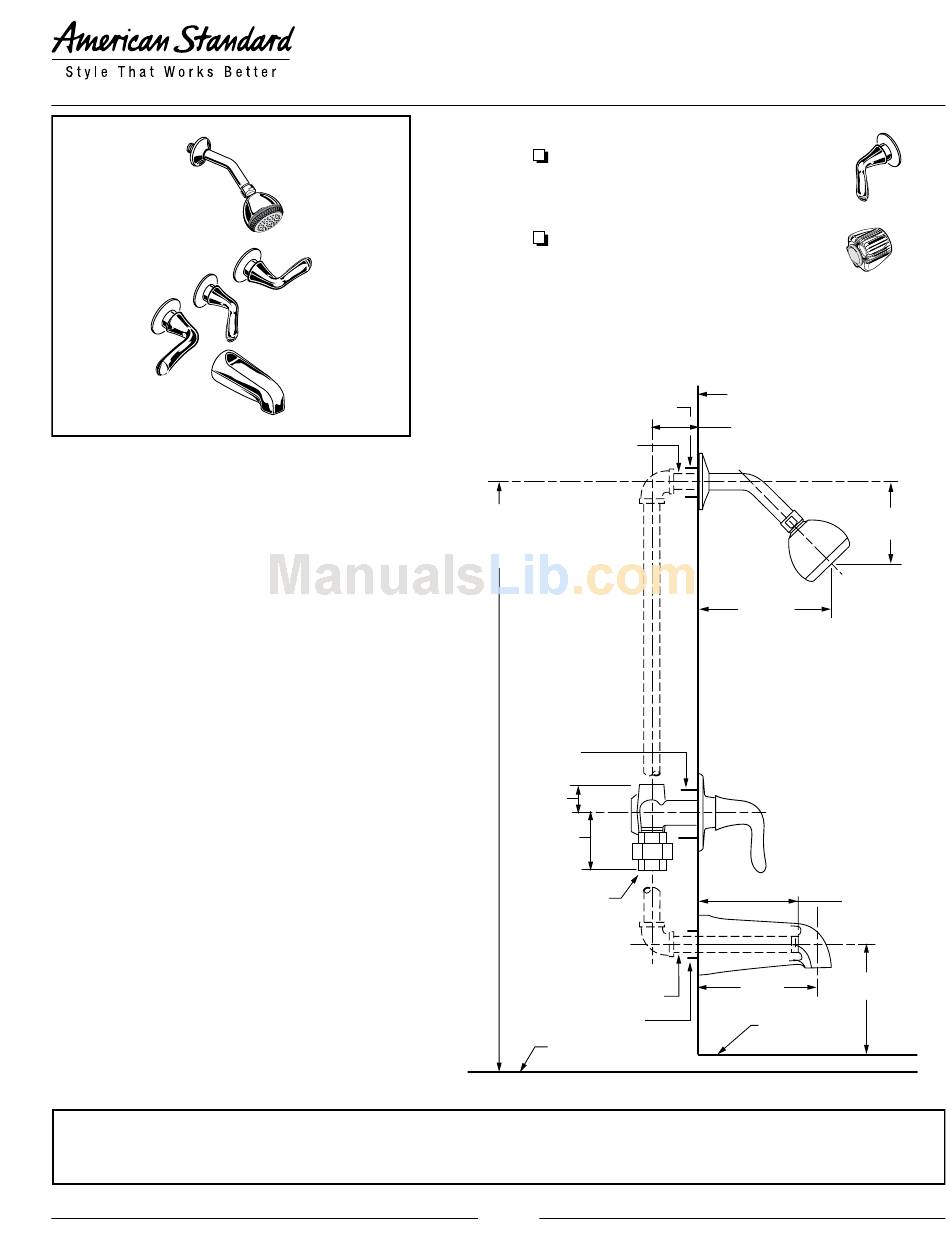

THREE-HANDLE BATH/SHOWER FITTING
MODEL NUMBER:
3375.502 Bath/Shower Fitting
I.P.S. tub spout. Easy Clean showerhead.
Lever handles.
3375.302 Bath/Shower Fitting
I.P.S. tub spout. Easy Clean showerhead.
Acrylic Knob handles.
1-1/4 DIA HOLE
1/2 N.P.T. SHOWER ARM
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN
1651mm - 1981mm
(65" - 78")
(3) 1-3/4 DIA. HOLES
FOR VALVES ON 8"
CENTERS
21.5 mm
(15/16)
44mm
1-3/4)
VALVE INLETS
1/2 N.P.T.F.
1/2 N.P.T. SPOUT NIPPLE
1-1/4 DIA HOLE
BOTTOM OF TUB
B33
COLONY SOFT
FINISHED WALL
25mm MIN. to 51mm MAX.
(1 MIN. to 2 MAX. )
92mm
(3-5/8 REF.)
165mm
(6-1/2 REF.)
102mm
(4 REF.)
102mm
121mm
(4 )
(4-3/4 REF. )
TOP OF TUB RIM
