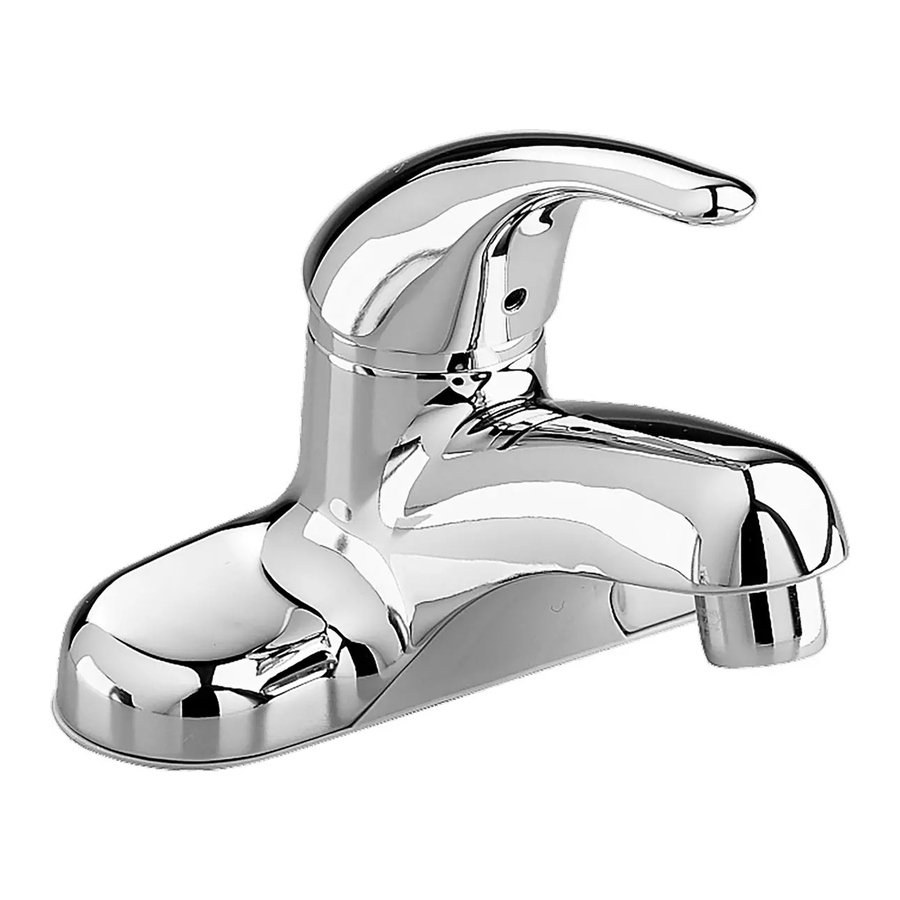

Single Control Lavatory Faucet
with SpeedConnect™ Drain
Congratulations on purchasing your American Standard faucet with
SpeedConnect drain, a feature found only on American Standard faucets.
SpeedConnect Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the SpeedConnect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Required tools
Screwdriver
1

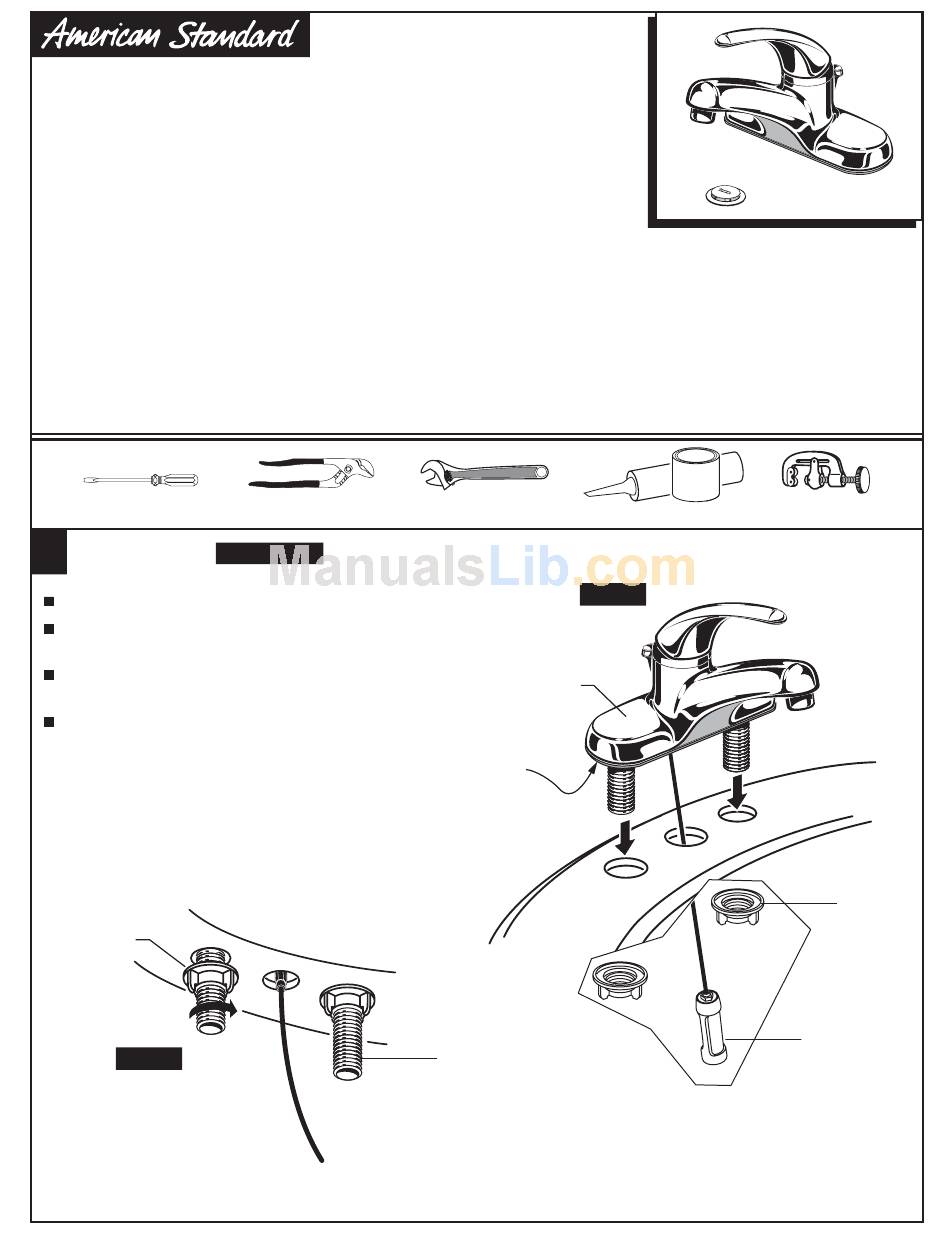

INSTALL FAUCET
Apply a bead of putty along the edge of the underside of the FAUCET (1).
Insert FAUCET (1) and CABLE CONNECTOR (2) through center hole
of mounting surface. Fig. A.
From under side of mounting surface thread the two MOUNTING
NUTS (2) onto FAUCET SHANKS (4). Fig. B.
Center FAUCET (1) and hand tighten MOUNTING NUTS (3) to
secure FAUCET (1).
3
(HAND TIGHTEN)
Fig. B.
Channel Locks
Turn off hot and cold water
CAUTION
supplies before beginning.
Installation
Instructions
2175.502
Adjustable Wrench
Plumbers' Putty or Caulking
Fig. A.
1
PUTTY
4
1
Certified to comply with ANSI A112.18.1
M 9 6 8 8 8 1
Tubing Cutter
3
2
