American Standard COLONY SOFT 4175.503 Specification Sheet

4175.501 Shown
173mm
(6-13/16")

GENERAL DESCRIPTION:

Cast Brass 8-1/2" (218mm) long swivel spout. Metal lever
handle. Washerless 40mm ceramic disc valve cartridge. Cast
brass waterway with 1/2" male inlet shanks. Metal escutcheon
plate (escutcheon size 10-5/16"L x 2-3/8"W). 2.2gpm/8.3L/min.
maximum flow rate.
SUGGESTED SPECIFICATION:
Single control kitchen faucet shall feature cast brass waterway. Shall also feature washerless 40mm ceramic disc valve
cartridge. Cast brass swivel spout. Fitting shall be American Standard Model # 4175.____.____.
© 2008 AS America Inc.
111mm
(4-3/8")
21mm
(13/16)
25mm
(1")MAX.
203mm
(8")
262mm
(10-5/16")
SINGLE CONTROL KITCHEN FAUCET
MODEL NUMBER:
4175.501 Kitchen Faucet
Metal Lever Handle. Separate Handspray.

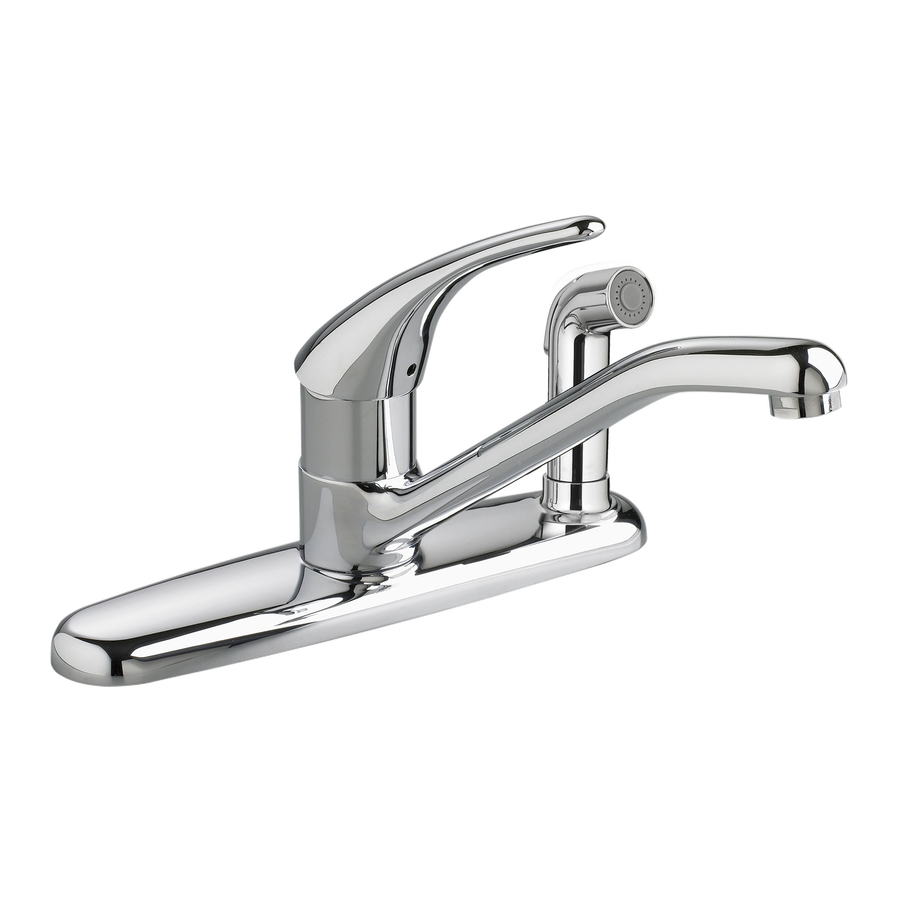

4175.503 Kitchen Faucet
Metal Lever Handle. Handspray through escutcheon.
4175.500 Kitchen Faucet
Metal Lever Handle. Less Handspray.
218mm
(8-1/2")
129mm
(5-1/8")
35mm to 38mm
(1-3/8" to 1-1/2")
DIA. MOUNTING
HOLE (4 PLACES)

PRODUCT FEATURES:

Ceramic Disc Valve Cartridge:
drip-free performance.
Cast Brass Waterways
durable. Integral tabs on casting provide a wobble-free
installation.
Low Lead:
lead requirements.
Memory Position Valving:
and off at preferred temperature setting without readjusting
handle position each time.
Large "Comfort Zone":
temperature.
Simple Installation:
Faucet drops in from top. Quick spin nuts secure faucet in place.
A27
COLONY SOFT
155mm
(6-1/8")
51mm
(2")
Assures a lifetime of
with "City Shanks"
Meets NSF Standard 61/Section 9 & Prop 65
Allows user to turn valve on
Allows easy fine tuning of
Fast and easy one person installation.
105mm
(4-1/8")
:
Strong and
