American Standard 2175.503 Specification Sheet

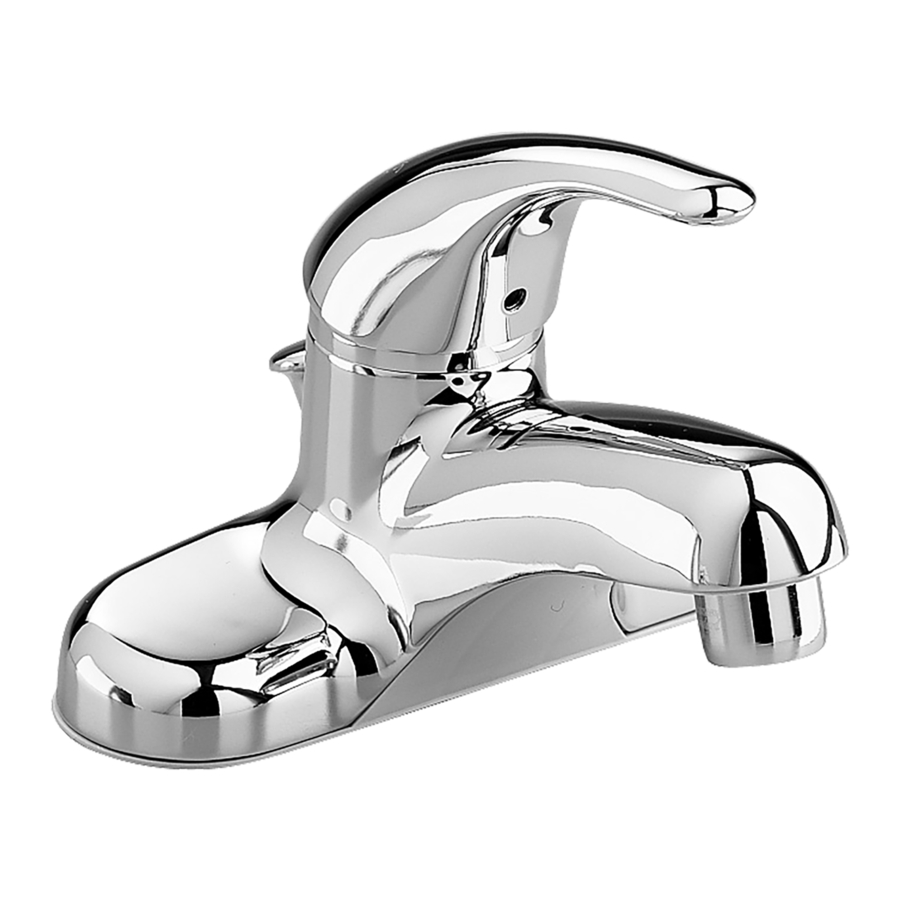

2175.502 Shown.
HOLE
SIZE
29mm
(1-1/8")
153mm
(6-1/16")
GENERAL DESCRIPTION:
Single control lavatroy faucet on 4" centers. Washerless
40mm ceramic disc valve cartridge. Durable cast brass
waterway with 1/2" male threaded brass inlet shanks. Metal
body with color matched underbody. Metal lever handle. 20"
(500mm) long flexible
pre-assembled to faucet body. Metal Speed Connect™ drain
body with 1-1/4 inch (32mm) tail piece, (2175.502). Non-Metallic
Speed Connect™ drain body with 1-1/4 inch (32mm) tail piece,
(2175.503). 2.2 gpm/8.3L/min. maximum flow rate.
SUGGESTED SPECIFICATION:
Single control lavatory fitting shall feature cast brass waterways with 1/2" male inlet shanks. Shall also feature washerless
40mm ceramic disc valve cartridge. Shall also feature a drain body with stainless steel cable actuation. Fitting shall be
American Standard Model # 2175.____.____.
© 2006 American Standard Inc.
102mm
(4")
stainless steel drain cable is
SINGLE CONTROL LAVATORY FAUCET
MODEL NUMBER:
2175.502 Lavatory Faucet
Metal Lever Handle. Metal Speed Connect™
Pop-up drain
2175.503 Lavatory Faucet
Metal Lever Handle. Non-Metallic Speed Connect™
Pop-up drain.
85mm
(3-1/4")
40mm
107mm
(1-9/16")
(4-3/16")
PRODUCT FEATURES:
Cast Brass Waterways
durable. Integral tabs on casting provide a wobble-free
installation.
Ceramic Disc Valve Cartridge:
drip-free performance.
Low Lead:
Meets NSF Standard 61/Section 9 & Prop 65 lead
requirements.
Speed Connect™ Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in tight spaces.
Longer Spout:
Provides extended reach into lavatory.
Simple Installation:
Faucet drops in from top. Quick spin nuts secure faucet in place.
L63
COLONY SOFT
121mm
(4-3/4")
76mm
(3")
41mm
(1-5/8")
25mm
(1")
32mm OD
(1-1/4 OD)
:
with "City Shanks"
Assures a lifetime of
Fast and easy one person installation.
Strong and
