Summary of Contents for Phonak microSavia Art CRT

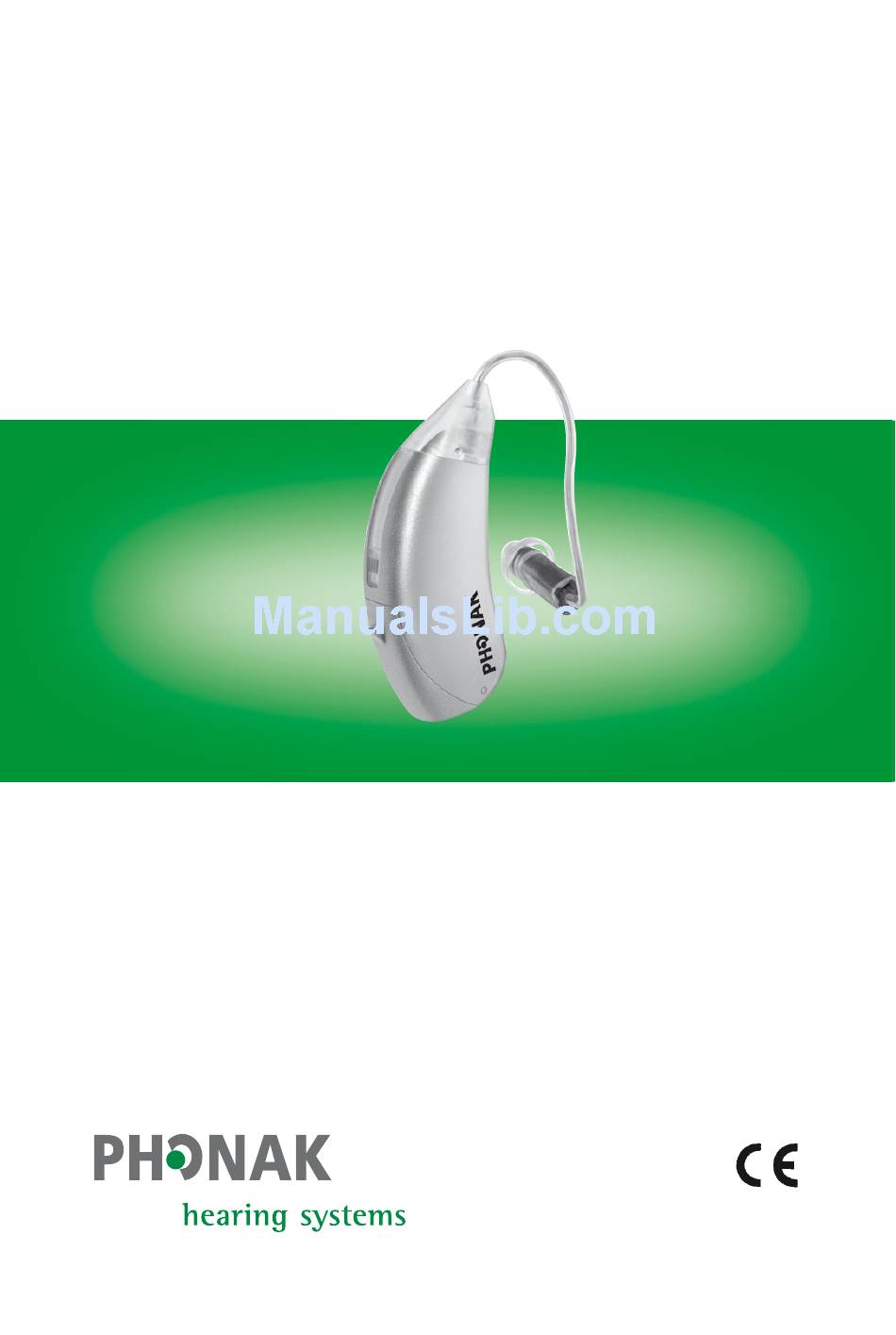

  • Page 1 ™ microSavia Canal Receiver Technology User Guide 0459...
  • Page 3: Table Of Contents

    Preparation Replacing the battery Identifying left and right hearing systems Inserting microSavia Art CRT with xReceiver and Dome into your ear Fine tuning microSavia Art CRT hearing system 14 Operation Switching ON/OFF Remote control (optional) Wireless Systems – MyLink (optional)
  • Page 4: Welcome

    Art CRT is a quality product developed by the Swiss company Phonak, a world leader in hearing technology, innovation and reliability. Please read this manual carefully to benefit from all the features of your new hearing system.
  • Page 5: Description

    Description microSavia Art CRT with xReceiver and Dome for instant fit Microphone inputs with Microphone Protector Battery compartment with ON/OFF switch (2 sizes: 312 standard, 10 option) xReceiver Unit (sound output) Dome Retention...
  • Page 6: Preparation

    Preparation Replacing the battery Using the nail grip, open the battery compartment completely and remove the old battery. Remove the protective foil from the new battery.
  • Page 7 Insert the new battery with the “+” sign (flat side of the battery) in line with the “+” marked on the battery compartment and close it.
  • Page 8 Preparation Replacing the battery Handle the battery compartment with care, and do not use excessive force. If there is any resistance when shutting the compartment, ensure that the battery is inserted correctly. The compartment may not close properly if the battery is upside down, and the instrument will not work.
  • Page 9: Identifying Left And Right Hearing Systems

    Note: Your microSavia Art CRT hearing system offers the unique possibility to be operated either with size 312 (standard) or size 10 batteries (option). Your hearing care professional may modify the devices accordingly. The 312 battery lasts longer and is easier to handle, the 10 battery creates an even small overall instrument size (refer to picture below).
  • Page 10: Inserting Microsavia Art Crt With Xreceiver And Dome Into Your Ear

    Preparation red = right hearing system blue = left hearing system Inserting microSavia Art CRT with xReceiver and Dome into your ear Open domes: Hold the xReceiver Unit where it attaches to the Dome and gently push the Dome into...
  • Page 11 Place the hearing instrument over the top of your ear The Dome should be placed far enough into the ear so that the xReceiver Unit lies flush with your head...
  • Page 12 Preparation Closed domes: The closed dome has a different design than the open dome, refer to picture. The closed dome consists of two fins overlapping each other. Before inserting the closed dome into the ear canal it is important to check the position of these fins.
  • Page 13 Correct position Wrong position Moving the fins...
  • Page 14: Fine Tuning Microsavia Art Crt Hearing System

    This limitation is now overcome by the ability of microSavia Art CRT hearing system to learn from your real life volume adjustments. microSavia Art CRT hearing system offers a unique functionality called “Self Learning”.
  • Page 15: Operation

    Your hearing care professional may have delayed the start-up of your microSavia Art CRT hearing system (9 or 15 seconds once it is switched on), in order to avoid any disturbance when placing it on your ear. The...
  • Page 16 Operation Telecoil (T-coil): Your hearing care professional may have activated a T-coil program in your microSavia Art CRT hearing systems. The programs with T-coil are used with telephones that are compatible with hearing systems or with inductive loop systems (present in some school settings, theatres, churches, etc.) as well as other wireless...
  • Page 17 EasyPhone plus (optional) The EasyPhone plus function enables your microSavia Art CRT hearing system to automatically select your telephone program when the telephone handset is held close to your ear. An acoustic signal confirms the switching. It automatically returns to the previous hearing program when the telephone handset is removed from your ear.
  • Page 18 Operation If you hold the telephone receiver in your right hand when making telephone calls, position the magnet in the upper right half of the receiver. If you hold the telephone receiver in your left hand when making telephone calls, position the magnet in the upper left half of the receiver.
  • Page 19 Use of EasyPhone plus Use the telephone in a normal manner. An acoustic signal indicates the activation of the EasyPhone plus program. At the beginning, you may need to move the handset slightly to find the optimum position for a reliable switching and comfortable hearing. If necessary, move the magnet to another position on the handset to increase your comfort of use.
  • Page 20: Remote Control (Optional)

    Art CRT hearing system: • Volume up • Volume down • Program changes If you wear two microSavia Art CRT hearing instruments, the remote control will simultaneously control both of them. This ensures that their volume remains binaurally balanced.
  • Page 21 WatchPilot2: exclusive and modern, available for women and men, with sporty rubber band or elegant metal band. Also recommended for MyLink users (Wireless System) SoundPilot2: direct access to all functions of your microSavia Art CRT hearing system. Also recommended for MyLink users (Wireless System)
  • Page 22 Operation KeyPilot2: small, easy and convenient. For best results with your KeyPilot or WatchPilot remote control, refer to the photo.
  • Page 23 For detailed information on the use of your remote control, please refer to its user guide. Your hearing care professional can also print an individual description of your hearing programs for you. Do not use your remote control in locations where it is forbidden to use electronic devices, for instance on airplanes.
  • Page 24: Wireless Systems - Mylink (Optional)

    Wireless Systems – MyLink (optional) Your microSavia Art CRT hearing system allows you to fully benefit from the Wireless Systems from Phonak. Wireless Systems greatly improve communication when noise, distance or reverberation is a problem. A Wireless System consists of a transmitter (e.g.
  • Page 25 Using MyLink 1) Wear MyLink around your neck 2) Switch MyLink ON 3) Switch the transmitter ON (e.g. SmartLink SX) by holding it in front of you, from a distance of 20-30 cm (8-12 inches).
  • Page 26 Wireless Systems – MyLink (optional) The transmitter automatically selects the telecoil and microphone program of your microSavia Art CRT so you can hear the voice picked up by the transmitter and the voice picked up by the hearing system’s microphone.
  • Page 27 For SmartLink users: To increase/decrease the volume of the microSavia Art CRT system, press here: Please consult the SmartLink SX or EasyLink User Guide to fully benefit from your Wireless System in all the different use cases. 5) Switch MyLink OFF...
  • Page 28: Maintenance

    Maintenance The wax system on your tube external receiver The external Receiver unit has an exchangeable Cerustop wax system. Only this system shall be used. Contact your hearing care professional for more information.
  • Page 29: Protective Case

    Phonak developed a special protective case to securely store your hearing system, batteries and accessories. Store your microSavia Art CRT hearing system in its protective case when not in use and leave the battery compartment in the OFF position (as described on page 15) to allow any moisture to evaporate.
  • Page 30: Microphone Protector

    Maintenance Microphone Protector Important: The Microphone Protector is an exclusive Phonak system designed to protect the microSavia Art CRT high-tech microphones from dirt. The Microphone Protector can be replaced if needed. Your hearing system should not be used without the Microphone Protector.
  • Page 31: Important Points

    Avoid strong jolts and vibration. 3) Daily cleaning and the use of a drying system is highly recommended. We recommend CleanLine from Phonak to care for your microSavia Art CRT hearing system. Your hearing care professional will gladly advise you. Never use household cleaning products (washing powder, soap, etc.) to clean your...
  • Page 32 Maintenance 4) Hair spray, face creams and make-up can damage your hearing system. Remove the instruments before applying cosmetics. 5) If you experience any soreness or inflammation in or behind your ear, contact your hearing care professional. 6) If your hearing system fails to operate after you have correctly inserted new batteries, contact your hearing care professional for advice.
  • Page 33: Warning

    Warning Hearing systems batteries are toxic when swallowed! Keep them out of reach of children and pets. If batteries are swallowed, please seek the advice of a medical practitioner! Use only hearing systems that have been specially programmed for you by a hearing care professional.
  • Page 34: Service And Warranty

    Damage caused by third parties or non-authorized service centers renders the Phonak warranty null and void. This warranty does not include any services performed by a hearing care professional in his office.
  • Page 36: Phonak Distributors Worldwide

    New Zealand Phonak New Zealand Ltd., Takapuna Auckland 9 Norway Phonak AS, 0105 Oslo Poland Phonak Polska Sp. z o.o., 00-567 Warszawa Spain Phonak Ibérica S.A., 03008 Alicante Sweden Phonak AB, 117 43 Stockholm Switzerland Phonak AG, Phonak Schweiz, 8712 Stäfa...
  • Page 37 Independent A complete list of Phonak distributors general agents: is available at Phonak's Internet site: www.phonak.com. Please visit us or ask your hearing care professional for information. Manufacturer: Phonak AG, Laubisrütistrasse 28 CH-8712 Stäfa, Switzerland...
  • Page 38 The CE symbol is confirmation by Phonak AG that microSavia Art CRT products and accessories meet the requirements of directive 93/42/EEC on medical devices. This symbol indicates that microSavia Art CRT products comply with requirements for a BF type applied part according to EN 60601-1.
  • Page 40 Your hearing care professional: www.phonak.com...
