Summary of Contents for Phonak Audeo P-R Series

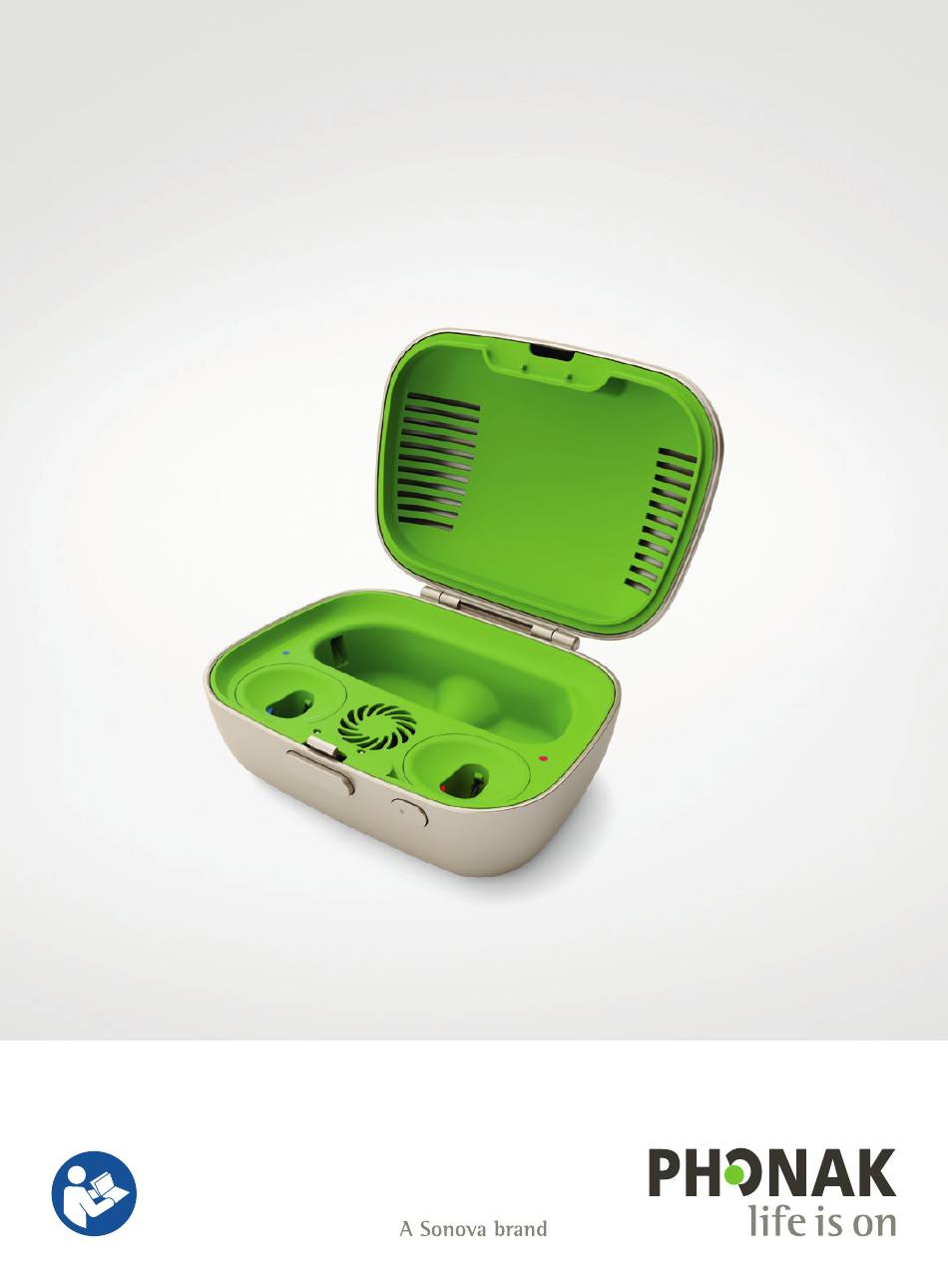

- Page 1 Phonak Charge and Care User Guide Phonak Charge and Care...
- Page 2 This user guide is valid for: Non wireless charging accessory Phonak Charge and Care 2021...
- Page 3 Your Charge and Care details Please also read safety information regarding handling Charge and Care (chapter 10). Device Charge and Care incl. power supply and USB cable (< 3 m) Compatible hearing aid models Audéo P-R (P90/P70/P50/P30) Audéo P-RT (P90/P70/P50/P30) Audéo M-R (M90/M70/M50/M30) Audéo M-RT (M90/M70/M50/M30)
- Page 4 Your Charge and Care has been developed by Phonak – the world leader in hearing solutions based in Zurich, Switzerland. Please read the User Guide carefully to make sure that you understand and get the best out of the Charge and Care.
- Page 5 Contents Your Charge and Care 1. Parts of the Charge and Care Using the Charge and Care 2. Preparing the Charge and Care 3. Charging the hearing aids 4. Cleaning and drying the hearing aids Further information 5. Care and maintenance 6.
- Page 6 1. Parts of the Charge and Care The following pictures show the Charge and Care described in this user guide. Charge and Care Space for earpieces UV-C LED’s Hearing aid charging slots with left/right indicators Push button to start the cleaning and drying process with built-in indicator light...
- Page 7 Accessories USB cable (< 3 m) Power supply with wallplug adapter Power supply specification Power supply output voltage: 5 VDC +/-10%, current 1 A Power supply imput voltage: 100-240 VAC,50/60Hz, current 0,25 A Charge and Care input voltage: 5 VDC +/-10%, current 500 mA USB cable specifications: 5 V min.
- Page 8 2. Preparing the Charge and Care Connecting the power supply a) Plug the power supply into a power outlet. b) Plug the smaller end into the USB port on the Charge and Care. c) Plug the larger end of the charging cable into the power supply.
- Page 9 3. Charging the hearing aids Low power: You will hear two beeps when the battery is low. You will have approximately 60 minutes before you have to charge the hearing aids (this can vary, depending on the hearing aid settings). Before using your hearing aids for the first time, it is recommended to charge them for 3 hours.
- Page 10 Please refer to chapter 2 for how to set up the Charge and Care. Insert the hearing aids into the charging slots. Make sure the left and right hearing aid markings match the left (blue), right (red) indicators next to the charging slots.
- Page 11 Make sure the left and right hearing aid markings match the left (blue), right (red) indicators next to the charging slots.
- Page 12 The indicator light on the hearing aids will show the charging state of the battery until the hearing aids are fully charged. When fully charged the indicator light will remain on, i.e. solid green light. The charging process will automatically stop when the batteries are fully charged, so the hearing aids can be safely left in the charger.
- Page 14 Remove the hearing aids from the charging slots by 1. pulling the hearing aids gently toward yourself and 2. lifting them out of the Charge and Care. Do not hold the tubes to remove the hearing aids from the Charge and Care as this can damage the tubes.
- Page 16 4. Cleaning and drying the hearing aids After placing your hearing aids in the Charge and Care, close the cover and press the push button on the Charge and Care to start the cleaning and drying process. The hearing aids will be •...
- Page 17 Indicator light Cleaning and drying is not Indicator light off running Solid orange Cleaning and drying is running Cleaning and drying has Solid green finished Cleaning and drying cannot Solid red for 3 seconds start, please close the cover...
- Page 18 5. Care and maintenance Diligent and routine care of your Charge and Care contributes to outstanding performance and a long service life. To ensure a long service life, Sonova AG provides a minimum of a five year service period after phase out of the Charge and Care.
- Page 19 Daily Make sure that charging slots and the UV-C LED’s are clean. Never use cleaning agents such as household detergents, soap, etc. for cleaning your Charge and Care. Weekly Remove dust or dirt from the charging slots and UV-C LED’s. Always make sure that the hearing aids and Charge and Care are dry and clean before charging.
- Page 20 6. Service and warranty Local warranty Please ask the hearing care professional where you purchased your Charge and Care about the terms of the local warranty. International warranty Sonova AG offers a one year limited international warranty, valid from the date of purchase. This limited warranty covers manufacturing and material defects in the Charge and Care.
- Page 21 Warranty limitation This warranty does not cover damage from improper handling or care, exposure to chemicals or undue stress. Damage caused by third parties or non-authorized service centers renders the warranty null and void. This warranty does not include any services performed by a hearing care professional in their office.
- Page 22 Hereby Sonova AG declares that this product meets the requirements of the Medical Devices Regulation 2017/745 The full text of the EU Declaration of Conformity can be obtained from the manufacturer or the local Phonak representative whose address can be taken from the list on www.phonak.com/us/en/certificates (Phonak...
- Page 23 Compliance with emission and immunity standards Emission standards EN 60601–1-2:2015 IEC 60601–1-2:2014 EN 55011:2009+A1 CISPR11:2009/AMD1:2010 CISPR22:1997 CISPR32:2012 ISO 7637-2:2011 CISPR25:2016 EN 55025:2017...
- Page 24 Immunity standards EN 60601-1-2:2015 IEC 60601-1-2:2014 EN 61000-4-2:2009 IEC 61000-4-2:2008 EN 61000-4-3:2006+A1+A2 IEC 61000-4-3:2006+A1+A2 EN 61000-4-4:2012 IEC 61000-4-4:2012 EN 61000-4-5:2014 IEC 61000-4-5:2014 EN 61000-4-6:2014 IEC 61000-4-6:2013 EN 61000-4-8:2010 IEC 61000-4-8:2009 EN 61000-4-11:2004 IEC 61000-4-11:2004 IEC 60601-1 (§ 4.10.2):2005 ISO 7637-2:2011...
- Page 25 8. Information and description of symbols With the CE symbol, Sonova AG confirms that this product meets the requirements of the Medical Regulation 2017/745. This symbol indicates that the products described in these user instructions adhere to the requirements for an applied part of Type B of EN 60601-1.
- Page 26 This symbol indicates that it is important for the user to pay attention to the relevant warning notices in this user guide. Important information for handling and product safety. Indicates the manufacturer’s serial number so that a specific medical device can be identified. Indicates the manufacturer’s catalogue number so that the medical device can be identified.
- Page 27 Temperature during transportation and storage: –20° to +60° Celsius (–4° to +140° Fahrenheit). Humidity during storage: 0% to 70%, if not in use. Atmospheric pressure during transportation and storage: 500 hPa to 1060 hPa During transportation keep dry. The symbol with the crossed-out garbage bin is to make you aware that this Charge and Care may not be thrown away as normal household waste.
- Page 28 Symbols applicable to the European power supply only Power supply with double isolation. Device designed for indoor use only. Safety isolating transformer, short circuit proof.
- Page 30 9. Troubleshooting Problem Causes Charging does not start Charge and Care not connected to power supply Hearing aids not inserted correctly into Charge and Care Cleaning and drying Cover not closed when pressing the process does not start push button to start the cleaning and drying process If the problem persists, contact your hearing care professional for assistance.
- Page 31 What to do Connect Charge and Care to power supply (chapter 2) Insert hearing aids correctly into Charge and Care (chapter 3) Close the cover of the Charge and Care and press the push button to start the cleaning and drying process...
- Page 32 10. Important safety information Please read the information on the following pages before using your Charge and Care. Intended use The device is an accessory to a medical device and has no therapeutic or diagnostic use on its own. It is intended to charge rechargeable hearing aids, with additional functionalities for drying and cleaning.
- Page 33 that directly or indirectly led, might have led or might lead to any of the following: a) the death of a patient, user or other person b) the temporary or permanent serious deterioration of a patient’s, user’s or other person’s state of health c) a serious public health threat To report an unexpected operation or event, please contact the manufacturer or a representative.
- Page 34 10.1 Hazard warnings Do not use the Charge and Care in explosive areas (mines or industrial areas with danger of explosions, oxygen rich environments or areas where flammable anesthetics are handled) or where electronic equipment is prohibited. Keep the Charge and Care out of reach of children, individuals with cognitive impairment and pets.
- Page 35 Keep the charging device at least 15 cm (6 inches) away from the active implant. If you experience any interference do not use the charging device and contact the manufacturer of the active implant. Please, note that the interferece can also be caused by powerlines, electrostatic discharge, airport metal detectors etc.
- Page 36 10.2 Information on product safety Protect your Charge and Care from heat (never leave near a window or in the car). Never use a microwave or other heating devices to dry your Charge and Care (due to risk of fire or explosion).
- Page 37 Do not use your Charge and Care in areas where electronic equipment is prohibited. The hearing aids have to be dry before charging. Otherwise the charging reliability cannot be guaranteed.
- Page 38 Notes...
- Page 40 Your hearing care professional: Manufacturer: Sonova AG Laubisrütistrasse 28 CH-8712 Stäfa Switzerland www.phonak.com...
