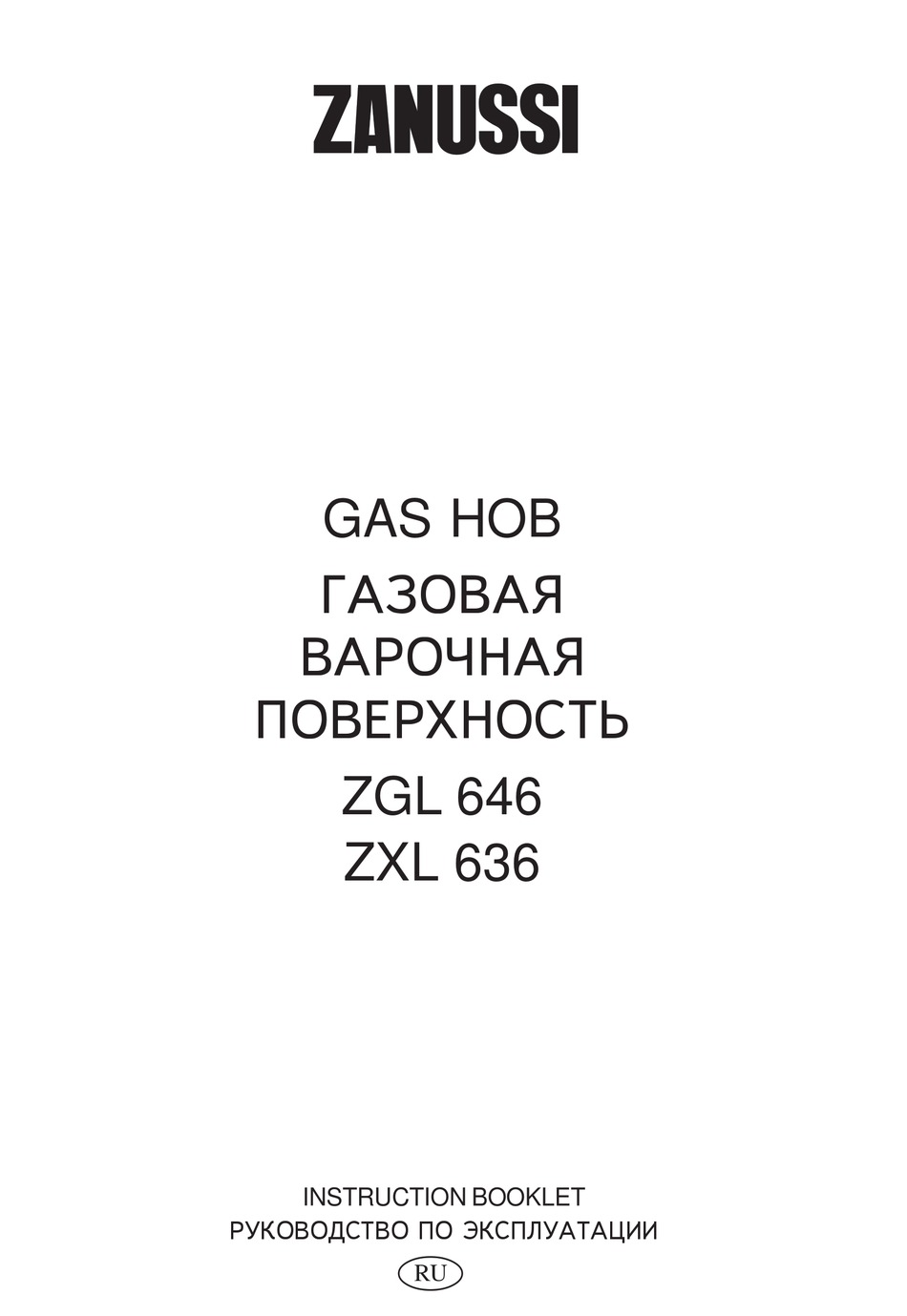

- Page 1 GAS HOB ÃÀÇÎÂÀß ÂÀÐÎ×ÍÀß ÏÎÂÅÐÕÍÎÑÒÜ ZGL 646 ZXL 636 INSTRUCTION BOOKLET ÐÓÊÎÂÎÄÑÒÂÎ ÏÎ ÝÊÑÏËÓÀÒÀÖÈÈ...
-
Page 2: Important Safety Information
English Important Safety Information These warnings are provided in the interest of safety. You read them carefully before MUST installing or using the appliance. About Installation, Cleaning and Manteinance unexperienced persons may cause injury or serious • It is mandatory that all operations required for the malfunctioning. -
Page 3: Table Of Contents
D - Thermocouple to be heated and the safety device to be switched off, otherwise the gas supply would be interrupted (ZGL 646 IT - ZXL 636) . Then, check the flame is regular and adjust it as required. If you cannot light the flame even after several attempts, check the "cap"... -
Page 4: Using The Hob Correctly
Using the hob correctly To ensure maximum burner efficiency, it is strongly Burner minimum maximum recommended that you use only pots and pans with a diameter diameter bottom fitting the size of the burner used, so that flame will not spread beyond the bottom of the vessel. Big (rapid) 160 mm. -
Page 5: Cleaning And Maintenance
Cleaning and Maintenance Disconnect the appliance from the electrical supply, before carrying out any cleaning or manteinance work. General cleaning Wash the enamelled components with warm soapy water. Never use abrasive cleaners. Frequently wash the "caps" and the "crowns" with hot soapy water, carefully taking away any built-up of food. -
Page 6: Technical Data
Technical Data Gas Burners Rating Electric hotplate (ZXL 636) Rapid Burner 3,0 kW (G20) - 2,8 kW (G30/G31) Ø 145 mm. 1,5 kW Semirapid Burner 2,0 kW Auxiliary Burner 1,0 kW Electric Supply Appliance Class 230 V 50 Hz Category II2H3B/P Setting Hob recess dimensions... -
Page 7: Electrical Connection
Electrical Connection The appliance is designed to be connected to 230 V RIGID COPPER PIPE OR monophase electricity supply. FLEXIBLE PIPE IN STAINLESS STEEL The connection must be carried out in compliance with the laws and regulations in force. Before the appliance is connected: 1) check that the main fuse and the domestic installation can support the load (see the rating label);... -
Page 8: Adaptation To Different Types Of Gas
Adaptation to different types of gas Injectors replacement • Remove the pan supports. • Remove the burner's caps and crowns. • With a socket spanner 7 unscrew and remove the injectors (Fig. 7), and replace them with the ones required for the type of gas in use (see table 2). •... -
Page 9: Building In
Building In Mod. ZXL 636 Mod. ZGL 646 These hobs can be inserted in a built-in kitchen unit Dimensions are given in millimeters whose depth is between 550 and 600 mm. The hobs dimensions are shown in the relevant diagram. -
Page 10: Possibilities For Insertion
Possibilities for insertion Kitchen unit with door Kitchen unit with oven Proper arrangements must be taken in designing the The hob recess dimensions must comply the indication forniture unit, in order to avoid any contact with the given in Figs. 12 and 13 and must be provided with bottom of the hob which can be heated when it is brackets to allow a continuous supply of air. -
Page 11: Service And Original Spare Parts
Service and original spare parts This machine, before leaving the factory, has been tested and studied by many experts and specialists, in order to give you the best results. Any repair work which needs to be carried out should be done with the utmost care and attention.
