Summary of Contents for Zanussi ZXE 65 X

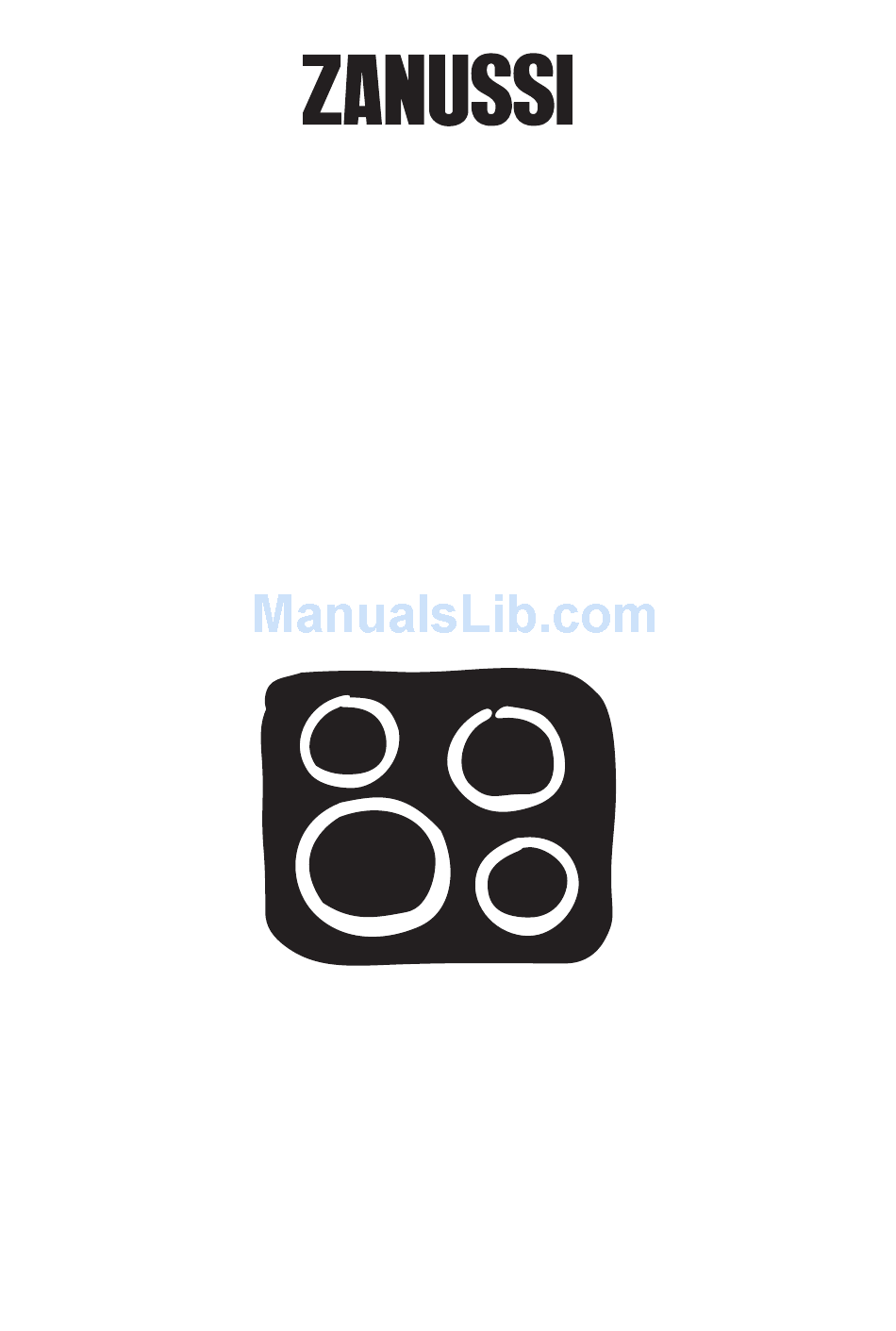

- Page 1 Ceramic glass induction hob ZXE 65 X Installation and Operating Instructions...
-
Page 2: Dear Customer
Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appliance. The following symbols are used in the text: Safety instructions Warning! Notes that concern your personal safety. Important! Notes that show how to avoid damage to the appliance. -
Page 3: Table Of Contents
Contents Operating Instructions ........Safety instructions . -
Page 4: Operating Instructions
Operating Instructions Safety instructions Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty. Correct use • Persons (including children) who, due to their physical, sensory or mental capacity or their inexperience or lack of knowledge are unable to use the appliance safely should not operate this appliance without the supervision or instruction of a responsible person. -
Page 5: Safety During Use
Safety during use • Remove stickers and film from the glass ceramic. • There is the risk of burns from the appliance if used carelessly. • Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware. •... -
Page 6: Description Of The Appliance
Description of the Appliance Cooking surface layout Double ring cooking zone 700/1700 W Induction cooking zone 1400 W Induction cooking zone 2200 W Control panel Single cooking zone 1200 W with power function 3100 W Control panel layout Cooking zone indicators Heat setting selection Power function Timer function... -
Page 7: Touch Control Sensor Fields
Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. Sensor field Function On / Off Switches appliance on and off... -
Page 8: Displays
Displays Display Description Cooking zone is switched off Keep warm setting Keep warm setting is set Heat settings Heat setting is set Automatic warm up func- Automatic warm-up function is acti- tion vated Fault Malfunction has occurred Pan detection Cookware is unsuitable or too small or no cookware has been placed on the cooking zone Residual heat... -
Page 9: Operating The Appliance
Operating the appliance Use the induction cooking zones with suitable cookware. Switching the appliance on and off Control panel Display Pilot light Switch on Touch for 2 seconds lights up Switch off Touch for 1 second / none goes out After switching on, within approx. -
Page 10: Using The Automatic Warm-Up Function
Using the automatic warm-up function All cooking zones are equipped with an automatic warm-up function. The automatic warm-up function sets the cooking zone to the highest setting for a certain period of time and then automatically switches back to the cook- ing setting that was originally set. -
Page 11: Locking/Unlocking The Control Panel
Locking/unlocking the control panel The control panel, with the exception of the “On/Off” sensor field, can be locked at any time in order to prevent the settings being changed e.g. by wiping over the panel with a cloth. Control panel Display Switch on Touch... -
Page 12: Switching The Power Function On And Off
Overriding the child safety device The child safety device can be switched off in this way for a single cooking session; it remains activated afterwards. Step Control panel Display/Signal Switch appliance on Touch for 4 seconds lights up Until the appliance is next switched off, it can used as normal. After switching off the appliance, the child safety device is active again. -
Page 13: Using The Timer
Using the timer Function Condition Outcome after the time has elapsed Automatic cut-out a heat setting is set acoustic signal flashes Cooking zone switch- es off Countdown timer cooking zones not in use acoustic signal flashes If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed. - Page 14 Setting the time Step Control panel Indicator Select cooking Pilot light for the cooking zone selected zone flashes Touch minutes After a few seconds the pilot light flashes more slowly. The time is set. The time counts down. Switching off the timer function Step Control panel Indicator...
-
Page 15: Automatic Switch Off
Switching off the acoustic signal Step Control panel field Acoustic signal Touch Acoustic signal to acknowledge. Acoustic signal stops. Automatic switch off Cooking surface • If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. -
Page 16: Tips On Cooking And Frying
Tips on cooking and frying Information about acrylamides According to the latest scientific research, intensive browning of food, espe- cially in products containing starch, may present a health risk due to acryla- mide. Therefore we recommend cooking at low temperatures and not browning foods too much. -
Page 17: Tips On Energy Saving
Pan size Induction cooking zones adapt automatically to the size of the bottom of the cookware up to a certain limit. However the magnetic part of the bottom of the cookware must have a minimum diameter depending upon the size of the cooking zone. -
Page 18: Examples Of Cooking Applications
Examples of cooking applications The information given in the following table is for guidance only. Heat Cooking set- suitable for Cook time Tips/Hints process ting Residual heat, Off position Keeping Keeping cooked foods food as required Cover warm warm Hollandaise sauce, Melting melting butter, chocolate, 5-25 mins. -
Page 19: Cleaning And Care
Cleaning and care Take care! Risk of burns from residual heat. Important Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Important Residues from cleaning agents will damage the appliance. Re- move residues with water and washing up liquid. Cleaning the appliance after each use 1. -
Page 20: What To Do If
What to do if … Problem Possible cause Remedy The appliance cannot be More than 10 seconds have Switch the appliance on switched on or is not operat- passed since the appliance again. was switched on The lock is switched on Switch off the lock (See the section “Locking/unlocking the control panel”) -
Page 21: Disposal
Problem Possible cause Remedy flashes Unsuitable cookware Use suitable cookware No cookware on the cooking Place cookware on the cook- zone ing zone The diameter of the bottom Move onto a smaller cooking of the cookware is too small zone for the cooking zone Use suitable cookware is lit... -
Page 22: Installation Instructions
Installation Instructions Safety instructions Warning! This must be read! The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed. - Page 23 • If this appliance’s mains cable is damaged, it must be replaced by a spe- cial cable (type H05BB-F Tmax 90°C; or higher). Please contact your local Service Force Center for further advice. A device must be provided in the electrical installation which allows the ap- pliance to be disconnected from the mains at all poles with a contact open- ing width of at least 3 mm Suitable isolation devices include line protecting cut-outs, fuses (screw type...
-
Page 24: Assembly
Assembly... -
Page 27: Rating Plate
Rating Plate ZXE65X 949 592 943 55GADDAAU 230 V 50 Hz Induction 3,6 kW 6,5 kW ZANUSSI... -
Page 28: Guarantee/Customer Service
Guarantee/Customer Service Standard guarantee conditions We, Zanussi-Electrolux, undertake that if within 12 months of the date of the purchase this Zanussi-Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at... -
Page 29: European Guarantee
Ireland +353 1 40 90 753 Long Mile Road Dublin 12 Italia +39 (0) 434 558500 C.so Lino Zanussi, 26 - 33080 Porcia (PN) Latvija +37 17 84 59 34 Kr. Barona iela 130/2, LV-1012, Riga Žirmūnų 67, LT-09001 Vilnius... - Page 30 Vennootsweg 1, 2404 CG - Nederland +31 17 24 68 300 Alphen aan den Rijn Norge +47 81 5 30 222 Risløkkvn. 2 , 0508 Oslo Österreich +43 18 66 400 Herziggasse 9, 1230 Wien Polska +48 22 43 47 300 ul.
-
Page 31: Service And Spare Parts
Customer Care For general enquiries concerning your Za- nussi appliance, or for further information on Zanussi products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.zanussi.co.uk.. - Page 32 867 200 989-M-100108-01 Subject to change without notice...
