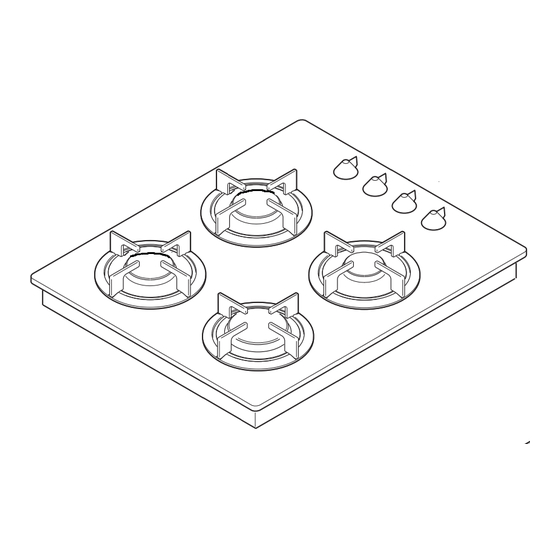

- Page 1 GAS HOBS ZGG 642 ZGG 782 INSTRUCTION BOOKLET Please read this instruction booklet before using the appliance...
-
Page 2: Important Safety Information
Important Safety Information You MUST read these warnings carefully before installing or using the hob. If you need assistance, contact our Customer Care Department on 08705 727727 Installation This appliance must be installed and serviced by a competent person as stated in the Gas Safety ( Installation and Use) Regulations Current Editions and the IEE Wiring Regulations. -
Page 3: Table Of Contents
Contents For the User Important Safety Information Description of the Hob Operation Maintenance and Cleaning Something Not Working? Service and Spare Parts Guarantee/Customer Service European guarantee Environmental Information After installation, please dispose of the packaging with due regard to safety and the environment. When disposing of an old appliance, make it unusable, by cutting off the cable. -
Page 4: Description Of The Hob
Description of the Hob ZGG 642 1. Semi-rapid Burners 2. Rapid Burner 3. Auxiliary Burner 4. Control knobs 1. Semi-rapid Burners 2. Triple crown Burner 3. Auxiliary Burner 4. Control knobs ZGG 782... -
Page 5: Operation
Small (Auxiliary) 80 mm. Using the Wok Stand (only in model ZGG 782) A wok stand is provided to enable you to use a round bottomed wok on the hob. The wok stand must only be used on the central burner, and should not be used with any other type of wok or pan. -
Page 6: Maintenance And Cleaning
After cleaning, be sure to wipe dry with a soft cloth. ZGG 782 The cap and crown of each burner (except for the central burner) are secured with two screws. To separate the two pieces, lift the crown, turn it upside down, then undo the two fixing screws as shown in fig. -
Page 7: Something Not Working
Something Not Working? If the hob is not working correctly, please carry out the following checks before contacting your local Service Force Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 8: Instructions For The Installer
1/100 mm Burner Dia. Tap By-pass 1/100 mm Auxiliary Semi-rapid Ultra-rapid Aeration adjustment none Semi-rapid Burner Heat Input ZGG 782 Auxiliary Burner 680 mm. Heat Input 510 mm. Ultra-rapid Burner (triple crown) Heat Input ZGG 782 Gas supply 560 mm. -
Page 9: Important Safety Requirements
Important safety requirements This hob must be installed in accordance with the Gas Safety (Installation and Use) Regulations (Current Edition) and the IEE Wiring Regulations (Current Edition). For appliances installed in the Republic of Ireland please refer to NSAI- Domestic Gas Installation I.S. 813 Current Editions and the ETCI Rules for Electrical Installations. -
Page 10: Installation
Screw the parts together without using excessive force. FO 0264 Rectangular cut-out size for hob Dimensions are given in mm. ZGG 642 FO 2038 FO 0814 A) End of shaft with nut B) Washer C) Elbow ZGG 782... -
Page 11: Building In
Building In Building over a cupboard or drawer If the hob is to be installed above a cupboard or drawer it will be necessary to fit a heat resistant board below the base of the hob on the underside of the work surface. -
Page 12: Electrical Connections
Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath. ZGG 782 FO 2321 A cut off plug inserted into a 13 amp socket is a seriuos safety (shock) hazard. Ensure that the cut off plug is disposed of safely. -
Page 13: Wiring Diagram
Wiring Diagram 220/240 Brown Fault Finding Preliminary Electrical Systems Check Blue Green START Yellow Isolate appliance and carry out: A: Earth Continuity check. Blue Green Brown Yellow Has inlet fuse blown? Inlet wiring Rectify any A. IGNITOR SWITCH B. IGNITOR UNIT PLUG (with cover removed) Earth Wire... - Page 14 Ignition System / Gas Ignition Ignitor does not spark Check plug top fuse and replace if necessary Check polarity and earth continuity of supply point Check earth continuity of appliance Check continuity from 'N' on the mains connector block and "O" on the ignitor unit Check continuity from 'L' on the mains connector block and the...
-
Page 15: Commissioning
Commissioning When the hob has been fully installed it will be necessary to check the minimum flame setting. To do this, follow the procedure below. Turn the gas tap to the MAX position and ignite. Set the gas tap to the MIN flame position then turn the control knob from MIN to MAX several times. -
Page 16: Service And Spare Parts
Standard guarantee conditions We, Zanussi-Electrolux, undertake that if within 12 months of the date of the purchase this Zanussi-Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: ·... -
Page 17: European Guarantee
European guarantee This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications: •... - Page 20 35668-9204 11/06...
