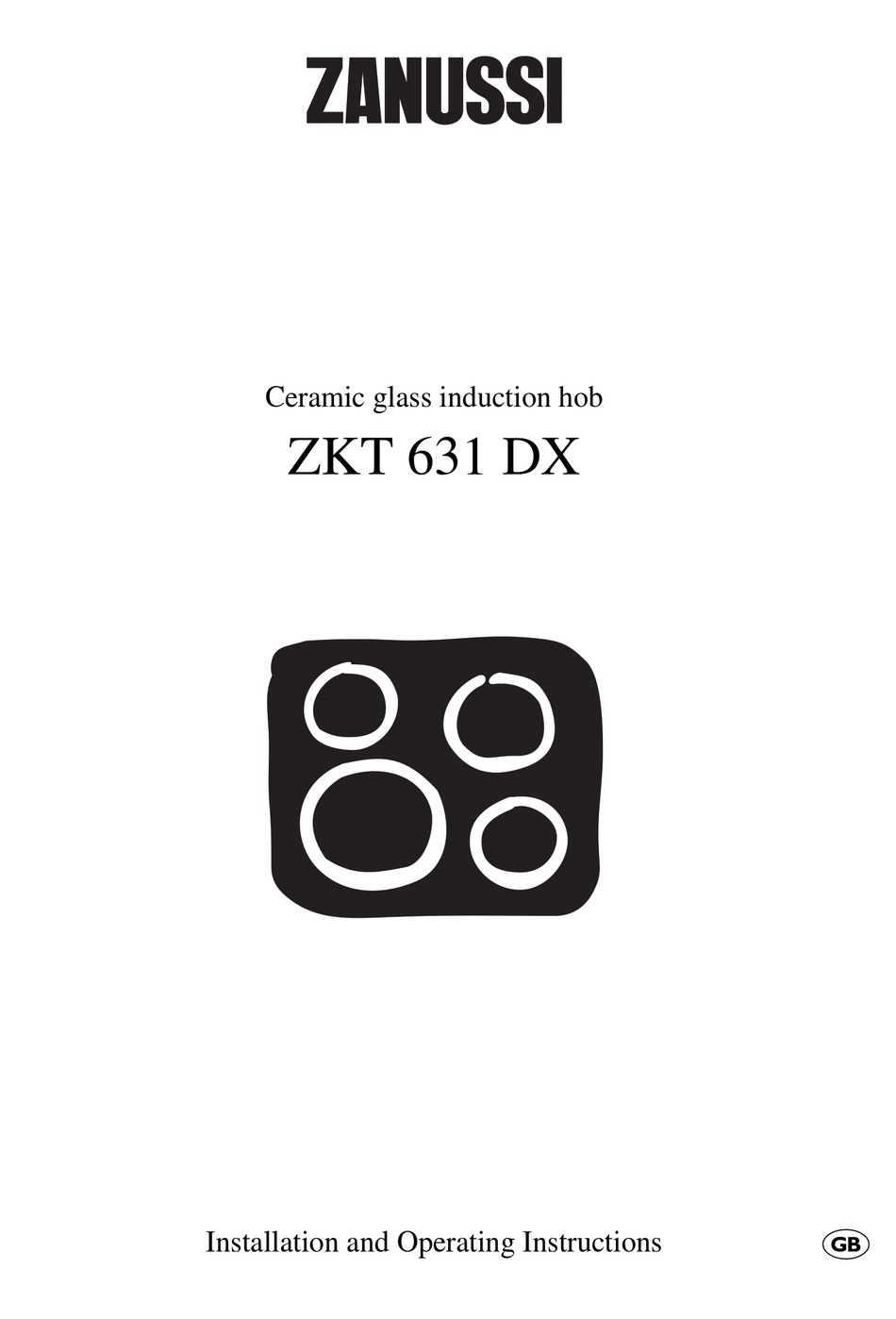

- Page 1 Ceramic glass induction hob ZKT 631 DX Installation and Operating Instructions...
-
Page 2: Dear Customer
Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appliance. The following symbols are used in the text: Safety instructions Warning! Information that affects your per- sonal safety. -
Page 3: Table Of Contents
Contents Operating Instructions ............. Safety instructions . -
Page 4: Operating Instructions
Operating Instructions Safety instructions • Cables from electrical appliances must not touch Please comply with these instructions. If you the hot surface of the appliance or hot cookware. do not, any damage resulting is not covered • Overheated fats and oils can ignite quickly. When by the warranty. -
Page 5: Description Of The Appliance
Description of the Appliance Cooking surface layout Singlecooking zone Double ring cooking zone 1200W 700/1700W Control panel Induction cooking zone 2300W Induction cooking zone 1400W with power function 3200W Control panel layout Heat setting selection Cooking zone indicators Timer function Power function Second ring Timer display... -
Page 6: Touch Control Sensor Fields
Touch Control sensor fields The appliance is operated using Touch Control sen- sor fields. Functions are controlled by touching sen- sor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. Sensor field Function On / Off... -
Page 7: Operating The Appliance
Operating the appliance Use the induction cooking zones with suitable cookware. Switching the appliance on and off Control panel Display Pilot light ¾ Switch on Touch for 2 seconds lights up Switch off Touch for 1 second / none goes out After switching on, within approx. -
Page 8: Using The Automatic Warm-Up Function
Using the automatic warm-up function Step Control panel Display Ç / p Ç Setting the level Ç Place to one side for a moment touch Æ ¿ touch in order to set the desired cooking setting until after 3 seconds All cooking zones are equipped with an automatic warm-up function. -
Page 9: Locking/Unlocking The Control Panel
Locking/unlocking the control panel The control panel, with the exception of the “On/Off” sensor field, can be locked at any time in order to prevent the settings being changed e.g. by wiping over the panel with a cloth. Control panel Display Switch on Touch... -
Page 10: Switching The Power Function On And Off
Overriding the child safety device The child safety device can be released in this way for a single cooking session; it remains activated af- terwards. Step Control panel Display/Signal Switch on the appliance ¾ Touch at the same time / acoustic signal Until the appliance is next switched off, it can used as normal. -
Page 11: Using The Timer
Using the timer All cooking zones can use each use one of the two timer functions at the same time. Function Condition Outcome after the time has elapsed Automatic cut-out a heat setting is set acoustic signal flashes Cooking zone switches off Countdown timer cooking zones not in use acoustic signal... - Page 12 Setting the time Step Control panel field Display Select cooking zone Pilot light of the cooking zone selected flashes 00 to 99 minutes Touch for the cooking zone selected After a few seconds the pilot light flashes more slowly. The time is set. The time counts down.
-
Page 13: Safety Cut-Out
Safety cut-out Cooking surface • If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automatically switches itself off. • If one or more sensor fields are covered for longer than approx. -
Page 14: Tips On Cooking And Frying
Tips on Cooking and Frying Information on acrylamides According to the latest scientific knowledge, intensive browning of food, especially in prod- ucts containing starch, can constitute a health risk due to acrylamides. Therefore we recom- mend cooking at the lowest possible tempera- tures and not browning foods too much. -
Page 15: Tips On Energy Saving
Tips on energy saving Place cookware on the cooking zone before it is switched on. If possible, always place a lid on the cook- ware. Examples of cooking applications The information given in the following table is for guidance only. Heat Cooking- suitable for... -
Page 16: Cleaning And Care
Cleaning and Care Take care! Risk of burns from residual heat. Let the appliance cool down. Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Warning! Residues from cleaning agents will damage the appliance. -
Page 17: What To Do If
What to do if … Problem Possible cause Remedy The cooking zones will not switch More than 10 seconds have passed Switch the appliance on again. on or are not functioning since the appliance was switched The lock is switched on Switch off the lock (See the section “Locking/unlocking the control panel”) - Page 18 If you are unable to remedy the problem by fol- lowing the above suggestions, please contact your dealer or the Customer Care Department. Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.
-
Page 19: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic com- ponents are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its pack-... -
Page 20: Installation Instructions
Installation Instructions Safety instructions Suitable isolation devices include line protecting cut- outs, fuses (screw type fuses are to be removed from The laws, ordinances, directives and standards in the holder), earth leakage trips and contactors. force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified... -
Page 21: Electrical Connection Diagram
Electrical Connection Diagram For UK only: 230V...240V~... -
Page 22: Assembly
Assembly... -
Page 25: Warranty Conditions
• This guarantee relates to you and cannot be trans- ferred to another user. We, Zanussi, undertake that if within 24 months of • Your new home is within the European Community the date of the purchase this Zanussi appliance or (EC) or European Free Trade Area. -
Page 26: Service And Spare Parts
Customer Care For general enquiries concerning your Zanussi appli- ance, or for further information on Zanussi products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.zanussi.co.uk.. -
