Harbor Breeze 80202 Installation Manual

Bath ventilator with light
Hide thumbs

Advertisement

Table of Contents

I
n
s
t
a
l
l
a
t
i
o
n
G
u
i
d
e

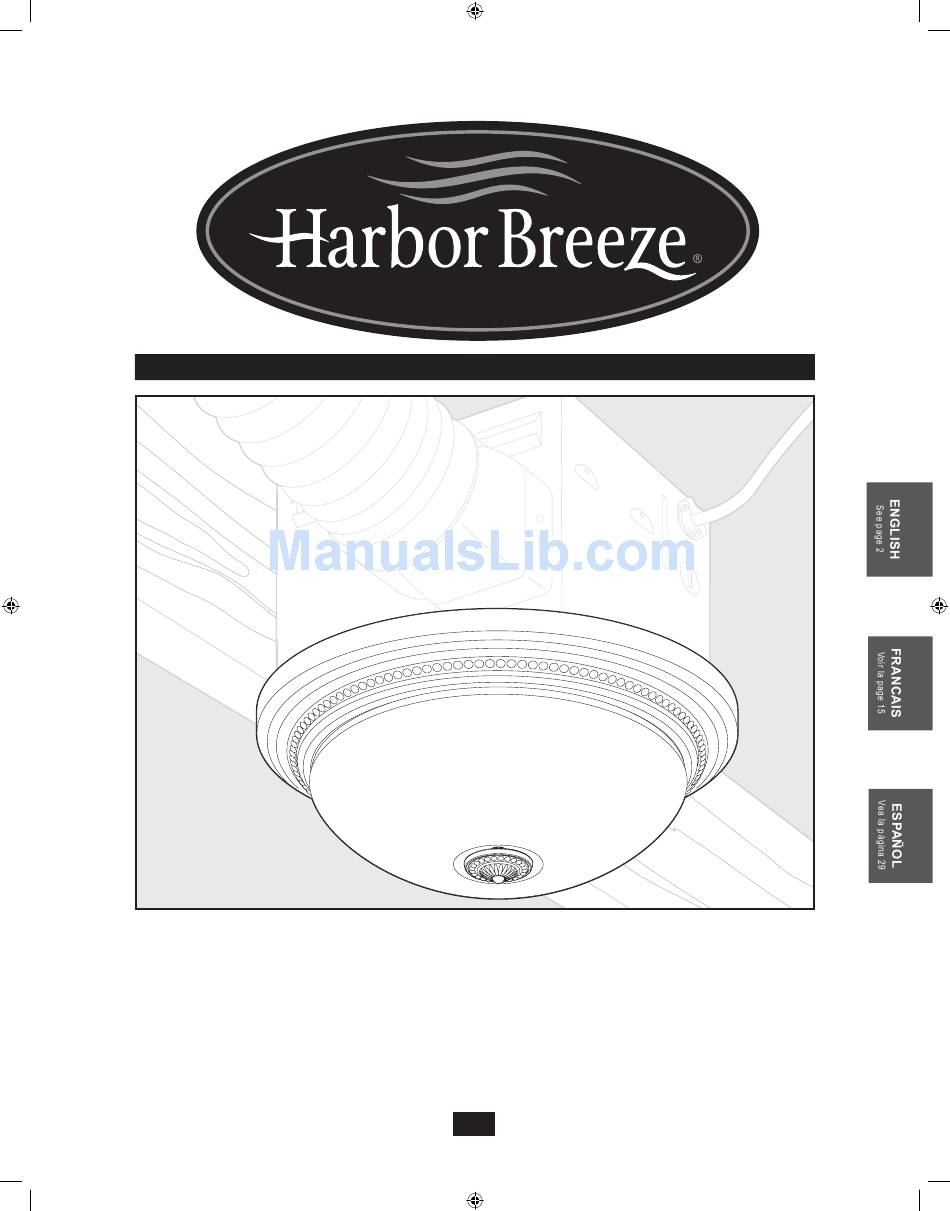

80202
Bath Ventilator with Light
READ and SAVE THESE INSTRUCTIONS
1
42940-01 02/06/2008
42940-01_2.6.08_Arial.indd 1
2/6/08 2:30:30 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80202 and is the answer not in the manual?

Questions and answers

Related Manuals for Harbor Breeze 80202

Summary of Contents for Harbor Breeze 80202

  • Page 1 80202 Bath Ventilator with Light READ and SAVE THESE INSTRUCTIONS 42940-01 02/06/2008 42940-01_2.6.08_Arial.indd 1 2/6/08 2:30:30 PM...

  • Page 2: Preventative Maintenance

    TO REDUCE THE RISK Of fIRE, ELECTRIC SHOCK, OR INJURY TO pERSONS, OBSERVE THE fOLLOWING: 1. Use this unit only in a manner intended by the manufacturer. Engineers (ASHRAE), and the local code authorities. If you have questions, contact the manufacturer. 5.

  • Page 3: Before Installation

    Check all the parts. 95047-03-000 If damaged, call Housing 1-866-405-3814 75864-02-000 for replacements. 03242-07-133 Wiring Cover Wiring Cover Screw 95261-02-000 Motor/Blower 74508-03-133 Screws 77522-01 Strain Relief Bracket 3/8 in. Cable Connector 65219 Strain Relief Bracket Screw 96397-01-214 Light Fixture 75184-01-133 Thumbscrews Extra Screws Glass Dome...
  • Page 4 Remove the motor/blower from the housing. Remove packing material. Remove the pre-loaded screw tip covers. Back out the pre-loaded screw tips until flush with the side of the housing. Remove the wiring cover screw. Remove the wiring cover. 42940-01 02/06/2008 42940-01_2.6.08_Arial.indd 4 2/6/08 2:30:35 PM...

  • Page 5: New Construction

    Pop out the first wiring access slug. Use second if needed. Insert the strain relief (not included) into the housing and secure with washer. Choose Installation Option For New Construction - go to step A1, page 5 For Existing Construction - go to step B1, page 8 New Construction position the correct depth mark at the bottom edge of the Screw pre-loaded screws into joist or framing.
  • Page 6 Route wires through the strain relief. for supply connection, use wires suitable for at least 90º C (194º f). Ground Black Green 2 Pin Bare Copper White Black Main Switch 1 (AC In) Fan Motor White White 3 Pin Black Light Light *Option...
  • Page 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Reinstall the motor/blower by inserting the tabs and pushing Connect wiring harness. DO NOT ALLOW THE MOTOR/ up into position. Make sure the wires are not pinched BLOWER TO HANG fROM THE WIRING HARNESS.

  • Page 8: Existing Construction

    Existing Construction EXISTING FAN Remove an existing fan and check to make sure the opening Move the housing into position above the ceiling. is large enough to accommodate the new motor/blower housing (7 1/4 in. x 7 3/4 in.). Route wires through the strain relief. for supply connection, Attach existing ducting to duct connector.
  • Page 9 Ground Black Green 2 Pin Bare Copper White Black Main Switch 1 (AC In) Fan Motor White White 3 Pin Black Light Light *Option Black Switch 2 (AC In) *Option Fan & Main Light Together Connect wires as shown. Install the wiring cover plate. Connect wiring harness.
  • Page 10 O F F Turn on the power source. Test the motor/blower. If the motor/blower does not run, check the plug connection. Go to step on page 10 to attach grille. Attaching the Grille Remove the thumbscrews. Remove glass dome. 42940-01 02/06/2008 42940-01_2.6.08_Arial.indd 10 2/6/08 2:30:51 PM...
  • Page 11 Connect wiring harness. DO NOT ALLOW THE fIXTURE TO Remove the strain relief bracket screw. HANG fROM THE WIRING HARNESS. position the strain relief bracket under the motor as shown. Insert the strain relief bracket’s dog-leg tab so that it hooks over the lip of the motor. Reinstall the strain relief bracket screw.
  • Page 12 Align glass dome and push up. Install 2 Max 60 Watt A15 bulbs (Not Included). Screw glass dome into position. 42940-01 02/06/2008 42940-01_2.6.08_Arial.indd 12 2/6/08 2:30:57 PM...

  • Page 13: Troublshooting

    Troublshooting problem: Fan does not come on. Solution: • H arbor Breeze Bath Ventilators are extremely quiet. To confirm that the fan is running, place your hand near the vents to feel the air movement. • Turn power on, replace fuse, or reset breaker. • Check all plug connections to be sure they are secure. • Check the wiring to make sure it matches the wiring diagram. problem: Light does not come on.

  • Page 14: Limited Warranty

    ERS OR OTHER PARTS. This warranty is voided if your Harbor Breeze bath exhaust fan is not purchased and installed in the U.S.A. This warranty excludes and does not cover defects, malfunctions or failures of any Harbor Breeze bath exhaust fan which were caused by...
