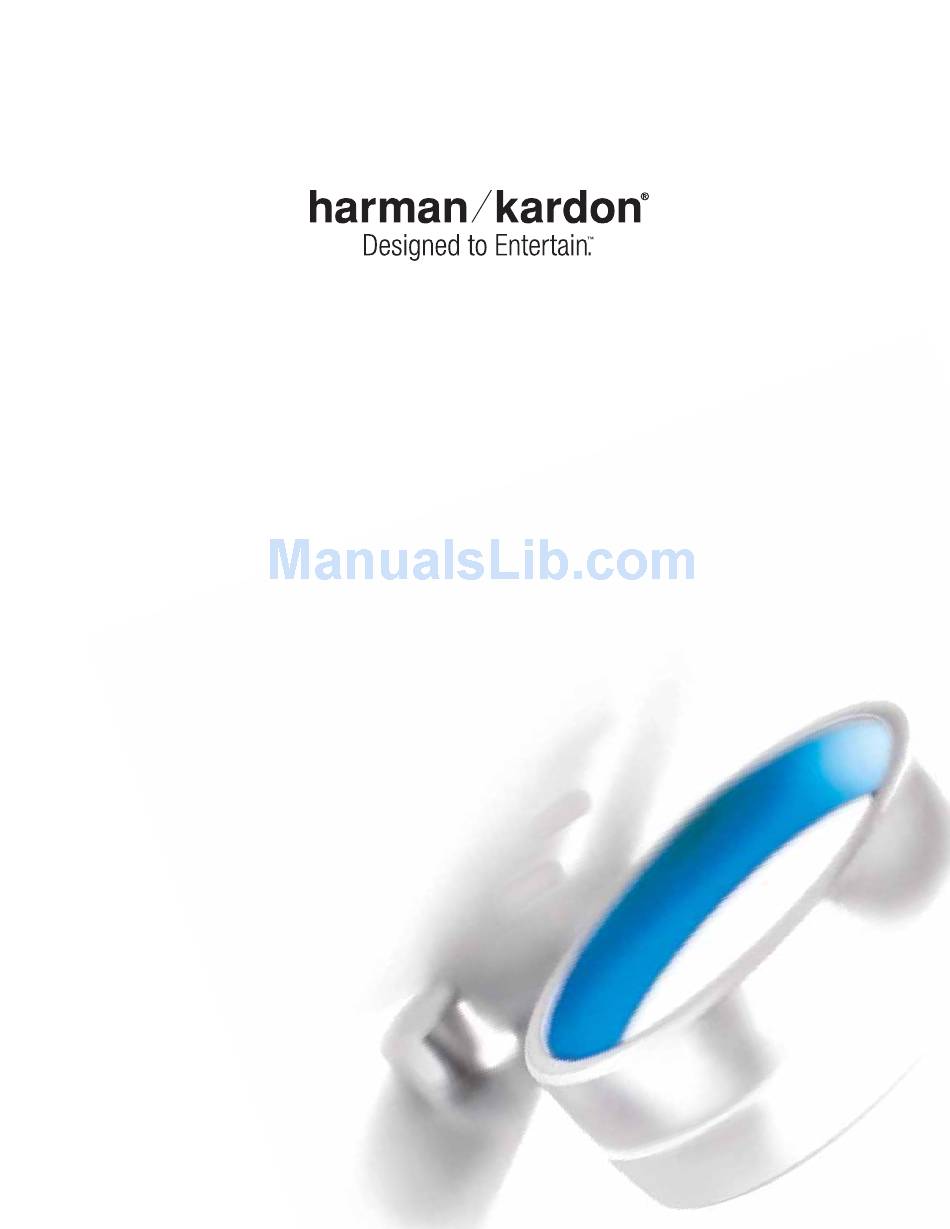

  • Page 1 RCP 5 SYSTEM REMOTE OWNER’S MANUAL (FOR USE WITH CP 55 SYSTEM)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION AND FEATURES REMOTE CONTROL FUNCTIONS BATTERIES PROGRAMMING SOURCES USING EzSET ® ADVANCED FUNCTIONS Punch-Through Programming Macros Resetting the Remote APPENDIX Remote Control Function List Remote Control Product Codes TAPE...

  • Page 3: Introduction And Features

    (or even products that may be released in the future). The single RCP 5 remote replaces the original remotes supplied with the AVR 146 receiver and DVD 38 DVD player. Although the RCP 5 operates both products, along with a host of other products you may have added to your system, this manual describes a few differences from the original remotes.

  • Page 4: Remote Control Functions

    REMOTE CONTROL FUNCTIONS The RCP 5 remote is capable of controlling 11 devices, including the AVR 146 and the DVD 38 included in the CP 55 system. During the installation process, you may program the codes for each of your source components into the remote.
  • Page 5 IR Transmitter Lens Power On Program/EzSet Indicator AVR Selector AM/FM EzSet (SPL) Test Tone Sleep/Audio Select Surround/Title On-Screen Display/Disc Info Channel Level/Disc Menu Digital Input Select/ Drawer Open/Close Tuning Mode/Zoom Direct Station Entry/Angle Tuning Tone Mode/DVD Scan Type ® Surround/A-B Repeat Dolby Surround ®...
  • Page 6 REMOTE CONTROL FUNCTIONS Test Tone: Press this button to activate the test tone for manual output-level calibration. TV/Video/Video Off: This button has no effect on the receiver, but is used to switch video inputs on some video source components. When the DVD player has been selected (by pressing the DVD Input Selector), pressing this button disables the DVD 38’s video output to avoid “burning in”...
  • Page 7 REMOTE CONTROL FUNCTIONS Tuning: Press these buttons to tune a radio station. Depending on whether the tuning mode has been set to Manual or Automatic, each press will either change one frequency step at a time, or seek the next frequency with acceptable signal strength.

  • Page 8: Batteries

    BATTERIES The RCP 5 remote control uses three AAA batteries, which are included. To remove the battery cover located on the back of the remote, firmly press the ridged depression and slide the cover toward the top of the remote.

  • Page 9: Programming Sources

    Programming Sources The RCP 5 remote is capable of controlling not only the receiver and DVD player included in your CP system, but it may also be programmed to control many brands and models of VCRs, CD players, cable boxes, satellite receivers, cassette decks and TVs, as well as an iPod (not included) docked in Harman Kardon’s optional The Bridge.
  • Page 10 If you are unable to locate a code set that correctly operates your source device, it will not be possible to use the RCP 5 remote to control that device. However, you may still connect the source to the AVR 146 and operate it using the device’s original remote control.

  • Page 11: Using Ezset

    Using EzSet This section replaces Step Four in the Initial Setup section of the AVR 146 owner’s guide. An essential step in setting up your multichannel audio/video receiver is calibrating the channel output levels so that they all sound equally loud at the listening position.

  • Page 12: Advanced Functions

    ADVANCED FUNCTIONS The RCP 5 remote control not only operates the AVR 146 and DVD 38, but it also serves as a universal remote that may be programmed to operate many of your other home theater components. The punch- through and macro features add even more flexibility and versatility.

  • Page 13: Resetting The Remote

    It isn’t possible to “edit” a command within a macro. However, you may erase the macro as follows: 1. Simultaneously press and hold the Mute Button and the Macro Button containing the macro until the Program LED flashes. 2. Press the Surround Button to erase the macro. Here are two macros that you may find useful when listening to an iPod docked in The Bridge: The purpose of the first macro is to access the DMP SETTING menu...

  • Page 14: Appendix

    APPENDIX Refer to the numbered buttons in this drawing when using the Function List. Figure 4 – Remote Control Function List Reference 47 48...

  • Page 15: Remote Control Function List

    Table A1 – Remote Control Function List No. Button Name AVR Function DVD 1 Power On Power On Power On 2 Power Off Power Off Power Off 3 Mute Mute Mute (AVR) 4 AVR AVR Select AVR Select 5 DVD/CD DVD Input Select DVD Select CD Input Select CD Select 6 Tape/...
  • Page 16 APPENDIX Table A1 – (continued) No. Button Name AVR Function DVD 39 Tun-M/Zoom Tuning Mode Zoom or Chapter+ 40 9 41 0 42 Memory/Playlist Memory Playlist or Audio 43 Tuning Up Tuning Up Next Chapter 44 Direct/Angle Direct Tuner Entry Angle 45 Clear Clear Clear...
  • Page 17 Refer to Tables A2 through A9 when programming the codes for your components into the remote. Table A2 – Remote Control Product Codes – TV TV Manufacturer/Brand Setup Code Number AIWA A MARK 122 132 ADMIRAL AKAI 123 160 AMPRO ANAM 045 106 109 112 122 122 123 128...
  • Page 18 APPENDIX Table A2 (continued) TV Manufacturer/Brand Setup Code Number TEKNIKA 045 069 115 123 128 132 TELERENT TERA THOMSON 190 191 TOSHIBA 063 129 202 TOTEVISION VIDEO CONCEPTS VIDTECH WARDS 069 128 132 148 YAMAHA 123 128 YORK YUPITERU ZENITH 069 090 ZONDA Table A3 –...
  • Page 19 Table A4 – Remote Control Product Codes – CD CD Manufacturer/Brand Setup Code Number ADCOM 063 069 AIWA 072 111 118 156 170 AKAI 050 177 184 AUDIO TECHNICA AUDIOACCESS AUDIOFILE CALIFORNIA AUDIO CAPETRONIC CARRERA CARVER 136 140 141 143 144 145 185 186 CASIO 117 166 CLARINETTE...
  • Page 20 APPENDIX Table A6 – Remote Control Product Codes – SAT SAT Manufacturer/Brand Setup Code Number ALPHASTAR ALPHASTAR DBS ALPHASTAR DSR BIRDVIEW CHANNEL MASTER 320 321 325 361 CHAPARRAL 315 316 451 CITOH DRAKE 313 317 318 413 481 DX ANTENNA 331 352 379 483 ECHOSTAR 395 397 452 453 463 477 478 484 485...
  • Page 21 Table A8 (continued) CBL Manufacturer/Brand Setup Code Number SCIENTIFIC ATLANTA 183 203 221 222 SEAM SIGNATURE 001 188 SPRUCER 053 081 177 189 STARCOM 002 011 163 STARGATE TANDY TELECAPATION TEXSCAN TIMELESS TOCOM 170 205 UNITED CABLE UNIVERSAL 033 034 039 042 113 VIDEOWAY 124 211 VIEWSTAR...
  • Page 22 NOTES...
  • Page 23 NOTES...
  • Page 24 250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com © 2007 Harman International Industries, Incorporated. All rights reserved. Part No. CQX1A1208Z...
