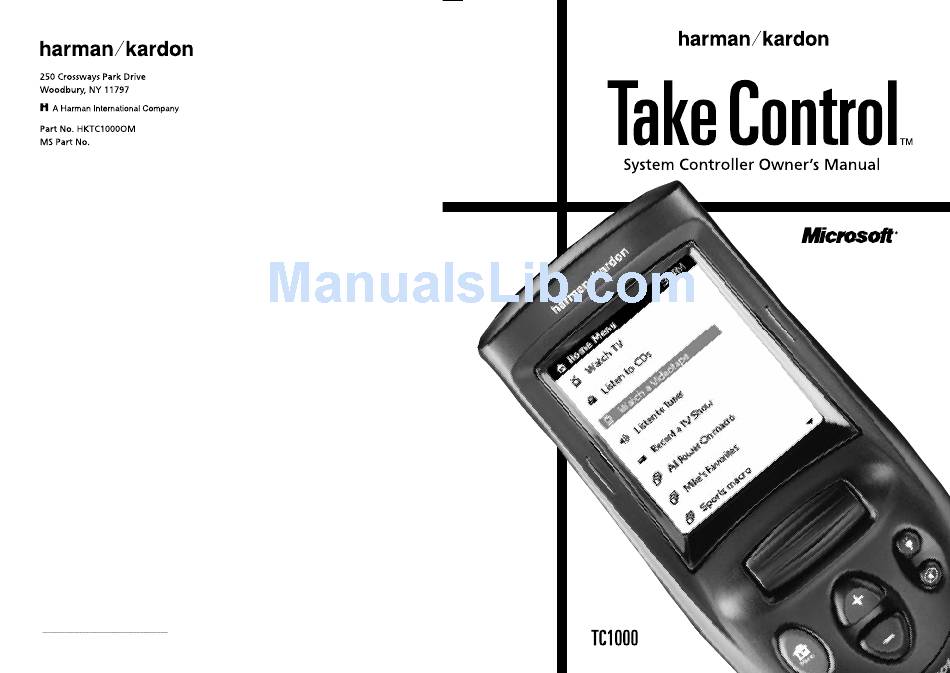

  • Page 1 *X03-76009*...
  • Page 2 Microsoft, MS, Windows, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the U.S.A. and/or other countries. Harman Kardon is a registered trademark of Harman Kardon, Inc. Take Control is a trademark of Harman Kardon, Inc.

  • Page 3: Table Of Contents

    Starting the Software ..........14 Removing the TC1000 Files Copied onto Your Hard Disk ....14 Connecting Take Control to Your Computer .
  • Page 4 Take Control TC1000 ........

  • Page 5: Welcome

    Take Control the capacity to replace them all. Note Despite efforts to make Take Control work with all devices, some IR-controlled products can- not work with the TC1000, due to incompatible frequencies. Introducing Activities Take Control presents you with screen- based “activities,”...

  • Page 6: Take Control Overview

    Take Control Overview Using the Controls Take Control was created with you in mind. Its form and size present an invit- ing design, free of complexity. The physi- cal interface includes natural controls, enabling you to use different electronic devices smoothly, without awkward transitions.
  • Page 7 You only need to learn the IR code for a product if the TC1000 does not list the device category or specific brand name when you use the Setup Wizard.
  • Page 8 TC1000 and a compatible computer. This connec- tion enables your TC1000 to transfer data to your computer, and vice versa. You can use the computer-connector port by sim- ply following the instructions in “Setting Up Take Control with a Computer,”...

  • Page 9: Using The Screens

    Pressing a button on the touch- screen performs the same function as pressing a real button on a conventional remote control. You may select a button by pressing the button on the touchscreen. Note You must press buttons on the touch- screen directly.

  • Page 10: Starting Take Control For The First Time

    Note When replacing batteries, it is recommend- ed that all four be replaced at the same time. To avoid damage, it is recommended that the batteries be removed if the TC1000 will not be used for more than a month. After installing the batteries, you should see a “Welcome”...

  • Page 11: Completing The Setup Wizard

    IR code for your electronic device. To learn the IR code, you need the remote control for your device and the TC1000, either alone or with the software on your computer. Note Despite efforts to make Take Control work...

  • Page 12: Using Take Control

    Using Take Control You can use Take Control for: Selecting activities and operating your IR-controlled devices Viewing the buttons for a device Adding, editing, and removing devices Adjusting your unit’s settings Selecting Activities and Operating Your Devices An activity is an event or action that you perform using your devices.

  • Page 13: Adding, Editing, And Removing Devices

    4 Follow the instructions on the Setup Wizard screen. Note Without a working remote control for your device, Take Control works only with the brands of products listed in the Setup Wizard. Adding a device brand not listed in the...

  • Page 14: Adding And Removing Activities

    To use Take Control with your computer, see “Setting up Take Control with a Computer,” page 14. Adjusting Your Settings You may need to adjust various settings on the TC1000 to ensure optimum per- formance. Adjustable settings include: Touchscreen sensitivity Touchscreen contrast Time adjustment...
  • Page 15 If you can’t lightly touch a menu com- mand or button to make it work, then calibrating the touchscreen may help. To calibrate the touchscreen: 1 On the Home menu, select TC1000 Settings. 2 Select Calibrate touchscreen, and then press the button in each corner of the touchscreen.
  • Page 16 Setting the Time The time display provides you with a quick reference to the time of day. To set the time: 1 On the Home menu, select TC1000 Settings. 2 Select Set time, and then follow the on-screen instructions. Tip When you connect Take Control to your com- puter, the time on Take Control is automatically set to the time on your computer.
  • Page 17 To adjust the display time-out: 1 On the Home menu, select TC1000 Settings. 2 Select Set display time-out, and then follow the on-screen instructions.

  • Page 18: Setting Up Take Control With A Computer

    Note Starting the Take Control software auto- matically installs a minimum set of files onto your hard disk. To remove them, see “Removing the TC1000 Files Copied onto Your Hard Disk.” Starting the software requires use of the TC1000 compact disc.

  • Page 19: Connecting Take Control To Your Computer

    When you connect Take Control to your computer, you can transfer data between the TC1000 and your computer. Transfer- ring data enables the TC1000 to use the configuration changes that you set up with software in your computer—an extremely powerful capability.

  • Page 20: Using Take Control With Your Computer

    When you connect Take Control to your computer, you are prompted to synchro- nize any changes that you made on the unit itself or in the TC1000 software. If you accept, the updated data is trans- ferred between the computer and the TC1000.

  • Page 21: Introducing The Take Control Editor

    Starting the Take Control Editor The Take Control Editor starts every time you insert the TC1000 compact disc into the CD-ROM drive, once you com- plete “Starting Take Control for the First Time,” page 6. Using the Take Control Editor simply requires that you follow the instructions on the screen.

  • Page 22: Customizing Activities

    Notes We recommend that you add a listed device using the TC1000 unit before you add or learn an unlisted device category with the Take Con- trol software. See “Adding, Editing, and Remov- ing Devices,”...

  • Page 23: Working With Macros

    Delay setting, begin- ning with the lowest setting, and then increas- ing it, as needed. See the TC1000 Online User’s Guide for more information. You can add about 30 macros.

  • Page 24: Feature Summary

    This summary identifies features that you can perform directly on your Take Control unit and those that require use of a computer and the Take Control software. Feature Set up the TC1000 Learn IR code from a device's remote control Add a device...

  • Page 25: Troubleshooting

    “Technical Support,” page 29. Cause There may be other IR-con- trolled devices in the room, creating a conflict with the TC1000 IR signal. Solution Turn off or refrain from using other IR-controlled devices. Cause The button on the remote...
  • Page 26 Troubleshooting The learning process times out, and I receive the message “Code not learned. TC1000 timed out waiting for you to press the button.” Cause You didn’t press the button to be learned on your remote control early enough. Solution Press the button to be learned on your remote control earlier.

  • Page 27: Operation

    Online User’s Guide to learn an IR code. It is important that you align the TC1000 properly with the device remote control. If you have followed all suggestions and instructions pre- cisely and still experience a problem, please contact us (see “Technical...
  • Page 28 See “Adding or Deleting a Device,” page 18, or “Completing the Setup Wiz- ard,” page 7. Cause The TC1000 is not pointed at the product you want to control. Solution Point the system controller directly toward the product’s IR sensor.

  • Page 29: Touchscreen

    Solution Ensure that the serial cable is connected properly to both the computer-connector port and the serial port. See “Connecting the TC1000 to Your Computer,” page 15. Touchscreen My backlight, contrast, and time settings are lost. Cause Replacing the batteries or...

  • Page 30: Computer

    Troubleshooting Computer I don't have a serial port available to connect the TC1000 to my computer. Cause Each serial port already has a device connected to it. Solution Disconnect a computer peripheral device from a serial port that you don't use or need, and then remove it from the list of devices in the Windows Device Manager.

  • Page 31: Care Of Your Take Control

    Cleaning Occasional cleaning may be required, depending upon use. To clean your TC1000: 1 Disconnect the TC1000 from your computer, if connected. 2 Dampen a lint-free cloth with water, mild detergent, or rubbing alcohol and wipe the touchscreen, selector wheel, buttons, and outer surfaces clean.

  • Page 32: Replacing The Batteries

    This icon appears when batter- ies reach a level of 3.8 volts. You cannot operate the TC1000 with a Low Battery Warning. If you receive a low-battery indication, replace all of your batteries with fresh AA alkaline batteries.

  • Page 33: Technical Support

    For detailed information on U.S. and Canadian radio interference regula- tions, press F1 from the Take Control Editor and search for “regulations” in the TC1000 Online User's Guide. This information is also available in the README.TXT file. Tested to comply with FCC standards. For home and office use.

  • Page 34: End-User License Agreement And Warranty

    IMPORTANT—READ CAREFULLY: This End-User License Agreement (“EULA”) is a legal agree- ment between you (either an individual or a single entity) and Harman International Industries, Inc. (“HARMAN”) for the software portion of this Remote Control Device, which includes the accompanying computer software, and may include associated media, printed materials and any “online“...

  • Page 35: B General Provisions

    No other warranties are made with respect to the SOFTWARE and Remote Control Device by any person, including but not limited to Har- man, Microsoft, and its suppliers. Except for the Limited Warranty, and to the maxi-...

  • Page 36: C Limited Warranty

    7 GOVERNING LAW. If you acquired the SOFTWARE and Remote Control Device in the United States of America, the laws of the State of Washington, U.S.A., will apply to this con- tract. If you acquired this SOFTWARE and Remote Control Device outside of the United States of America, then local law may apply.

  • Page 37: D Exclusion Of Certain Damages

    Information If you have questions regarding the installation or operation of this unit, please call Customer Service at 1-800-422-8027 or write to us at Harman Kardon, 250 Crossways Park West, Woodbury, NY 11797. Limitation On Implied Warranties...

  • Page 38: Technical Specifications

    (5° C) to 95° F (35° C) IR transmission range—23.0 ft (7.0 m) IR transmission frequency—120 KHz (maximum) IR learning frequency—120 KHz (maximum) Take Control TC1000 Touchscreen Viewing area—2.5 in. (64.0 mm) (height) x 2.0 in. (51.4 mm) (width) Resolution—200 x 160 pixels total Backlight color—green Batteries Quantity—4...
