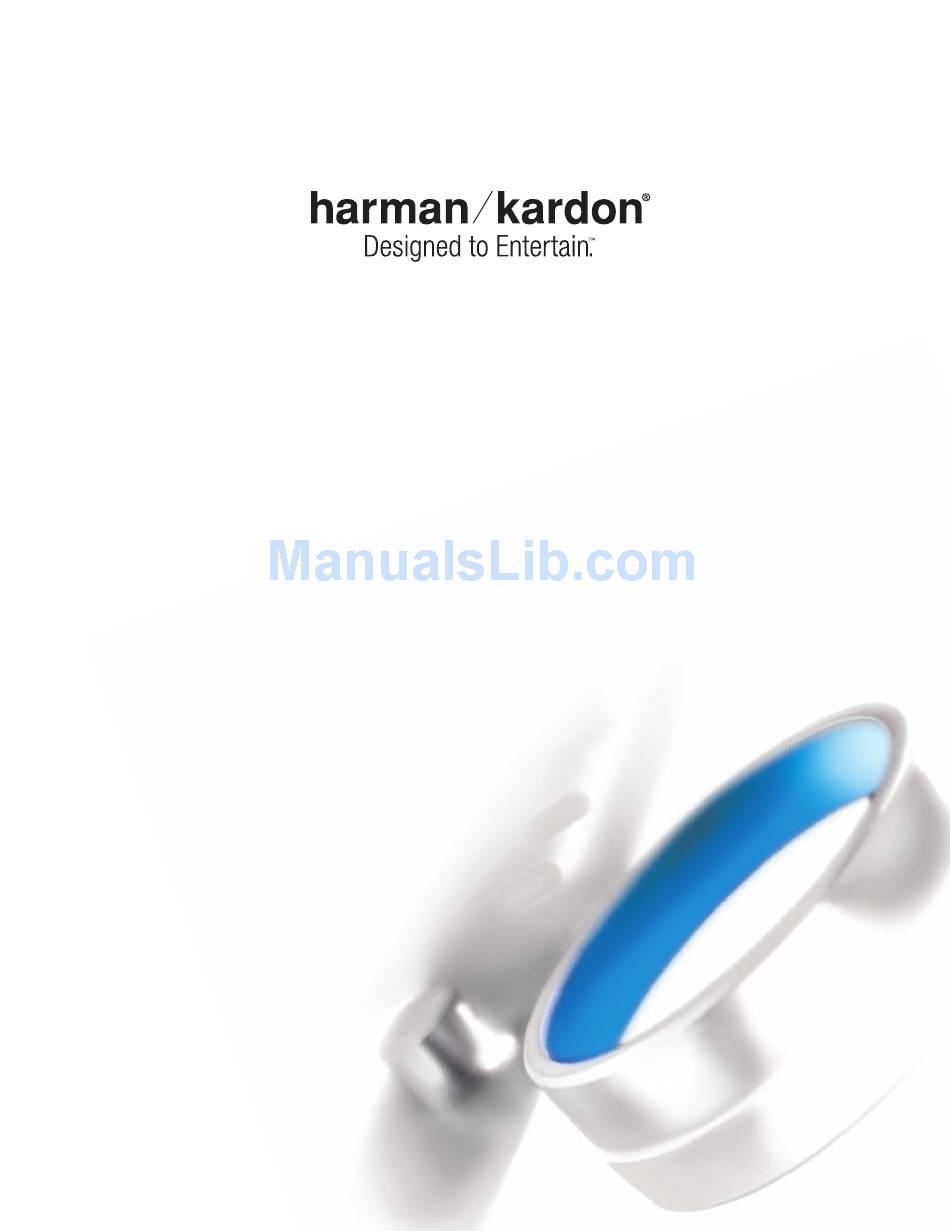

  • Page 1 RCP 4 SYSTEM REMOTE OWNER’S MANUAL (FOR USE WITH CP 45 SYSTEM)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION AND FEATURES REMOTE CONTROL FUNCTIONS BATTERIES PROGRAMMING SOURCES LEARNING INDIVIDUAL KEY CODES ADVANCED FUNCTIONS Punch-Through Programming Macros Resetting the Remote APPENDIX Remote Control Function List Remote Control Product Codes TAPE...

  • Page 3: Introduction And Features

    The single RCP 4 remote replaces the original remotes supplied with the AVR 245 receiver and DVD 37 DVD player. Although the RCP 4 operates both products, along with a host of other products you may have added to your system, this manual describes a few differences from the original remotes.

  • Page 4: Remote Control Functions

    REMOTE CONTROL FUNCTIONS The RCP 4 remote is capable of controlling 11 devices, including the AVR 245 and the DVD 37 included in the CP 45 system. During the installation process, you may program the codes for each of your source components into the remote.
  • Page 5 IR Transmitter Lens Power On Program Indicator AVR Selector AM/FM XM Radio Test Tone Sleep/Audio Select Surround/Title On-Screen Display/Disc Info Channel Level/Disc Menu Digital Input Select/ Drawer Open/Close Tuning Mode/Zoom Direct Station Entry/Angle Tuning Tone Mode/DVD Scan Type Surround/A-B Repeat ®...
  • Page 6 REMOTE CONTROL FUNCTIONS Learn Button: The RCP 4 remote is capable of “learning” individual IR codes from the original remote that came with your TV or a device that is connected to any of the source inputs. See the Programming Sources section for instructions on learning remote codes.
  • Page 7 REMOTE CONTROL FUNCTIONS (seeks frequencies with acceptable signal strength) Tuning modes. It also toggles between Stereo and Mono modes when an FM station is tuned. When listening to XM Radio, press the Tuning Mode Button once to view the category name of the current channel. Additional presses will display the artist, song title and channel name.
  • Page 8 REMOTE CONTROL FUNCTIONS NOTE: Due to the variations in how DVD discs are authored, the subtitle languages displayed by the DVD 37 may not accurately reflect the actual languages available on the disc. It is recom- mended that subtitles be selected using the disc’s menu.

  • Page 9: Batteries

    BATTERIES The RCP 4 remote control uses three AAA batteries, which are included. To remove the battery cover located on the back of the remote, firmly press the ridged depression and slide the cover toward the top of the remote.

  • Page 10: Programming Sources

    PROGRAMMING SOURCES Programming Sources The RCP 4 remote is capable of controlling not only the receiver and DVD player included in your CP system, but it may also be programmed to control many brands and models of VCRs, CD players, cable boxes, satellite receivers, cassette decks and TVs, as well as an iPod (not included) docked in Harman Kardon’s optional The Bridge.
  • Page 11 See page 13 for instructions on these advanced programming functions. NOTE: The RCP 4 remote is preprogrammed to operate the transport controls of the DVD 37 when the AVR or VID2 or VID3 device is selected. You may change this punch-through program- ming at any time, as explained in the Advanced Functions section.

  • Page 12: Learning Individual Key Codes

    IR receiver during the learning process. Figure 3 – RCP 4 and Original Remote Head-to-Head 2. Make sure the RCP 4 is in the device mode you want to learn the new key code for by pressing the Input Selector, which should light in red, or green if it is a secondary source on a dual-source selector.

  • Page 13: Advanced Functions

    The RCP 4 remote control not only operates the AVR 245 and DVD 37, but it also serves as a universal remote that may be programmed to operate many of your other home theater components. The punch- through and macro features add even more flexibility and versatility.

  • Page 14: Resetting The Remote

    ADVANCED FUNCTIONS It isn’t possible to “edit” a command within a macro. However, you may erase the macro as follows: 1. Simultaneously press and hold the Mute Button and the Macro Button containing the macro until the Program LED flashes. 2.

  • Page 15: Appendix

    Refer to the numbered buttons in this drawing when using the Function List. Figure 5 – Remote Control Function List Reference APPENDIX ®...

  • Page 16: Vcr

    APPENDIX Table A1 – Remote Control Function List No. Button Name AVR Function CD/CD-R 1 Power On Power On Power On Power On 2 Power Off Power Off Power Off Power Off 3 Mute Mute Mute (AVR) Mute (AVR) 4 AVR...
  • Page 17 No. Button Name AVR Function CD/CD-R 41 Tun-M/Zoom Tuning Mode Zoom or Chapter+ Repeat 42 9 43 0 44 Memory/Playlist Memory Pl a yl i s t or Audi o Ti m e 45 Tuning Up Tuning Up Next Chapter Track Direct 46 Direct/Angle Direct Tuner Entry Angle Random Play...
  • Page 18 APPENDIX Refer to Tables A2 through A9 when programming the codes for your components into the remote. Table A2 – Remote Control Product Codes – TV TV Manufacturer/Brand Setup Code Number AIWA A MARK 122 132 ADMIRAL AKAI 123 160...
  • Page 19 WARDS 069 128 132 148 YAMAHA 123 128 YORK YUPITERU ZENITH 069 090 ZONDA Table A3 – Remote Control Product Codes – VCR VCR Manufacturer/Brand Setup Code Number AIWA AKAI 048 108 109 126 AMPRO AUDIO DYNAMICS 018 048 BROKSONIC...
  • Page 20 APPENDIX Table A4 – Remote Control Product Codes – CD CD Manufacturer/Brand Setup Code Number ADCOM 063 069 AIWA 072 111 118 156 170 AKAI 050 177 184 AUDIO TECHNICA AUDIOACCESS AUDIOFILE CALIFORNIA AUDIO CAPETRONIC CARRERA CARVER 136 140 141 143 144 145 185 186...
  • Page 21 Table A6 – Remote Control Product Codes – SAT SAT Manufacturer/Brand Setup Code Number ALPHASTAR ALPHASTAR DBS ALPHASTAR DSR BIRDVIEW CHANNEL MASTER 320 321 325 361 CHAPARRAL 315 316 451 CITOH DRAKE 313 317 318 413 481 DX ANTENNA 331 352 379 483...
  • Page 22 HARMAN KARDON TEN TECHNOLOGIES Harman Kardon and Logic 7 are registered trademarks, and Designed to Entertain, EzSet and EzSet+ are trademarks, of Harman International Industries, Incorporated. Dolby is a registered trademark of Dolby Laboratories. DTS, DTS Neo:6 and DTS-ES are registered trademarks of DTS, Inc.
  • Page 23 NOTES 23 23...
  • Page 24 250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com © 2006 Harman International Industries, Incorporated. All rights reserved. Part No. CQX1A1168Z...
