Lopi Answer Owner's Manual

Freestanding
Hide thumbs Also See for Answer:
Table of Contents

Advertisement

Quick Links

SAFETY NOTICE:
If this appliance is not properly installed, a house fire may result.
For your safety, follow the installation directions. Contact local
building or fire officials about restrictions and installation
inspection requirements in your area.

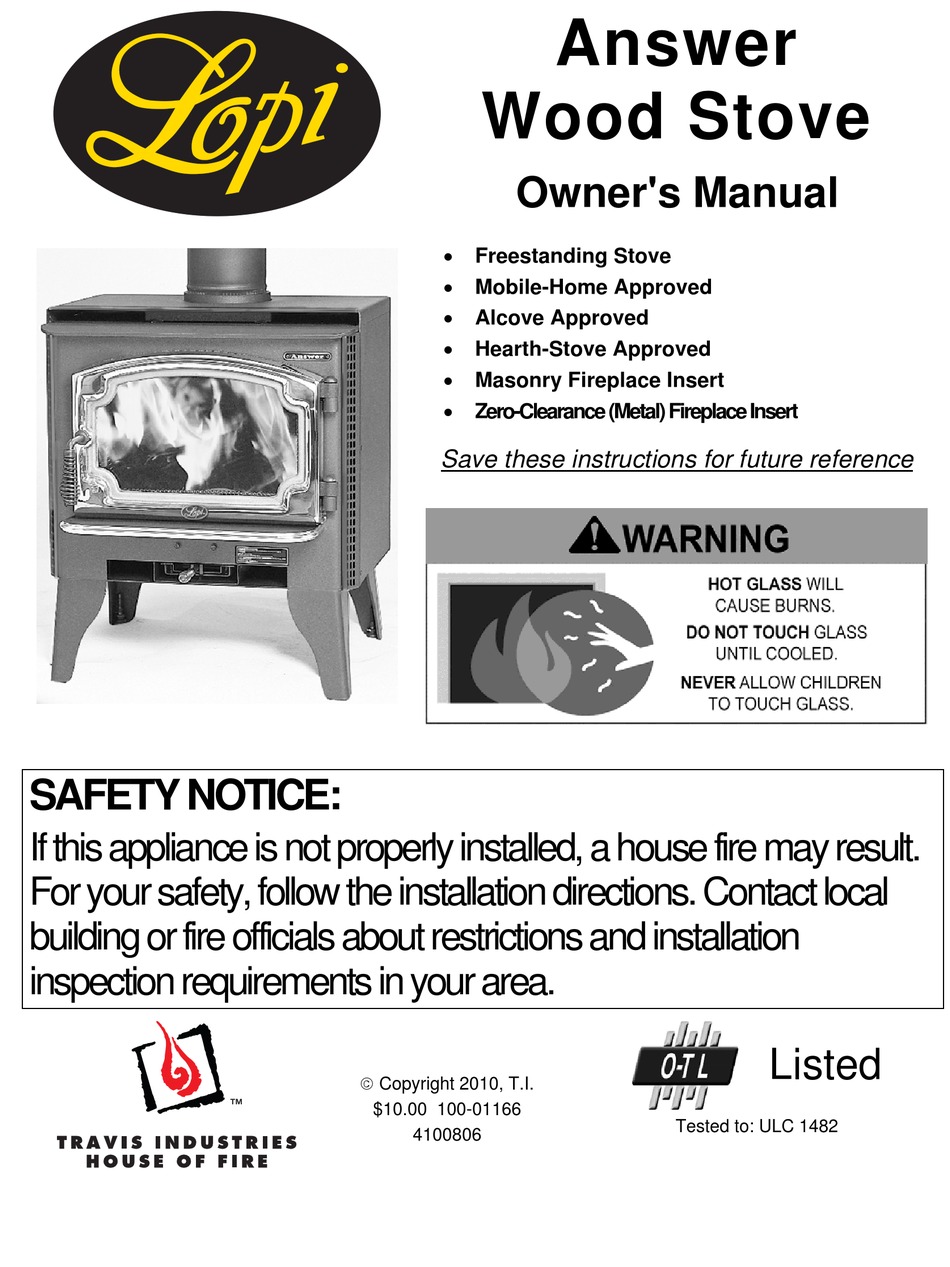

Wood Stove

Owner's Manual
 Freestanding Stove
 Mobile-Home Approved
 Alcove Approved
 Hearth-Stove Approved
 Masonry Fireplace Insert
 Zero-Clearance (Metal) Fireplace Insert
Save these instructions for future reference
 Copyright 2010, T.I.
$10.00 100-01166
4100806
Answer
Tested to: ULC 1482
Listed

Advertisement

Table of Contents
loading

Related Manuals for Lopi Answer

Summary of Contents for Lopi Answer

  • Page 1: Wood Stove

    Answer Wood Stove Owner's Manual  Freestanding Stove  Mobile-Home Approved  Alcove Approved  Hearth-Stove Approved  Masonry Fireplace Insert  Zero-Clearance (Metal) Fireplace Insert Save these instructions for future reference SAFETY NOTICE: If this appliance is not properly installed, a house fire may result.

  • Page 2: Introduction

    Introduction Introduction We welcome you as a new owner of a Lopi Answer wood-burning stove. In purchasing a Lopi Answer you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. The Lopi Answer is one of the finest appliances the world over.

  • Page 3: Table Of Contents

    Table of Contents   Opening the Door ..........23   Introduction ............2   Starting a Fire ............24   Important Information ..........2   Adjusting the Burn Rate ........25   Installation Options ..........6   Approximate Air Control Settings ......... 25  ...

  • Page 4: Travis Industries

    Safety Precautions The viewing door must be Gasoline or other flammable closed and latched during liquids must never be used to operation. start the fire or "Freshen Up" the fire. Do not store or use Smoke from this appliance may gasoline or other flammable active a smoke detector when liquids in the vicinity of this...
  • Page 5 Safety Precautions When installed in a mobile home, this appliance must be Do not place clothing or other bolted to the floor, have outside flammable items on or near this air, and not be installed in the appliance. Mobile bedroom (Per H.U.D. Home requirements).

  • Page 6: Installation Options

    Features & Specifications Installation Options Features   Freestanding EPA Phase II Approved   Freestanding in an Alcove 1.6 Cubic Foot Firebox Volume   Freestanding in a Mobile Home Single Operating Control   Masonry Fireplace Insert Accepts Logs Up to 18" Long ...

  • Page 7: Planning The Installation

    Stove Installation (for qualified installers only) SAFETY NOTICE: Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area.

  • Page 8: Floor Protection Requirements

    Stove Installation (for qualified installers only) Floor Protection Requirements  Stove must be placed on the Travis Industries legs or Pedestal.  Floor protection must extend to the sides, rear, and front of the stove (see “Clearances” below for minimum floor protection). ...

  • Page 9: Top View - Straight Installation

    Stove Installation (for qualified installers only) Top View - Straight Installation 23-5/8" 600mm 5-7/8" 149mm 16-1/4" 413mm Figure 2 Top View - Corner Installation Measure rear and side clearances from the nearest edge of the stove top. 23-5/8" NOTE: Vent diameter 600mm varies depending on brand and model.

  • Page 10: Chimney Connector Requirements

    Stove Installation (for qualified installers only) Chimney Connector Requirements  Chimney connector is required from the flue collar of the stove to the factory-built chimney or masonry chimney.  The chimney connector must be 6” diameter and a minimum 24 gauge black steel, or one of the reduced-clearance connectors listed on page 8.

  • Page 11: Chimney Requirements

    Stove Installation (for qualified installers only) Chimney Requirements  DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.  DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION DUCTWORK UNLESS SPECIFICALLY APPROVED FOR SUCH INSTALLATIONS. ...

  • Page 12: Chimney Termination Requirements

    Stove Installation (for qualified installers only) Chimney Termination Requirements  Must have an approved cap (to prevent water from entering).  Must not be located where it will become plugged by snow or other material.  Must terminate at least 3' (914mm) above the roof and at least 2' (610mm) above any portion of the roof within 10' (3.04M) - see Figure 5.

  • Page 13: Alcove Installation Requirements

    Stove Installation (for qualified installers only) Alcove Installation Requirements Whenever the stove is placed in a location where the ceiling height is less than 7' tall, it is considered an alcove installation. Because of the reduced height, the special installation requirements listed below must be met.

  • Page 14: Mobile Home Requirements

    Stove Installation (for qualified installers only) Mobile Home Requirements  Outside air must be installed - see "Outside Air Requirements" on page 12  Chimney connector and chimney must be one of the following types: AMERI-TEC model DCC with model HS chimney DURAVENT model DVL with DURATEC or DURA-PLUS chimney GSW Super Chimney Twenty-One connected directly to appliance I.C.C.

  • Page 15: Standard Ceiling With A Factory Built Chimney

    Stove Installation (for qualified installers only) Chimney Cap Standard Ceiling (See the section "Chimney with a Factory Follow the chimney Termination Requirements" Built Chimney manufacturer's instructions for more details) and clearances for roof penetrations. A storm collar and flashing are required Chimney Sections (some require a radiation shield).

  • Page 16: Exterior Factory Built Chimney

    Stove Installation (for qualified installers only) Exterior Factory Follow the chimney Chimney Cap Built Chimney manufacturer's (See the section "Chimney instructions and Termination Requirements" clearances for roof for more details) penetrations. A storm NOTE: collar and flashing are Exterior chimneys are Chimney Sections required (some subject to greater...

  • Page 17: Hearth Stove Direct Connection

    Stove Installation (for qualified installers only) NOTE: The chimney must have a clay Hearth Stove Direct tile liner. If it does not, the installation Connection must use a positive connection (full reline). The entire fireplace and Clay chimney must be clean, undamaged, Liner and meet all local building codes (UBC, NOTE:...

  • Page 18: Planning The Installation

    Fireplace Insert Installation (for qualified installers only) SAFETY NOTICE: Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area.

  • Page 19: Fireplace Requirements

    Fireplace Insert Installation (for qualified installers only) Fireplace Requirements Figure 16 shows the minimum size requirements for the type of fireplace used. Minimum Masonry Z.C. (Metal) Fireplace Size Fireplace Fireplace Height (front) 20.75" 20.75" 528mm 528mm Height (rear) 20.75" 20.75" 528mm 528mm Width (front)

  • Page 20: Insert Placement Requirements

    Fireplace Insert Installation (for qualified installers only) Insert Placement Requirements  The insert must be placed so that no combustibles are within, or can swing within (e.g. drapes, doors), 36" of the front of the insert (Figure 17 “q”).  Insert and hearth must be installed on a level, secure floor ...

  • Page 21: Zero-Clearance (Metal) Fireplace Requirements

    Fireplace Insert Installation (for qualified installers only) Zero-Clearance (Metal) Fireplace Requirements  Must utilize a positive (full reline) or direct connection (block-off plate)  Must be manufactured by one of the following manufacturers: • Marco • Majestic • Heatilator • Preway •...

  • Page 22: Insert With Positive Connection

    Fireplace Insert Installation (for qualified installers only) Insert with Positive Connection REQUIRED IN CANADA. Figure 20 Insert with Direct Connection (Masonry Fireplace) NOT ALLOWED IN CANADA. A block-off plate or other non-combustible sealing device (e.g. damper adapter) is required. It must seal the chimney to insure smoke does not enter the home while...

  • Page 23: Safety Notice

    Operating Your Appliance Safety Notice If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. Read and follow all of the warnings on pages 4 and 5 of this manual. Before Your First Fire Verify the Installation Before starting the stove, verify that the stove is properly installed and all of the requirements in this...

  • Page 24: Starting A Fire

    Operating Your Appliance Starting a Fire Since the dawn of time man has debated the best way to start a fire. Some use the boy-scout "tee-pee", some prefer the "tic-tac-toe" stack. Either way, review the hints and warnings below to ensure proper fire starting.

  • Page 25: Adjusting The Burn Rate

    Operating Your Appliance Adjusting the Burn Rate Use the air control slider to control the burn rate of the stove. See the illustration below for details. Use the air control to change the burn rate. Low Burn High Burn (air control closed) (air control open) Approximate Air Control Settings Overnight Burn...

  • Page 26: Optional Blower Operation

    Operating Your Appliance Optional Blower Operation The blower will turn on once the stove is up to temperature. This is typically 15 to 30 minutes after starting the fire. Follow the directions below to alter the blower speed. HIGH Turn the dial all the way counter- The high position is all the way counter- Turn the dial all the clockwise until it clicks off.

  • Page 27: Hints For Burning

    Operating Your Appliance Hints for Burning  Get the appliance hot before adjusting to low burn  Use smaller pieces of wood during start-up and high burns to increase temperature  Use larger pieces of wood for overnight or sustained burns ...

  • Page 28: Troubleshooting

    Operating Your Appliance Troubleshooting Problem Possible Cause  Smoke Enters Room During Open the air control (pg. 25).  Start-Up Cold Air Blockage - burn a piece of newspaper to establish a draft.  If the flame is not getting enough air, a small crack in the door is all that is needed.

  • Page 29: Daily Maintenance (While Stove Is In Use)

    Maintaining Your Appliance Failure to properly maintain and inspect your appliance may reduce the performance and life of the appliance, void your warranty, and create a fire hazard. Establish a routine for the fuel, wood burner and firing technique. Check daily for creosote build-up until experience shows how often you need to clean to be safe.

  • Page 30: Monthly Maintenance

    Maintaining Your Appliance Monthly Maintenance (while appliance is in use) Make sure the appliance has fully cooled prior to conducting service. Door and Glass Inspection The door must form an air-tight seal to the firebox for the stove to work correctly. Inspect the door gasket to make sure it forms an air-tight seal to the firebox.

  • Page 31: Yearly Maintenance

    Maintaining Your Appliance Yearly Maintenance Make sure the appliance has fully cooled prior to conducting service. Touch Up Paint Included with the owner's pack of this appliance is a can of Stove-Brite® paint. To touch up nicks or dulled paint, apply the paint while the appliance is cool.

  • Page 32: Door Parts

    Maintaining Your Appliance Door Parts 1/8” Hex Wrench # 20 Torx Driver NOTE: Place the glass gasket around the perimeter of the door retainer. 9/16" Wrench NOTE: Glue the door gasket to the door retainer. ID # Description Part # ID # Description Part #...

  • Page 33: Firebox Parts

    Maintaining Your Appliance Firebox Parts ID # Description Part # ID # Description Part # Baffle Support "S" Bar 99900294 Air Tube with Sleeve 98900232 Air Tube Roll Pins 98900357 Air Tube Retainer Sleeve 98900356 Brick - 9" x 4.5" un-cut 98900102 Brick, Cut - 9"...

  • Page 34: Baffle Removal & Replacement

    Maintaining Your Appliance Baffle Removal & Replacement The baffle is held up by the front air tube. Make sure to support the baffle after removing the air tubes.  Lift the four baffle firebricks then lift the baffle deflector up and over its resting postion. ...
  • Page 35 Limited 7 Year Warranty To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call.

  • Page 36: Listing Label

    Listing Label Listing Label © Travis Industries 100-01166 4040907...

  • Page 37: Door Shell Installation

    Optional Equipment Door Shell Installation Part Numbers: Black # 99300195, Brass # 9930096, Pewter # 99300197 1. Remove the door retainer shipping latch following the directions below. Standard Screwdriver Rotate this shaft 1/4 turn clockwise until the door unlatches. Swing the door retianer open. Remove and discard the shipping latch and nut.

  • Page 38: Nickel (Cast Iron) Doors Only

    Optional Equipment Nickel (Cast Iron) Doors Only Use a socket-head wrench with 5/16” socket to pre-thread the holes 6 revolutions. If you pre-thread move revolutions, it may bottom out and break the head off the screw. Remove and retain the screws. See the photos below.
  • Page 39 Optional Equipment Make sure the holes in the retainer line up with the holes on the shell then use a 5/16” nutdriver to secure the shell with the two screws. Tighten until the door shell is snug against the retainer (do not over- tighten).

  • Page 40: Stove Leg Installation

    Optional Equipment Stove Leg Installation Part Numbers: Brass # 99200500, Cast Black # 99200800, Sculptured Steel # 99200105  Raise the stove 8" (use lumber). Attach each leg following the instructions below. Attach each leg to the stove by inserting a bolt and washer through the hole or slot in the leg and into the threaded hole on the stove.

  • Page 41: Pedestal (Part # 99200106)

    Optional Equipment Pedestal (Part # 99200106) If using outside air with the pedestal, follow the directions below under "Using Outside Air with the Pedestal" prior to installing the pedestal. Use a 9/16" wrench to attach the two pedestal bolts to the bottom of the stove. Stove The lag bolts and washers...

  • Page 42: Rear Blower Installation (Part # 99000138)

    Optional Equipment Rear Blower Installation (Part # 99000138) The rear blower improves heat transfer by pushing heated air through the convection channel. Operating instructions are described in the section "Blower Operation". The stove should be in place with the legs installed prior to installing the rear blower. Follow the directions below to install the thermodisk.

  • Page 43: Outside Air Boot Installation

    Optional Equipment Outside Air Boot Installation (Part number 99200134) The outside air boot routes outside air to the stove for combustion. Refer to the section "Outside Air Requirements" for installation concerns. The directions below detail installation. Install the cover plate following the directions below (use the cover plate that is 6-1/2" wide). The cover plate prevents combustion air from entering the front of the stove.

  • Page 44: Surround Panels

    Optional Equipment Surround Panels Rectangular Panels: SURROUND PANEL SIZE HEIGHT WIDTH 8" 28-1/4" 40-1/8" 10" 30-1/4" 44-1/8" Arched Panels (Part # 99300108) 40-1/4” 31-3/4” 24” Radius = 40-3/4” Installation Instructions With the insert 12” from the fireplace, install the side surround panels (see the directions below). Pry the button plugs Attach the side from both sides of the...
  • Page 45 Optional Equipment 2. Adjust the position of the side panels so they are: 1) flush with the bottom of the insert; 2) both the same distance back from the front of the insert; 3) perpendicular to the floor (use the top panel, if necessary, to judge alignment).

  • Page 46: Front Blower (Part # 99000128)

    Optional Equipment Front Blower (part # 99000128) To Switch The Power Cord To The Left Side: Use a pair of pliers to disconnect the strain relief which holds the power cord in place. With the power cord slackened, the molex connectors that attach the power cord to the blower assembly may be disconnected.
  • Page 47 Optional Equipment © Travis Industries 100-01166 4040907...
  • Page 48 Index Air Control ..............25 Noise (Normal Operating Sounds) ......26 Air Tube Part Number ..........33 Non-Combustible Alcove ..........13 Air Tube Removal & Replacement ......34 Opening the Door ............23 Alcove ................. 13 Operation ..............18 Ash Disposal ............... 29 Outside Air Boot Installation ........
