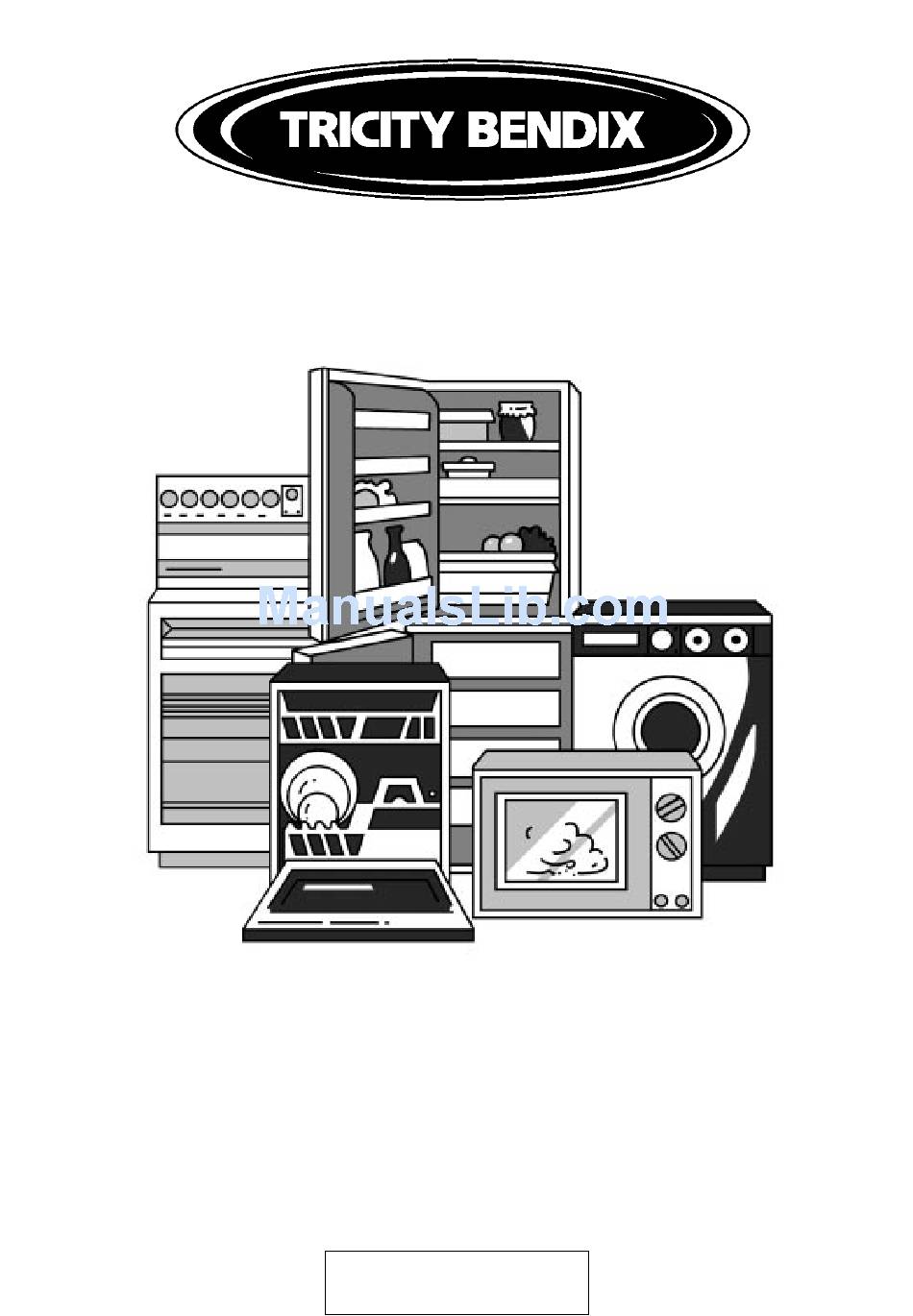

Page 1: Operating And Installation Instructions
OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. SB 422/423... -
Page 2: Technical Details
TECHNICAL DETAILS MODEL NO. SB 422/423 Voltage: 230/240 Volts AC 50Hz Wattage: 10.3/11.2kW Height: 1290mm Width: 550mm Depth: 595mm Weight: 54kg This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC. -
Page 3: Table Of Contents
CONTENTS Technical Details ................. 2 Contents . - Page 4 CONTENTS Care and Cleaning ................23 Cleaning Materials .
-
Page 5: Preface
Tricity Bendix cookers comply with British Standard safety and performance requirements. They are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker. -
Page 6: Safety
SAFETY THESE WARNINGS ARE PROVIDED IN This appliance is designed to be operated by adults. Young children THE INTERESTS OF YOUR SAFETY. must not be allowed to tamper with ENSURE THAT UNDERSTAND the cooker or play with the controls. THEM ALL BEFORE INSTALLING OR USING THE COOKER. -
Page 7: After Use
GENERAL Ensure that all vents are left unobstructed to ensure ventilation of Under no circumstances should the oven. repairs carried inexperienced persons as this may cause injury or serious malfunction. Ensure that the anti-tilt shelves are put in place correctly. Refer to This product should be serviced by instructions on page 18. -
Page 8: Introduction
INTRODUCTION WARNING: THIS APPLIANCE MUST BE EARTHED The cable should be routed away from potentially hot RATING PLATE areas marked by X in the diagram below. Record the model, product and serial numbers on the back from the rating plate. This is situated on the front frame of the appliance and can be seen upon opening the oven door. -
Page 9: Reversible Main Oven Door
OVEN FURNITURE REVERSIBLE MAIN OVEN DOOR The following items of oven furniture have been If you require the oven door to be hinged on the supplied with the cooker: opposite side, you will need to contact a qualified Service Engineer. See page 27 for your nearest Service Centre. -
Page 10: Getting To Know Your Cooker
GETTING TO KNOW YOUR COOKER THE CONTROL PANEL FEATURES Timer Dual Grill Control Oven Temperature Control Hotplate Controls Oven Indicator Neon... -
Page 11: The Timer
THE TIMER START TIME SETTING KNOB SECOND HAND CLOCK SYMBOL CLOCK/MINUTE MINDER/LENGTH OF COOKING TIME SETTING KNOB START TIME INDICATOR HOUR HAND DISPLAY WINDOW MANUAL SYMBOL MINUTE HAND 1. TO SET THE TIME OF DAY The clock will operate when the cooker is switched ON at the wall. - Page 12 4. TO CANCEL MINUTE MINDER/BUZZER Turn setting knob (D) clockwise, without pulling it out until "O" or the manual symbol appears in the window (G) as Fig.4. 5. HOW TO SET THE OVEN TIMER When using the oven timer for the very first time, it is advisable to let it operate while you are at Fig.
- Page 13 B) TO START COOKING NOW, THEN SWITCH OFF AUTOMATICALLY Follow the first 3 points under section 5. (A) above, and then; iv) To set the length of time you want the food to cook; turn setting knob clockwise, without pulling it out, until the required cooking period can be seen in window (G), e.g.
-
Page 14: The Radiant Hob
THE RADIANT HOB To operate the hotplates turn the control knobs in Avoid placing fish kettles or large preserving either direction to vary the heat setting. The pans across two hotplates as this may cause highest number represents the hottest setting damage. -
Page 15: Deep Fat Frying
DEEP FAT FRYING 6. Frying temperatures Celsius Fahrenheit Scale ( Scale ( SPECIAL FRYING NOTE: For safety purposes when deep fat frying, fill the pan First frying of potatoes one-third full of oil, DO NOT cover the pan with a lid and DO NOT leave the pan unattended. -
Page 16: The Grill
THE GRILL USES OF THE GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 17: Hints And Tips
Accompaniments such tomatoes To correctly locate the grill pan on the shelf, ensure mushrooms may be placed underneath the grid that the cut out on the underside of the handle when grilling meats. bracket locates over the front bar of the shelf. To check the progress of the food being grilled, the Preheat the grill on a full setting for a few grill pan should be withdrawn on the shelf to tend the... -
Page 18: The Main Fan Oven
THE MAIN FAN OVEN USES OF THE FAN OVEN PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating, however, you may find you need to add an extra 5 - 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. -
Page 19: Hints And Tips
HINTS AND TIPS Arrange the shelves in the required positions before switching the oven ON. Shelves are numbered from the bottom upwards. When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf. This will allow the heat to circulate freely for the best cooking results. -
Page 20: Oven Cooking Chart
OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10° C to suit individual preferences and requirements. Shelf positions are counted from the bottom of the oven. MAIN OVEN APPROXIMATE COOKING... -
Page 21: Roasting Chart
ROASTING CHART TEMPERATURES (°C) COOKING TIME MEAT MAIN OVEN Beef 180-200 20-35 minutes per ½kg (1lb) and 20-35 minutes over Beef, boned 180-200 25-35 minutes per ½kg (1lb) and 25-35 minutes over 25-35 minutes per ½kg (1lb) Mutton and Lamb 180-200 and 25-35 minutes over Pork and veal... -
Page 22: Defrost Feature
DEFROST FEATURE USES OF DEFROST FEATURE Small or thin fish fillets, frozen peeled prawns, cubed or minced meat, liver, thin chops, steaks etc., can be thawed in 1 - 2 hours. This fan oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. -
Page 23: Care And Cleaning
CARE AND CLEANING CLEANING THE OUTSIDE OF THE ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AND ALLOW THE COOKER TO COOL COOKER BEFORE CLEANING DO NOT use abrasive cleaning materials, or scourers on the outside of the cooker as some of the CLEANING MATERIALS finishes are painted and damage may occur. -
Page 24: Cleaning Inside The Oven/Grill Compartments
It is a good idea to run the oven for an hour or two Screw. Part number 572 491 5431-00/1 (Available through per week to ensure continued good performance Tricity Bendix service centres). from the Stayclean finish. CAUTION: Disconnect the appliance from the Do use the trivet in the roasting tin. -
Page 25: Something Not Working
SOMETHING NOT WORKING? The oven is not cooking evenly or the side We strongly recommend that you carry out the opening door will not stay open: following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one, which you can solve yourself without the * Check that the cooker is level. -
Page 26: Service And Spare Parts
Tricity Bendix Service Force Centre by telephoning: 08705 929929 The address of your local Service Force Centre is detailed on the following pages headed Tricity Bendix Service Force. Before calling out an engineer, please ensure you have read the details under the heading 'Something Not Working?' and have the model number and purchase date to hand. -
Page 27: Customer Service Centres
TRICITY BENDIX SERVICE FORCE 08705 929929 To contact your local Tricity Bendix Service Centre telephone CHANNEL ISLANDS NORTH EAST SCOTLAND NORTHERN IRELAND WALES NORTH WEST... - Page 28 TRICITY BENDIX SERVICE FORCE 08705 929929 To contact your local Tricity Bendix Service Centre telephone MIDLANDS LONDON & EAST ANGLIA SOUTH EAST (M23) (M57) SOUTH WEST Unit 7 Oaks Industrial Estate Coventry Road Narborough Leicestershire LE9 5GF WEST DRAYTON 2 / 4 Royal Lane...
-
Page 29: Guarantee Conditions
Standard guarantee conditions We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate. - Page 30 SB 422/423- 311313704...
- Page 32 This handbook is accurate at the date of printing, but will be superseded and should be disregarded if specifications or appearance are changed. TRICITY BENDIX,PO BOX 47,NEWBURY,BERKSHIRE, RG14 5XL TELEPHONE (01635) 525542 MODEL NO. PART NO.
