OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SIE252
27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIE252 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tricity Bendix SIE252

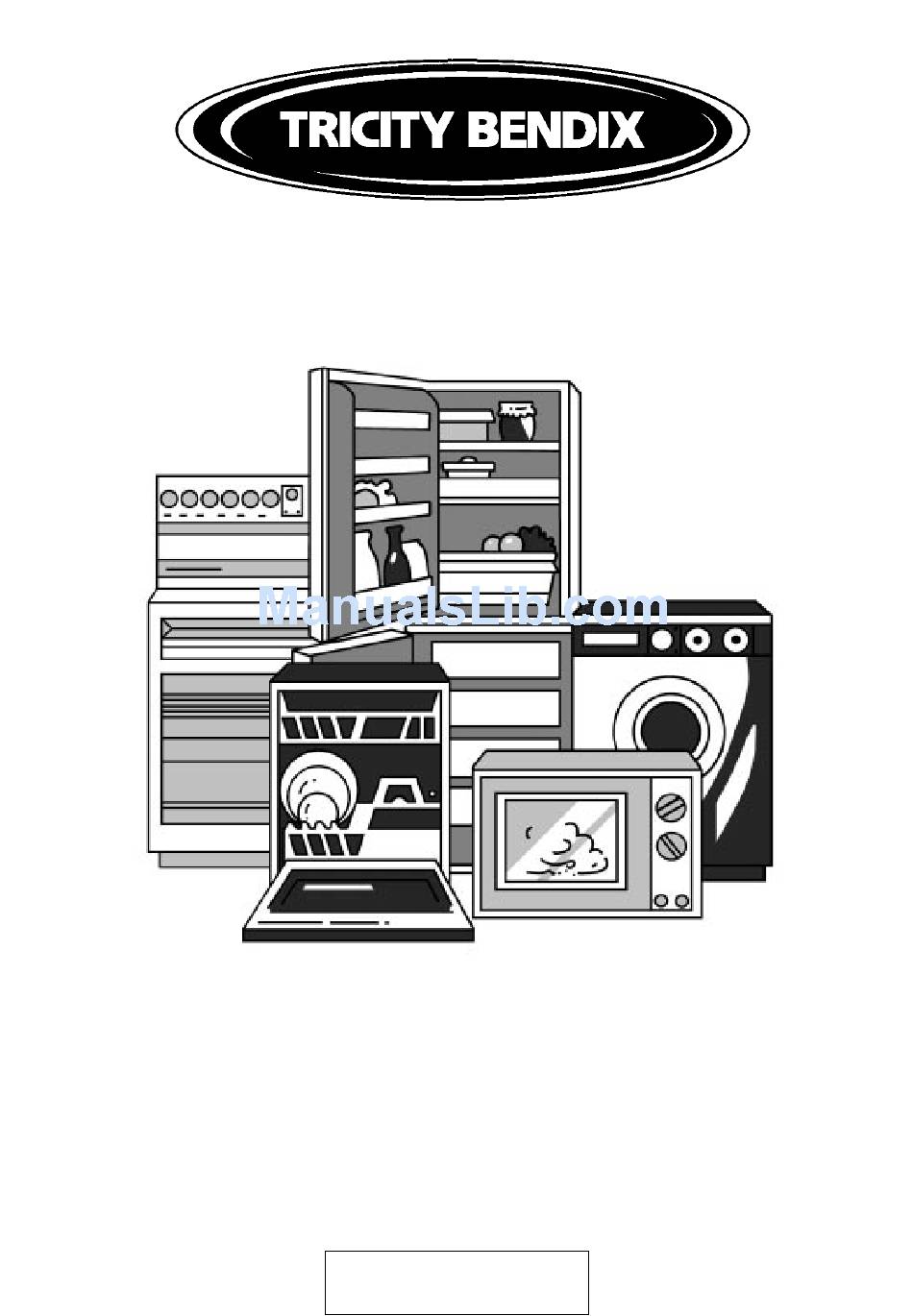

  • Page 1 OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. SIE252...
  • Page 2: Technical Details

    TECHNICAL DETAILS MODEL NO. SIE252 Voltage: 230/240 Volts AC 50Hz Wattage: 7.9/8.6 kW Height: 900mm Width: 500mm Depth: 600mm This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC.
  • Page 3: Table Of Contents

    CONTENTS Technical Details ................. 2 Contents .
  • Page 4 CONTENTS Care and Cleaning ................20 Cleaning Materials .
  • Page 5: Preface

    They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker.
  • Page 6: Safety

    SAFETY THESE WARNINGS ARE PROVIDED IN DURING OPERATION THE INTERESTS OF YOUR SAFETY. Do not use this appliance if it is in ENSURE THAT UNDERSTAND contact with water. Never operate it THEM ALL BEFORE INSTALLING OR with wet hands. USING THE COOKER. This appliance is designed to be PLEASE operated by adults.
  • Page 7: After Use

    Do not leave the handle in position Cookers and hobs become very hot, when grilling as it will become hot. and retain their heat for a long period of time after use. Children should be kept well away from the appliance until it has cooled.
  • Page 8: Introduction

    INTRODUCTION WARNING: THIS APPLIANCE MUST BE EARTHED The cable should be routed away from potentially hot RATING PLATE areas marked by X in the diagram below. Record the model, product and serial numbers on the back cover of this instruction book, from the rating plate.
  • Page 9: General Notes On Using Your Cooker

    GENERAL NOTES ON USING YOUR Overhanging surfaces or a cooker hood should be a minimum of 685mm above the hob. COOKER We suggest that you run the oven elements for 10 - 15 minutes at 220°C to burn off any residue from their surfaces.
  • Page 10: Getting To Know Your Cooker

    GETTING TO KNOW YOUR COOKER THE CONTROL PANEL FEATURES Hotplate Controls Fan Oven/Grill Control Oven/Grill Indicator Neon...
  • Page 11: The Sealed Hotplates

    THE SEALED HOTPLATES BEFORE USING THE HOTPLATES FOR THE FIRST TIME Turn the control knob to a medium/high setting and allow the hotplate to heat, uncovered by a saucepan for 3-5 minutes. This hardens the protective coating on the hotplates, and makes it more resistant to normal use. A harmless smoke will be given off from the hotplates.
  • Page 12: Deep Fat Frying

    DEEP FAT FRYING 6. Frying temperatures Celsius Fahrenheit Scale ( C) Scale ( SPECIAL FRYING NOTE: For safety purposes when deep fat frying, fill the pan one-third full of oil, DO NOT cover the pan with a lid First frying of potatoes and DO NOT leave the pan unattended.
  • Page 13: The Grill

    THE GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. SELECTING THE GRILL To operate the grill, turn the oven/grill control THE GRILL PAN AND HANDLE clockwise until the grill setting lines up with The grill pan is supplied with a removable handle.
  • Page 14: Hints And Tips

    Accompaniments such tomatoes To correctly locate the grill pan on the shelf, ensure mushrooms may be placed around the outer that the cut out on the underside of the handle edges or underneath the grid when grilling meats. bracket locates over the front bar of the shelf. When toasting bread use the shelf in position 5 with the grid in the high position and placing the To check the progress of the food being grilled, the...
  • Page 15: The Fan Oven

    THE FAN OVEN USES OF THE FAN OVEN The oven is heated by the element around the fan situated behind the back panel. The fan draws air from the oven, the element heats the air which is circulated into the oven via the vents in the back panel. The advantages of fanned oven cooking are: HINTS AND TIPS PREHEATING...
  • Page 16: To Fit The Oven Shelves

    The use of excessively high temperatures can TO FIT THE OVEN SHELVES cause uneven browning. It may be necessary to reduce temperatures slightly. Refer to the The shelves should be fitted with the straight rods recommendations given in the oven cooking uppermost on the frame and the forms towards the chart, see page 17.
  • Page 17: Oven Cooking Chart

    OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatu by 10°C to suit individual preferences and requirements. FAN OVEN FOOD SHELF COOKING APPROX. POSITION TEMP °C COOK TIME Biscuits 180-190 10 - 20...
  • Page 18: Roasting Chart

    ROASTING CHART ROASTING CHART INTERNAL TEMPERATURES Rare : 50-60°C; Medium : 60-70°C; Well done : 70-80°C MEAT COOKING TIME OVEN Beef 160-180°C 20-35 minutes per ½kg (1lb) and 20-35 minutes over Beef, boned 160-180°C 25-35 minutes per ½kg (1lb) and 25-35 minutes over Mutton and Lamb 160-180°C 25-35 minutes per ½kg (1lb)
  • Page 19: Defrost Feature

    DEFROST FEATURE USES OF DEFROST FEATURE Small or thin fish fillets, frozen peeled prawns, cubed or minced meat, liver, thin chops, steaks etc., can be This function enables you to defrost most foods thawed in 1 - 2 hours. faster than some conventional methods as the oven fan circulates air around the food.
  • Page 20: Care And Cleaning

    CARE AND CLEANING ALWAYS SWITCH OFF THE CLEANING THE VITREOUS ENAMEL ELECTRICITY SUPPLY BEFORE CLEANING Use a clean damp cloth or scourer made for non- stick saucepans with 'Jif' cream cleaner. CLEANING MATERIALS AFTER CLEANING Before using any cleaning materials on your cooker, To maintain the appearance of the hotplates check that they are suitable and that their use is occasionally apply a little salt free vegetable oil or...
  • Page 21: Cleaning The Grill Pan, Grill Pan Grid And Oven Shelves

    Follow the recommendations below to keep oven CLEANING THE GRILL PAN, GRILL PAN soilage to a minimum. GRID AND OVEN SHELVES Cook at the recommended temperatures. Higher All removable parts, except the grill pan handle can temperatures during roasting will increase be washed in the dishwasher.
  • Page 22: Cleaning Between The Outer And Inner Door Glass

    CLEANING BETWEEN THE OUTER AND TO CLEAN INSIDE THE INNER GLASS DOOR INNER DOOR GLASS The inner glass door is not removable. Clean using hot soapy water or Hob Brite and a soft cloth. Take The outer door glass is removable for cleaning. care NOT to use abrasives as they may damage the TO REMOVE THE OUTER GLASS glass or seal.
  • Page 23: Something Not Working

    SOMETHING NOT WORKING? The oven fan is noisy: We strongly recommend that you carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one, which you can solve yourself without the * Check that the oven is level.
  • Page 24: Service And Spare Parts

    Dublin 12 Telephone: 01 4090752 CUSTOMER CARE DEPARTMENT For general enquiries concerning your Tricity Bendix appliance, or further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows: Customer Care Department...
  • Page 25: Customer Service Centres

    TRICITY BENDIX SERVICE FORCE 0870 5 929929 To contact your local Tricity Bendix Service Centre telephone CHANNEL ISLANDS NORTH EAST SCOTLAND NORTHERN IRELAND NORTH WEST WALES...
  • Page 26 TRICITY BENDIX SERVICE FORCE 0870 5 929929 To contact your local Tricity Bendix Service Centre telephone MIDLANDS LONDON & EAST ANGLIA SOUTH EAST SOUTH WEST & SIE252 311467404...
  • Page 27: Guarantee Conditions

    Standard guarantee conditions We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
  • Page 28 TRICITY BENDIX,55 - 77 HIGH STREET, SLOUGH, BERKSHIRE, SL1 1DZ TELEPHONE 0870 5 950950 MODEL NO. PART NO. 311467404 SIE252 © Electrolux Household Appliances Limited 2000 From the Electrolux Group. The world's No. 1 choice . The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux group products (such "...
