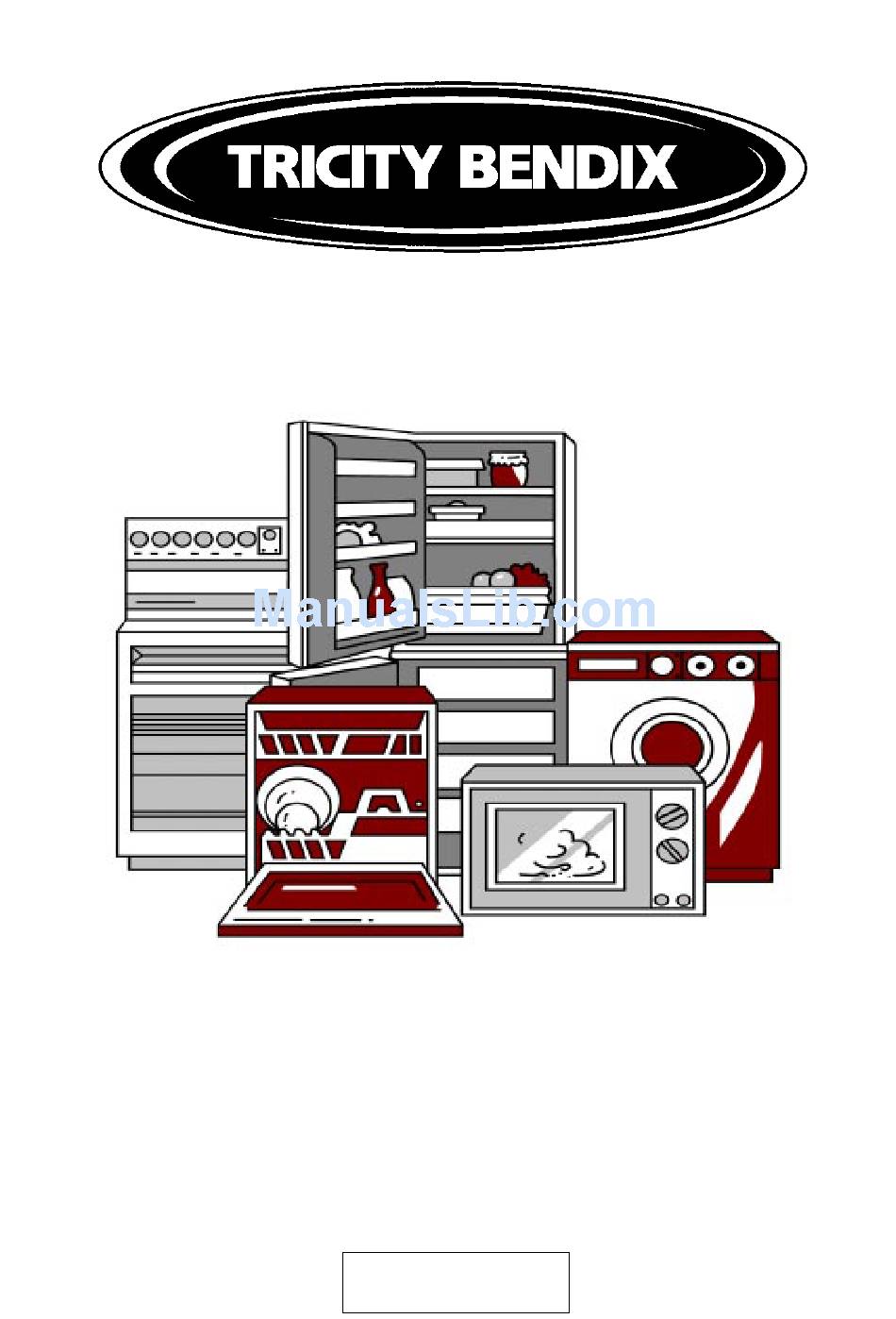

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. SB 422/423...
-
Page 2: Technical Details
TECHNICAL DETAILS MODEL NO. SB 422/423 Voltage: Wattage: Height: Width: Depth: Weight: This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC 230/240 Volts AC 50Hz 10.3/11.2kW 1290mm 550mm 595mm 54kg... -
Page 3: Table Of Contents
CONTENTS Technical Details ... Contents ... Preface ... Safety ... Before Installation ... During Operation ... After Use ... General ... Introduction ... Rating Plate ... Installation ... Reversible Main Oven Door ... General Notes on Using Your Appliance ... About Condensation and Steam ... - Page 4 CONTENTS Care and Cleaning ... 23 Cleaning Materials ... 23 Cleaning the Radiant Hob and Hotplate Trims ... 23 Cleaning the Vitreous Enamel ... 23 Cleaning the Outside of the Appliance ... 23 Cleaning the Grill Pan, Grid and Oven Shelves ... 24 Cleaning Inside the Oven/Grill Compartments ...
-
Page 5: Preface
They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix appliance, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures, which may differ, from your previous appliance. -
Page 6: Safety
SAFETY THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT THEM ALL BEFORE INSTALLING OR USING THE APPLIANCE. PLEASE READ CAREFULLY BEFORE INSTALLATION This appliance is heavy and care must be taken when moving it. Ensure that all packaging, both inside and outside the appliance has been removed before the appliance is used. -
Page 7: After Use
Take care recommendations given for tending the food when grilling. Always use oven gloves to remove and replace food in the oven. Ensure that unobstructed to ensure ventilation of the oven cavity. Ensure the anti-tilt shelves are put in place correctly. Refer to instructions on page 18. -
Page 8: Introduction
INTRODUCTION WARNING: THIS APPLIANCE MUST BE EARTHED RATING PLATE This is situated on the lower front frame of the appliance and can be seen upon opening the cavity door. Alternatively the rating plate may also be found on the back or top of some models (where applicable). -
Page 9: Reversible Main Oven Door
REVERSIBLE MAIN OVEN DOOR If you require the oven door to be hinged on the opposite side, you will need to contact a qualified Service Engineer. See pages 27 - 28 for your nearest Service Force Centre. PLEASE NOTE that a charge will be made. -
Page 10: Getting To Know Your Appliance
GETTING TO KNOW YOUR APPLIANCE THE CONTROL PANEL FEATURES - Timer - Oven Temperature Control - Oven Indicator Neon - Dual Grill Control - Hotplate Controls... -
Page 11: The Timer
THE TIMER A CLOCK/COOK TIME SETTING KNOB B START TIME SETTING KNOB C MINUTE HAND D MANUAL SYMBOL ( ) E DISPLAY WINDOW F START TIME INDICATOR ( G HOUR HAND 1. TO SET THE TIME OF DAY The clock will operate when the appliance is switched ON at the wall. -
Page 12: To Cancel The Minute Minder
4. TO CANCEL THE MINUTE MINDER Turn setting knob (A) anti-clockwise, without pushing it in until the manual symbol ( appears in the display window as Fig.4. 5 HOW TO SET THE OVEN TIMER When using the oven timer for the very first time, it is advisable to let it operate while you are at home. -
Page 13: Things To Note
B) TO SET THE TIMER TO SWITCH OFF AUTOMATICALLY Make sure the electricity supply is switched on. ii) Ensure the clock shows the correct time of day and the appliance is set to manual. Adjust as necessary. iii) Place food in oven. iv) To set the length of time you want the food to cook;... -
Page 14: The Radiant Hob
THE RADIANT HOB USING THE HOB To operate the hotplates turn the control knobs in either direction to vary the heat setting. The highest number represents the hottest setting and the lowest number the coolest setting. Choose a setting appropriate to the quantity and type of food to be cooked. -
Page 15: Deep Fat Frying
DEEP FAT FRYING SPECIAL FRYING NOTE: For safety purposes when deep fat frying, fill the pan one third full of oil, DO NOT cover the pan with a lid and DO NOT leave the pan unattended. unfortunate event of a fire, switch the appliance OFF at the electricity supply and cover the pan with a lid or damp cloth to assist in smothering the flames. -
Page 16: The Grill
THE GRILL USES OF THE GRILL CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHLDREN SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used, or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 17: Hints And Tips
HINTS AND TIPS In order to become acquainted performance of the Dual Grill it is advisable to check food regularly when grilling. Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking. -
Page 18: The Main Fan Oven
THE MAIN FAN OVEN USES OF THE FAN OVEN PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. preheating, however, you may find you need to add an extra 5 –10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. -
Page 19: Hints And Tips
HINTS AND TIPS Arrange the shelves in the required positions before switching the oven ON. Shelves are numbered from the bottom upwards. When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf. This will allow the heat to circulate freely for the best cooking results. -
Page 20: Oven Cooking Chart
OVEN COOKING CHART The oven temperatures are intended as a guide only. temperatures by 10°C to suit individual preferences and requirements. Shelf positions are counted from the bottom of the oven. FOOD Biscuits Flapjacks Shortbread Bread Bread rolls/buns Casseroles- beef chicken Cakes: Small &... -
Page 21: Roasting Chart
ROASTING CHART ROASTING CHART INTERNAL TEMPERATURES – Rare : 50-60°C, Medium : 60-70°C, Well done : 70-80°C MEAT Beef Beef, boned Mutton and Lamb Pork and veal Chicken Turkey and Goose Duck Pheasant Rabbit Potatoes with meat Potatoes without meat The roasting temperatures are intended as a guide only. -
Page 22: Defrost Feature
DEFROST FEATURE USES OF DEFROST This fan oven function defrosts most foods faster than more conventional methods. suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones etc. -
Page 23: Care And Cleaning
CARE AND CLEANING ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN WALL SWITCH AND ALLOW THE APPLIANCE TO COOL BEFORE CLEANING. CLEANING MATERIALS Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer. -
Page 24: Cleaning The Grill Pan, Grid And Oven Shelves
Aerosol cleaners must not be used on the Stayclean side linings and must not come into contact with elements as this may cause damage. CARE OF STAYCLEAN SURFACES Stayclean surfaces destroy splashes of food and fats when the oven temperature is raised to around 220°C. -
Page 25: Something Not Working
SOMETHING NOT WORKING? Before calling an Engineer please carry out the following checks, you may be able to solve the problem without the expense of an engineer. If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the appliance is under guarantee. -
Page 26: Service And Spare Parts
Dublin 12 Telephone: 01 4090752 CUSTOMER CARE DEPARTMENT For general enquiries concerning your Tricity Bendix appliance, or further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows: Customer Care Department Tricity Bendix 55 –... -
Page 27: Customer Service Centres
To contact your local Service Force Centre telephone CHANNEL ISLANDS GUERNSEY Guernsey Electricity PO Box 4 Vale, Guernsey Channel Islands GY1 3AD JERSEY Jersey Electricity Company Haut De L’orme Rue De Haut De L’orme Trinity Jersey Channel Islands JE3 5FG SCOTLAND ABERDEEN 54 Claremont Street... - Page 28 To contact your local Service Force Centre telephone MIDLANDS BIRMINGHAM 66 Birch Road East Wyrley Trading Estate Witton Birmingham B6 7DB BOURNE Pinfold Road Bourne PE10 9HT BRIDGNORTH 68 St. Mary’s Street Bridgnorth Shropshire WV16 4DR GLOUCESTER 101 Rycroft Street Gloucester GL1 4NB HEREFORD...
-
Page 29: Guarantee Conditions
Standard guarantee conditions We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate. - Page 30 NOTES...
- Page 31 NOTES...
- Page 32 In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice. This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed. TRICITY BENDIX 55 – 77 HIGH STREET, SLOUGH, BERKSHIRE,...
