set uP, oPeratIng, and maIntenance
Visit our website at: http://www.harborfreight.com
read this material before using this product.
Failure to do so can result in serious injury.
saVe tHIs manual.
©
Copyright
2008 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 09i

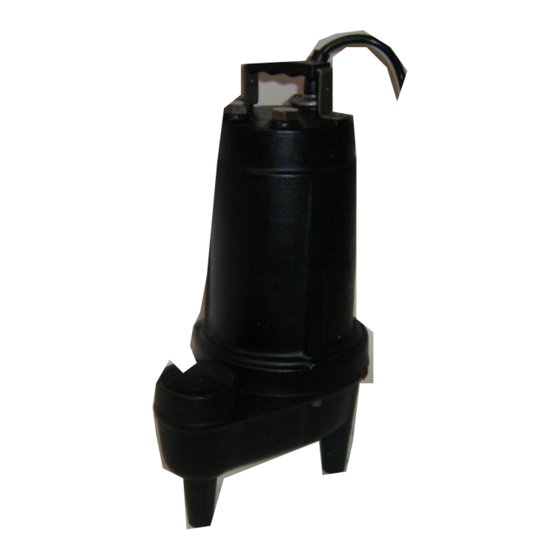

1 HP cast Iron
sewage PumP
InstructIons
®
. All rights reserved. No portion of this manual or any artwork
66351
Advertisement
Table of Contents
Related Manuals for Pacific hydrostar PACIFIC HYDROSTAR 66351
Summary of Contents for Pacific hydrostar PACIFIC HYDROSTAR 66351
- Page 1 Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
-
Page 2: Important Safety Instructions
saVe tHIs manual Keep this manual for the safety warn- ings and precautions, assembly, operat- ing, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). - Page 3 ductor in the cord is the grounding wire. Do not connect the green or green and yellow wire to a live termi- nal. Your unit has a plug as illustrated above. The outlet used should look like the outlet illustrated above. do not remove the grounding prong from the plug.
-
Page 4: Specifications
When unpacking, check to make sure that the item is intact and undamaged. If any parts are missing or broken, please call Harbor Freight Tools at the number shown on the cover of this manual as soon as possible. set uP InstructIons... -
Page 5: Operating Instructions
refer to the Assembly Diagram near the end of this manual. assemBly Thread a discharge hose, or pipe (not supplied) to the orifice on side of Base (27). If you use a check-valve (not sup- plied), mount the check valve hori- zonally or at 45°. -
Page 6: Maintenance And Servicing
maIntenance and serVIcIng Procedures not specifically explained in this manual must be performed only by a qualified technician. to PreVent serIous Injury From accIdental oPeratIon or electrIc sHocK: unplug the sewage Pump from its electrical outlet before performing any accessory change, inspection, maintenance, and/or cleaning procedures. -
Page 7: Troubleshooting
Problem Sewage Pump will not No power at outlet. start. Circuit breaker tripped. Cord not connected. Water level too low. Low flow from Possible excess solid debris lodged discharge outlets. in Impeller. Sewage Pump starts Possible back flow from discharge and stops too often. -
Page 8: Parts List
Parts lIst Part description Power Cord Screw 3/16 - 24 x 1/4 Cord Cover (Protector) Screw 1/4 - 20 x 1/4 Handle Washer 3/16 Strain Relief Screw 3/16 24 x 308 1/4” NPT Oil Plug Pump Motor Housing Washer 3/16 x 1/4 Capacitor 40uf/350 V Vac Screw M4 x 130 Rear Cover... -
Page 9: Limited 90-Day Warranty
90 day warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this prod- uct is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
