Harman P68 Freestanding Pellet Stove Installation & Operating Manual

Freestanding pellet stove
Hide thumbs Also See for P68 Freestanding Pellet Stove:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Installation Manual
NOTICE: SAVE THESE INSTRUCTIONS
Model(s):

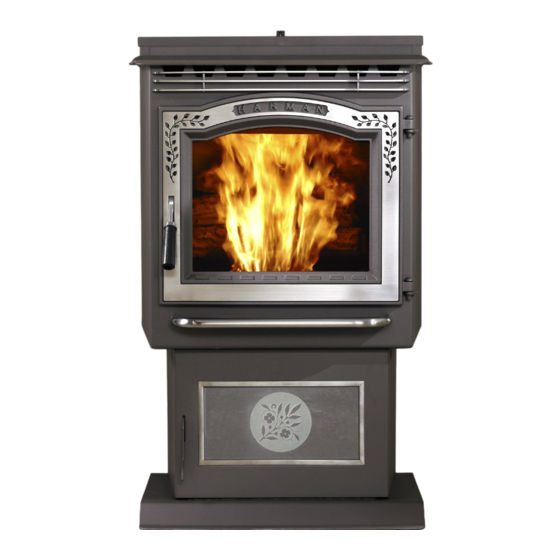

P68 Freestanding Pellet Stove
P68
Use & Care Video
Please read this entire Manual beFore installation and use oF this Wood Pellet Fuel-burning
rooM heater. Failure to FolloW these instructions could result in ProPertY daMage, bodilY
injurY, or even death.
For use in the u.s. and canada. suitable For installation in Mobile hoMes.
iF this Pellet stove is not ProPerlY installed, a house Fire MaY result. For Your saFetY, FolloW
installation directions.
contact local building or Fire oFFicials about restrictions and installation insPection
reQuireMents in Your area.
contact Your local authoritY (such as MuniciPal building dePartMent, Fire dePartMent, Fire
Prevention bureau, etc.) to deterMine the need For a PerMit.
tested and listed bY oMni-test laboratories; rePort # 135-s-13-2, 135-s-13b-2, 135-s-13c-6.2
tested to; astM e 1509-04, ulc/ord-c1482-M1990, ulc-s627-00
installation & operating Manual

saFetY notice

save these instructions.
!
hot surFaces!
Glass and other surfaces are hot during
operation and cool down.
hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
stove.
• Alert children and adults to hazards of high temperatures.
high temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
note
To obtain a French translation of this manual, please
contact your dealer or visit www.harmanstoves.com
Pour obtenir une traduction française de ce manuel, s'il
vous plaît contacter votre revendeur ou visitez www.
harmanstoves.com
Contact your local dealer with questions on installation,
operation or service.
WARNING
3-90-00688R28_03/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P68 Freestanding Pellet Stove and is the answer not in the manual?

Questions and answers

Related Manuals for Harman P68 Freestanding Pellet Stove

Summary of Contents for Harman P68 Freestanding Pellet Stove

  • Page 1: Safety Notice

    NOTICE: SAVE THESE INSTRUCTIONS WARNING hot surFaces! Glass and other surfaces are hot during operation and cool down. hot glass will cause burns. • Do not touch glass until it is cooled Model(s): • NEVER allow children to touch glass P68 Freestanding Pellet Stove • Keep children away • CAREFULLY SUPERVISE children in same room as stove. • Alert children and adults to hazards of high temperatures. high temperatures may ignite clothing or other flammable materials. • Keep clothing, furniture, draperies and other flammable materials away.
  • Page 2 4-3/8" 76mm min 3" min 9"(228mm) 13”(330mm) P68 Pellet Stove...

  • Page 3: Table Of Contents

    The Award-Winning P68 Pellet Stove has the widest BTU range available, giving you 0 to 68,000 BTU when you need it, automatically. The only thing you need to do is set your desired room temperature and fill the hopper. With the P68 you will notice even heat throughout your home and a level of convenience you never thought possible. The P68 epitomizes the capability of Harman Pellet Stoves, taking advantage of Harman’s 20 years of pellet stove design, technology and manufacturing. This 68,000 BTU stove has the highest output, smartest controls, widest heating range, and minimal maintenance. The P68’s huge output is managed by a microprocessor that senses the room temperature and the fire temperature with tiny thermister probes and then determines the best feed rate. This improved and smarter control also has a diagnostic port for connecting an external display showing live working data for easier troubleshooting. The platinum combination is Harman’s Patented Feeder & Burn Pot, and ESP Control which have been developed to their highest state. These features work together to allow amazing heat output with different fuel quality, ash content and moisture. For Your safety: When installing a solid fuel appliance, it is also recommended to install Smoke and Carbon Monoxide table of contents Detectors on every level of the house. During the initial firing of the appliance, some smoke or odor may occur due to Important Notes / Safety Concerns paint curing. You may want to keep some windows open for ventilation during the first few hours of burning to prevent smoke detector activation. Test your smoke and carbon monoxide...

  • Page 4: Important Notes / Safety Concerns

    We recommend that the stove be inspected before use and at least annually by a qualified service person.
  • Page 5 There are two 3/8” retainer clips that are in the hardware pack sent with the stove. They are to be installed onto the load door hinge pins after the trim has been installed and the door is mounted onto the stove body and ready for use. To remove the load door for any service or to change the trim, Spring Washer the retainer clips must be removed and may be damaged. Replacements can be ordered through your Harman Dealer (Part #1-00-94807031) or a 3/8” retainer clip may be purchased at your local hardware store. Wood Handle 1/4-20 x 2-1/4 socket - head screw 1. Remove wood handle, spring washer, and socket head cap screw ¼-20 x 2-1/4" from hardware pack. 2. Install spring washer and wood handle onto socket head cap screw as shown in fig. 2 and thread onto...

  • Page 6: Installation

    installation installing Alternate floor protector Place the stove on a noncombustible type floor or floor protector dimension may be used that extends a minimum of 6 inches (152mm) to the front of the as long as they satisfy 9"(228mm)- t h e m e a s u r e m e n t load door opening, 6 inches (152mm) to the sides of the door 13"(330mm) r e q u i r e m e n t s s h o w n opening, and 6 inches to the rear. Floor protection must also below.

  • Page 7: Venting

    venting requirements for terminating the venting I. The clearance to service regulator vent outlet must be a minimum of 6 feet. Warning: Venting terminals must not be recessed into a J. The clearance to a non-mechanical air supply inlet to the wall or siding. building or the combustion air inlet to any other appliance note: Only PL vent pipe wall pass-throughs and fire stops must be a minimum of 48”. should be used when venting through combustible materials. K. The clearance to a mechanical air supply inlet must be a note: Always take into consideration the effects of the minimum of 10 feet. (with outside air installed, 6 feet ) prevailing wind direction or other wind currents that may L. The clearance above a paved sidewalk or a paved cause flyash and/or smoke when placing the termination vent.
  • Page 8 Pelletvent Pro harman adapter Part #3PvP-adhb and Pelletvent Pro harman adapter increaser Part #3PvP-X4adhb are highly recommended to be installed on the starter collar to insure a proper pipe connection to the unit.
  • Page 9 venting outside air: hearth & home technologies strongly recommends attaching outside air in all installations, especially lower level and main floor locations. Per national building codes, consideration must be given to Outside air flex pipe combustion air supply to all combustion appliances. Failure goes here. to supply adequate combustion air for all appliance demands, may lead to back-drafting of those and other appliances. When the appliance is side-wall vented: The air intake is best located on the same exterior wall as the exhaust vent outlet and located lower on the wall than the exhaust vent outlet. When the appliance is roof vented: The air intake is best located on the exterior wall oriented towards the prevailing wind direction during the heating season.
  • Page 10 venting #1 Preferred method This method provides excellent venting for normal operation and allows the stove to be installed closest to the wall. Two inches from the wall is safe; however, four inches allows better access to remove the rear panel. The vertical portion of the vent should be three to five feet high. This vertical section will help provide natural draft in the event of a power failure. note: do not place joints within wall pass-throughs. 3 Ft. Combustibles 3 Ft. Fig. 8 to Combustibles #2 Preferred method This method also provides excellent venting for normal operation but requires the stove to be installed farther from the wall. The vertical portion of the vent should be three to five feet high and at least three inches from a combustible...
  • Page 11 venting #3 installing into an existing chimney This method provides excellent venting for normal operation. This method also provides natural draft in the event of a power failure. If the chimney condition is questionable* you may want to install a liner as in method #7. *The chimney should be inspected and cleaned before installing your stove. If you discover that the chimney does not have a clay tile liner or has cracks or flaking of the tile liner you will need to install a stainless steel liner within the chimney. In most cases the inside diameter of this liner should be 4". Either flexible or rigid liner may be used for this purpose. Be sure to design the venting so that it can be easily cleaned. the chiMneY Must be oF a tYPe suitable For solid-Fuel burning.
  • Page 12 venting #5 Installing into an existing fireplace chimney This method provides excellent venting for normal operation. This method also provides natural draft in the event of a power failure. In some places in the US and Canada it is required that the vent pipe extend all the way to the top of the chimney. In this method a cap should also be installed on the chimney to keep out rain. Be sure to use approved pellet vent pipe fittings. Seal pipe joints with silicone or aluminum tape in addition to the sealing system used by the manufacturer. Pipe size should be increased to 4" using this method. chimney must be of a type suitable for use with solid fuel. WARNING the chiMneY and connector Must be Maintained in good condition and KePt clean.
  • Page 13 venting storm collar ashing 3" MIN. 3" MIN. 3" MIN. No insulation or other PL vent manufacturer's combustible materials restop spacer and support are allowed within 3" of the PL vent pipe. Minimum flue vent configuration It is recommended that outside air be installed with this venting configuration.

  • Page 14: Automatic Operation

    Mode: This setting, see above, will produce the stove will automatically adjust heat output, but the stove a room temperature of 70 degrees with the distribution blower at will not automatically shut down if no heat is required. Instead medium speed. it will go to its lowest setting and remain there. The Manual position on the igniter toggle switch lets you light the stove CAUTION manually, should the igniter fail for any reason. Secondly if you are using the Harman battery back up system the Manual setting will prevent the stove from turning off and on during do not connect to anY air distribution a power failure, which would drain the back up battery, and duct or sYsteM. possibly cause damage to the back-up or the stove. In the Room Temperature Mode, the distribution blower do not burn garbage or FlaMMable Fluids speed can be increased or decreased by adjusting the Room such as gasoline, naPtha, or engine oil.
  • Page 15 automatic operation constant burn Mode shut down Procedure In the Constant burn Mode and with the igniter toggle switch The best way to shut down the stove is simply let it run out of in the Auto position, the stove will light automatically and can pellets. The stove will shut down automatically. Alternatively, be adjusted to the desired setting using the same temperature you can turn the Mode Selector to “off”. This will cause the control dial as is used in the Room Temperature Mode. fire to gradually die down and go out. The fire will not go out The heat output and fuel consumption will remain constant immediately and may take more than an hour to fully shut regardless of room temperature. The settings from 1 to 7 down. on the inner ring of the dial provide for relative heat output If the stove is left to run out of fuel, you may get a 6 blink settings with 1 being low and 7 being the maximum. status light. If this happens simply reset the control board by In Constant burn Mode, the stove will not automatically shut turning the mode selector to OFF and back ON.
  • Page 16 automatic start up starting First Fire igniter switch to "auto" (up position) Make sure the unit is plugged into a 120 VAC, 60 HZ electrical source. The power light should be the only light lit. to avoid unwanted smoke, be sure there is no fuel or combustibles in the ash pan prior to lighting. See Hint #7. Fig. 17 1. turn Mode selector to "oFF". Flame Guide 1"...

  • Page 17: Manual Operation

    Manual operation The P68 Pellet Stove is capable of manual operation. This also allows the operator to manually control operation during an emergency (i.e. igniter failure, or when using certain generators or other auxiliary power source.) The unit can be switched between "AUTO" and "MANUAL" at any time during operation. igniter switch to "Manual" room temperature Mode: This setting, see below, will produce a room temperature Mode room temperature of 70° with the The fire will have to be lit with starting gel and a match, distribution blower at medium or started automatically, see "Starting First Fire" under speed.
  • Page 18 Manual start up Manual "cold" start igniter switch to "Manual" Make sure the unit is plugged into a 120 VAC, 60 HZ electrical source. iMPortant: To avoid unwanted smoke, Be sure there is no fuel or other combustibles in the ash pan prior to lighting. Keep all doors closed during operation. Maintain all seals Fig. 19 Fig. 20 and gaskets in good condition. See Hint #7. Use only the burn pot, as supplied in the firebox, to support 1" or contain the burning fuel. No other form of grate or rack is permitted. 1. turn Feed limit to the desired feed rate. No. 4 is good for most pellets.

  • Page 19: Esp Control

    Room Temp Mode, using the outer scale marked in only. Requires special DDM Room Temp Mode, Constant burn degrees Fahrenheit. It also allows you to adjust the monitor supplied to Harman® Mode, or OFF. Also allows you to constant burn setting, while in Constant burn Mode, Dealers exclusively.

  • Page 20: Low Draft Voltage Adjustment

    low draft voltage adjustment c o m b u s t i o n M o t o r s p e e d control low draft only set point. The small straight screwdriver slot is plastic; therefore, the unit can be adjusted while in operation.

  • Page 21: Room Sensor

    room sensor and rear shield installation rear shields room sensor installation Room Sensor Port 5 / 1 6 " H e x Head Screws ( 3 o n e a c h 5 / 1 6 " H e x side) Head Screws (3 on each...

  • Page 22: Maintenance

    Maintenance scraping the burn pot: Whenever adding fuel to the hopper, take the time and scrape the grate surface of the burnpot, using the scraper tool provided. This can be done while a fire is burning. Wearing heat resistant gloves, open the firebox door. Scrape any accumulated ashes from in front of the fire, into the ash pan. Now, scrape under the fire, in a downward direction, to loosen any carbon deposits. Do not scrape the fire out of the pot. Whatever you loosen will be pushed out with the flow of new fuel into the pot. (Fig. 33) removing ashes: After approximately 1 ton of pellets has been burned, it will be necessary to empty the ash pan. disposal of ashes - ashes should be placed in a steel container with a tight fitting lid.
  • Page 23 Maintenance 5. Open burn pot clean-out. Clean fly ash from burn pot and replace cover. 6. Remove ash pan. 7. Remove combustion blower cover by turning the blower cover latch vertical, see Fig. 26. Sliding the cover out of the slot on the left. This will expose the combustion blower Burn pot wheel and flue outlet, Fig. 27. Clean-out plate 8. Clean the combustion blower wheel with a brush and a vacuum cleaner. Note: Do not use a household vacuum to clean the stove. We recommend that you use a shop vacuum that is equipped with a fine dust filter called a Fig. 28 Fig. 29 HEPA filter or a vacuum specially made for fly ash and Latch "closed "with blower Latch "open "with blower soot. cover in place. Burn pot cover partly removed. Burn Using a vacuum which is not equipped with a fine dust clean-out is closed.
  • Page 24 burn Pot Maintenance burn Pot cleaning and Maintenance 1. Scrape the top holed surface and sides of the burn pot. (Fig 33) It is not necessary to completely remove all of the loosened material from the burn pot. The excess will be pushed out during the next use. DANGER Disconnect the power to the unit before removing cover. 2. Loosen the (2) wing thumb screws on the lower front angle of the burn pot. (Fig. 34) Fig. 34 Loosen wing screws 3. Lift off the clean-out cover (Fig. 35) to open the bottom clean-out chamber. (Fig. 36) 4. Clean ash buildup from inside the chamber while cover is off. Use the scraper to tap on the top front edge of the burn pot. This will help knock pieces of ash, loosened by the scraping process, down through the holes. It also helps knock scale off of the igniter element.
  • Page 25 Maintenance - gasket adjustment Your Harman Stove viewing door gasket has been factory set, however over a period of time some minor adjustment may be necessary. The easiest way to check the adjustment of the door gasket is to take a small piece of paper (when Bolts the stove is not burning) and open the door, place the paper between the face of stove body and the gasket at the top center of the door, close the door. You should have a slight amount of resistance when you try to pull the paper out. Repeat this process on the bottom center of the door. If the paper is loose then some adjustment is necessary. To adjust the door, the stove must be turned off and cold. Open the door, loosen the 2 bolts shown (see Fig. 37) and bump the latch adjuster (Fig. 38) toward the back of stove, snug bolts and test for proper seal as described above. Once the proper seal is attained, open the door and finish tightening the bolts. If proper adjustment cannot be accomplished, then a new gasket should be installed. Over a period of time the gasket will wear and a new gasket Fig. 37 will have to be installed. To install a new gasket you must remove the old gasket. After the gasket is removed the gasket channel should be free of all loose particles. The...
  • Page 26 2. Remove wing nut and feeder cover on the side of the each side) feeder. 3. Use a vacuum cleaner to remove all fines. 4. Reinstall feed cover, wing nut, and rear cover panels. note: Cover replacement is crutial for proper operation of the stove. Make sure cover is sealed properly. Pellet Fines may build up in this area The glass in your Harman stove is a special 5mm ceramic glass. • Do not abuse the glass by striking or slamming the Glass Retainers and screws door. • Never burn the appliance if the door glass is cracked or broken.

  • Page 27: Troubleshooting

    troubleshooting stove does not Feed sMoKe is visible coMing out oF vent 1. No fuel in hopper. 1. Air-fuel ratio is too rich. 2. Firebox draft may be too low for sensing switch in feeder A. Feed rate too high. circuit to operate. check for closed doors, loose or B. Draft too low caused by a gasket leak. missing gasket on doors or hopper lid. loW heat outPut 3. Feed motor will not run until the ESP control senses a 1. Feed rate too low certain temperature. Maybe you did not put enough fuel or 2. Draft too low because of gasket leak.

  • Page 28: Fuel Specifications

    Fuel Specifications Fuel and Fuel storage Size Pellet fuel quality can fluctuate from manufacturer to • Pellets are either 1/4 inch or 5/16 inch (6-8mm) in manufacturer, and even from bag to bag. diameter Hearth & Home Technologies recommends using only fuel • Length should be no more than 1-1/2 inches (38mm) that is certified by the Pellet Fuels Institute (PFI). • Pellet length can vary from lot to lot from the same Fuel Material manufacturer •...

  • Page 29: Specifications

    Specifications 23-1/2” 5 1/4" Weight 290 lbs. blower 135 cfm Feed rate approx. 1lb. to 8 lbs per hr hopper capacity 76 lbs Fuel Wood Pellets Flue Size 3 inch Outside Air Size 3 inch Fuse rating 6 amp P68 Pellet Stove 3-90-00688R28_03/14...

  • Page 30: Wiring Diagram

    Wiring diagram PLUG WHITE YELLOW BLACK WHITE LT.BLUE WHITE GREEN CORD RUBBER 18/3 P68 Pellet Stove 3-90-00688R28_03/14...
  • Page 31 Addendum for Burning Corn and Pellet Fuel Mixture Harman® pellet burning, free-standing stoves and inserts have been tested to ASTM E1509 for burning shelled corn in a mixture with wood pellets. The listing approves up to a 50% corn and 50% pellet mixture. Di erent mixtures of corn will have distinctively di erent burn characteristics depending upon moisture content and variety.

  • Page 32: Addendums

    Contact your dealer if you have questions about UPS compatibility with your appliance. Harman® Surefire 512H Battery Back-up The 512H connects to a 12 volt deep cycle battery that will run your appliance for up to eight (8) hours. It includes a trickle charge feature that keeps your battery charged when power is available.

  • Page 33: Warranty

    hearth & home technologies liMited liFetiMe WarrantY Hearth & Home Technologies, on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WarrantY coverage: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered compo- nents manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty is subject to conditions, exclusions and limitations as described below. WarrantY Period: Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent, authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for parts and labor for covered components is produced in the following table. The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for gas appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These time periods reflect the minimum expected useful lives of the designated components under normal operating conditions. Warranty Period HHT Manufactured Appliances and Venting Components Covered Parts Labor Wood Pellet Coal Electric Venting Wood All parts and material except as covered by Conditions, 1 Year...

  • Page 34: Warranty Conditions

    WarrantY conditions: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. • This warranty is only valid in the country in which the HHT authorized dealer or distributor that sold the appliance resides. • Contact your installing dealer for warranty service. If the installing dealer is unable to provide necessary parts, contact the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking warranty service from a dealer other than the dealer from whom you originally purchased the product. • Check with your dealer in advance for any costs to you when arranging a warranty call. Travel and shipping charges for parts are not covered by this warranty. WarrantY eXclusions: This warranty does not cover the following: • Changes in surface finishes as a result of normal use. As a heating appliance, some changes in color of interior and exterior surface finishes may occur. This is not a flaw and is not covered under warranty. • Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse, scratches, melted items, or other external sources and residues left on the plated surfaces from the use of abrasive cleaners or polishes. • Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts include: paint, wood, pellet and coal gaskets, firebricks, grates, flame guides, batteries and the discoloration of glass. • Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and com- plaints related to this noise are not covered by this warranty. • Damages resulting from: (1) failure to install, operate, or maintain the appliance in accordance with the installation instructions, operating instructions, and listing agent identification label furnished with the appliance; (2) failure to install the appliance in accordance with local building codes; (3) shipping or improper handling; (4) improper opera- tion, abuse, misuse, continued operation with damaged, corroded or failed components, accident, or improperly/ incorrectly performed repairs; (5) environmental conditions, inadequate ventilation, negative pressure, or drafting caused by tightly sealed constructions, insufficient make-up air supply, or handling devices such as exhaust fans or forced air furnaces or other such causes; (6) use of fuels other than those specified in the operating instructions; (7) installation or use of components not supplied with the appliance or any other components not expressly authorized and approved by HHT; (8) modification of the appliance not expressly authorized and approved by HHT in writing;...
  • Page 35 P68 Pellet service Parts steel Pellet stove beginning Manufacturing date: n/a ending Manufacturing date: active 1-70-00688-1 (black) retired units 1-70-00688-2 (charcoal) (june 2011) 1-70-00688-5 (honey glo) (june 2009) 1-70-00688-3 (goldenfi re) (june 2011) 1-70-00688-10 (Mojave red) (jan 2010) 1-70-00688-4 (Metallic blue) (jan 2010) 1-70-00688-12 (Forest green) (jan 2010) 2 &...
  • Page 36 P68 Pellet service Parts beginning Manufacturing date: n/a ending Manufacturing date: active #2 Pre serial number 008280309 Feeder assembly 2.12 2.11 2.10 IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. stocked hearth and home technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. at depot iteM description coMMents Part nuMber Feeder Assembly Pre 008280309...
  • Page 37 P68 Pellet service Parts beginning Manufacturing date: n/a ending Manufacturing date: active #3 Post serial number 008280309 Feeder assembly 3.15 3.12 3.16 3.14 3.13 3.11 3.10 IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. stocked hearth and home technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. at depot iteM description coMMents...
  • Page 38 P68 Pellet service Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. stocked hearth and home technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. at depot iteM description coMMents Part nuMber Flue Tail Pipe 3-00-247237 Auger Motor Cover 2-00-06470P Auger Motor Shield 2-00-06467P Differential Switch 3-20-6866 Distribution Blower 3-21-33647 Combustion Blower...
  • Page 39 P68 Pellet service Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. stocked hearth and home technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. at depot iteM description coMMents Part nuMber Circuit Board w/Knobs & Shafts 1-00-05886 Circuit Board Plate-Studded w/label 1-10-08327 Control Panel Label 3-90-07766 Knob, Contol Board/D-Shaft 25 Sets 1-00-015605 Airwash O-rings Pkg of 10...
  • Page 40 P68 Pellet service Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. stocked hearth and home technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. at depot iteM description coMMents Part nuMber Gold 3-43-06717-4 Leaf Door Trim Brushed Stainless 3-43-06717-7 Bright Nickel 3-43-06717-8 Modern Door Trim Brushed Stainless 3-43-06797-7 Gold...
  • Page 41 service & Maintenance log Date Of Service Performed By Description Of Service 3-90-00688R28_03/14 P68 Pellet Stove...
  • Page 42 At Harman, we build each product to a standard, not a price. This powerful heating appliance boasts uncompromising attention to detail and helps preserve our planet by using environmentally responsible fuels. (Signature of Boxer) Your premium quality hearth product designed and assembled by the experienced and skilled members at Harman in Halifax, PA, USA.
