Harman P68 Installation And Operating Manual

Freestanding pellet stove
Hide thumbs Also See for HARMAN P68:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Installation Manual
installation & operating Manual

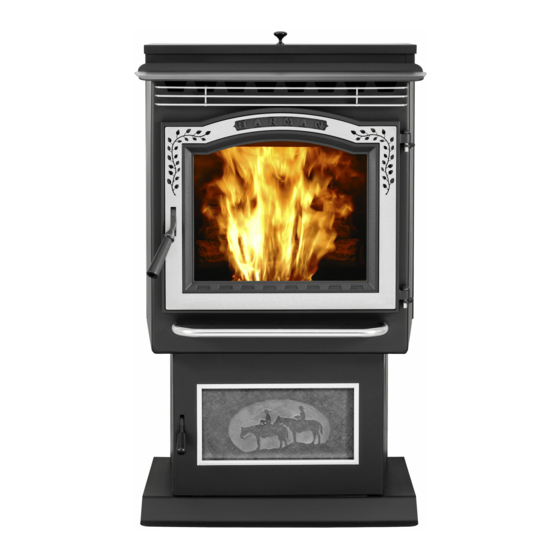

P68 Freestanding Pellet Stove
r16
"Ce manuel est disponible en Français sur demande"

SaFety notice

PleaSe read thiS entire Manual beFore inStallation and uSe oF thiS Wood Pellet Fuel-burning
rooM heater. Failure to FolloW theSe inStructionS could reSult in ProPerty daMage, bodily
injury, or even death.
For uSe in the u.S. and canada. Suitable For inStallation in Mobile hoMeS.
iF thiS Pellet Stove iS not ProPerly inStalled, a houSe Fire May reSult. For your SaFety, FolloW
inStallation directionS.
contact local building or Fire oFFicialS about reStrictionS and inStallation inSPection
reQuireMentS in your area.
contact your local authority (Such aS MuniciPal building dePartMent, Fire dePartMent, Fire
Prevention bureau, etc.) to deterMine the need For a PerMit.
teSted and liSted by oMni-teSt laboratorieS; rePort # 135-S-13b-2
teSted to; aStM e 1509-04, ulc S627-00, ulc/ord c1482-M1990
Save theSe inStructionS.
# 3-90-00688

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HARMAN P68 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman HARMAN P68

Summary of Contents for Harman HARMAN P68

  • Page 1: Safety Notice

    For uSe in the u.S. and canada. Suitable For inStallation in Mobile hoMeS. iF thiS Pellet Stove iS not ProPerly inStalled, a houSe Fire May reSult. For your SaFety, FolloW inStallation directionS. contact local building or Fire oFFicialS about reStrictionS and inStallation inSPection reQuireMentS in your area.
  • Page 3 76mm min 3"min P68 Pellet Stove...

  • Page 4: Table Of Contents

    The Award-Winning P68 Pellet Stove has the widest BTU range available, giving you 0 to 68,000 BTU when you need it, automatically. The only thing you need to do is set your desired room temperature and fill the hopper. With the P68 you will notice even heat throughout your home and a level of convenience you never thought possible.

  • Page 5: Important Notes / Safety Concerns

    Periodic cleaning is required throughout the heating season and at the end of each winter for the stove to work efficiently. See cleaning instructions on page 23. Warning caution...

  • Page 6: Installation

    The P68 is bolted (1/4 x 1" hex head bolts) to the skid to prevent movement during shipping. To free the stove from the skid you must remove the hold-down bolts in the rear of the pedestal base. rear cover panels The rear cover panels need removed from the stove to make it easier to get at the hold-down bolts.
  • Page 7 Prior to installing the flue pipe, connect a draft meter. (The draft meter must have a minimum range of 0 - .5") Record the first reading. Connect flue pipe to stove and be sure all doors and windows in the home are closed. Record the second draft reading_______.

  • Page 8: Venting

    H. A vent must not be installed within 3 feet (90 cm) above a gas meter/regulator assembly when measured from the horizontal center-line of the regulator. = Vent terminal P68 Pellet Stove venting I. The clearance to service regulator vent outlet must be a minimum of 6 feet.

  • Page 9: Outside Air

    Failure: To reduce the probability of back-drafting or burn-back in the pellet burning appliance during power failure or shut-down conditions, the stove must be able to draft naturally without exhaust blower operation. Negative pressure in the house will resist this natural draft if not accounted for in the pellet appliance installation.

  • Page 10: Vent Configurations

    House demand may consume Flex pipe part# some air needed for the stove, especially during a power 1-00-08543 (25') failure. It may be necessary to add additional ventilation to the space in which the pellet appliance is located.
  • Page 11 This vertical section will provide natural draft in the event of a power failure. If the stove is installed below grade be sure the 3 ft. vent termination is at least 18" above grade. The outlet must also be 1 foot from the house/building.
  • Page 12 *The chimney should be inspected and cleaned before installing your stove. If you discover that the chimney does not have a clay tile liner or has cracks or flaking of the tile liner you will need to install a stainless steel liner within the chimney.
  • Page 13 The pipe or liner inside the chimney should be 4"diameter. In this method a cap should also be installed on the chimney to keep out rain. chimney must be of a type suitable for use with solid fuel. P68 Pellet Stove...
  • Page 14 #8 installing through the ceiling Through the ceiling vent, follow PL vent manufacturers recommendations when using wall and ceiling pass throughs. note: do not place joints within wall pass-throughs. P68 Pellet Stove venting Storm collar Flashing 3" min. No insulation or...

  • Page 15: Automatic Operation

    In the Room Temperature Mode the stove constantly monitors the temperature in the room and adjusts the size of the fire and the heat output of the stove so that the room is kept at a constant temperature. Room mode, in...
  • Page 16 If the stove is left to run out of fuel, you may get a 6 blink status light. If this happens simply reset the control board by turning the mode selector to OFF and back ON.
  • Page 17 First, scrape the ashes on the front of the burn pot into the ash pan. Then, scrape the top surface of the burn pot downward into the base of the burn pot. When the stove is ignited these scrapings will be pushed out by the feeder and burned.

  • Page 18: Manual Operation

    Manual ignition/oPeration The P68 Pellet Stove is capable of manual operation. This also allows the operator to manually control operation during an emergency (i.e. igniter failure, or when using certain generators or other auxilliary power source.) The unit can be switched between "AUTO" and "MANUAL" at any time during operation.
  • Page 19 First, scrape the ashes on the front of the burn pot into the ash pan. Then, scrape the top surface of the burn pot downward into the base of the burn pot. When the stove is ignited these scrapings will be pushed out by the feeder and burned.

  • Page 20: Esp Control

    50 minutes. A six blink status may be set if the stove is allowed to run out of pellets. To reset, turn mode selector to "OFF" then back on to the desired mode. If the unit was not out of pellets, see Troubleshooting section, Page 28, for more details.

  • Page 21: Low Draft Voltage Adjustment

    If there is no change in draft reading between high and low voltage, check for obstructions in the air intake or the outside air connection, if installed. Fig. 23 P68 Pellet Stove...

  • Page 22: Room Sensor

    In most installations locating the room sensor behind the stove near the distribution fan works well because the sensor monitors the room air being drawn into the distribution fan.

  • Page 23: Maintenance

    1. Pull on latch handle and remove ash pan. Use ash pan handle to carry and dispose of ashes. 2. Slide the ash pan back into the stove and latch the door by pushing down on the latch handle. cleaning:...
  • Page 24 10. Reinstall blower cover and relatch. 11.Slide ash pan into stove and latch the door. Soot and Flyash: Formation and need for removal- the products of combustion will contain small particles of flyash. the flyash will collect in the exhaust venting system and restrict the flow of flue gases.

  • Page 25: Burn Pot Cleaning And Maintenance

    Fig. 36 DANGER removing cover. caution P68 Pellet Stove...
  • Page 26 (when the stove is not burning) and open the door, place the paper between the face of stove body and the gasket at the top center of the door, close the door. You should have a slight amount of resistance when you try to pull the paper out.
  • Page 27 4. Reinstall feed cover, wing nuts, and right rear cover panel. Pellet Fines may build up in this area The glass in your Harman stove is a special 5mm ceramic glass. • Do not abuse the glass by striking or slamming the door.

  • Page 28: Troubleshooting

    Whenever your stove is not burning, take the opportunity to scrape the burn pot to remove carbon buildup. A vacuum cleaner is handy to remove the residue. be sure the stove is cold if you use a vacuum. Carbon buildup can be scraped loose with the fire burning using the special tool provided with your stove.
  • Page 29 ONLY. Burning of any other fuel will void your warranty. Hearth & Home Technologies is not responsible for stove performance or extra maintenance required as a result of using fuel with higher ash or mineral content.

  • Page 30: Specifications

    33 inches deep. It is made of 20 gauge steel. This is the minimum size for floor protection with this unit. Part# 1-00-06727 20 gauge steel floor protector 25" P68 Pellet Stove Specifications 290 lbs. 135 cfm approx. 1lb. to 8 lbs per hr 76 lbs...
  • Page 31 The decorative slate tiles measure 11.938" x 5.938". The tile frame, which is part of the trim kit, is not necessary to hold the tile in place on the stove. The tile can be adhered to the recessed area of the ash door using high temp silicone.

  • Page 32: Wiring Diagram

    Wiring diagram PLUG WHITE YELLOW BLACK WHITE LT.BLUE WHITE GREEN CORD RUBBER 18/3 P68 Pellet Stove...
  • Page 33 Maximum feed has been reached when the fire bed is about ½ to 1 inch from the end of the burn pot. It is recommended that after burning at the desired settings, turn the stove off and allow it to cool, then turn it back on in “Room Temp”...

  • Page 34: Power Failure / Back-Up

    burn-back.

  • Page 35: Warranty

    Factory-installed blowers Molded refractory panels Firepots and burnpots Castings and baffles Manifold tubes, HHT chimney and termination Burners, logs and refractory Firebox and heat exchanger All replacement parts beyond warranty period listed Page 1 of 2 P68 Pellet Stove...
  • Page 36 THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645C 12-29-10 P68 Pellet Stove Page 2 of 2...
  • Page 42 Service & Maintenance log P68 Pellet Stove...
  • Page 44 At Harman, we build each product to a standard, not a price. (Signature of Boxer) Your premium quality hearth product designed and assembled by the experienced and skilled members at Harman in Halifax, PA, USA. Proudly Printed On 100% Recycled Paper...
