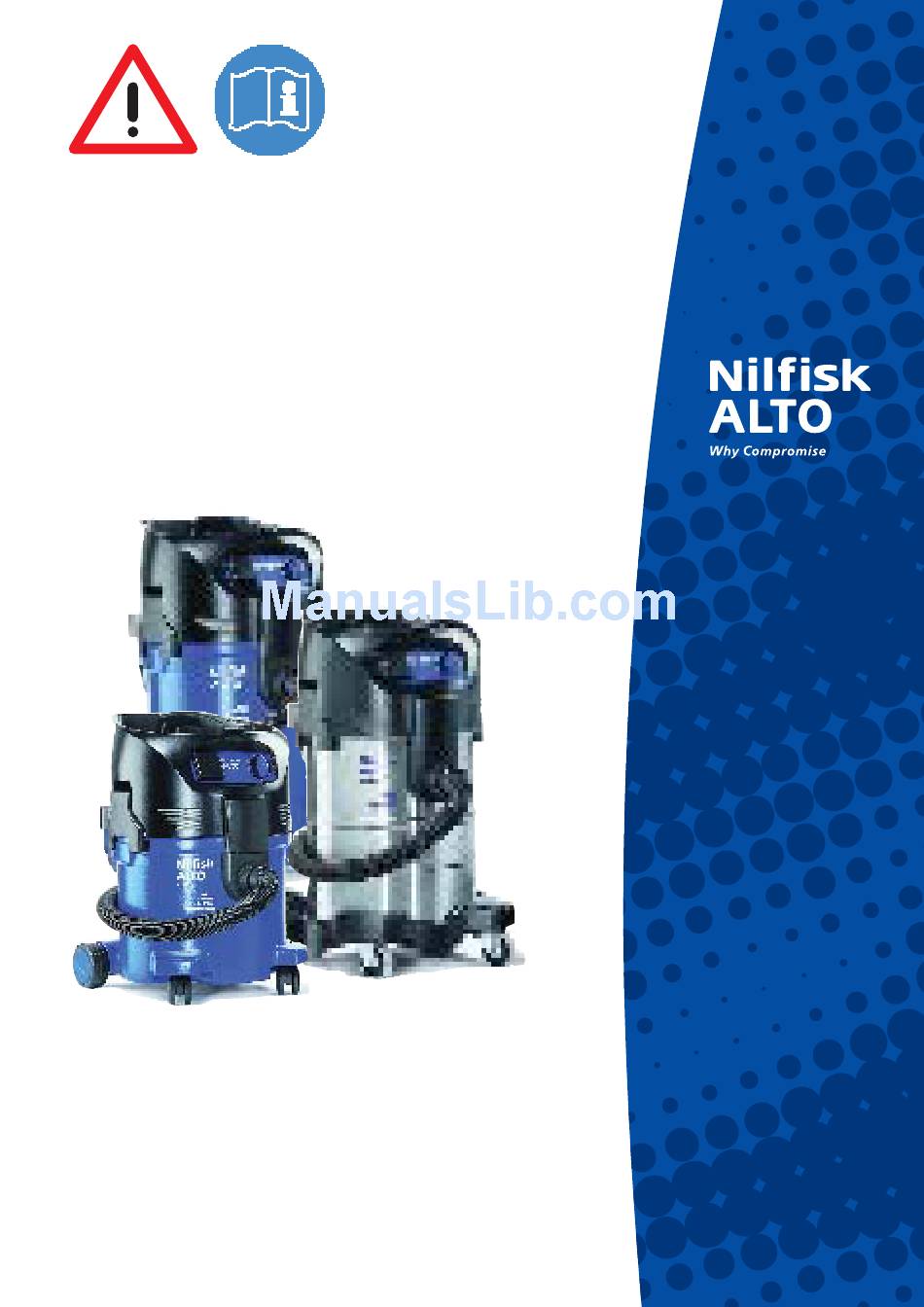

Page 1: Operating Instructions
ATTIX 30 / BATT / PC / XC ATTIX 40 / PC / XC ATTIX 50 / PC / XC Operating Instructions um_attix30-40-50-std_en_2008-08-01... - Page 2 ATTIX 30-40-50 ATTIX 30 ATTIX 50 ATTIX 40...
-
Page 3: Table Of Contents
3.1.1 Taking accessories out of the packaging ......8 3.1.2 Attaching the suction pipe holder to the suction pipe ..8 Loadiing and inserting the battery (ATTIX 30-01 PC BATT) .8 Inserting the filter bag ............9 Control / Operation Connections ...............11 4.1.1 Connecting the suction hose ..........11 4.1.2 Electrical connection ............11... -
Page 4: Important Safety Instructions
ATTIX 30-40-50 1 Important safety instructions Symbols used to mark Prior to using the appliance for the first time, be sure to read instructions this document through and keep it ready to hand. DANGER Danger that leads directly to serious or irreversible injuries, or even death. - Page 5 ATTIX 30-40-50 Transport Before transporting the dirt tank, close all the locks. Do not tilt the cleaner if there is liquid in the dirt tank. Do not use a crane hook to lift the cleaner. Storage Store the appliance in a dry place, protected from frost.
- Page 6 Regularly check whether the power cord is damaged or shows signs of ageing. Have the faulty mains connecting lead replaced by your Nilfisk-Alto service representative or a qualified electri- cian prior to using the appliance again. DANGER The upper section of the vacuum cleaner contains live components.
- Page 7 Spare parts and accessories. The use of non-genuine spare parts and accessories can impair the safety of the appliance. Only use spare parts and accessories from Nilfisk-Alto. Use only the brushes supplied with the vacuum cleaner or specified in the operating manual.
-
Page 8: Description
ATTIX 30-40-50 2 Description Operating elements Handle with receptacle for electrical lead Fixing point for suction pipe holder Retaining clamp Castor Dirt tank Inlet fitting Applicance switch Appliance socket Operating knob for filter cleaning ATTIX 30 ATTIX 50 ATTIX 40... -
Page 9: Operating Panel
ATTIX 30-40-50 Operating panel ATTIX 30- / 40- / 50-01 ATTIX 30- / 40- / 50-11 auto ATTIX 30- / 40- / 50-21 ATTIX 30-01 PC BATT Optional accessories / Option depending on model... -
Page 10: Before Starting The Cleaner
Loadiing and Insert the power cord of the inserting the battery charger into a properly in- (ATTIX 30-01 PC BATT) stalled and fused socket with earthing contact. Insert the battery into the charger. Optional accessories / Option depending on model... -
Page 11: Inserting The Filter Bag
ATTIX 30-40-50 Remove the battery from the charger after completion of the charching process (LED 100% lights up). Insert the battery into the machine and fix it by turning down the carrying handle. Inserting the filter bag The mains plug should not yet be inserted into a socket. - Page 12 ATTIX 30-40-50 Press the filter bag connec- tion firmly on to the inlet fitting. Attach the upper section of the vacuum cleaner. Close the retaining clamps (A ). Ensure that the retain- ing clamps fit properly. Optional accessories / Option depending on model...
-
Page 13: Control / Operation
ATTIX 30-40-50 4 Control / Operation Connections Connect the suction hose. 4.1.1 Connecting the suction hose 4.1.2 Electrical connection 1. Ensure that the cleaner is switched off. 2. Insert the power cord into a The operating voltage shown on the... -
Page 14: Suction Power Control
ATTIX 30-40-50 4.2.3 Suction power control Switch Function position The suction auto power control switch allows precise adaptation of the suction power for different cleaning tasks. 4.2.4 Auto-On/Off-Operation Switch off the vacuum clean- - "auto" switch position Switch off the power tool. -
Page 15: Cleaning The Filter Element
ATTIX 30-40-50 Cleaning the filter element 4.3.1 Cleaning the filter element " Push&Clean System " (ATTIX 30- / 40- / 50-xx PC) Only for vacuum cleaning without a fil- ter bag and without a cloth insert filter. If suction performance drops: Turn switch to position "I"... -
Page 16: Applications And
The use of a separate filter element or filter screen is recommend- If foam appears, stop work immediately and empty the tank. To reduce the amount of foam, use foam killer Nilfisk-Alto Foam Stop (see section "Accessories" for order number). -
Page 17: Switching The Vacuum Cleaner Off And Storage
ATTIX 30-40-50 6 After finishing work Switching the vacuum Switch off the cleaner and cleaner off and storage pull the mains plug out of the socket. Wind up the power cord onto the handle (A). Begin wind- ing up the cord at the cleaner... -
Page 18: Maintenance Plan
ATTIX 30-40-50 7 Maintenance Maintenance plan After finishing work When required 7.2.1 Emptying dirt tank 7.2.2 Replacing the filter bag 7.2.3 Replacing the disposal bag 7.2.4 Replacing filter element (Push&Clean) 7.2.5 Replacing filter element (XtremeClean) Maintenance work Switch off the vacuum clean- 7.2.1 Emptying the dirt tank... -
Page 19: Replacing The Filter Bag
ATTIX 30-40-50 7.2.2 Replacing the filter bag Switch off the vacuum clean- er and pull the mains plug out of the socket. Open the retaining clamps (A) and remove the upper section of the vacuum clean- Removing the filter bag:... -
Page 20: Replacing The Disposal Bag
ATTIX 30-40-50 7.2.3 Replacing the disposal Switch off the vacuum clean- er and pull the mains plug out of the socket. Open the retaining clamps (A) and remove the upper section of the vacuum clean- Removing the disposal bag: Close the disposal bag with string (B). -
Page 21: Replacing Filter Element (Push & Clean System)
ATTIX 30-40-50 7.2.4 Replacing filter element Switch off the vacuum clean- (Push & Clean System) er and pull the mains plug out of the socket. Never use the vacuum clean er with- Open the retaining clamps out a filter. (A) and remove the upper... -
Page 22: Replacing Filter Element (Xtremeclean System)
ATTIX 30-40-50 7.2.5 Replacing filter element Switch off the vacuum clean- (XtremeClean System) er and pull the mains plug out of the socket. Never use the vacuum clean er with- Open the retaining clamps out a filter. (A) and remove the upper... -
Page 23: Troubleshooting
• Switch off the vacuum cleaner has tripped. and allow it to cool for approx. 5 minutes. If the cleaner cannot be started again, contact the Nilfisk-Alto service department. > Motor is faulty. • Have motor changed by Nilfisk-Alto Service. -
Page 24: Further Information
ALTO Deutschland GmbH Guido-Oberdorfer-Straße 2-8 D-89287 Bellenberg Product: Vacuum cleaner for wet and dry operation Model: ATTIX 30 / 40 / 50 Description: 230-240 V~, 50/60 Hz The design of the appliance EC Machine Directive 2006/42/EC corresponds to the following... -
Page 25: Technical Data
Order No. Fleece filter bag Attix 30 (5 pcs.) 302004000 Fleece filter bag Attix 40, 50 (5 pcs.) 302004004 Disposal bag Attix 30, 40, 50 (5 pcs.) 302000728 Zylindrical filter element PC 302000461 Flat filter element XC (2 Stück) 302002842... - Page 26 Aéroparc 1 Tel.: +48 22 738 37 50 19 rue Icare Fax: +48 22 738 37 51 67960 Entzheim E-mail: info@nilfi sk-alto.pl Tel.: +33 3 88 28 84 00 www.nilfi sk-alto.pl Fax: +33 3 88 30 05 00 E-mail: info@nilfi sk-alto.fr PORTUGAL www.nilfi...
