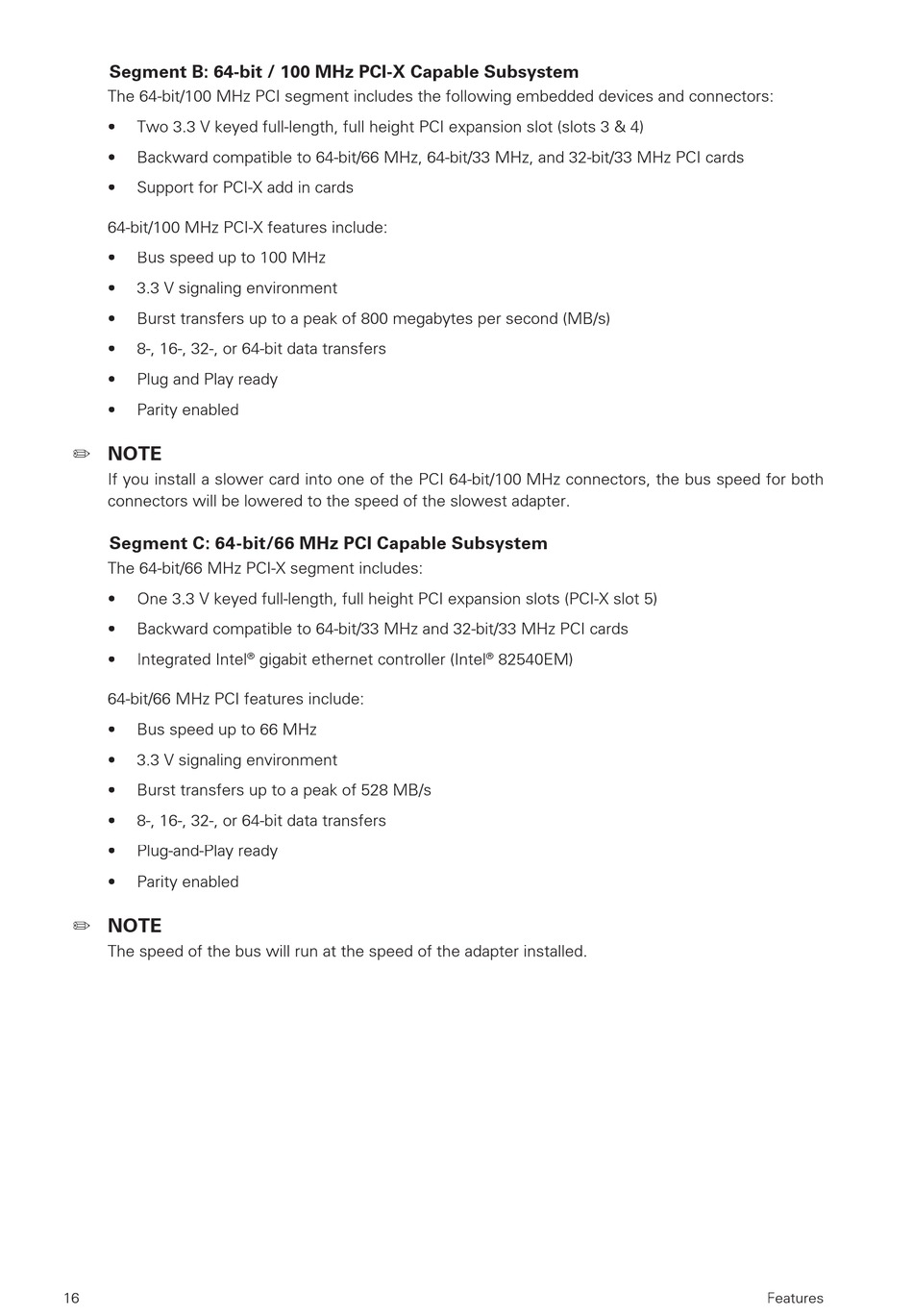

Segment B: 64-bit / 100 MHz PCI-X Capable Subsystem
The 64-bit/100 MHz PCI segment includes the following embedded devices and connectors:
• Two 3.3 V keyed full-length, full height PCI expansion slot (slots 3 & 4)
• Backward compatible to 64-bit/66 MHz, 64-bit/33 MHz, and 32-bit/33 MHz PCI cards
• Support for PCI-X add in cards
64-bit/100 MHz PCI-X features include:
• Bus speed up to 100 MHz
• 3.3 V signaling environment
• Burst transfers up to a peak of 800 megabytes per second (MB/s)
• 8-, 16-, 32-, or 64-bit data transfers
• Plug and Play ready
• Parity enabled
 NOTE
If you install a slower card into one of the PCI 64-bit/100 MHz connectors, the bus speed for both
connectors will be lowered to the speed of the slowest adapter.

Segment C: 64-bit/66 MHz PCI Capable Subsystem

The 64-bit/66 MHz PCI-X segment includes:
• One 3.3 V keyed full-length, full height PCI expansion slots (PCI-X slot 5)
• Backward compatible to 64-bit/33 MHz and 32-bit/33 MHz PCI cards
• Integrated Intel
64-bit/66 MHz PCI features include:
• Bus speed up to 66 MHz
• 3.3 V signaling environment
• Burst transfers up to a peak of 528 MB/s
• 8-, 16-, 32-, or 64-bit data transfers
• Plug-and-Play ready
• Parity enabled
 NOTE
The speed of the bus will run at the speed of the adapter installed.
16
gigabit ethernet controller (Intel
®
82540EM)
®
