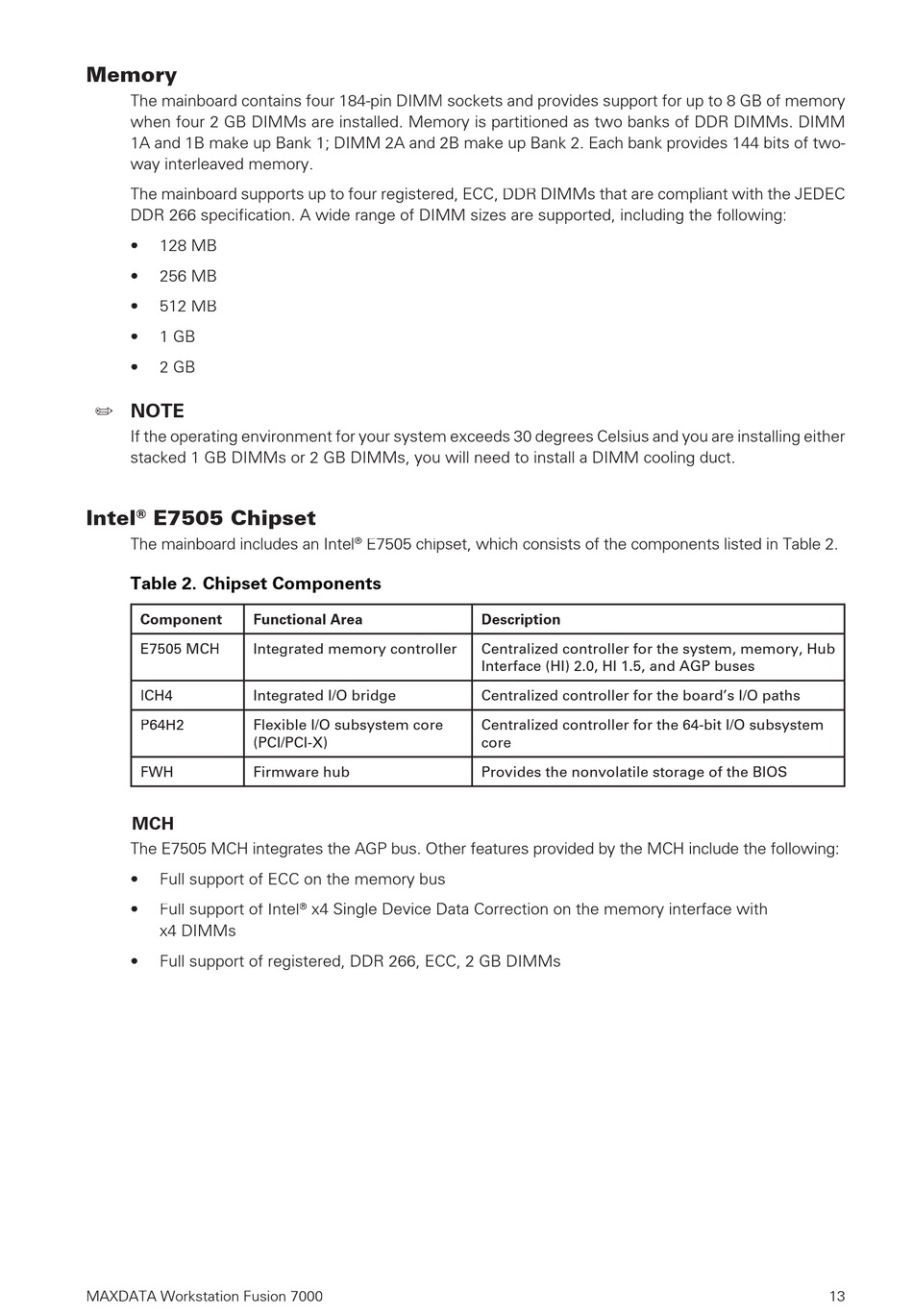

Memory

The mainboard contains four 184-pin DIMM sockets and provides support for up to 8 GB of memory
when four 2 GB DIMMs are installed. Memory is partitioned as two banks of DDR DIMMs. DIMM
1A and 1B make up Bank 1; DIMM 2A and 2B make up Bank 2. Each bank provides 144 bits of two-
way interleaved memory.
The mainboard supports up to four registered, ECC, DDR DIMMs that are compliant with the JEDEC
DDR 266 specification. A wide range of DIMM sizes are supported, including the following:
• 128 MB
• 256 MB
• 512 MB
• 1 GB
• 2 GB
 NOTE
If the operating environment for your system exceeds 30 degrees Celsius and you are installing either
stacked 1 GB DIMMs or 2 GB DIMMs, you will need to install a DIMM cooling duct.
Intel E7505 Chipset
®
The mainboard includes an Intel
Table 2. Chipset Components
Component Functional Area
E7505 MCH Integrated memory controller
ICH4 Integrated I/O bridge
P64H2 Flexible I/O subsystem core
(PCI/PCI-X)
FWH Firmware hub

MCH

The E7505 MCH integrates the AGP bus. Other features provided by the MCH include the following:
• Full support of ECC on the memory bus
• Full support of Intel
x4 DIMMs
• Full support of registered, DDR 266, ECC, 2 GB DIMMs
MAXDATA Workstation Fusion 7000
E7505 chipset, which consists of the components listed in Table 2.
®
x4 Single Device Data Correction on the memory interface with
®
Description
Centralized controller for the system, memory, Hub
Interface (HI) 2.0, HI 1.5, and AGP buses
Centralized controller for the board's I/O paths
Centralized controller for the 64-bit I/O subsystem
core
Provides the nonvolatile storage of the BIOS
13
