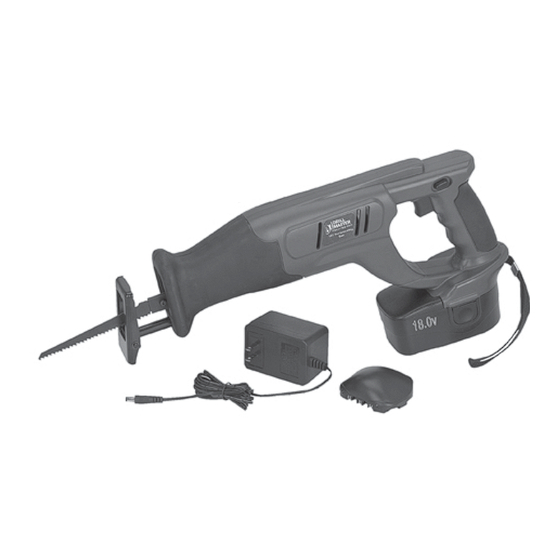

18V RECIPROCATING SAW
ASSEMBLY AND OPERATING INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
©
Copyright
2005 by Harbor Freight Tools
any artwork contained herein may be reproduced in any shape or form without the express
written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353.
93830
®
. All rights reserved. No portion of this manual or
®
Advertisement
Table of Contents
Related Manuals for Drill Master 93830
Summary of Contents for Drill Master 93830
- Page 1 © Copyright 2005 by Harbor Freight Tools any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions and replacement parts, please call 1-800-444-3353. 93830 ® ®...
-
Page 2: Table Of Contents
Freight Tools at the number shown on the cover of this manual as soon as possible. Note: Before first use, the Batteries (47) will require charging. The first charge requires 8 hours charge time for each battery. See charging instructions on page 10. SKU 93830 For technical questions, please call 1-800-444-3353. Contents... -
Page 3: Product Specifications
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. SKU 93830 For technical questions, please call 1-800-444-3353. Save This Manual... - Page 4 Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. SKU 93830 For technical questions, please call 1-800-444-3353. Electrical Safety...
- Page 5 Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. SKU 93830 For technical questions, please call 1-800-444-3353. Tool Use and Care Page 5...
- Page 6 The green wire in the cord must be the only wire connected to the tool’s grounding system and must never be attached to an electrically “live” terminal. (See Figure A.) SKU 93830 For technical questions, please call 1-800-444-3353. Service...
- Page 7 The smaller the gauge number of the wire, the greater the capacity of the cord. For example, a 14 gauge cord can carry a higher current than a 16 gauge cord. (See Figure C.) SKU 93830 For technical questions, please call 1-800-444-3353. FIGURE A...
- Page 8 Always replace a damaged extension cord or have it repaired by a qualified electrician before using it. Protect your extension cords from sharp objects, excessive heat, and damp or wet areas. SKU 93830 For technical questions, please call 1-800-444-3353. Symbology Page 8...
-
Page 9: Specific Safety Rules
Maintain labels and nameplates on this item. These carry important information. If unreadable or missing, contact Harbor Freight Tools for a replacement. When using a handheld power tool, always maintain a firm grip on the tool with both hands. -
Page 10: Charging The Battery
Then, disconnect the Charger from the Battery. * The Battery (47) require an initial charge time of 8 hours. Do not recharge the Battery more than 5 hours after this initial charging. SKU 93830 For technical questions, please call 1-800-444-3353. Page 10... -
Page 11: Operation
D. Then, firmly retighten the Cap Screw (29) to secure the Saw Blade (23) in place. E. Gently pull on the Blade (23) with a gloved hand to ensure it is held properly. SKU 93830 For technical questions, please call 1-800-444-3353. -
Page 12: Inspection, Maintenance, And Cleaning
AND LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. SKU 93830 For technical questions, please call 1-800-444-3353. Page 12... -
Page 13: Parts Lists And Diagrams
Trigger Switch is an assembly: 41, 42, 43, 44, 45, 46, 50, 51 Part 52 - Charger - not shown. Part 53 - AC Charger Adapter - not shown. SKU 93830 For technical questions, please call 1-800-444-3353. p i l e l l...
