EMPHASER EA2350 Installation & Operating Manual page 7

EA 2/4-CH Manual 12.03.2002
2. CONNECTIONS & CONTROLS
14 PHASE SHIFT ON/OFF CONTROL
ON/OFF switch to activate or deactivate the phase shift function of the amplifier.
See chapter 7.7
15 REMOTE LOW PASS LEVEL INPUT
Telephone jack input socket for connection with the dash-mounted low-pass level remote unit.
The remote low pass level control is only active when the operation mode switch is set to
lowpass or bandpass! See chapter 6.1
16 POWER LED
Green "operation" LED, signaling correct operation of the amplifier. See chapter.7.5
17 PROTECTION LED
Red "protection" LED, signaling faulty speaker connections or general malfunction of the
amplifier. See chapter 7.5
18 REMOTE LOW PASS LEVEL OUTPUT
This input is only applicable to the EA2350, and it allows to branch two or more EA2350,
to be controlled by one remote lowpass level boost unit.

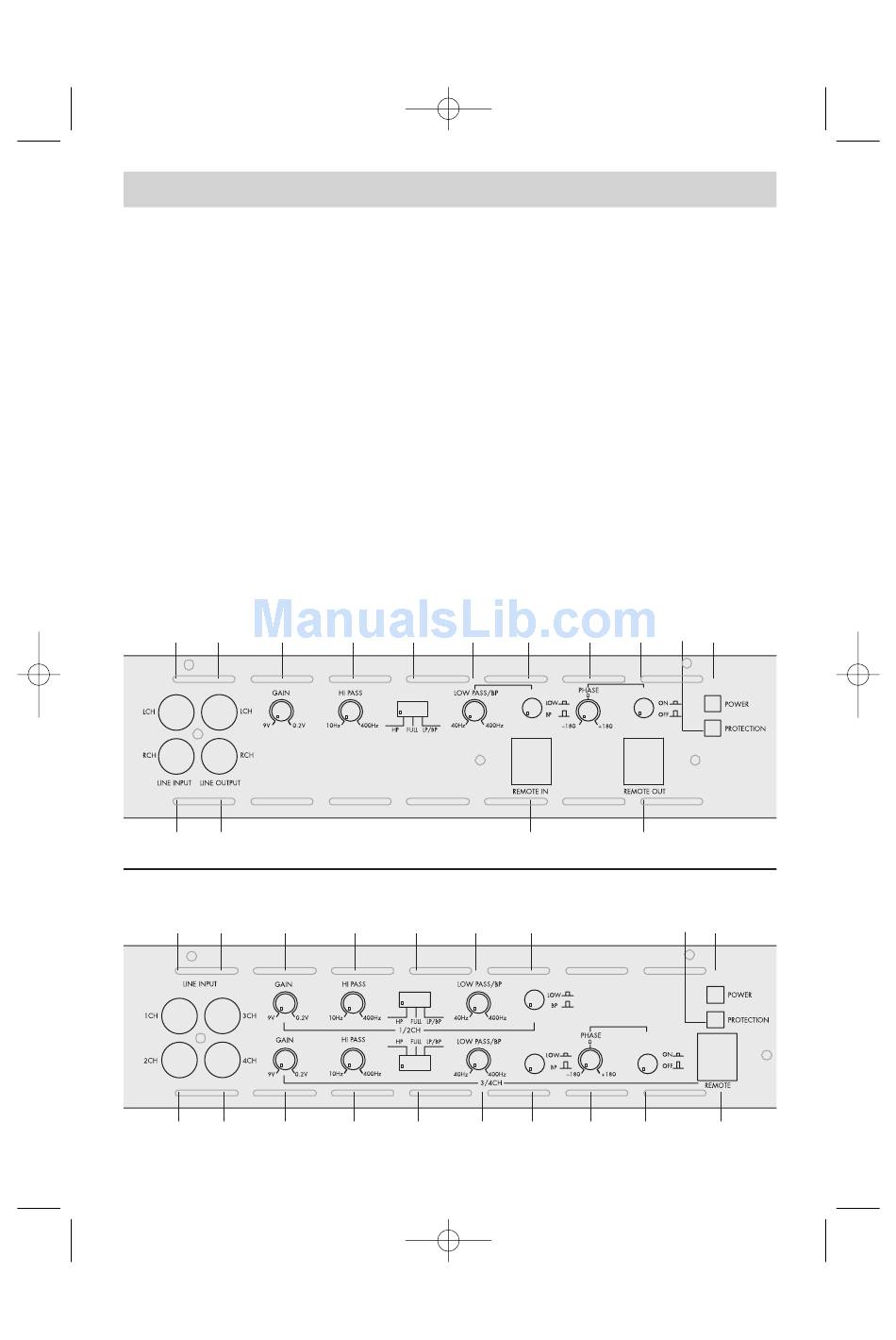

EA2350 2-CH
1a 2a
1b 2b
EA4150 4-CH
1a 2a
1b 2b
12:54 Uhr Seite 7
3 4 5
3 4 5
8 9 10
6 7 13 14
15 18
6 7
11 12 13 14
17 16
17 16
15
7
