Connecting the System

Rear Connectors


NOTE
The line out connector, located on the back panel, is designed to power either headphones or amplified
speakers only. Poor audio quality may occur if passive (non-amplified) speakers are connected to this
output.
A.
B.
C.
D.
E.
F.

Powering up the System

At the front of the case, you can find the necessary controls like power button, reset button and the
HDD Leds. Press the power button one time briefly in order to boot the workstation.
8

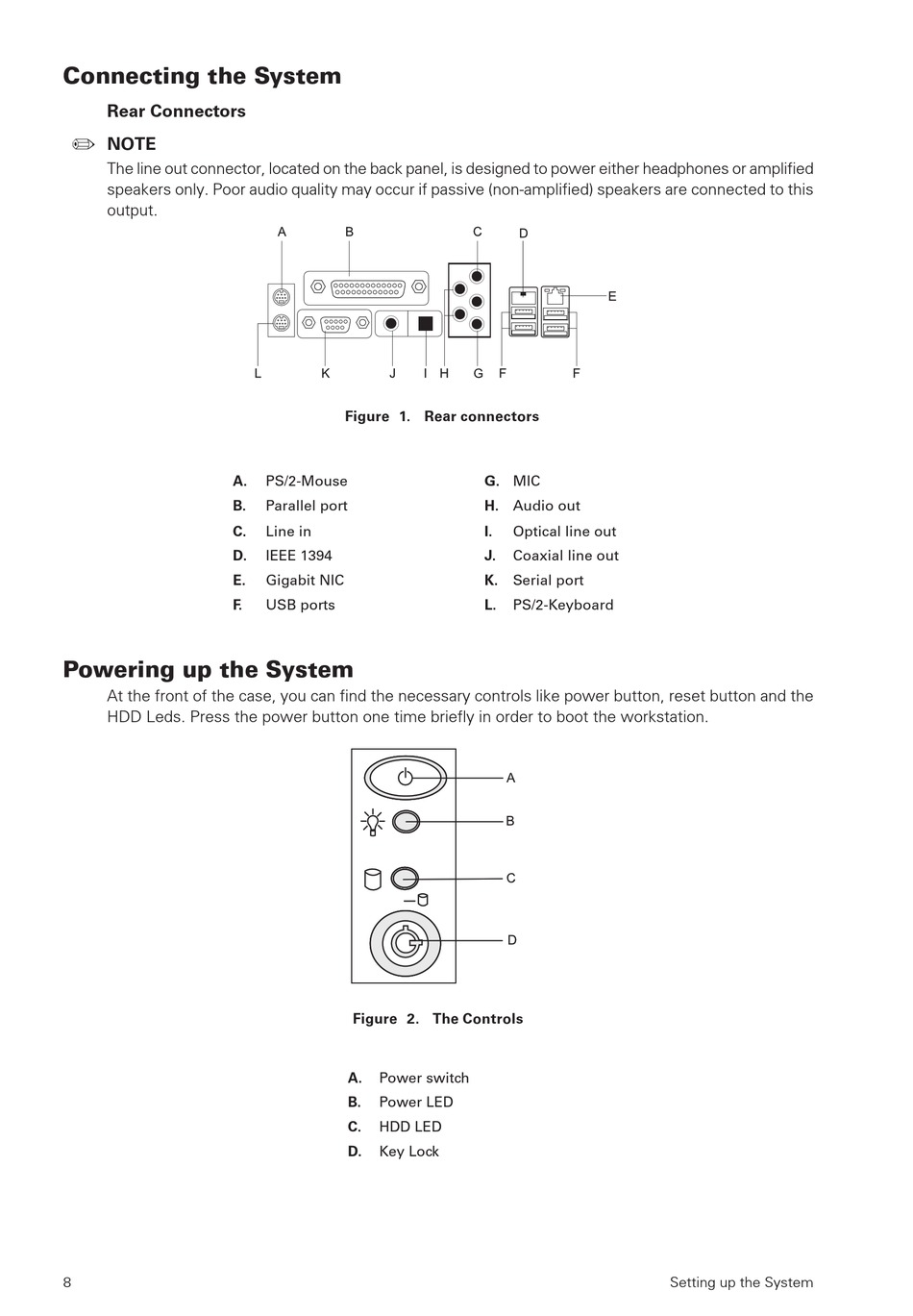

Figure 1. Rear connectors
PS/2-Mouse
Parallel port
Line in
IEEE 1394
Gigabit NIC
USB ports
Figure 2. The Controls
A. Power switch
Power LED
B.
C. HDD LED
D. Key Lock
G. MIC
H. Audio out
I. Optical line out
J. Coaxial line out
K. Serial port
L. PS/2-Keyboard
Setting up the System
