Board Components

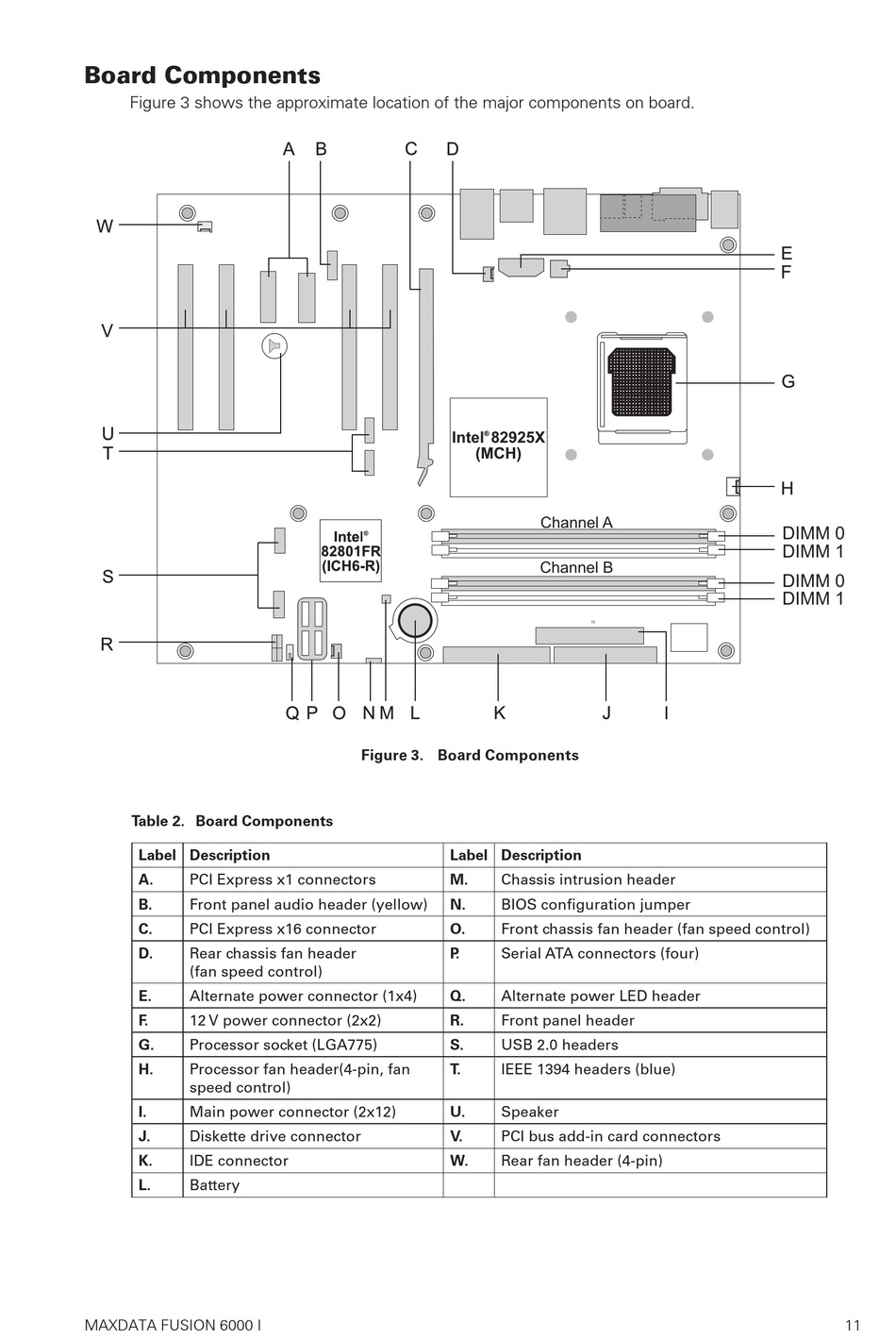

Figure 3 shows the approximate location of the major components on board.
Table 2. Board Components
Label Description
A. PCI Express x1 connectors
B. Front panel audio header (yellow)
C. PCI Express x16 connector
D. Rear chassis fan header
(fan speed control)
Alternate power connector (1x4)
E.
12 V power connector (2x2)
F.
Processor socket (LGA775)
G.
H. Processor fan header(4-pin, fan
speed control)
I. Main power connector (2x12)
J. Diskette drive connector
K. IDE connector
L. Battery
MAXDATA FUSION 6000 I MAXDATA FUSION 6000 I
����� ������
��
�����
Figure 3. Board Components
Label Description
M. Chassis intrusion header
N. BIOS configuration jumper
O. Front chassis fan header (fan speed control)
P . Serial ATA connectors (four)
Alternate power LED header
Q.
Front panel header
R.
USB 2.0 headers
S.
T. IEEE 1394 headers (blue)
U. Speaker
V. PCI bus add-in card connectors
W. Rear fan header (4-pin)
���������
���������
������
������
������
������
