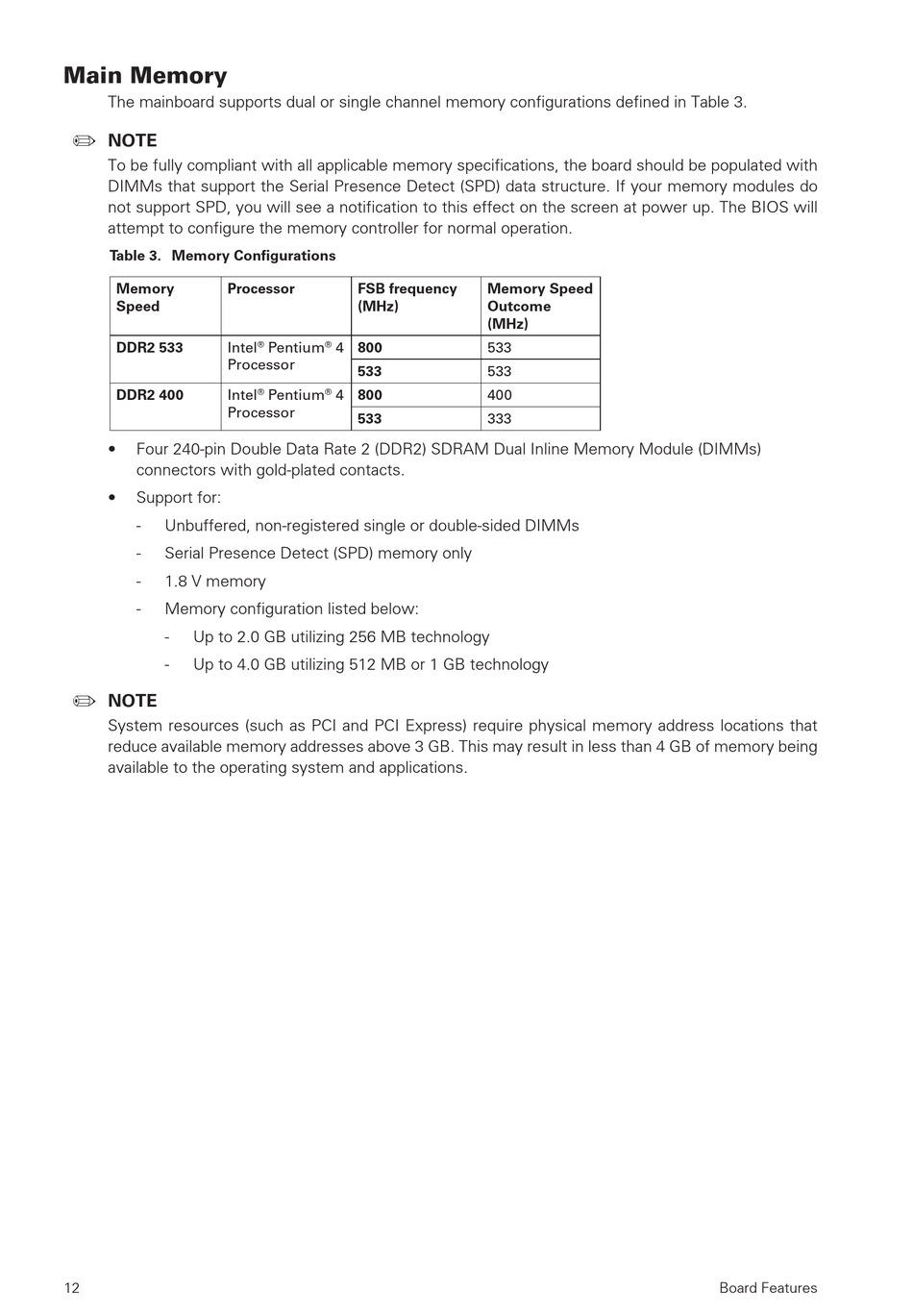

Main Memory

The mainboard supports dual or single channel memory configurations defined in Table 3.

NOTE
To be fully compliant with all applicable memory specifications, the board should be populated with
DIMMs that support the Serial Presence Detect (SPD) data structure. If your memory modules do
not support SPD, you will see a notification to this effect on the screen at power up. The BIOS will
attempt to configure the memory controller for normal operation.
Table 3. Memory Configurations
Memory Processor
Speed
DDR2 533 Intel
Processor
DDR2 400 Intel
Processor
• Four 240-pin Double Data Rate 2 (DDR2) SDRAM Dual Inline Memory Module (DIMMs)
connectors with gold-plated contacts.
• Support for:
- Unbuffered, non-registered single or double-sided DIMMs
- Serial Presence Detect (SPD) memory only
- 1.8 V memory
- Memory configuration listed below:
- Up to 2.0 GB utilizing 256 MB technology
- Up to 4.0 GB utilizing 512 MB or 1 GB technology

NOTE
System resources (such as PCI and PCI Express) require physical memory address locations that
reduce available memory addresses above 3 GB. This may result in less than 4 GB of memory being
available to the operating system and applications.
12 12
FSB frequency
(MHz)
Pentium 4 800
® ®
533
Pentium 4 800
® ®
533
Memory Speed
Outcome
(MHz)
533
533
400
333
