6. Hold the processor with your thumb and index fingers oriented as shown in Figure 9. Make
sure fingers align to the socket cutouts (see Figure 9, F). Align notches (see Figure 9, G) with
the socket see (Figure 9, H). Lower the processor straight down without tilting or sliding the
processor in the socket.
7. Pressing down on the load plate (Figure 10, I) close and engage the socket lever (Figure 10, J).
22 22
�
�
�
�

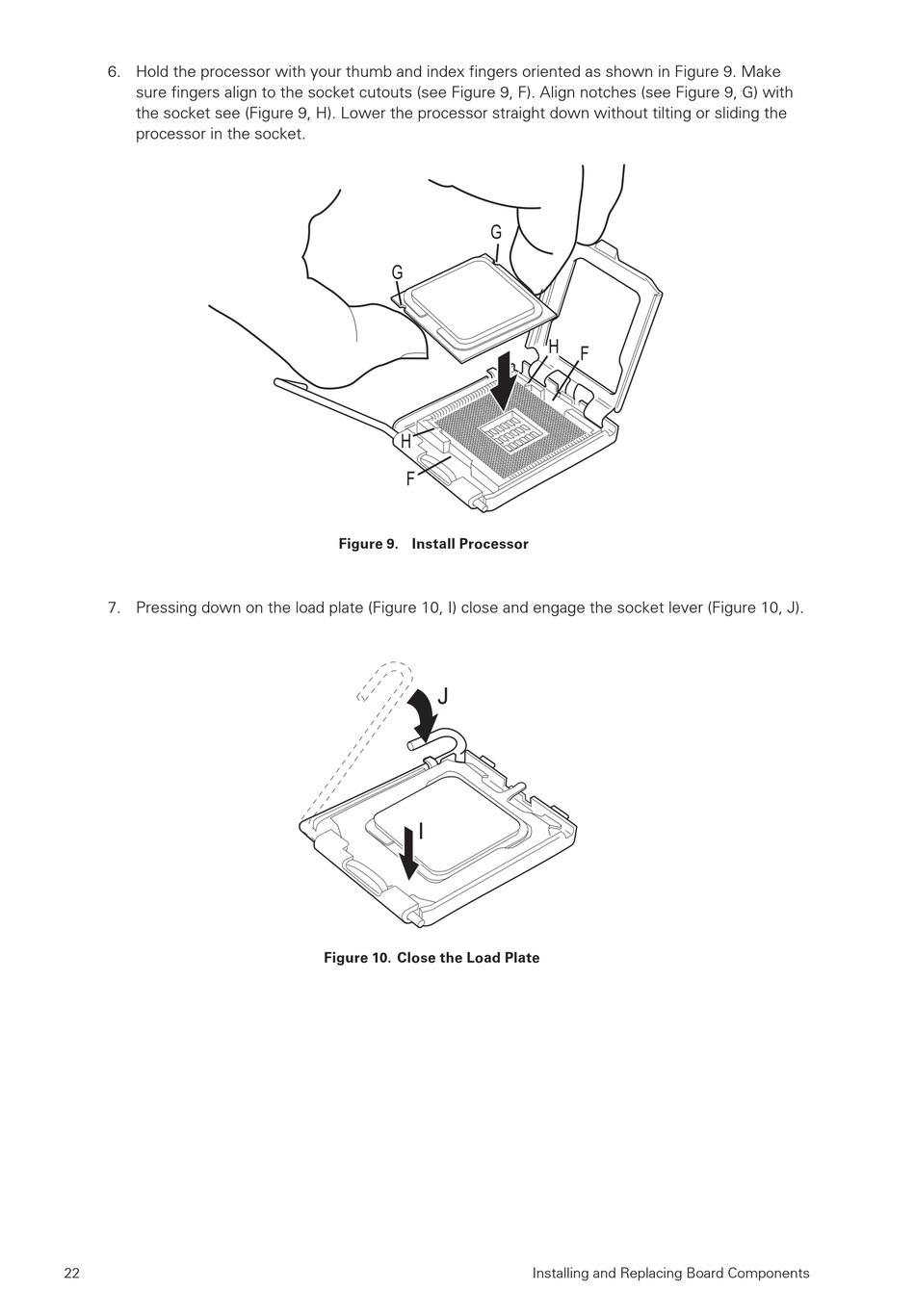

Figure 9. Install Processor
�
�
Figure 10. Close the Load Plate
�
�
