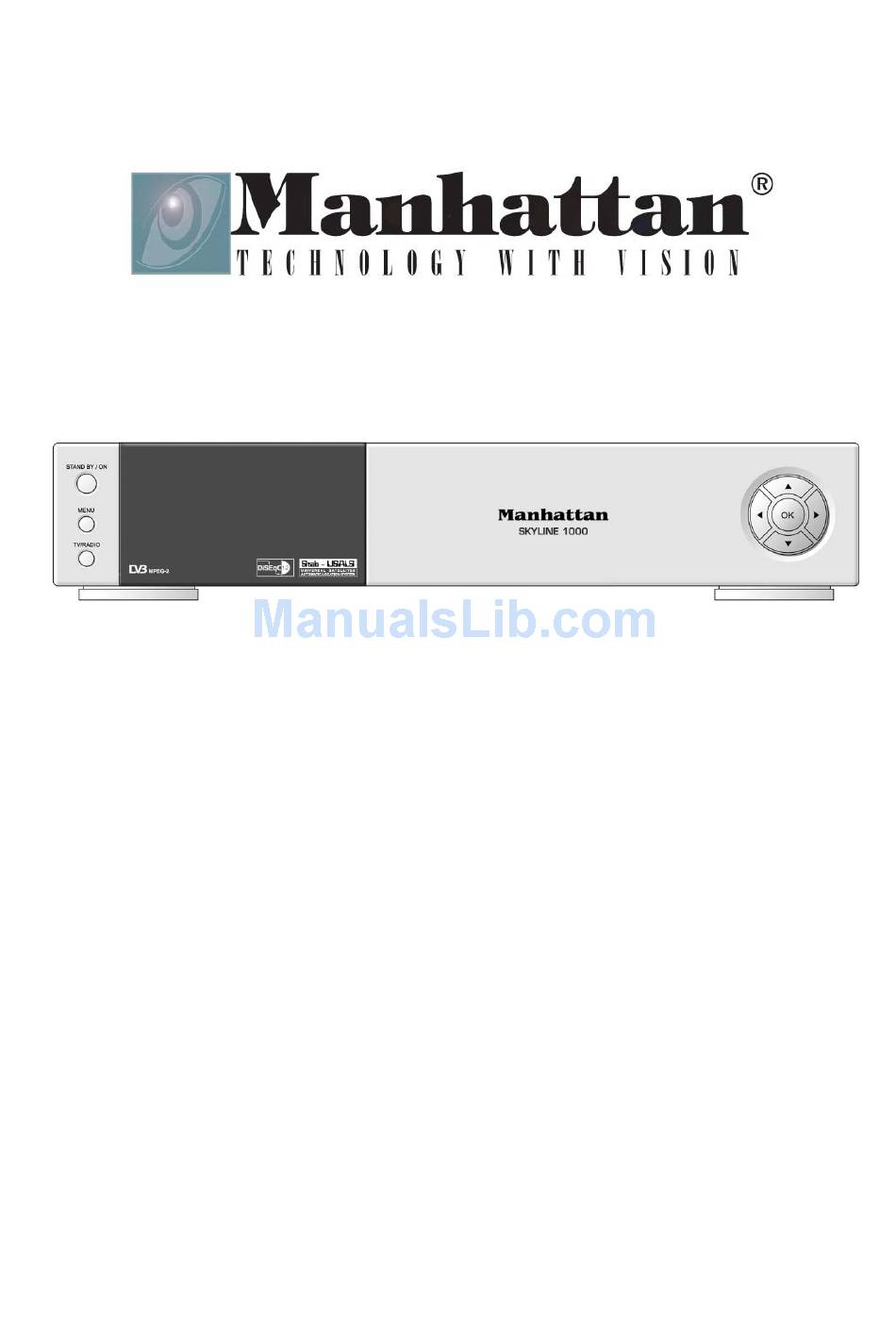

- Page 1 SKYLINE 1000 Digital Satellite Receiver Instruction Manual (English) www.manhattan-receivers.com...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION………………………………………………………………………………………………… 3 SAFETY NOTICE…………………………………………………………………………………………………3 CLEANING YOUR RECEIVER………………………………………………………………………………….3 FEATURES………………………………………………………………………………………………………..4 REAR PANEL CONNECTIONS……………………………………………………………………………….4,5 FRONT PANEL CONTROLS………………………………………………………………………………… 5,6 REMOTE CONTROL FUNCTIONS…………………………………………………………………………….7 INSTALLATION: • Tuning your TV to UHF channel output……………………………………………………………….8 • TV settings……………………………………………………………………………………………….8 • Time settings…………………………………………………………………………………………….9 CONFIGURING YOUR ANTENNA: • Antenna settings………………………………………………………………………………………...9 SETTING YOUR DiSEqC ANTENNA POSITIONER:…………………………………………………………9 AUTOMATIC SCAN AND SEARCH: Multi satellites…………………………………………………………10 •... -
Page 3: Introduction
The SKYLINE 1000 is an advanced digital satellite receiver which can store up to 3000 channels ( TV and Radio collectively). The receiver is designed to cope with the many different operating requirements often imposed by different broadcast standards and program providers world-wide. -
Page 4: Features
FEATURES • 1 LNB input (F- type), IF signal loop through • Symbol rate, 2-45 Ms/Sec • Up to 3000 channels programmable for TV or Radio • SCPC and MCPC receivable from C/Ku band satellites • Up to 50 satellite position memory USING DiSEqC 1.2 motor •... -
Page 5: Rear Panel Connections
REAR PANEL CONNECTIONS CONNECTORS AND DEFINITIONS Please do not connect the power to the receiver until all other connections have been made and checked. Please refer to diagram above for connections. R1: AC IN (Power Cord) Connect this lead to the mains outlet (100-240 V AC 50/60 Hz) after all other connections have been made. R2: LNB IN ( IF Input ) Connect the IF cable from your LNB on your dish to this connector. -
Page 6: Front Panel Controls
FRONT PANEL CONTROLS F1: STANDBY / ON After connecting the mains power, press this button to switch ON the receiver or to switch to STANDBY F2: DIGIT LED DISPLAY This will display the current channel or certain programming functions when using the menus. In standby mode this will display the time. -
Page 7: Remote Control Functions
REMOTE CONTROL FUNCTIONS We recommend that you familiarize yourself with the remote control handset prior to installing the receiver. To switch receiver to ON or NORM To turn sound off to STANDBY or on NORM To select channels NORM / PROG To select PROG To enter numeric values TV or RADIO channels NORM / PROG To select... -
Page 8: Installation
To move up a line To change a parameter in certain modes only To enter or confirm a parameter To change a parameter or to move to left To change a parameter or to move to right To exit from programming To change a parameter in certain modes only To move down a line... -
Page 9: Time Settings
When the receiver is in standby mode, the front panel display will indicate the time after setting as below. The time will also be displayed on the channel banner and when in TIME SETTINGS menu. Year: Press VOL up / down to select the current year. Month: Press VOL up / down to select the month. -
Page 10: Automatic Scan And Search: Multi Satellites
0 Position: If you need to move antenna to 0 position as indicated on the DiSEqC positioner, press OK. Re-sync: If you need to re/sync the positions, first find one satellite then move down to ‘Re-sync’ and press OK. STORE: Press OK to store the above settings. INSTALL MENU: CHANNEL SEARCH (with DiSEqC 1.3 positioner sub menu) Select CHANNEL SEARCH and move down to Positioner line. -
Page 11: Channel Search Individual Satellite
Channel search : Individual satellite To tune satellites individually or to add more satellites after multi satellite search, follow below steps. INSTALL MENU: CHANNEL SEARCH 1. Search Index: You do not need to set anything here. The reference can be left as 1. 2. -
Page 12: Changing Satellite Or Channel In Viewing Mode
Changing satellite or channel in viewing mode There are two ways of changing to a different satellite or channel as below. BY PRESSING - OK Whilst watching any channel press OK and the channel list will come up on your screen. -
Page 13: To Select Different Broadcast Audio
To select a different broadcast audio When the service provider is transmitting multiple audio or languages for a channel, you can select an audio or language of your choice. Press LANG button on your remote. The screen will display the menu on the top left corner. Press CH up / down button to select ,then press OK. -
Page 14: Installing Favorite Channels
CURRENT CHANNEL – Press OK and the cursor will move to the current event. Press CH up / down to select event and press OK. See below menu which shows the actual EPG. Press ESC twice when finished. DIFFERENT CHANNEL – Press CH up / down to change channel. Press OK after changing channel and the cursor will move to the current event. -
Page 15: Selecting Favorite Channels
Press VOL up / down to change the list. Press CH up / down to scroll up and down the list. Press OK on the required channel. Press FAV or ESC if you want to quit without selecting any channel. VCR Timer Settings You can program your receiver to switch on automatically ( on from standby) for your VCR. -
Page 16: System Information: Software
SYSTEM MENU: System Information If you have a technical inquiry regarding the functions of your receiver, it may be necessary to quote these figures when calling the technical help line. These figures will change when you upgrade the software. PARENTAL LOCK: To lock programming menus If you wish to lock the programming menus so that it can only be operated with a password. -
Page 17: To Edit Satellite
EDIT MENU: CHANNEL EDIT 3. TO RENAME CHANNEL Press OK on ‘Rename’ Select channel then press OK on the channel. Left menu will appear. Press CH up / down to move up and down the lines. Press VOL up / down to move within the line. Press OK on the letter to enter. -
Page 18: To Edit Tp
To edit TP To add, delete, rename or sort TP list. Follow below steps. EDIT MENU: SATELLITE / TP EDIT In EDIT menu select ‘Satellite / TP Edit’ and press OK. Press VOL down once to change to TP menu. Then press CH down once. 1. -
Page 19: Receiver To Receiver Copy Function
If you do not have access to internet then consult your Manhattan Dealer / Agent for any upgrades. Your current software version is displayed in the ‘System Information’ in SYSTEM menu. Remember after software upgrade, the receiver must be reset via ‘Master Reset’ in SYSTEM menu and re-installed. -
Page 20: Technical Specifications
Check the batteries in your remote control. Replace with new. • Apply master password contact your • You have lost or forgotten your password Manhattan dealer. Technical Specifications TUNER Input Connector F-type IEC 169-24 Female Frequency Range 950MHz to 2150MHz Input Impedance 75 Ohm Signal Level -25 to - 65 dBm LNB Power &... -
Page 21: Master Password
340 X 66 X 285 mm Weight 2.1 Kg Eurosat® and Manhattan® are registered trademarks of Eurosat Distribution Ltd. Eurosat reserves the right to alter product specifications without prior notice. MASTER PASSWORD This is the master password for your receiver. Cut this section out and keep it in a safe place. It will be useful later if you forget or lose your configured password. -
Page 22: Programming Menu
SYSTEM OSD SETUP 1. OSD Setup Language English 2. TV Settings Color Mode 1 3. Time Settings Transparency 4. VCR Timer Settings STORE 5. Master Reset 6. System Information TV SETTINGS TV Standard Auto Screen Format 4:3 PS Video Output WARNING UHF Channel This will erase all stored data... - Page 23 CHANNEL EDIT CHANNEL EDIT EDIT TV CHANNEL RADIO CHANNELCH TV CHANNEL RADIO CHANNELCH 1. Channel Edit 0001 TVN Rename 0001 0001 TVN Rename 0001 ROCK 2. Satellite / TP Edit 0002 DISC 0002 CLASS 12345 STORE Hotbird 1-5 SATELLITE / TP EDIT SATELLITE / TP EDIT Freq 11766 Hotbird 1-5...
