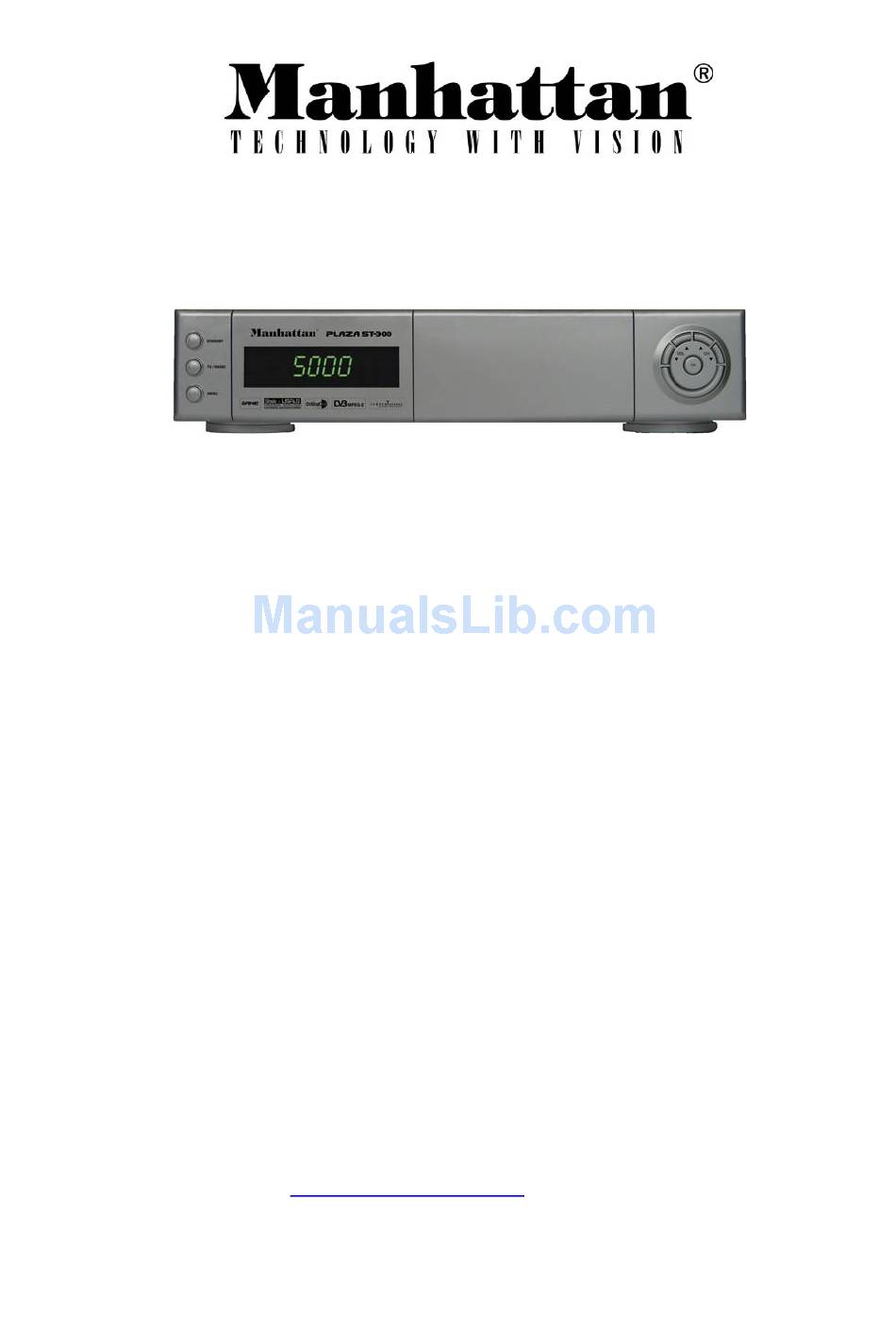

- Page 1 Digital Satellite Receiver PLAZA MODELS ST 100 / ST 120 ST 200 / ST 300 PLAZA MODELS ST 100 / ST 120 ST 200 / ST 300 Instruction Manual (English) http://www.plaza-st.com ISSUE 3...
-
Page 2: Table Of Contents
MASTER PASSWORD 6699........................15 INTRODUCTION Welcome to the world of Manhattan digital satellite receiver that will make your life closer to your dream. Before using your new receiver, we suggest that you carefully read this manual and the following safety notice. -
Page 3: Features
FEATURES FEATURES 1 LNB input, IF signal loop through, supports Universal, Single, C Band and Wide Band LNB Multiple LNB switching 0/12V, 14/18 volts, 22KHz and DiSEqC 1.2 2 SCART, TV (CVBS / RGB) and VCR/DVD with loop through facility ... -
Page 4: Connectors And Definitions
REAR PANEL CONNECTIONS CONNECTORS AND DEFINITIONS Please do not connect the power to the receiver until all other connections have been made and checked. R1: AC IN (Power Cord) Connect this lead to the mains outlet (100-240 V AC 50/60 Hz) R2: LNB IN (IF Input) Connect the IF cable from your LNB to this connector. -
Page 5: Installation
F13: IRDETO CARD SLOT (For Models with embedded Irdeto) Insert your smart card into this slot. REMOTE CONTROL FUNCTIONS We recommend that you familiarize yourself with the remote control handset prior to installing the receiver. OPERATION IN PROGRAMMING MODE The menus are designed to assist you from the moment you switch on the receiver. -
Page 6: Install Menu
TV Settings TV Standard: Select the output for your TV. Example: for UK select PAL I. If your TV supports ‘Auto Sensing’ then select Auto. Screen Format: Select the picture aspect ratio for your TV. Video Output: Select signal output for your TV. If the teletext function on your TV does not work when viewing channels from other sources such as terrestrial TV, select COMP mode. -
Page 7: Diseqc 1.2 Menu (Manual Positioner)
EXAMPLE: To configure four LNB EXAMPLE: To configure MONOBLOCK LNB Astra 2 (28.2E), select LNB No 1 and set DiSEqC to 1 Astra 1(19.2E), select LNB No 1 and set DiSEqC to Mini-A Hotbird 1-6(13E), select LNB No 2 and set DiSEqC to Mini-B Astra 1 (19.2E), select LNB No 2 and set DiSEqC to 2 Hotbird 1-6 (13E), select LNB No 3 and set DiSEqC to 3 Thor 2, 3 (1W), select LNB No 4 and set DiSEqC to 4... -
Page 8: Channel Search: Manual Scan And Search
Search Mode: Select search option for each satellite. See below for options. Options with + D will also include data channels Auto All - All TP, Video and Radio channels. Auto All + D -All TP, Video, Radio and Data channels. ... -
Page 9: Advance Search: Special Feature
Set Multisat Search 2, LNB No 2 and select horizontal TP from low band. Adjust skew (externally) to - value for maximum signal and quality. Set Multisat Search 3, LNB No 3 and select vertical TP from high band. Adjust skew (externally) to + value for maximum signal and quality. -
Page 10: Satellite List
SATELLITE LIST Press SAT key and the combined channel and satellite list will appear. Select a channel from this list and exit. TO SELECT A CHANNEL FROM ANOTHER SATELLITE Use CH and PAGE up / down to scroll through the satellite list ... -
Page 11: Upgrading Software Via Pc
This menu is pre-configured and ready to upgrade. Select Start and press OK. If you have a motorized antenna, it will automatically move to Hot Bird 1-6 (13.0E). This may change to a different satellite in future. In this case follow as below Satellite: Select the satellite providing the OTA Upgrade. -
Page 12: Electronic Program Guide (Epg)
ELECTRONIC PROGRAM GUIDE (EPG) To display correct EPG it is important to set the time first. To display EPG, what’s on now and next, press EPG (red) key. Channel No. Select channel and press OK Highlighted Event. Press OK for details and PAGE up / down for next page. NOTE: If there is no EPG transmitted, it will state ‘... -
Page 13: To Rename Channel
group and this will highlight these in red. When finished, press EXIT. Then store the settings. TO RENAME CHANNEL Select Rename and press OK. Select channel and press OK, a keypad will appear. Select character and press OK. After naming press EXIT. Then store the settings. TO MOVE CHANNEL Select Move and press OK. -
Page 14: Trouble Shooting Guide
Bad picture with blocking or frozen --- Signal weak or noisy. Check signal quality. Antenna not in correct position Not responding to remote control --- Check the batteries in your remote control. Replace with new. You have lost or forgotten your password --- Apply master password or contact your Manhattan dealer. SPECIFICATIONS SPECIFICATIONS... -
Page 15: Eurosat Reserves The Right To Alter Product Specifications Without Prior Notice
300 X 67 X 240 mm ® ® Eurosat and Manhattan are registered trademarks of Eurosat Distribution Ltd. Eurosat reserves the right to alter product specifications without prior notice. MASTER PASSWORD 6699 This is the master password for your receiver. Cut this section out and keep it in a safe place. It will be useful...
