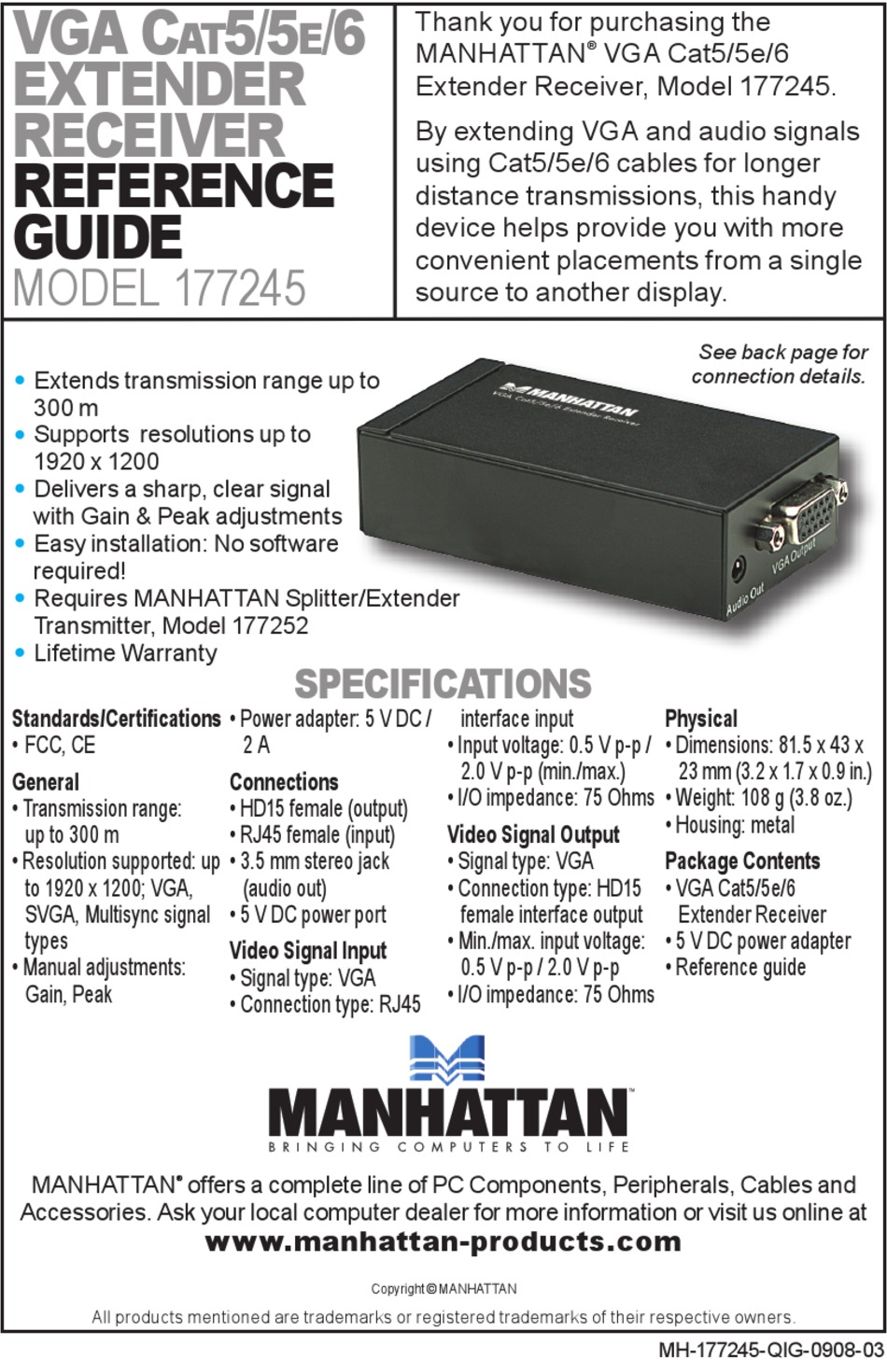

VGA C
at
ExtEndEr
rECEiVEr
rEFErEnCE
GUidE
Model 177245
•
Extends transmission range up to
300 m
•
Supports resolutions up to
1920 x 1200
•
Delivers a sharp, clear signal
with Gain & Peak adjustments
•
Easy installation: No software
required!
•
Requires MANHATTAN Splitter/Extender
Transmitter, Model 177252
•
Lifetime Warranty
Standards/Certifications
• FCC, CE
General
• Transmission range:
up to 300 m
• Resolution supported: up
to 1920 x 1200; VGA,
SVGA, Multisync signal
types
• Manual adjustments:
Gain, Peak
MANHATTAN
®
Accessories. Ask your local computer dealer for more information or visit us online at
All products mentioned are trademarks or registered trademarks of their respective owners.
5/5
/6
e
spECiFiCAtions
• Power adapter: 5 V DC /
2 A
Connections
• HD15 female (output)
• RJ45 female (input)
• 3.5 mm stereo jack
(audio out)
• 5 V DC power port
Video Signal Input
• Signal type: VGA
• Connection type: RJ45
offers a complete line of PC Components, Peripherals, Cables and
www.manhattan-products.com
Thank you for purchasing the
MANHATTAN
Extender Receiver, Model 177245.
By extending VGA and audio signals
using Cat5/5e/6 cables for longer
distance transmissions, this handy
device helps provide you with more
convenient placements from a single
source to another display.
interface input
• Input voltage: 0.5 V p-p /
2.0 V p-p (min./max.)
• I/O impedance: 75 Ohms
Video Signal Output
• Signal type: VGA
• Connection type: HD15
female interface output
• Min./max. input voltage:
0.5 V p-p / 2.0 V p-p
• I/O impedance: 75 Ohms
Copyright © MANHATTAN
VGA Cat5/5e/6
®
See back page for
connection details.
Physical
• Dimensions: 81.5 x 43 x
23 mm (3.2 x 1.7 x 0.9 in.)
• Weight: 108 g (3.8 oz.)
• Housing: metal
Package Contents
• VGA Cat5/5e/6
Extender Receiver
• 5 V DC power adapter
• Reference guide
MH-177245-QIG-0908-03
Advertisement
Table of Contents
Related Manuals for Manhattan 177245
Summary of Contents for Manhattan 177245
-
Page 1: Specifications
VGA C Thank you for purchasing the MANHATTAN VGA Cat5/5e/6 ® ExtEndEr Extender Receiver, Model 177245. rECEiVEr By extending VGA and audio signals rEFErEnCE using Cat5/5e/6 cables for longer distance transmissions, this handy GUidE device helps provide you with more... - Page 2 CONNECTIONS: • Connect the UTP Input (RJ45) to the UTP Output (RJ45) on the MANHATTAN Splitter/Extender Transmitter, Model 177252 using Cat5 or Cat6 cable (not included). • Connect the VGA Output to the remote display. • Connect the Audio Out to the remote audio device (speakers, headphones, etc.). • Connect the included power adapter to the DC/5V jack, then plug the adapter into an AC outlet. • Check that the Power LED is lit (next to the UTP Input (RJ45) jack to confirm that the device is operational. • Adjust the Gain and Peak (located on the side of the receiver) levels as desired. OPERATING GUIDELINES: • Always make sure the proper power supply is being used before installation or operation. • Use matched cable to avoid improper operation or damage. • Ensure units are well ventilated and away from excessive heat and humidity/moisture. • Never open the device(s) without professional assistance.
