Summary of Contents for Hans Grohe ShowerArc 26396001

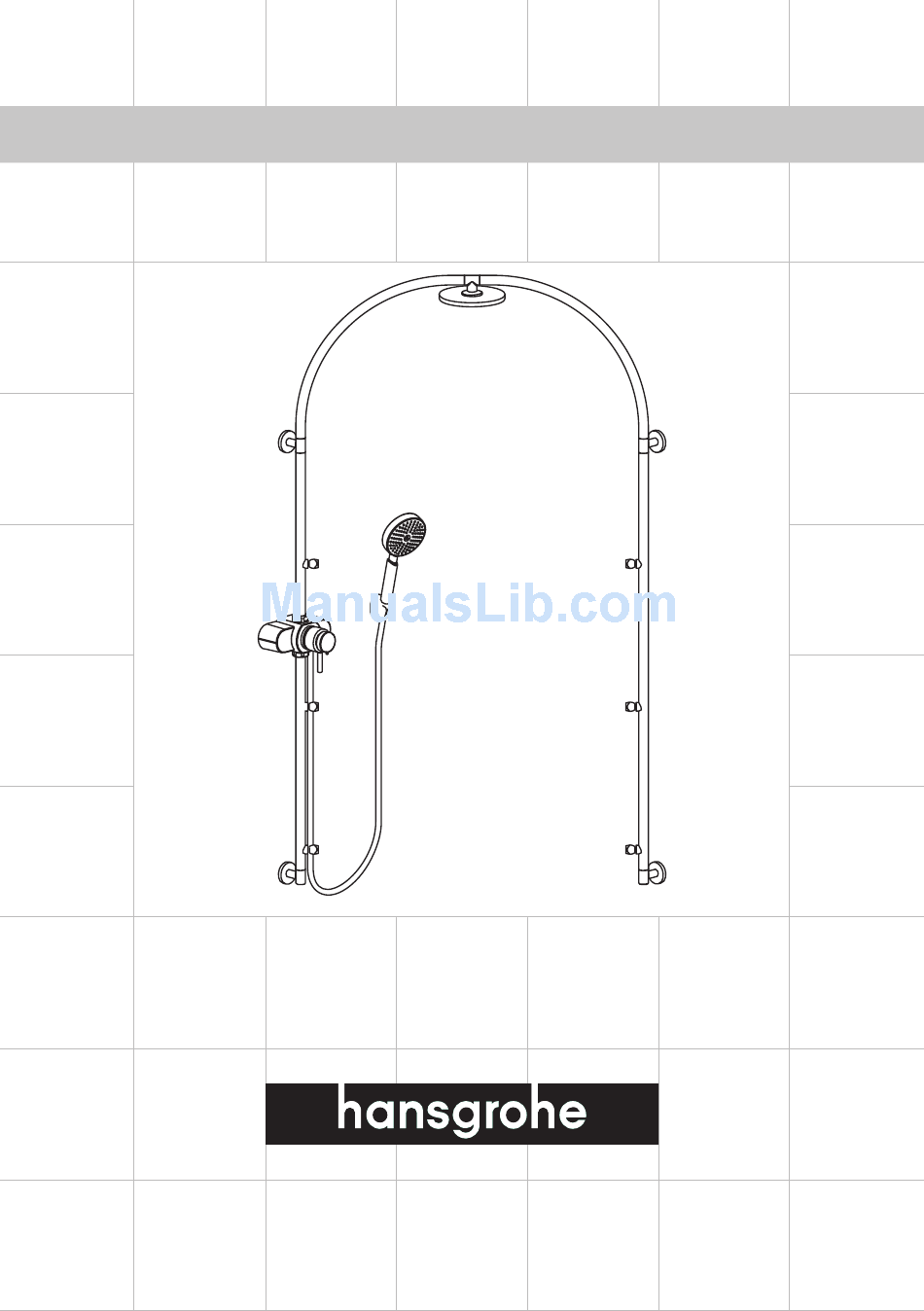

  • Page 1 Installation Instructions / Warranty ShowerArc 26396001...
  • Page 2 ShowerArc 26396001 Minimum ceiling height – 90 1/2”...
  • Page 3: Installation Considerations

    Installation Considerations • For best results, Hansgrohe recommends that this unit be installed by a licensed, professional plumber. • Please read over these instructions thor- oughly before beginning installation. Make sure that you have all tools and sup- plies needed to complete the installation. •...
  • Page 4 Installation in 90º corner: Instructions begin on page 5 Wall-to-wall installation Requires 26397000 installation kit (included): Instructions begin on page 13. Roughing-in The ShowerArc requires 1/2” NPT female fittings, recessed 3/8” behind the surface of the finished wall, for the hot and cold water supplies for the thermostatic mixing valve.
  • Page 5 Installation in 90º corner Only one set of supplies is required – do not install two sets of supplies. The thermostatic mixing valve may be installed on either wall. This diagram shows both possible positions for the installation.
  • Page 6 Installation in 90º Corner Seal the wall around the supplies with waterproof sealant. Failure to seal the wall can lead to possible water damage.
  • Page 7 Seal the wall around the anchors with waterproof sealant. Failure to seal the wall can lead to possible water damage.
  • Page 8 Seal the wall around the anchors with waterproof sealant. Failure to seal the wall can lead to possible water damage. Be careful not to drill into water lines! 6 mm...
  • Page 10 6 mm...
  • Page 11 Seal the wall around the anchors with waterproof sealant. Failure to seal the wall can lead to possible water damage. 6 mm...
  • Page 12 Seal the wall around the anchors with waterproof sealant. Failure to seal the wall can lead to possible water damage. Turn to page 22 to continue the installation.
  • Page 13 Wall-to-Wall Installation Only one set of supplies is required – do not install two sets of supplies. The thermostatic mixing valve may be installed on either wall. The diagram shows both possible positions for the installation.
  • Page 14 Wall-to-Wall Installation Seal the wall around the supplies with waterproof sealant. Failure to seal the wall can lead to possible water damage.
  • Page 15 Seal the wall around the anchors with waterproof sealant. Failure to seal the wall can lead to possible water damage.
  • Page 16 Seal the wall around the anchors with waterproof 6 mm sealant. Failure to seal the wall can lead to possible water damage. Be careful not to drill into water lines!
  • Page 17 Install the 26397000 mounting set...
  • Page 19 6 mm M6x8 SW 3 mm...
  • Page 20 M6x8 Install the 26397000 mounting set 6 mm SW 3 mm M6x60 Seal the wall around the an- chors with waterproof sealant. Failure to seal the wall can lead to possible water damage.
  • Page 21 Turn to page 22 to continue the installation. M6x8 SW 3 mm...
  • Page 22 Install the Cover, Escutcheon, and Handle Install the Showerhead and Handshower...
  • Page 23 Reset the High Temperature Limit Stop Loosen the handle screw with a 3 mm Allen wrench. Remove the retainer clip and stop ring from the stem. Turn the stop unit to the handshower position. Turn the temperature control stem until the output water is the desired high temperature -- usually 110º.
  • Page 24 Turn the stop unit to the off position. Install the stop ring so that the tooth is against the stop. Install the clip. Install the handle. Tighten the handle screw with a 3 mm Allen wrench. SW 3 mm...
  • Page 25 Justify the Handle Turn the diverter handle to the handshower position. Turn the temperature control knob until the output water is 100ºF. Turn the diverter handle to the off position. Loosen the handle screw with a 3 mm Allen wrench. Remove the handle.
  • Page 26: User Instructions

    User Instructions Turn the temperature control knob to change the tem- perature. Turn it clockwise to make the water cooler, counter-clockwise to make the water warmer. When the knob is turned counter-clockwise to the 100º position it will stop. To obtain water hotter than 100º, push the knob in, and continue turning it counter-clock- wise.
  • Page 27 Cleaning the Handshower The handshower uses the Rubit™ cleaning system. If scale deposits are noticed in the spray channels, rub across the channels with a finger or a sponge to dislodge them. If necessary, pour about 3/4” of a commercial scale remover, such as Lime-Away or CLR, into a shallow dish.
  • Page 28: Replacement Parts

    Replacement Parts...
  • Page 29: Maintenance Note

    wall flange escutcheon branch connection branch connection shower hose handshower handshower holder body spray showerhead handle shutoff unit with selector escutcheon thermostat cartridge noise reducer Maintenance Note: The check valves should be removed and cleaned yearly. 96768000 ball s-union 96767000 rear panel 97496000 cover...
  • Page 30: Troubleshooting

    Troubleshooting Problem Unit outputs both hot and cold water, but it does not mix Water temperature does not get hot enough Water temperature is erratic Water drips for several min- utes after the unit is turned off Water drips constantly after unit is turned off Handle turns but water does not turn on/off...
  • Page 31: Limited Lifetime Consumer Warranty

    Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
  • Page 32 the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: A.
