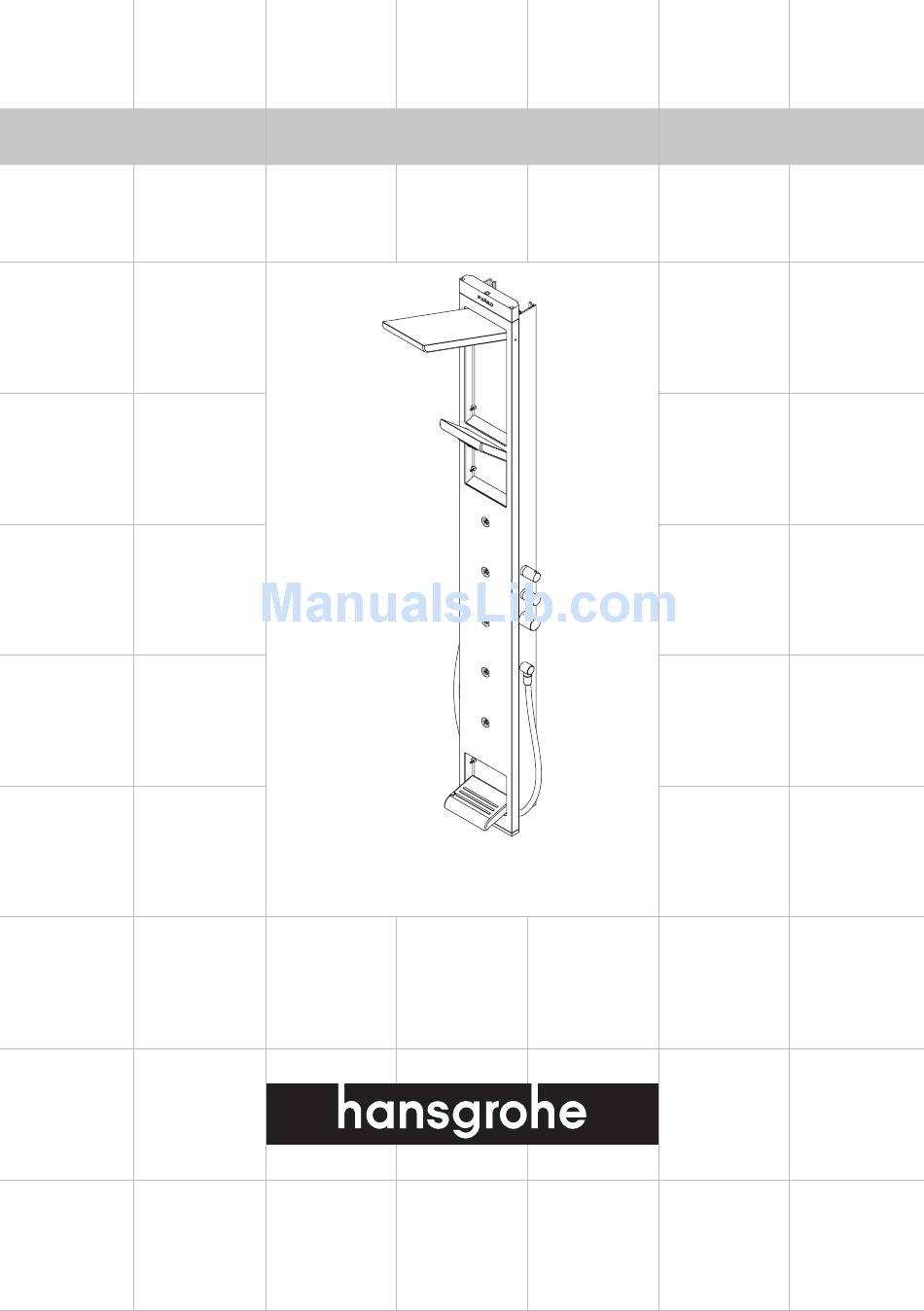

- Page 1 Installation Instructions / Warranty Pharo Skyline 26017XX1...
-
Page 2: Technical Information
Pharo Skyline Showerpanel 26017XX1 Technical Information Recommended water pressure Minimum water pressure Max. water pressure Recommended hot water temp. Max. hot water temp Max. flow rate: showerhead handshower neck spray bodysprays • Thermostatic temperature control • The high temperature limit stop on the thermostatic mx- ing valve may be reset to comply with local plumbing codes. -
Page 3: Suggested Installation
Suggested installation Minimum ceiling height -- 86 5/8”... -
Page 4: Package Contents
Package Contents Please check the package contents before beginning installation. If parts are missing or are not in good condition, please contact Hansgrohe Technical Service. Rough-in • Install 1/2” NPT male nipples at the positions shown on the rough-in diagram for the hot and cold water supplies. -
Page 6: Installation
Installation Wrap the threads on the nipples with Teflon tape. Install the elbows. The elbow outlets should face downward. Seal the wall around the elbows with waterproof sealant. Failure to seal the wall can lead to possible water damage. Drill the holes for the mounting screws with an 8 mm bit. - Page 7 Hang the panel over the top screws only (1). With a partner holding the panel out of the way, Install the panel supply hoses on the elbows. Tighten the hose nuts. (2) Raise the panel (3). Push the bottom of the panel over the bottom screws (4).
- Page 8 Tighten the nuts using a 10 mm wrench. Place a black rubber hose washer in one end of the handshower hose. Install this end of the hose on the handshower outlet. Place the screen washer in the other end of the hose.
- Page 9 Reset the HIgh Temperature Limit Stop (Optional -- if required by local code) Remove the thermostatic mixer handle and safety set. Remove the clip and stop ring from the thermostatic mixer stem. Turn the water on to the handshower. Turn the stem until the output water is the desired maximum high temperature -- usually 110°F - 112°F.
- Page 10 Justify the handle Turn the water on to the handshower. Turn the thermostatic mixer handle until the output water is 100�F. Turn the water off. Remove the thermostatic mixer handle and safety set. Reinstall the safety set so that the notch is at the 12:00 position.
-
Page 11: Troubleshooting
Troubleshooting Problem Outputs both hot and cold water, but no mix Insufficient water Erratic water temperature Function drips, won’t shut off completely Hot water bleeds over into cold water supply in house or vice- versa Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or Canada. - Page 12 C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for installa- tion or reinstallation of the product (including but not limited to proper packaging and shipping costs), or for installation or reinstallation of the product.
- Page 13 User Instructions / Warranty Pharo Skyline 26017XX1...
-
Page 14: Technical Information
Technical Information Recommended water pressure Minimum water pressure Max. water pressure Recommended hot water temp. Max. hot water temp Max. flow rate: showerhead handshower neck spray bodysprays • Thermostatic temperature control • The high temperature limit stop on the thermostatic mixing valve may be reset to comply with local plumb- ing codes -- please refer to the installation instruction manual. -
Page 15: User Instructions
User Instructions Turn the top volume control clockwise to obtain water from the overhead shower. Turn the top volume control counter-clockwise to obtain water from the neck spray. It is not possible to run the overhead shower and the neck spray simultaneously. Turn the bottom volume control clockwise to obtain water from the handshower. - Page 16 Turn the bottom volume control counter-clockwise to obtain water from the bodysprays. It is not possible to run the handshower and bodysprays simultaneously. The following combinations may be used by turning on each function with the volume control: • Overhead shower and handshower •...
- Page 17 • Neck spray and handshower • Neck spray and bodysprays Using the thermostatic mixer Turn the thermostatic mixer handle clockwise to make the water cooler. Turn it counter-clockwise to make it warmer. The handle will stop at the 100° safety stop. To override the safety stop, press the override button and continue turning the handle counter-clockwise.
- Page 18 Open the overhead shower and neck spray To open the overhead shower and neck spray, press the lower left hand corner of the cover. To open the footrest, press the upper left corner of the cover. The showerhead will open to the 95° position. Push it upward to the 110°...
- Page 19 Adjust the showerhead cover If the showerhead or neckspray cover does not hang straight, loosen or tighten the set screw with a 3 mm Allen wrench to correct. 3 mm 3 mm...
-
Page 20: Maintenance Note
Cleaning the hand and overhead showers The handshower and overhead shower use the Rubit self-cleaning system. If scale deposits are noticed in the spray channels, turn the water on lightly and rub over the channels with a finger or a sponge to dislodge them. Troubleshooting Problem Outputs both hot and cold water,... -
Page 21: Replacement Parts
Replacement Parts 98875XX0 28532XX1 28276XX0 94074000 97582000 94082000 98744000 98877000 98879000 98878000 98880000 97342XX0 96509000 98743000 94282000 98742XX0 98874XX0 98876000 98881001 98900001 98882001 98901001 98891XX0 98891XX0 97441XX0 96519XX1 95041000 98883000 98884000 XX = color 00 = chrome 82 = brushed nickel 98884000 96483XX0... -
Page 22: Who Is Covered By The Warranty
Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. When cleaning fittings and showers, keep the following in mind: •... -
Page 23: Exclusions And Limitations
THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: A. Conditions, malfunctions or damage not resulting from defects in material or workmanship. Conditions, malfunctions or damage resulting from (1) normal wear and tear, improper installation, improper mainte- nance, misuse, abuse, negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning agents or “no- rinse”... - Page 24 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 3XX04 Tel. 770-360-9880 • Fax 770-360-9887 www.hansgrohe-usa.com...
