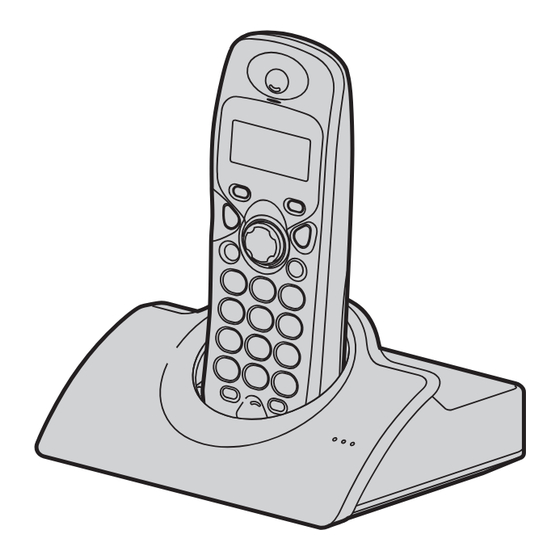

Digital Cordless Phone
Operating Instructions
KX-TCD430E
Model No.
This unit is Caller ID compatible. To display the caller's phone
number, you must subscribe to Caller ID service.
Charge the batteries for about 7 hours before initial use.
Please read these Operating Instructions before using the unit and save them for
future reference.
Advertisement
Table of Contents
Related Manuals for Panasonic KX-TCD430E
Summary of Contents for Panasonic KX-TCD430E
-
Page 1: Operating Instructions
Digital Cordless Phone Operating Instructions KX-TCD430E Model No. This unit is Caller ID compatible. To display the caller’s phone number, you must subscribe to Caller ID service. Charge the batteries for about 7 hours before initial use. Please read these Operating Instructions before using the unit and save them for... -
Page 2: Table Of Contents
Table of Contents Preparation Accessory information ....3 Important information ....4 Location of controls . -
Page 3: Preparation
L Most major credit and debit cards accepted. L All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd. L It couldn’t be simpler! L Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details. -
Page 4: Important Information
Preparation Location Important information For maximum distance and noise-free operation, place your base unit: General − Away from electrical appliances such as TVs, radios, personal computers or other L Use only the power supply included with phones. this product, noted on page 3. −... -
Page 5: Location Of Controls
Preparation Display descriptions Location of controls Icons Meaning Handset Within range of base unit Out of range, no registration or no power on base unit Paging, intercom mode or accessing base unit Making or answering a call Phonebook mode Setting mode Battery strength is low Battery strength is high Call bar is on (page 18) -
Page 6: Connections
We therefore recommend you also connect a standard telephone to the same telephone line using a T-adaptor. Your Panasonic sales shop can offer you more information about connection possibilities. Helpline Tel. No. :U.K. 08700 100 076 R.O.I. 01289 8333... -
Page 7: Battery Charge
Preparation Battery life Battery charge After your Panasonic batteries are fully charged, you can expect the following Place the handset on the base unit for performance: about 7 hours before initial use. Ni-MH batteries (typical 700 mAh) Operation Operating time While in use (talking) 10 hours max. -
Page 8: Battery Replacement
L Ensure that w is not flashing. Important: Press {j}. L Please use only the Panasonic batteries, Press {v} repeatedly to display noted on page 3. “SETTING BS”, then press {>}. L Use only rechargeable batteries. If you Press {*}. -
Page 9: Telephone
Telephone the right of where you want to edit the Telephone Making calls number. Edit the number. Lift the handset and dial the phone L To erase a digit, press {C}. number. Press {C}. L To correct a digit, press {C}, then enter the correct number. -
Page 10: Answering Calls
Telephone displayed. Answering calls To turn off key lock, press {j} for about 2 Lift the handset and press {C} when the seconds. unit rings. L You can also answer a call by pressing Note: any dial key from {0} to {9}, {*}, {#}, L Emergency calls cannot be made until key or {INT}. -
Page 11: Phonebook
Telephone L If there is no space to store new entries, Phonebook “MEMORY FULL” will be displayed. Erase unnecessary entries. Storing phone numbers and To edit/correct a mistake names Press {<} or {>} to move the cursor to the right of where you want to correct the Up to 20 phone numbers can be stored in number/character. -
Page 12: Hot Key (Quick Dial)
Telephone Press {>}. Making calls using the Press {v} repeatedly to display “YES”, phonebook then press {>}. Before using this feature, store the desired Press {ih}. phone numbers and names into the Note: phonebook (page 11). L The number erased from a hot key will not be deleted from the phonebook. -
Page 13: Caller Id Service
Telephone this service. When you hear a call waiting Caller ID service tone during a conversation, the display will show the second caller’s information. You can answer the second call, keeping the first Important: call on hold. Please consult your service L This unit is Caller ID compatible. -
Page 14: Erasing Caller Information
Telephone the right of where you want to edit the number. Edit the phone number. L To erase a digit, press {C}. Press {C}. Note: L The edited phone number will not be saved. Erasing caller information Press {e} or {v} repeatedly to display the desired entry, then press {>}. -
Page 15: Useful Telephone Settings
Useful Telephone Settings Useful Telephone Settings Guide to handset settings For your reference, a chart of all items which can be customised for the handset is printed below. Details of each item can be found on the corresponding pages. To enter the 2nd menu, first press {>}. Press {v} repeatedly to display “SETTING HS”, then press {>}. -
Page 16: Handset Settings
Useful Telephone Settings ALARM”, then press {>}. Handset settings Press {v} repeatedly to display “SET ALARM”, then press {>}. Press {v} repeatedly to select the Time alarm desired setting, then press {>}. An alarm will sound for 3 minutes at the set Press {ih}. -
Page 17: Display Options
Useful Telephone Settings “ALARM”: For alarm “OFF”, then press {>}. Press {j}. Press {ih}. Press {v} repeatedly to display Display options “SETTING HS”, then press {>}. Press {v} repeatedly to display “RINGER Selecting the standby mode display OPT”, then press {>}. “CLOCK”: The time and date will be Press {v} repeatedly to display the displayed. -
Page 18: Call Options
Useful Telephone Settings “PHONE NO”: The phone number will be Press {v} repeatedly to display “CALL displayed. OPT”, then press {>}. Press {j}. Press {v} repeatedly to display “CALL BAR”, then press {>}. Press {v} repeatedly to display “SETTING HS”, then press {>}. Enter “0000”... -
Page 19: Other Options
PIN as the unit will not reveal the Press {v} repeatedly to display PIN to you. If you forget your PIN, consult “BATTERY TYPE”, then press {>}. your nearest Panasonic service centre. Press {v} repeatedly to select the Press {j}. desired setting, then press {>}. -
Page 20: Guide To Base Unit Settings
PIN as the unit will not reveal the (Default setting) PIN to you. If you forget your PIN, consult Reset base unit page your nearest Panasonic service centre. Press {j}. Set all or selected page Press {v} repeatedly to display handsets to ring “SETTING BS”, then press {>}. - Page 21 Useful Telephone Settings Press {v} repeatedly to display Enter “0000” (default base unit PIN). “SETTING BS”, then press {>}. L If you changed PIN, enter it (page 20). Press {3}. L All the registered handset numbers will be displayed. Enter “0000” (default base unit PIN). L Flashing numbers indicate call L If you changed PIN, enter it (page 20).
-
Page 22: Default Settings
Useful Telephone Settings Press {v} repeatedly to display Cancelling a restricted number “SETTING BS”, then press {>}. Press {j}. Press {6}. Press {v} repeatedly to display Enter “0000” (default base unit PIN). “SETTING BS”, then press {>}. L If you changed PIN, enter it (page 20). Press {6}. -
Page 23: Multi-Unit Operation
Multi-unit Operation Press and hold {x} on the left side of the Multi-unit Operation Operating additional units base unit for about 5 seconds, until the registration tone sounds. Place the additional handset on the base Additional handsets unit. The registration tone continues to sound. -
Page 24: Selecting A Base Unit
Multi-unit Operation successfully, a confirmation tone will Enter “0000” (default base unit PIN). sound, and w will stop flashing. L If you changed PIN, enter it (page 20). Note: Press the desired handset number. L If all registered handsets start ringing in L The selected handset number will step 5, press {x} to stop, then start again flash. -
Page 25: Setting All Or Selected Handsets To Ring
Multi-unit Operation Setting the selected handset(s) to ring Setting all or selected before all handsets ring handsets to ring Press {j}. Press {v} repeatedly to display You can select one of 3 methods to “SETTING BS”, then press {>}. determine how the handsets ring for Press {1}. -
Page 26: Intercom Between Handsets
Multi-unit Operation Intercom between Transferring calls handsets between handsets/ Conference call You can make intercom calls between 2 handsets in the same radio cell. Outside calls can be transferred between 2 Example: When handset 1 calls handset 2 handsets in the same radio cell. 2 handsets Handset 1: in the same radio cell can have a conference Press {INT} and {2} (desired handset... -
Page 27: Useful Information
Useful Information power on (page 8). Useful Information Troubleshooting The handset will not turn on. L Make sure that the batteries are installed If you still have difficulties after following the correctly (page 6). instructions in this section, disconnect the L Fully charge the batteries (page 7). - Page 28 (page 24). L You entered the wrong PIN number. If you forget your PIN, consult your nearest Panasonic service centre. L Locate the handset and the base unit away from other electrical appliances. Helpline Tel. No. :U.K. 08700 100 076 R.O.I. 01289 8333...
-
Page 29: Technical Information
Useful Information Technical information Wall mounting Standard: DECT (Digital Enhanced 8 cm Cordless Telecommunications), GAP (Generic Access Profile) Number of channels: 120 Duplex Screws Channels Hook Hooks Frequency range: 1.88 GHz to 1.9 GHz Duplex procedure: TDMA (Time Division Multiple Access) Channel spacing: 1728 kHz Bit rate: 1152 kbit/s Modulation: GFSK (Gaussian Frequency... -
Page 30: Conditions Of Guarantee
8. The guarantee period applicable to this product shall be 12 months. Please keep these operating instructions with your receipt. Panasonic Business Systems U.K. Receipt No. Date of purchase Model No. -
Page 31: Index
Index Cancelling: 24 Index Index Guide to settings: 15 Locator: 10 PIN: 19 A Additional base units: 23 Power on/off: 8 Additional handsets: 23 Resetting: 19 All handsets to ring: 25 Hot key (quick dial): 12 Selected handsets to ring: 25 Intercom: 26 Answering calls: 10 Auto talk: 10... - Page 32 L In the event of problems, you should contact your equipment supplier in the first instance. Declaration of conformity Hereby, Panasonic Communications Co., Ltd., declares that this Dect Cordless Telephone is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
