8. Attach the numeric keyboard.
Connect the control cable which has been connected
to the numeric keyboard. Then, attach the keyboard
with the tamperproof screws.
Caution: Insert the cable into the unit so as to avoid
pressure from the keyboard.
Notes:
• Keep the unit:
·
in the temperature between 0 °C and 40 °C (between
32 °F and 104 °F) and the humidity between 30 % and
80 %.
• Keep the unit away from:
·
direct sunlight or light reflection.
·
incandescent or halogen lighting.
·
places where shadow appear over the front panel.

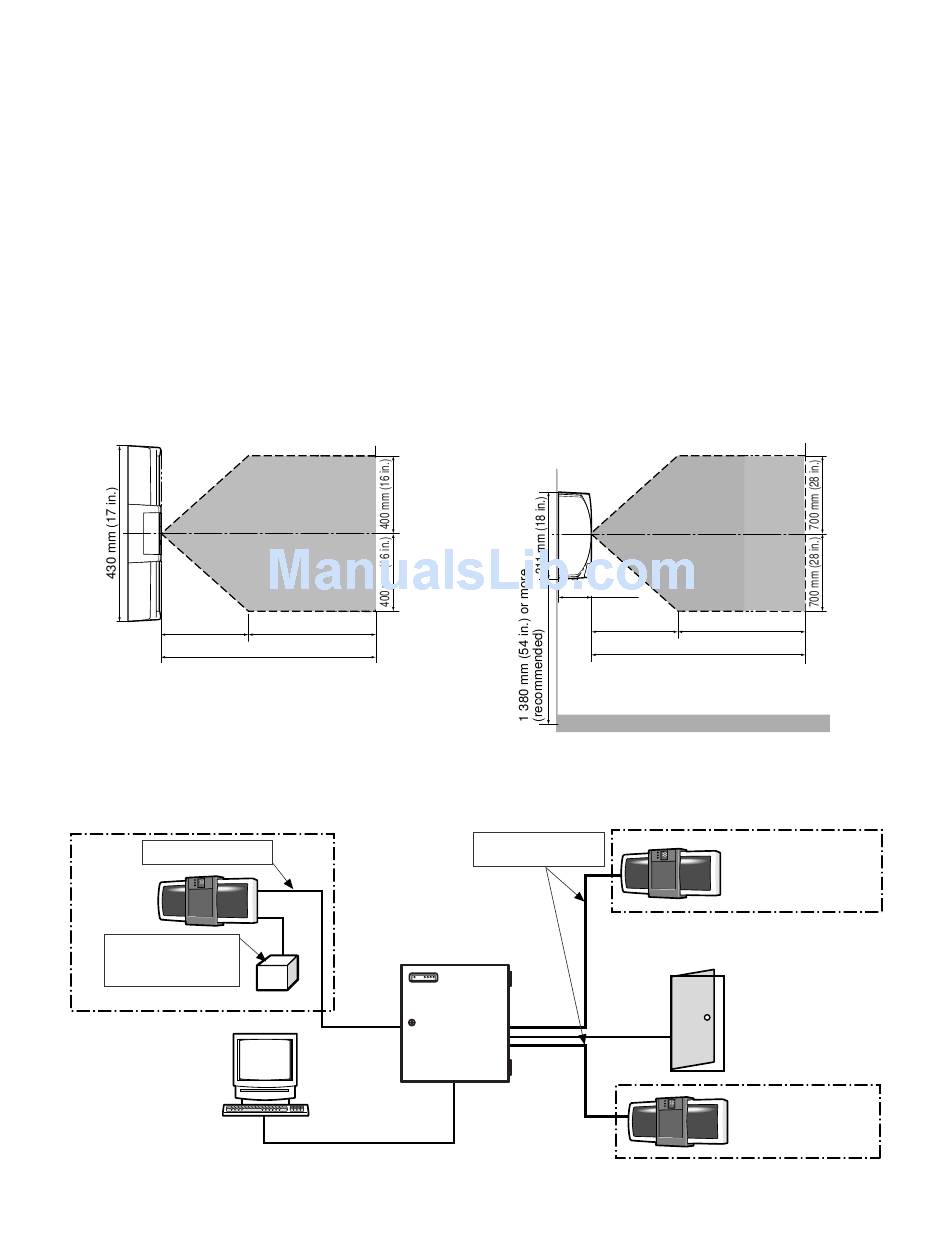

Top View
400 mm (16 in.)
Coaxial cable(BNC)
OK
BM-ET500E NG
(For
enrollment)
General-purpose
power supply
(24V DC,UL listed)
Administration PC*
11
Keep this area free
from obstructions
900 mm (35 in.)
1 300 mm (51 in.)
System Instruction (Maximum System)
Camera 3
LAN cable
·
noise. (for example, places near air conditioners or ven-
tilators)
·
electricity.
·
outdoor places.
·
vibration. (It may cause invalid recognition or injury.)
• Do not place anything inside the space described in
the illustration.
• This unit is for indoor use only.
• This unit must be mounted horizontally on the wall.
• Determine the optimum mounting height. The recom-
mendation is between 1.38 m (54 in.) and 1.5 m (60 in.)
for enrollment/recognition effectiveness.
• Mount the bracket on the wall. Be sure to provide
access for video control and DC power from the control
unit.
Side View
80 mm (3 in.)
Coaxial cable(BNC)
Camera power cable
BM-ED500
POWER ALARM S3 S2 S1
Camera 1
*UL not verified
Keep this area free
from obstructions
400 mm (16 in.) 900 mm (35 in.)
1 300 mm (51 in.)
Floor
OK
NG
BM-ET500E
(For identification)
Electric lock*
Camera 2
OK
NG
BM-ET500E
(For identification)
