Summary of Contents for Konica Minolta BIZHUB C353P

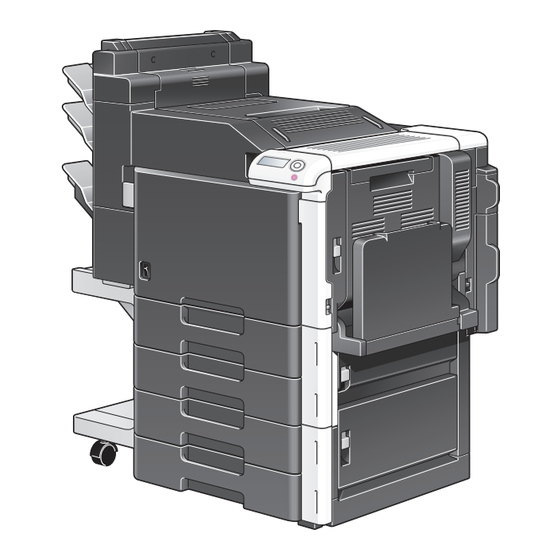

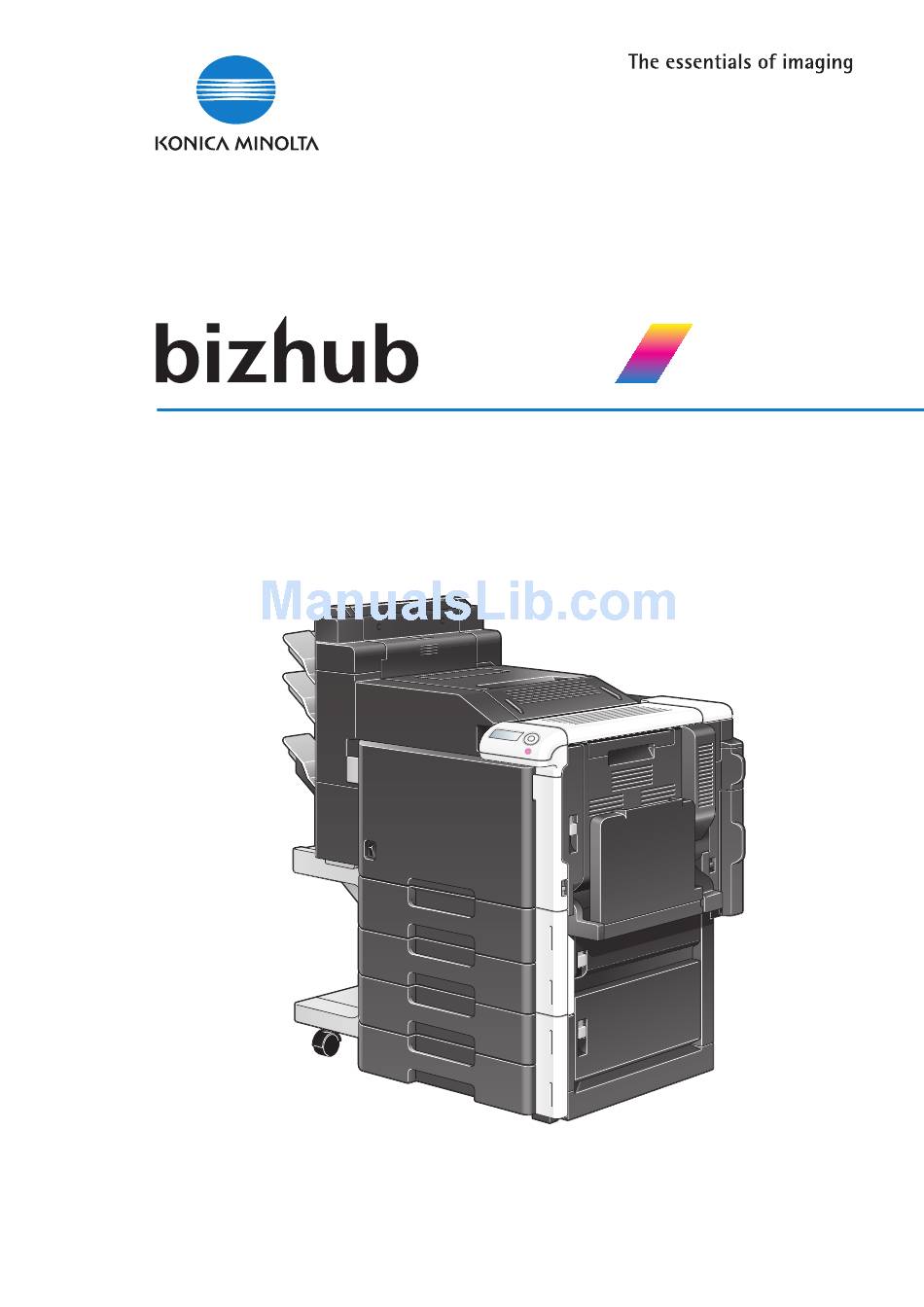

  • Page 1 C353P User Manual User Manual User Manual...

  • Page 3: Table Of Contents

    For Norway users ..........................2-12 Laser safety label ..........................2-13 Ozone release..........................2-13 Acoustic noise (for European users only) ..................2-13 For EU member states only......................2-14 Caution notations and labels ....................... 2-15 Space requirements ........................2-17 bizhub C353P Contents-1...
  • Page 4 Contents of the DVD........................3-37 Authentication Method........................3-38 3.9.1 User authentication and account track ................... 3-38 3.9.2 When user authentication and account track are synchronized ............. 3-39 3.9.3 When user authentication and account track are used separately ..........3-39 Contents-2 bizhub C353P...
  • Page 5 Specifying Bonjour print settings ....................4-18 Bonjour Setting..........................4-18 4.4.6 Specifying AppleTalk print settings....................4-19 AppleTalk Setting ..........................4-19 4.4.7 Specifying Web Service Function settings..................4-20 TCP/IP Settings..........................4-20 Web Service Common Settings ...................... 4-21 Printer Settings..........................4-22 bizhub C353P Contents-3...
  • Page 6 Network connection (IPP or IPPS)....................5-25 Specifying the TCP/IP setting for this machine ................5-25 Specifying the IPP settings for this machine ................... 5-25 Printer driver installation using the Add Printer wizard..............5-25 5.4.4 Local connection ..........................5-26 Contents-4 bizhub C353P...
  • Page 7 Specifying the TCP/IP setting for the computer (LPR settings) ............6-13 Adding a printer (LPR settings) ....................... 6-13 Uninstalling the printer driver....................... 6-14 6.4.1 For Macintosh OS X ........................6-14 6.4.2 For Macintosh OS 9.2 ........................6-14 bizhub C353P Contents-5...
  • Page 8 Parameter details for the OS 9 printer driver................8-28 8.8.1 Page Attributes ..........................8-28 8.8.2 Setting Custom Page Size....................... 8-29 8.8.3 General ............................8-29 8.8.4 Layout (Pages per sheet) ......................... 8-30 8.8.5 Printer specific options (Finishing Options 1 to 5)................8-30 Contents-6 bizhub C353P...
  • Page 9 For Macintosh OS X ........................9-42 9.12 Banner paper printing function ....................9-44 9.12.1 Copy paper............................9-44 Applicable paper ..........................9-44 9.12.2 Printer drivers and supported operating systems ................9-44 9.12.3 Setting up the printer driver ......................9-44 9.12.4 Printing ............................9-45 bizhub C353P Contents-7...
  • Page 10 Login .............................. 11-10 Options that can be selected when logged on to PageScope Web Connection ......11-10 Logging on as a public user ......................11-10 Logging on as a registered user ....................11-11 Logging on to Administrator mode....................11-12 Contents-8 bizhub C353P...
  • Page 11 Default Function Permission ......................11-49 11.11.4 NetWare Setting ..........................11-50 11.12 Limiting users using this machine (LDAP) ................11-51 11.12.1 TCP/IP Settings..........................11-51 11.12.2 External Server Registration......................11-52 11.12.3 User Auth/Account Track ......................11-53 11.12.4 Default Function Permission ......................11-53 bizhub C353P Contents-9...
  • Page 12 NetWare Setting ..........................11-92 11.20.3 TRAP Setting ..........................11-93 11.20.4 Status Notification Setting......................11-93 11.21 Using the TCP Socket/OpenAPI/FTP server function .............. 11-94 11.21.1 TCP/IP Settings ..........................11-94 11.21.2 SSL/TLS Setting ..........................11-94 11.21.3 TCP Socket Setting ........................11-95 Contents-10 bizhub C353P...
  • Page 13 When the message "Replace XXXX soon." appears ............... 12-47 12.7 When the message "Please replace XXXX." appears.............. 12-48 12.8 When the message "Remote Operation Please do not turn off power." appears ....12-48 12.9 Simple troubleshooting....................... 12-49 12.10 Main messages and their remedies................... 12-52 bizhub C353P Contents-11...
  • Page 14 Part names and their functions ....................16-4 16.4 Using authentication unit (Biometric type) AU-101 ..............16-5 16.4.1 Positioning your finger ........................16-5 16.4.2 Machine settings ..........................16-7 16.4.3 Registering users ........................... 16-10 Setup ............................. 16-10 Registering users ........................... 16-11 Contents-12 bizhub C353P...
  • Page 15 For NetWare 4.x Remote Printer mode (NDS)................18-11 For NetWare 4.x/5.x/6 Print Server mode (NDS)................18-11 For NetWare 5.x/6 Novell Distributed Print Service (NDPS) ............18-12 18.4.3 NetWare Status ..........................18-13 18.4.4 Windows Client Setting ......................... 18-13 Index bizhub C353P Contents-13...

  • Page 16: Bizhub C353P

    Contents-14 bizhub C353P...

  • Page 17: Introduction

    "low-power mode" after a period of ® inactivity. An ENERGY STAR product uses energy more efficiently, saves you money on utility bills and helps protect the environment. bizhub C353P...

  • Page 18: Trademarks And Copyrights

    Introduction Trademarks and copyrights KONICA MINOLTA, the KONICA MINOLTA logo, and The essentials of imaging are registered trademarks of KONICA MINOLTA HOLDINGS, INC. PageScope and bizhub are registered trademarks or trademarks of KONICA MINOLTA BUSINESS TECHNOLOGIES INC. Netscape is a registered trademark of Netscape Communications Corporation in the United States and other countries.

  • Page 19: Openssl Statement

    The word ‘cryptographic’ can be left out if the rouines from the library being used are not cryptographic related. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tin Hudson (tjh@cryptsoft.com)" bizhub C353P...

  • Page 20: Netsnmp License

    WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Part 3: Cambridge Broadband Ltd. copyright notice (BSD) Portions of this code are copyright © 2001-2003, Cambridge Broadband Ltd. All rights reserved. bizhub C353P...
  • Page 21 Neither the name of Sparta, Inc nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. bizhub C353P...

  • Page 22: Kerberos

    Note User manual may not be reproduced in part or in full without permission. KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. will not be held liable for any incidents caused by using this printing system or user manual. Information included in this user manual is subject to change without notice.

  • Page 23: Software License Agreement

    Introduction SOFTWARE LICENSE AGREEMENT This package contains the following materials provided by KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. (KMBT): software included as part of the printing system, the digitally-encoded machine-readable outline data encoded in the special format and in the encrypted form ("Font Programs"), other software which runs on a computer system for use in conjunction with the Printing Software ("Host Software"), and related...

  • Page 24: About Adobe Color Profile

    TRADEMARKS Adobe and the Adobe logo are the registered trademarks or trademarks of Adobe in the United States and other countries. With the exception of referential use, you will not use such trademarks or any other Adobe trademark or logo without separate prior written permission granted by Adobe. bizhub C353P...
  • Page 25 Adobe and you with respect to the licensing to you of the Software. No variation of the terms of this Agreement will be enforceable against Adobe unless Adobe gives its express consent, in writing, signed by an authorized signatory of Adobe. bizhub C353P...

  • Page 26: Icc Profile For Toyo Ink Standard Color On Coated Paper (Toyo Offset Coated 2.0)

    All company names and product names used in this document is the trademarks or registered trademarks of their respective holder. This ICC Profile made by GretagMacbeth ProfileMaker and granted TOYO INK certain license to distribute by GretagMacbeth AG. TOYO Offset Coated 2.0 © TOYO INK MFG. CO., LTD. 2004 1-10 bizhub C353P...

  • Page 27: Dic Standard Color Profile License Agreement

    WITH YOUR USE OF THE PROFILE. DIC DOES NOT WARRANT THAT THE PROFILE IS FREE OF DEFECTS OR FLAWS OR WILL OPERATE WITHOUT INTERRUPTION, AND IS NOT RESPONSIBLE FORCORRECTING OR REPAIRING ANY DEFECTS OR FLAWS, FOR FEE OR GRATIS. NO RIGHTS OR REMEDIES WILL BE CONFERRED ON YOU UNLESS EXPRESSLY GRANTED HEREIN. bizhub C353P 1-11...

  • Page 28: Bizhub C353P

    The failure or delay of DIC to exercise any of its rights under this License Agreement or upon any breach of this License Agreement shall not be deemed a waiver of those rights or of the breach. 1-12 bizhub C353P...

  • Page 29: Explanation Of Manual Conventions

    Text highlighted in this manner contains useful information and tips to ensure safe use of the machine. Reminder Text highlighted in this manner contains information that should be reminded. Detail Text highlighted in this manner contains references for more detailed information. bizhub C353P 1-13...

  • Page 30: Special Text Markings

    The names of keys on the control panel are written as shown above. MACHINE SETTING Display texts are written as shown above. Note The machine illustrations shown in this manual can vary and depend on the machine configuration. 1-14 bizhub C353P...

  • Page 31: Descriptions Of Paper

    Crosswise (v) If the width (Y) of the paper is longer than the length (X), the paper has a horizontal or landscape orientation, indicated by v. User manuals This machine is provided with a printed user manual. bizhub C353P 1-15...
  • Page 32 Introduction 1-16 bizhub C353P...

  • Page 33: Installation And Operation Precautions

    Installation and operation precautions...

  • Page 35: Safety Information

    A diagonal line indicates a prohibited This symbol warns against dismantling course of action. the device. A black circle indicates an imperative This symbol indicates you must unplug course of action. the device. bizhub C353P...

  • Page 36: Disassemble And Modification

    Use of a damaged power cord (exposed core wire, broken wire, etc.) could result in a fire or breakdown. Should any of these conditions be found, immediately turn OFF the power switch, un- plug the power cord from the power outlet, and then call your authorized service rep- resentative. bizhub C353P...

  • Page 37: Power Source

    Do not unplug and plug in the power cord with a wet hand, as an electrical shock could result. • Plug the power cord all the way into the power outlet. Failure to do this could result in a fire or electrical shock. bizhub C353P...

  • Page 38: Grounding

    Grounding 7 WARNING Ignoring these warnings could cause serious injury or even death. Do not ignore these safety advices. Warning Symbol • Connect the power cord to an electrical outlet that is equipped with a grounding ter- minal. bizhub C353P...

  • Page 39: Installation

    Do not ignore these safety advices. Caution Symbol • Always use this product in a well ventilated location. Operating the product in a poorly ventilated room for an extended period of time could injure your health. Ventilate the room at regular intervals. bizhub C353P...

  • Page 40: Actions In Response To Troubles

    • Do not store toner units and PC drum units near a floppy disk or watch that are sus- ceptible to magnetism. They could cause these products to malfunction. bizhub C353P...

  • Page 41: When Moving The Machine

    When the optional Fax Kit FK-502 is not installed: 7 CAUTION Ignoring this cautions could cause injury or damage to property. Do not ignore these safety advices. Caution Symbol • Unplug the product when you will not use the product for long periods of time. bizhub C353P...

  • Page 42: Regulation Notices

    This machine is certified as a Class 1 laser product: This means the machine does not produce hazardous laser radiation. Internal laser radiation Specification Maximum average radiation power 11.6 μW at the laser aperture of the print head unit Wavelength 775-800 nm 2-10 bizhub C353P...

  • Page 43: Cdrh Regulations

    Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling. Klasse 1 laser produkt der opfylder IEC60825 sikkerheds kravene. Dette er en halvlederlaser. Laserdiodens højeste styrke er 30 mW og bølgelængden er 775-800 nm. bizhub C353P 2-11...

  • Page 44: For Finland, Sweden Users

    Dersom apparatet brukes på annen måte enn spesifisert i denne bruksanvisning, kan brukeren utsettes for unsynlig laserstråling som overskrider grensen for laser klass 1. Dette en halvleder laser. Maksimal effekt till laserdiode er 30 mW og bølgelengde er 775-800 nm. 2-12 bizhub C353P...

  • Page 45: Laser Safety Label

    Acoustic noise (for European users only) Maschinenlärminformations-Verordnung 3. GPSGV: Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäß EN ISO 7779. bizhub C353P 2-13...

  • Page 46: For Eu Member States Only

    This product complies with RoHS (2002/95/EC) Directive. This device is not intended for use at a video workstation in compliance with BildscharbV. Das Gerät ist nicht fur die Benutzung am Bildschirmarbeitsplatz gemäß BildscharbV vorgesehen. 2-14 bizhub C353P...

  • Page 47: Caution Notations And Labels

    Installation and operation precautions Caution notations and labels Safety precaution notations and labels appear on this machine at the following positions. Be very careful that an accident does not occur when operations such as removing paper misfeeds are performed. bizhub C353P 2-15...
  • Page 48 Installation and operation precautions 2-16 bizhub C353P...

  • Page 49: Space Requirements

    519+SD 505+PC 405+MK Unit:mm 2249 1198 C353P+FS 609+PC 405+MK Unit:mm Reminder When the option is not installed, be sure to allow a clearance of 100 or more at the back of this machine for the ventilation duct. bizhub C353P 2-17...

  • Page 50: Operation Precautions

    Adhesive that contains solvent (e.g., spray glue) may dissolve the toner on copies. Color copies have a thicker layer of toner than normal black-and-white copies. Therefore, when a color copy is folded, the toner at the fold may peel off. 2-18 bizhub C353P...

  • Page 51: Before Using The Machine

    Before using the machine...

  • Page 53: Part Names And Their Functions

    Before using the machine Before using the machine Part names and their functions 3.1.1 Options bizhub C353P...

  • Page 54: Authentication Unit (Ic Card Type

    Parts marked with an asterisk are internal options and therefore are not shown in the illustration. Reminder To keep the features and quality of the machine, use the desk or paper feed cabinet to place the machine on the floor. bizhub C353P...

  • Page 55: Outside Of Machine

    Used to turn the machine on and off. Front door Opened when replacing the toner cartridge, waste toner box, or imaging unit, or when cleaning the print head. Output tray Collects printed pages. Control panel Used to specify the various machine settings. bizhub C353P...
  • Page 56 2 or thick paper 3. Tray 3 Can be loaded with up to 500 sheets of plain paper. Can be loaded with up to 150 sheets of thick paper 1, thick paper 2 or thick paper 3. bizhub C353P...
  • Page 57 Used for connecting the network cable when this machine is used for network (10Base T/100Base- printing. TX/1000Base Finisher connector Used for connecting the finisher hookup cord. Ozone filter Collects the ozone generated in the machine. Power cord Supplies power to the machine. bizhub C353P...

  • Page 58: Inside Of Machine

    Shows the total number of pages that have been printed. Lock tub Used when removing the toner cartridge. Toner cartridges There are four toner cartridges: cyan (C), magenta (M), yellow (Y) and black (K). The combination of the four toners generates full-color images. bizhub C353P...

  • Page 59: Finisher Fs-S519/Output Tray Ot-602/Punch Kit Pk-515

    Before using the machine 3.1.4 Finisher FS-S519/Output tray OT-602/Punch kit PK-515 bizhub C353P...
  • Page 60 Part name Description Punch kit* Punches holes for filing printed pages when the punch kit is installed onto fin- isher FS-519. Parts marked with an asterisk are internal options and therefore are not shown in the illustration. 3-10 bizhub C353P...

  • Page 61: Saddle Stitcher Sd-505/Mailbin Kit Mt-502

    Saddle stitcher SD-505/Mailbin kit MT-502 Saddle stitcher SD-505 Part name Description Output tray Collects printed pages. Misfeed-clearing door Opened when clearing paper misfeeds within the saddle stitcher. Misfeed-clearing door re- Used to open the Misfeed-clearing door. lease lever bizhub C353P 3-11...
  • Page 62 Bin 3 Collects printed pages. Bin 2 Collects printed pages. Bin 1 Collects printed pages. Guide lever FN7 Moved when clearing paper misfeeds within the mailbin kit. Misfeed-clearing door Opened when clearing paper misfeeds within the mailbin kit. 3-12 bizhub C353P...

  • Page 63: Finisher Fs-609/Punch Kit Pk-501

    Stapler unit Pulled out when clearing jammed staples or replacing the staple cartridge Front door Opened when clearing paper misfeeds or jammed staples or when replacing the staple cartridge bizhub C353P 3-13...
  • Page 64 Do not place objects on top of the finisher and below the paper output trays, otherwise the machine may be damaged. Do not place your hand below or rest your foot on top of the output trays for finisher. 3-14 bizhub C353P...

  • Page 65: Control Panel

    The machine’s current status is indicated by the color and lighting/flashing of the indicator. Flashing in blue: Printing normally Flashing in orange: Warning Lit in orange: Stopping operating Message area Displays the status of the machine, setting, and warnings. Toner supply indicators Displays the amount of toner remaining. bizhub C353P 3-15...

  • Page 66: Power Supply

    The factory defaults settings are the settings that were selected when this machine was sent from the factory. Note Warming-up time is within 75 seconds at an ambient temperature of 73.4 °F (23 °C). 3.2.2 Turning off the machine Set the power switch to o. Chack that the display panel is turned off. 3-16 bizhub C353P...

  • Page 67: Automatically Clearing Settings (System Auto Reset)

    The Low Power mode can also be canceled by pressing any key in the control panel. Detail The length of time until the machine enters Low Power mode can be changed. For details, refer to "System Settings" on page 10-16. bizhub C353P 3-17...

  • Page 68: Automatically Conserving Energy (Sleep Mode)

    Power supply Be sure to turn off the machine if it is not to be used for a long period of time, for example, overnight. In order to ensure that no energy is being consumed, unplug the machine. 3-18 bizhub C353P...

  • Page 69: Paper

    8 e 13 w. Any one of these sizes can be selected. For details, contact your service representative. 5-1/2 e 8-1/2 w can be used with the North American (inch) model only. A5 w can be used with the European (metric) model only. bizhub C353P 3-19...

  • Page 70: Paper Types And Paper Capacities

    Bypass tray 20 sheets 20 sheets 10 sheets 20 sheets 10 sheets Tray 1 and tray 2 – – – – – Single/Double paper feed cab- – – – – – inet – – – – – 3-20 bizhub C353P...

  • Page 71: Special Paper

    "2nd Side" can be selected only if plain paper, thick paper 1, thick paper 2, thick paper Thick 1-2nd Side 3 or thick paper 4 is loaded in the bypass tray. Thick 2-2nd Side Thick 3-2nd Side Thick 4-2nd Side bizhub C353P 3-21...

  • Page 72: Precautions For Paper

    The paper trays are selected when the paper tray is automatically switched. Detail For details on the specifying the paper trays that are selected when the paper tray is automatically switched, refer to "System Settings" on page 10-16. 3-22 bizhub C353P...

  • Page 73: Order For Selecting Paper Trays

    When LCT is installed: T1 (Tray 1) % T2 (Tray 2) % T3 (Tray 3) % BP (Bypass tray) Detail To change the order in which the paper trays are selected, refer to "System Settings" on page 10-16. bizhub C353P 3-23...

  • Page 74: Loading Paper

    Load the paper into the tray so that the side of the paper to be , mark printed on (the side facing up when the package was unwrapped) faces up. – Load letterhead paper so that the side to be printed on faces down. 3-24 bizhub C353P...

  • Page 75: Loading Paper Into The Lct

    If the [Power] is turned off, the LCT cannot be pulled out, even after the tray release button is pressed. Be sure that the machine is turned on with the [Power]. LCT is an option. Press the tray release button. The LCT slides out from the main unit slightly. Pull out the LCT. Film bizhub C353P 3-25...
  • Page 76 Note If the machine has entered Low Power mode or Sleep mode, the LCT cannot be pulled out, even after the tray release button is pressed. Be sure to first cancel Low Power mode or Sleep mode. 3-26 bizhub C353P...

  • Page 77: Loading Paper Into The Bypass Tray

    % Do not load so many sheets of plain paper that the top of the stack is higher than the , mark. Lateral guides Note If necessary, specify the paper size and paper type. For details, refer to "Paper Settings Menu" on page 10-15. bizhub C353P 3-27...
  • Page 78 When loading OHP transparencies, load them in the w orientation, as shown in the illustration. Do not load OHP transparencies in the v orientation. A maximum of 20 OHP transparencies can be loaded into the bypass tray. 3-28 bizhub C353P...
  • Page 79 When loading label sheets, load them in the w orientation, as shown in the illustration. Do not load label sheets in the v orientation. A maximum of 20 label sheets can be loaded into the bypass tray. Side to be printed on bizhub C353P 3-29...
  • Page 80 Be sure to load letterhead paper so that the side to be printed on faces up. Note The image will be printed on the surface of the paper facing down when the paper is loaded into the bypass tray. Detail For details on the paper sizes, refer to "Paper" on page 3-19. 3-30 bizhub C353P...

  • Page 81: Printer Controller

    IPP printing Access to settings for this machine and the printer controller from a client computer over the network (using a Web browser) Control of the number of pages printed (the User Authentication and Account Track functions) bizhub C353P 3-31...

  • Page 82: Printing Flow

    (development of output characters and images to bitmap data) and printed by the printing mechanism of this machine. Computer Used with a USB Used with a connection network connection Application Application Printer driver Printer driver Ethernet (TCP/IP, IPX/SPX, or AppleTalk) Machine Print Printer controller PS/PCL processing (rasterizing) 3-32 bizhub C353P...

  • Page 83: Operating Environment

    Netscape Navigator Ver. 7.02 or later (JavaScript and Cookies enabled) using PageScope Mozilla Firefox Ver. 1.0 or later (JavaScript and Cookies enabled) ® ® Web Connection) Adobe Flash (plug-in ver. 7.0 or later required if Flash is selected as the display format) bizhub C353P 3-33...

  • Page 84: Compatible Interfaces

    Use a type A (4 pin, male) or type B (4 pin, male) USB cable. A USB cable measuring three meters or less is recommended. Connection diagram The printer cables are connected to each port on this machine. Machine (rear view) Ethernet port (1000Base-T/100Base-TX/10Base-T) USB port 3-34 bizhub C353P...

  • Page 85: Printer Drivers Applicable To Operating Systems

    Edition, Windows Server 2003 x64 Edition PostScript PPD Mac OS 9.2 or later driver (PS-PPD) Mac OS X 10.2.8, Mac OS X 10.3, or Mac OS X 10.4 Note Select the page description language according to the application used for printing. bizhub C353P 3-35...

  • Page 86: Setting Up The System

    For details on network settings, refer to "Network settings" on page 4-3. The procedure for installing the printer driver differs depending on the connection method, operating system of the computer, and printer driver. For details, refer to "Installing the printer driver for Windows" on page 5-3. 3-36 bizhub C353P...

  • Page 87: Contents Of The Dvd

    "Printer Settings" on page 10-22. Installation of screen fonts is available only if the optional HDD is installed. Contents of the DVD On the DVD you find the drivers for this machine and different PageScope applications and utilities. bizhub C353P 3-37...

  • Page 88: Authentication Method

    Delete jobs of other users Account Track – Counters for printing from each account – Limits on using color or black printing and on the number of copies that can be set – Operates the group box 3-38 bizhub C353P...

  • Page 89: When User Authentication And Account Track Are Synchronized

    Parameter on Authentication Method screen Settings User Authentication Select "ON (External Server)" or "ON (MFP)". Account Track Select "ON", and then specify the account name and password. Synchronize User Authentication & Account Track Select "Do Not Synchronize". bizhub C353P 3-39...

  • Page 90: User Box Functions

    To save document data, print the data after correctly specifying the p. 9-31 User Authentication settings from the printer driver with the optional authentication unit AU-101 or 201 installed and with Touch & Print User Box enabled. Computers 3-40 bizhub C353P...

  • Page 91: Using Document Data

    Create and register the user boxes where documents will be saved. User boxes that can be specified from a computer on the network using PageScope Web Connection are as follows. Public/personal/group user boxes (p. 11-25) Annotation user box (p. 11-28) bizhub C353P 3-41...

  • Page 92: User Authentication

    Enter the user name and password to log in. Job Operation Enter User Name Select User Enter password. Select Box Account track Enter the account name and password to log in. Job Operation Enter Account Name Enter password. Select Box 3-42 bizhub C353P...

  • Page 93: Limitation On User Box Registration

    When user authentication and account track settings are not specified Create and access Public user box Users can access all public user boxes. User boxes created by users and the administrator are "public" user boxes. bizhub C353P 3-43...

  • Page 94: When Only User Authentication Settings Are Specified

    Users can access all public user boxes and only group user boxes for the account that the user belongs to. If account track settings are canceled or if authentication method is changed, all group user boxes become public user boxes. 3-44 bizhub C353P...

  • Page 95: When User Authentication And Account Track Settings Are Specified And Synchronized

    Personal user boxes cannot be accessed by other users. If user authentication settings are canceled or if authentication method is changed, personal user boxes and all group user boxes become public user boxes. bizhub C353P 3-45...

  • Page 96: When User Authentication And Account Track Settings Are Specified But Not Synchronized

    A user can access to a particular group user box by entering the relevant account name and password when logging on. If user authentication settings are canceled or if authentication method is changed, personal user boxes and all group user boxes become public user boxes. 3-46 bizhub C353P...

  • Page 97: Network Settings

    Network settings...

  • Page 99: Specifying General Settings For Tcp/Ip-Based Communication

    Default Domain Name Name the domain name to which this machine belongs (up to 255 characters including the host name). DNS Search Domain Specify the DNS search domain name (up to 253 charac- Name 1 to 3 ters). bizhub C353P...
  • Page 100 If not automatically acquiring the DNS server address, spec- Address of the server ify the address of the priority DNS server. Secondary DNS Server 1 Specify the address of an alternate DNS server. Address of the server and 2 bizhub C353P...

  • Page 101: Tcp/Ip Settings

    On the "Utility" menu of the control panel, select "System Settings" - "Network Settings" - "HTTP Server". Specify the following setting. Note For details on the "Utility" menu operations, refer to "Control panel" on page 10-3. Item Definition Prior confirmation PSWC Settings Select [ON]. bizhub C353P...

  • Page 102: Tcp Socket Setting

    To use in the Flash format, select the "TCP Socket (ASCII (ASCII Mode) Mode)" check box. Port No. Specify the port number. (ASCII Mode) 4.2.4 SSL/TLS Setting Specifying settings for SSL-based communication For details, refer to "Creating a certificate for this machine for SSL-based communication" on page 11-55. bizhub C353P...

  • Page 103: Logging In To Administrator Mode Of Pagescope Web Connection

    If necessary, select the display language and format. If "When in warning, the dialog is displayed." check box is selected, warning messages appear during operation after logging in. Enter the password for the machine’s administrator. Click the [OK] button. The Administrator mode page appears. bizhub C353P...
  • Page 104 If "ProhibitFunctions" in [Admin. Settings]-[Security Details] is set to "Mode 2" and an incorrect password is entered the specified number of times, it is no longer possible to log in to Administrator mode. For details on authentication settings, refer to "Admin. Settings Menu" on page 10-23. bizhub C353P...

  • Page 105: Specifying Network Print Settings

    In Administrator mode of PageScope Web Connection, select the Network tab - "TCP/IP Setting" - "TCP/IP Setting". Specify the following setting. Item Definition Prior confirmation RAW Port Number Select the check box for the port to be used, and then spec- ify the RAW port number. bizhub C353P...

  • Page 106: Specifying Smb Print Settings

    For details on installing the printer driver, refer to "Installing the printer driver for Windows" on page 5-3. TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. 4-10 bizhub C353P...

  • Page 107: Print Setting

    Specify the NetBIOS name with uppercase letters (up to 15 characters). Print Service Name Specify the print service name with uppercase letters (up to 12 characters). Workgroup Specify the workgroup name with uppercase letters (up to 15 Workgroup to which you characters). belong bizhub C353P 4-11...

  • Page 108: Direct Hosting Setting

    Specify the following setting. Item Definition Prior confirmation Direct Hosting Setting To use the direct hosting service, select "ON". Whether the IPv6 envi- To communicate with the destination using an IPv6 address, ronment is available select "ON". 4-12 bizhub C353P...

  • Page 109: Wins Setting

    B Node: Query by broadcast • P Node: Query to WINS server • M Node: Query in the order of broadcast, then WINS server • H Node: Query in the order of WINS server, then broad- cast bizhub C353P 4-13...

  • Page 110: Specifying Ipp Print Settings

    For details on installing the printer driver, refer to "Installing the printer driver for Windows" on page 5-3. TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. 4-14 bizhub C353P...

  • Page 111: Ipp Setting

    Specify the printer location (up to 127 characters). Printer Information Specify the printer information (up to 127 characters). Printer URI Displays the URI of the printer that can use IPP when print- ing. Support Operation Specify the print operations supported by IPP. bizhub C353P 4-15...

  • Page 112: Ipp Authentication Setting

    DNS at the computer side. When the certificate of this machine is not published by certificate authority, register the certificate of this machine to Windows Vista as a certificate of "Trusted Root Certification Authorities" for "Local Computer" in advance. 4-16 bizhub C353P...

  • Page 113: Tcp/Ip Settings

    For details, refer to "Creating a certificate for this machine for SSL-based communication" on page 11-55. IPP Authentication Setting Specify settings when authentication is used when printing using IPP. For details, refer to "IPP Authentication Setting" on page 4-16. bizhub C353P 4-17...

  • Page 114: Specifying Bonjour Print Settings

    In Administrator mode of PageScope Web Connection, select the Network tab - "Bonjour Setting". Specify the following settings. Item Definition Prior confirmation Bonjour Select "ON". Bonjour Name Specify the Bonjour name that appears as the name of the connected device (up to 63 characters). 4-18 bizhub C353P...

  • Page 115: Specifying Appletalk Print Settings

    Printer Name* Specify the printer name that appears on the selector (up to 31 characters). Zone Name* Specify the zone name to which this machine belongs (up to 31 characters). Current Zone Displays the current zone name. bizhub C353P 4-19...

  • Page 116: Specifying Web Service Function Settings

    For details on installing the printer driver, refer to "Installing the printer driver for Windows" on page 5-3. TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. 4-20 bizhub C353P...

  • Page 117: Web Service Common Settings

    In Administrator mode of PageScope Web Connection, select the Network tab - "Web Service Settings" - "Web Service Common Settings". Specify the following setting. Item Definition Prior confirmation Friendly Name Specify setting for Friendly Name (up to 62 characters). bizhub C353P 4-21...

  • Page 118: Printer Settings

    Definition Prior confirmation Print Function Select "ON". Printer Name* Specify the printer name (up to 63 characters). Printer Location* Specify the printer location (up to 63 characters). Printer Information* Specify the printer information (up to 63 characters). 4-22 bizhub C353P...
  • Page 119 Installing the printer driver for Windows...

  • Page 121: Connection Methods Selectable In Each Operating System

    A connection using a USB port. Connection A connection using a USB port. For Windows XP/Server 2003: "Lo- method that can cal connection" on page 5-12 be set up with For Windows 2000: "Local connec- plug-and-play tion" on page 5-26 bizhub C353P...

  • Page 122: Windows Vista

    When using Windows Vista, the IPPS connection can not be setup using the installer. For using IPPS connection, setup the connection using the Add Printer Wizard. For details, refer to "Network connection (IPP or IPPS)" on page 5-17. bizhub C353P...

  • Page 123: Windows Nt 4.0

    Before using this machine in a network environment, the network settings must be specified for this machine. For details, refer to the "Network settings" on page 4-3. To install the printer driver under Windows NT 4.0, log on using a user name that is authorized by the administrator. bizhub C353P...

  • Page 124: Installation Using The Wizard (Windows Xp/Server 2003)

    Clear the "Automatically detect and install my Plug and Play printer" check box. The Select a Printer Port dialog box appears. Click "Create a new port", and select "Standard TCP/IP Port" for "Type of port:". Click the [Next] button. The Add Standard TCP/IP Printer Port Wizard starts. bizhub C353P...
  • Page 125 Click the [Finish] button. When installation is complete, make sure that the icon of the installed printer appears in the Printers and Faxes window. Remove the DVD from the DVD drive. This completes the printer driver installation. bizhub C353P...

  • Page 126: Network Connection (Smb)

    In the "Enter a port name" box, enter "\\NetBIOS name\print service name". – Enter the same NetBIOS name and print service name those appear in "Print Setting" in the SMB Setting screen of this machine. Click the [OK] button. The Add Printer Wizard appears. bizhub C353P...
  • Page 127 Click the [Finish] button. When installation is complete, make sure that the icon of the installed printer appears in the Printers and Faxes window. Remove the DVD from the DVD drive. This completes the printer driver installation. bizhub C353P...

  • Page 128: Network Connection (Ipp Or Ipps)

    (IP_address_of_machine) /ipp Example: If the IP address of this machine is 192.168.1.20, enter http://192.168.1.20/ipp. – When setting this machine for IPPS printing, enter "https:// (IP_address_of_machine) /ipp". When the confirmation dialog box appears, click the [OK] button. Click the [Have Disk] button. Click the [Browse] button. 5-10 bizhub C353P...
  • Page 129 Printers and Faxes window. Remove the DVD from the DVD drive. This completes the printer driver installation. Once the settings for the printer have been specified, you can use the printer in the same way as a default local printer. bizhub C353P 5-11...

  • Page 130: Local Connection

    Click the [Finish] button. When the installation is completed, make sure that the icon of the installed printer appears in the Printers and Faxes window. Remove the DVD from the DVD drive. This completes the printer driver installation. 5-12 bizhub C353P...

  • Page 131: Installation Using The Wizard (Windows Vista)

    For details on the SMB settings of this machine, refer to the "Network settings" on page 4-3. Note To use SMB printing in the IPv6 environment, the "Direct Hosting Setting" must be enabled. For details, refer to "Network settings" on page 4-3. bizhub C353P 5-13...

  • Page 132: Printer Driver Installation By Searching Printers Using The Add Printer Wizard

    Click the [Finish] button. When the installation is completed, make sure that the icon of the installed printer appears in the Printers window. Remove the DVD from the DVD drive. This completes the printer driver installation. 5-14 bizhub C353P...

  • Page 133: Printer Driver Installation By Creating A Port Using The Add Printer Wizard

    For a Port9100 connection, select "RAW", and then enter the RAW port number (9100 at default) in the "Port Number" box. – The information entered here is case-sensitive. Click the [Next] button. The Install the printer driver dialog box appears. Click the [Have Disk] button. Click the [Browse] button. bizhub C353P 5-15...
  • Page 134 If the Verify the publisher dialog box of Windows Security appears, click "Install this driver software anyway". Click the [Finish] button. After installation is completed, make sure that the icon of the installed printer appears in the Printers window. Remove the DVD from the DVD drive. This completes the printer driver installation. 5-16 bizhub C353P...

  • Page 135: Specifying The Tcp/Ip Setting For This Machine

    Windows Vista as a certificate of "Trusted Root Certification Authorities" for "Local Computer" in advance. – When registering a certificate to this machine, confirm that <host name>.<domain name> is displayed as the common name of the certificate. Click the [Have Disk] button. Click the [Browse] button. bizhub C353P 5-17...

  • Page 136: Network Connection (Web Service Print)

    To use the Web Service print, enable the print function in the Web Service Settings screen of this machine. Detail For details on the Web Service settings of this machine, refer to "Network settings" on page 4-3. 5-18 bizhub C353P...

  • Page 137: Printer Installation From The Network Window

    The Printers window appears. – If Control Panel is displayed with Classic View, double-click "Printers". Click "Add a printer" from the toolbar. The Add Printer window appears. Click "Add a local printer". The Select a Printer Port dialog box appears. bizhub C353P 5-19...
  • Page 138 If the Verify the publisher dialog box of Windows Security appears, click "Install this driver software anyway". Click the [Close] button. After installation is completed, make sure that the icon of the installed printer appears in the Printers window. Remove the DVD from the DVD drive. This completes the printer driver installation. 5-20 bizhub C353P...

  • Page 139: Local Connection

    When the installation is completed, click the [Close] button. When the installation is completed, make sure that the icon of the installed printer appears in the Printers window. Remove the DVD from the DVD drive. This completes the printer driver installation. bizhub C353P 5-21...

  • Page 140: Installation Using The Wizard (Windows 2000)

    In the "Printer Name or IP address" box, enter the IP address for this machine, and then click the [Next] button. – If the Additional Port Information Required dialog box appears, go to step 10. – If the Finish dialog box appears, go to step 13. 5-22 bizhub C353P...

  • Page 141: Tcp/Ip Setting For This Machine

    In "Print Setting" in the SMB Setting screen of this machine, specify the NetBIOS name, print service name, and workgroup. Detail For details on the SMB settings of this machine, refer to "Network settings" on page 4-3. bizhub C353P 5-23...

  • Page 142: Printer Driver Installation Using The Add Printer Wizard

    When the Digital Signature dialog box appears, click the [Yes] button. Click the [Finish] button. After installation is completed, make sure that the icon of the installed printer appears in the Printers window. Remove the DVD from the DVD drive. This completes the printer driver installation. 5-24 bizhub C353P...

  • Page 143: Specifying The Ipp Settings For This Machine

    Select the specified folder according to the printer driver to be used, the operating system, and the language. Printer drivers that can be selected: Windows 2000: PCL driver, PS driver Click the [OK] button. The "Printer" list appears. Click the [OK] button. Follow the on-screen instructions. bizhub C353P 5-25...

  • Page 144: Local Connection

    Click the [Finish] button. When the installation is completed, make sure that the icon of the installed printer appears in the Printers and Faxes window. Remove the DVD from the DVD drive. This completes the printer driver installation. 5-26 bizhub C353P...

  • Page 145: Installation Using The Wizard (Windows Nt 4.0)

    Enter the IP address of this machine in the "Address" box and "Print" in the "Queue Name" box, and then click the [OK] button. – The information entered here is case-sensitive. Select the created port, and then click the [Next] button. Click the [Have Disk] button. Click the [Browse] button. bizhub C353P 5-27...
  • Page 146 Follow the on-screen instructions. Click the [Finish] button. After installation is completed, make sure that the icon of the installed printer appears in the Printers window. Remove the DVD from the DVD drive. This completes the printer driver installation. 5-28 bizhub C353P...

  • Page 147: Uninstalling The Printer Driver

    When you check folders and find a folder of the applicable model, delete it. However, if multiple drivers are installed including the Konica Minolta driver and PostScript Konica Minolta driver, the model information of all drivers is deleted. If other drivers are remaining, do not delete it.
  • Page 148 Installing the printer driver for Windows 5-30 bizhub C353P...
  • Page 149 Installing the printer driver for Macintosh...

  • Page 151: Selectable Connection Methods

    A network connection using the IPP print service. Detail Before using this machine in a network environment, the network settings must be specified for this machine. For details, refer to "Network settings" on page 4-3. bizhub C353P...

  • Page 152: Installing The Printer Driver On Macintosh Osx 10.2/10.3/10.4

    When the printer driver is installed for the second and subsequent times, the [Install] button may appear as the [Upgrade] button. The printer driver is installed to the Macintosh computer. When the installation is completed, a message appears. Click the [Close] button. This completes the printer driver installation. Next, select a printer. bizhub C353P...

  • Page 153: Selecting And Connecting The Printer (Os 10.4)

    The connected printers are detected. From the "Printer Name" list, select the desired model name and connection (Bonjour). Select "KONICA MINOLTA" in "Print Using", select the desired model from the list of models, and then click the [Add] button. If the selected printer is registered in the printer list, the setting procedure is completed.

  • Page 154: Adding A Printer (Appletalk Settings)

    The connected printers are detected. From the "Printer Name" list, select the desired model name and connection (AppleTalk). Select "KONICA MINOLTA" in "Print Using", select the desired model from the list of models, and then click the [Add] button. If the selected printer is registered in the printer list, the setting procedure is completed.

  • Page 155: Adding A Printer (Lpr Settings)

    From "Protocol", select "LPD". In "Address", enter the IP address of this machine. Select "KONICA MINOLTA" in "Print Using", select the desired model from the list of models, and then click the [Add] button. If the selected printer is registered in the printer list, the setting procedure is completed.

  • Page 156: Selecting And Connecting The Printer (Os 10.2 And 10.3)

    From "Protocol", select "IPP". In "Address", enter the IP address of this machine. In "Queue", enter "ipp". Select "KONICA MINOLTA" in "Print Using", select the desired model from the list of models, and then click the [Add] button. If the selected printer is registered in the printer list, the setting procedure is completed.

  • Page 157: Specifying The Appletalk Settings For This Machine

    The connected printers are detected. From the "Name" list, select the desired model name. Select "KONICA MINOLTA" in "Printer Model", select the desired model from the list of model names, and then click the [Add] button. If the selected printer is registered in the printer list, the setting procedure is completed.

  • Page 158: Specifying The Tcp/Ip Setting For The Computer (Lpr Settings)

    For OS 10.3, from "Printer Type", select "LPD/LPR". In "Printer Address", enter the IP address of this machine. Select "KONICA MINOLTA" in "Printer Model", select the desired model from the list of model names, and then click the [Add] button.

  • Page 159: Specifying The Tcp/Ip Setting For The Computer (Ipp Settings)

    – Leave "Queue Name" blank. Select "KONICA MINOLTA" in "Printer Model", select the desired model from the list of model names, and then click the [Add] button. If the selected printer is registered in the printer list, the setting procedure is completed.

  • Page 160: Installing The Printer Driver

    [Select PPD] button from the window that is already displayed. A window for specifying options appears. Select options installed on this machine on the "Options Installed 1" and "Options Installed 2" windows. Click the [OK] button. The "selector" window appears again. Close the "selector" window. 6-12 bizhub C353P...

  • Page 161: Specifying The Tcp/Ip Setting For This Machine (Lpr Settings)

    The Untitled window appears again. Click the [Create] button. A window for saving the setting appears. Enter a desktop printer name, and then click the [Save] button. An icon for the LPR printer is created on the desktop. bizhub C353P 6-13...

  • Page 162: For Macintosh Os X

    Drag the "C353" folder, which is located in "Library" - "Printers" - "KONICA MINOLTA", to the "Trash" icon. – For Mac OS 10.2, drag all the "KONICA MINOLTA C353" folders, which are located in "Library" - "Printers" - "PPDPlugins", to the "Trash" icon. Restart the computer.
  • Page 163 Print functions of the printer drivers for Windows...

  • Page 165: Printing Operations

    "Parameter details for the PCL/PS drivers" on page 7-9. – If the changed settings are not saved in the Print dialog box, the original settings are restored when the application is quit. Click the [Print] button. The data indicator of this machine flashes. bizhub C353P...

  • Page 166: Initializing The Pcl/Ps Printer Driver

    For Windows Vista, click the [Start] button to open the "Control Panel", select "Hardware and Sound", and then click "Printers". – In Windows Vista, if Control Panel is displayed with Classic View, double-click "Printers". Right-click the icon of the installed printer, and then click "Properties". bizhub C353P...

  • Page 167: Configure Tab

    Enter the encryption passphrase when it is defined by the user through communication with this machine. Software Tools Starts up software tools such as PageScope Web Connection. Note The [Acquire Device Information] function cannot be used unless you are connected and able to communicate with this machine. bizhub C353P...

  • Page 168: Settings Tab

    Displays the User Authentication/Account Track dialog box when a print job is specified Dialog when printing to enter a user name or a department name. Save Custom Size Saves the custom paper sizes. Note "EMF Spool" and "Save Custom Size" are functions only for the PCL driver. bizhub C353P...

  • Page 169: Registration Of The Default Settings

    For the function and settings of the printer driver, refer to "Parameter details for the PCL/PS drivers" on page 7-9. The printer driver has the function to save the setting as "Favorite Setting". For details, refer to "Common settings for the PCL/PS drivers" on page 7-8. bizhub C353P...

  • Page 170: Common Settings For The Pcl/Ps Drivers

    Paper Printer Printer Information Starts up the PageScope Web Connection to confirm the printer information. This is avail- able when communication with this machine is enabled. bizhub C353P...

  • Page 171: Parameter Details For The Pcl/Ps Drivers

    Selects the paper type for printing. chine. Can be changed only when the paper tray is set to "Auto". When the paper tray is not set to "Auto", the paper type registered by "Paper Settings for Each Tray" is effective. bizhub C353P...
  • Page 172 [Bypass] on the operation panel, specify "8-1/2 e 11W" for [Paper Size], and then specify "11 e 17" for [X Size] and [Y Size]. Specify "Duplex Side 2" to print on the back side of a page. For details on Output Method, refer to "Function detail description" on page 9-3. 7-10 bizhub C353P...

  • Page 173: Layout Tab

    Specifies the binding margin values. For 2-sided print- ing, clearing the "Same value for front and back sides" check box allows you to set different values between the front and back sides. Unit Selects the measurement unit that specifies the size. bizhub C353P 7-11...
  • Page 174 "Combination" provides options "2 e 2, 3 e 3, 4 e 4" to print a sheet of document into multiple sheets of paper. The function is only for the PCL driver. The "Skip Blank Pages" function is only for the PCL driver. The positions of binding margins vary according to the "Binding Position" setting. 7-12 bizhub C353P...

  • Page 175: Finish Tab

    The "fold" function is available only when optional finisher FS-519 and saddle kit are installed. The "Center Erase" function is available only when optional finisher FS-609 is installed and the "Center Staple and Fold" function is specified. bizhub C353P 7-13...

  • Page 176: Cover Mode Tab

    Specifies the print type from the "Change Setting" drop-down list. Paper Tray Specifies the paper tray used for printing from the "Change Setting" drop-down list. Staple Specifies the number of staples and the stapling posi- tion from the "Change Setting" drop-down list. 7-14 bizhub C353P...
  • Page 177 You can specify it when "Transparency" is selected for the paper type. Interleave Tray Tray1-4, LCT Selects the paper tray for the transparency inter- leaves. The selectable items differ depending on the options that are installed. bizhub C353P 7-15...

  • Page 178: Stamp/Composition Tab

    For details, refer to "Editing date/time and page number" on page 7-21. Header/Footer Machine Setting 1-20 Print the header and footer. Select header/footer infor- mation from the list of the printer setting. [Edit] allows you to specify items and pages to be printed. 7-16 bizhub C353P...
  • Page 179 Specifies the text color used for printing. Note For Windows Vista x64, "Watermark" cannot be selected with any of the following functions at the same time. [User Authentication] [Account Track] [Per Page Setting] [Verify Authentication settings before printing] [Popup Authentication Dialog when printing] bizhub C353P 7-17...

  • Page 180: Editing Watermark

    Prints the watermark as a transparent image. 1st Page Only Prints the watermark on the first page only. Repeat Prints the watermark repeatedly on a single page. Sharing Specifies whether to register the watermark as public or private. 7-18 bizhub C353P...

  • Page 181: Editing Copy Protect

    [Edit] button under "Start Number", you can specify the start number or the display type. Job Number Embeds the print job number in a pattern for documents that are automatically paginated. Text Size Specifies the text size of a pattern. Angle Specifies the pattern angle. bizhub C353P 7-19...
  • Page 182 Specifies the color of the pattern. The density and color contrast can be specified by clicking [Adjust Color] button. Note "Copy Protect" and "Stamp Repeat" cannot be selected at the same time. Different setting items are available for "Copy Protect" and "Stamp Repeat". 7-20 bizhub C353P...

  • Page 183: Editing Date/Time And Page Number

    If cover pages are attached, specifies whether to print the page number on the front cover page or the back cover page. Text Color Specifies the text color used for printing. Print Position Specifies the print position. bizhub C353P 7-21...

  • Page 184: Quality Tab

    You can specify it when "Gray Scale" is selected for the color. Font Settings — Selects whether to use TrueType fonts or the printer fonts when printing. Selects whether the fonts are down- loaded to the printer as bitmap or outline. 7-22 bizhub C353P...

  • Page 185: Other Tab

    "Excel Job Control" and "Remove White Background" settings are not available for Windows XP Professional x64, Windows Vista x64 and Windows Server 2003 x64. "Excel Job Control" can be changed only when the printer driver setting dialog is displayed in the "Printers" ("Printers and Faxes" for Windows XP/Server 2003) window. bizhub C353P 7-23...
  • Page 186 Print functions of the printer drivers for Windows 7-24 bizhub C353P...
  • Page 187 Print functions of the printer driver for Macintosh...

  • Page 189: Printing Operations For Os X

    Change the setting dialog box to change the printer driver settings as necessary. Click the [Print] button. The data indicator of this machine flashes. Note The printer driver setting changed on the Print dialog box is not saved and the original settings are restored when the application is quit. bizhub C353P...

  • Page 190: Default Settings For The Os X Printer Driver

    From the [Printer] menu, select "Show Info". The "Printer Info" dialog box appears. Select "Installable Options". Select the model name and options that are installed on this machine. Click the [Apply Changes] button, and then close the "Printer Info" dialog box. bizhub C353P...

  • Page 191: Registration Of The Default Settings

    In the "Print" dialog box, select "Presets" and save the printer driver functions by selecting "Save As". – When use this setting, select from "Presets". Detail For the function and settings of the printer driver, refer to "Parameter details for the OS X printer driver" on page 8-8. bizhub C353P...

  • Page 192: Common Settings For The Os X Printer Driver

    Click the [Acquire Device Information] button on the Printer Info dialog box to communicate with this machine and read the status of the settings specified on this machine. This function is not available unless the connection is enabled for communications with the machine. bizhub C353P...

  • Page 193: How To Add A Custom Size For The Os X Printer Driver

    For Mac OS 10.4, continue with step 7. – For Mac OS 10.2/10.3, click the [Save] button. Click the [OK] button. This saves the custom paper size, which can be selected from the Paper Size drop-down list that is displayed when "Page Attributes" is selected. bizhub C353P...

  • Page 194: Parameter Details For The Os X Printer Driver

    17 size paper on the specified tray of the machine ("Bypass Tray"), select [Paper Settings] - [Bypass] on the operation panel, specify "8-1/2 e 11W" for [Paper Size], and then specify "11 e 17" for [X Size] and [Y Size]. bizhub C353P...

  • Page 195: Copies & Pages

    Function name Option Description Copies 1 to 999 Specifies the number of copies to be printed. Collated ON/OFF Do not specify this function. Select "Output Method", and then specify "Collate". Pages — Specifies the print range to print. bizhub C353P...

  • Page 196: Output Method

    [Detail Settings] — Displays the functions for which the setting details have been specified. Detail For details on Output Method, refer to "Function detail description" on page 9-3. 8-10 bizhub C353P...

  • Page 197: Checking The Output Method Setting Details

    This is the same dialog box that appears when you select "Output Method" and select "Ac- count Track" checkbox. Administrator Set- Displays a dialog box to set an input dialog for authentication setting and change the encryp- tings tion key. bizhub C353P 8-11...
  • Page 198 Match the "Encryption Passphrase" to that specified by "Driver Password Encryption Setting" of this machine. Detail For the procedure for specifying "Encryption Passphrase" to be defined by the user, refer to "Specifying a user-defined encryption passphrase" on page 9-34. 8-12 bizhub C353P...

  • Page 199: Layout/Finish

    You can switch between the Layout dialog box and the Finish dialog box. Note When printing a job that contains pages of different sizes and orientations with the "Poster Mode" setting specified, images may be missing or overlapping when the document is printed. bizhub C353P 8-13...
  • Page 200 The "punch" function is available only if the punch kit is installed on the optional finisher. The "Center Erase" function is available only when optional finisher FS-609 is installed and the "Center Staple and Fold" function is specified. 8-14 bizhub C353P...

  • Page 201: Paper Tray/Output Tray

    Default, tray 1-3, bin 1-6 Specifies the tray where to output the printed pages. The selectable items differ depending on the options that are installed. Note Specify "Duplex Side 2" to print on the back side of a page. bizhub C353P 8-15...

  • Page 202: Cover Mode/Transparency Interleave

    Print functions of the printer driver for Macintosh 8.5.6 Cover Mode/Transparency Interleave You can switch between the Cover Mode dialog box and the Transparency Interleave dialog box. 8-16 bizhub C353P...
  • Page 203 You can specify it when "Transparency" is selected for the paper type. Tray 1-4, LCT Selects the paper tray for the transparency inter- leaves. The selectable items differ depending on the options that are installed. bizhub C353P 8-17...

  • Page 204: Per Page Setting

    Function name Option Description Per Page Setting ON/OFF Inserts paper between pages and switches the paper and tray for each page. [Add] — Creates a conditioned list. [Delete] — Deletes the list. [Edit] — Edits the conditioned list. 8-18 bizhub C353P...

  • Page 205: Stamp/Composition

    Prints the header and footer. Select header/footer in- formation from the list specified in the printer. You can specify items and pages to be printed by clicking the [Settings] button. [Settings] — For details, refer to "Editing header/footer" on page 8-23. bizhub C353P 8-19...

  • Page 206: Editing Copy Protect

    Embeds the copy number in a pattern when printing multiple copies. The start number or the Number display type can be specified. Job Number Embeds the print job number in a pattern for documents that are automatically paginated. Text Size Specifies the text size of a pattern. Angle Specifies the pattern angle. 8-20 bizhub C353P...
  • Page 207 Specifies the order for printing a pattern on the original. Adjust Color Specifies the color of the pattern. Note "Copy Protect" and "Repeatable Stamp" cannot be selected at the same time. Different setting items are available for "Copy Protect" and "Repeatable Stamp". bizhub C353P 8-21...

  • Page 208: Editing Date/Time

    Displays the format for the date and time to be printed. Pages Specifies the pages to print the date and time. Text Color Specifies the text color used for printing. Print Position Specifies the print position. Editing page number 8-22 bizhub C353P...

  • Page 209: Editing Header/Footer

    Prints the number of copies in the header and footer when printing multiple copies. The start Number number or the number of digits displayed can be specified. Pages Specifies the pages to print the header and footer. Text Color Specifies the text color used for printing. bizhub C353P 8-23...

  • Page 210: Quality

    "Detail" to adjust the text, photos, figures, tables, and graphs in the original. You can also manage the profile. Detail For details on profile management, refer to "ICC profile settings" on page 9-38. 8-24 bizhub C353P...

  • Page 211: Printing Operations For Os 9

    8-28. Click the [Print] button. The data indicator of this machine flashes. Detail The printer driver setting changed on the Print dialog box is not saved and the original settings are restored when the application is quit. bizhub C353P 8-25...

  • Page 212: Default Settings For The Os 9 Printer Driver

    The Chooser dialog box appears again. Close the Chooser dialog box. Note The option settings are displayed automatically the first time the printer driver is selected. For details, refer to "Selecting and connecting the printer" on page 6-12. 8-26 bizhub C353P...

  • Page 213: Registration Of The Default Settings

    For OS 9.2, select the Print dialog box and click the [Save Settings] button to save it. Note The settings cannot be saved from the Page Setup dialog box. The "General" settings on the Print dialog box cannot be saved. bizhub C353P 8-27...

  • Page 214: Parameter Details For The Os 9 Printer Driver

    To print on paper sizes other than the standard sizes, be sure to set the custom paper sizes in "Custom Size Settings" first. For details on registering a non-standard paper size, refer to "Setting Custom Page Size" on page 8-29. 8-28 bizhub C353P...

  • Page 215: Setting Custom Page Size

    Item Description Copies Specifies the number of copies to be printed. Collated Specifies whether to print multiple copies by collating them. Pages Specifies the print range to print. Paper Source Selects the paper tray to be used. bizhub C353P 8-29...

  • Page 216: Layout (Pages Per Sheet)

    Selects the binding direction. Print Type Performs duplex printing. Combination Performs booklet printing. Staple Performs stapling. Punch Performs hole punching. Fold Performs folding. Image Shift Prints by shifting the entire print image. Front Cover Attaches a front cover page. 8-30 bizhub C353P...
  • Page 217 It can be specified when "Gray Scale" is selcted for the color. Reminder The "Staple" and "Fold" functions are available only if the optional finisher is installed. The "punch" function is available only if the punch kit is installed on the optional finisher. bizhub C353P 8-31...
  • Page 218 Print functions of the printer driver for Macintosh 8-32 bizhub C353P...
  • Page 219 Function detail description...

  • Page 221: Proof Print

    9.1.1 Setting up the printer driver The following four printer drivers support setup of this feature: Konica Minolta PCL Printer Driver for Windows Konica Minolta PostScript Printer Driver for Windows PostScript PPD Printer Driver for Mac OS X PostScript PPD Printer Driver for Mac OS 9.2 Print with following settings specified: Output Method: "Proof Print"...

  • Page 222: For Macintosh Os X

    Display the "Output Method" dialog box. Select "Proof Print" from options under "Output Method". Specify the number of copies to be printed. One copy is printed for checking. Note In OS 9.2, select "Output Method" in the "Finishing Option 3" dialog box. bizhub C353P...

  • Page 223: Recalling A Job From The Control Panel

    Job Operation screen. Enter the user name and password. If the Account Track function has been specified on the machine, the screen to input the department name appears after the Job Operation screen. Enter the department name and password. bizhub C353P...

  • Page 224: Secure Print

    9.2.1 Setting up the printer driver The following three printer drivers support setup of this feature: Konica Minolta PCL Printer Driver for Windows Konica Minolta PostScript Printer Driver for Windows PostScript PPD Printer Driver for Mac OS X Print with the following setting specified: Output Method: "Secure Print"...
  • Page 225 The ID and password that are required to print a secured document can be preregistered in the User Settings dialog box on the Basic tab. If the same ID and password always used, by preregistering them, the dialog box for entering the ID and password will not appear when selecting "Secure Print". bizhub C353P...

  • Page 226: For Macintosh Os X

    Note Select the "Save Settings" check box to save the specified settings. In addition, if the "Do not show this window when setting" check box is selected, the dialog box does not appear when the function is specified. bizhub C353P...

  • Page 227: Recalling A Job From The Control Panel

    Secured documents are automatically deleted after a certain length of time has elapsed since their registration. The default setting for this time is specified as 1 day, and the value can be specified in the Administrator mode. To manually delete a secured document that was printed, operate in the Administrator mode. bizhub C353P...

  • Page 228: When "Secureprintaccess" Is Set To "Mode 1"

    Job Operation screen. Enter the user name and password. If the Account Track function has been specified on the machine, the screen to input the department name appears after the Job Operation screen. Enter the department name and password. 9-10 bizhub C353P...

  • Page 229: When "Secureprintaccess" Is Set To "Mode 2"

    Job Operation screen. Enter the user name and password. If the Account Track function has been specified on the machine, the screen to input the department name appears after the Job Operation screen. Enter the department name and password. bizhub C353P 9-11...

  • Page 230: Save In User Box

    9.3.1 Setting up the printer driver The following three printer drivers support setup of this feature: Konica Minolta PCL Printer Driver for Windows Konica Minolta PostScript Printer Driver for Windows PostScript PPD Printer Driver for Mac OS X Print with the following settings specified: Output Method: "Save in User Box"...
  • Page 231 User Settings dialog box on the Basic tab. If the same file name and user box number are always used to save document, by preregistering them, the dialog box for entering the file name and user box number will not appear when selecting "Save in User Box". bizhub C353P 9-13...

  • Page 232: For Macintosh Os X

    Select the "Save Settings" check box to save the specified settings. In addition, if the "Do not show this window when setting" check box is selected, the dialog box does not appear when the function is specified. Print the document. 9-14 bizhub C353P...

  • Page 233: Recalling A Job From The Control Panel

    XXXX XXXX Print Print Print Print Print Simplex/Duplex Simplex/Duplex Number of Copies Number of Copies Print 1-Sided XXX copies 2-Sided Print Simplex/Duplex Number of Copies Print Print * If a password is specified for the user box. bizhub C353P 9-15...
  • Page 234 Job Operation screen. Enter the user name and password. If the Account Track function has been specified on the machine, the screen to input the department name appears after the Job Operation screen. Enter the department name and password. 9-16 bizhub C353P...

  • Page 235: Save In Annotation User Box

    9.4.1 Setting up the printer driver The following three printer drivers support setup of this feature: Konica Minolta PCL Printer Driver for Windows Konica Minolta PostScript Printer Driver for Windows PostScript PPD Printer Driver for Mac OS X Print with the following settings specified: Output Method: "Save in User Box"...
  • Page 236 User Settings dialog box on the Basic tab. If the same file name and user box number are always used to save document, by preregistering them, the dialog box for entering the file name and user box number will not appear when selecting "Save in User Box". 9-18 bizhub C353P...

  • Page 237: For Macintosh Os X

    Select the "Save Settings" check box to save the specified settings. In addition, if the "Do not show this window when setting" check box is selected, the dialog box does not appear when the function is specified. Print the document. bizhub C353P 9-19...

  • Page 238: Recalling A Job From The Control Panel

    XXXX XXXX Print Print Print Print Print Simplex/Duplex Simplex/Duplex Number of Copies Number of Copies Print 1-Sided XXX copies 2-Sided Print Simplex/Duplex Number of Copies Print Print * If a password is specified for the user box. 9-20 bizhub C353P...
  • Page 239 Job Operation screen. Enter the user name and password. If the Account Track function has been specified on the machine, the screen to input the department name appears after the Job Operation screen. Enter the department name and password. bizhub C353P 9-21...

  • Page 240: Save In Encrypted Pdf Box

    Specifying Encrypted PDF file Save the encrypted PDF file in advance. Specify the desired file in "Print" on the Direct Print tab of the PageScope Web Connection, and then click the [Print] button. The file is sent to the machine. 9-22 bizhub C353P...

  • Page 241: Recalling A Job From The Control Panel

    The screen to input the user name appears after the Job Operation screen. Enter the user name and password. If the Account Track function has been specified on the machine, the screen to input the department name appears after the User Password screen. Enter the department name. bizhub C353P 9-23...

  • Page 242: Printing On A Machine With The User Authentication Set Up

    Settings]-[Security Details] is set to mode 2, the relevant user is locked and access may be blocked if the authentication information is not entered correctly. The following three printer drivers support setup of this feature: Konica Minolta PCL Printer Driver for Windows Konica Minolta PostScript Printer Driver for Windows PostScript PPD Printer Driver for Mac OS X Note If printing is not allowed, printing cannot be performed even when used by a registered user.

  • Page 243: Setting Up The Printer Driver

    If the machine has been set to permit public users, "Public User" can be selected to access the machine. – The password can also be preset in the printer driver as a default value so that it does not have to set for each job. bizhub C353P 9-25...

  • Page 244: For Macintosh Os X

    This function is not available unless the connection is enabled for communications with the machine. For Macintosh OS X In the "File" menu, select "Print". Select "Output Method". Select the "User Authentication" check box. 9-26 bizhub C353P...
  • Page 245 If performing user authentication on a server, the server settings must be specified. Click the [User Authentication Server Setting] button to select the server. bizhub C353P 9-27...

  • Page 246: Printing With The Machine Enabling The Account Track Function

    The following three printer drivers support setup of this feature: Konica Minolta PCL Printer Driver for Windows Konica Minolta PostScript Printer Driver for Windows PostScript PPD Printer Driver for Mac OS X Note If printing is not allowed, printing cannot be performed even for a registered account.
  • Page 247 Click the [Verify] button to communicate with this machine and check whether authentication can be performed with the account that was entered. This function is not available unless the connection is enabled for communications with the machine. bizhub C353P 9-29...

  • Page 248: For Macintosh Os X

    Select the "Save Settings" check box to save the specified settings. In addition, if the "Do not show this window when setting" check box is selected, the dialog box does not appear when the function is specified. 9-30 bizhub C353P...

  • Page 249: Touch And Print

    - [AuthDeviceSetting] - [Touch & Print] in the Utility mode accessed by pressing the [Menu/Select] key. For details, refer to "AuthDeviceSetting" on page 10-26. 9.8.1 Touch and Print operation procedure Enter the user name and password in the printer driver, and then print. – For Windows: bizhub C353P 9-31...
  • Page 250 Touch the authentication unit of the machine. Once the user is authenticated, the document is printed. Detail For details on the authentication unit, refer to "Authentication unit (Biometric type AU-101)" on page 16-3 or "Authentication unit (IC card type AU-201)" on page 17-3. 9-32 bizhub C353P...

  • Page 251: Recalling A Job From The Control Panel

    The default setting for this time is specified as 1 day, and the value can be specified in the Administrator mode. Job Operation Enter User Name Select User Enter password. Touch & Print Box All Documents document XXXX Print Print bizhub C353P 9-33...

  • Page 252: Specifying A User-Defined Encryption Passphrase

    Driver Encryption EncryptionSetting EncryptionPassphrase Note When entering the encryption passphrase, use 20 alphanumeric characters. Specify the same encryption passphrase for the machine and the printer driver. An encryption key using a series of the same character is invalid. 9-34 bizhub C353P...

  • Page 253: For Windows

    Setting up the printer driver The following three printer drivers support setup of this feature: Konica Minolta PCL Printer Driver for Windows (PCL driver) Konica Minolta PostScript Printer Driver for Windows (PS driver) PostScript PPD Printer Driver for Mac OS X For Windows Display the Properties screen.

  • Page 254: For Macintosh Os X

    Select "Administrator Settings", and then click the [Settings] button. The Administrator Settings dialog box appears. Select the "Encryption Passphrase" check box and enter the encryption passphrase. – To do without specifying a user definition for "Encryption Passphrase", clear "Encryption Passphrase". 9-36 bizhub C353P...
  • Page 255 Click the [OK] button. Note When entering the encryption passphrase, use 20 alphanumeric characters. Specify the same encryption passphrase for the machine and the printer driver. An encryption key using a series of the same character is invalid. bizhub C353P 9-37...

  • Page 256: Icc Profile Settings

    9-40. 9.10.1 Setting up the printer driver The following two printer drivers support setup of this feature: Konica Minolta PostScript Printer Driver for Windows (PS driver) PostScript PPD Printer Driver for Mac OS X For Windows Display the Quality tab.

  • Page 257: For Macintosh Os X

    Select relevant items for "RGB Source", "Destination Profile", and "Simulation Profile" according to the type of the document to be printed. – This enables to select ICC profiles registered in the printer driver. When printing, color processing is performed according to the selected ICC profiles. Click the [OK] button. bizhub C353P 9-39...

  • Page 258: Registering Icc Profiles In The Printer Driver

    9.11.1 Setting up the printer driver The following two printer drivers support setup of this feature: Konica Minolta PostScript Printer Driver for Windows PostScript PPD Printer Driver for Mac OS X Detail To register ICC profile in the machine, use the Download Manager (bizhub) application. For details, refer to the Help for the application software.
  • Page 259 – The profile name can be changed from "Edit". The selected profile is added to "Driver Profile List". Then it can be selected in the Quality Adjustment dialog box from ICC Profile entries. Click the [OK] button. bizhub C353P 9-41...

  • Page 260: For Macintosh Os X

    Click [Download Manager], and the Download Manager (bizhub) application starts. This function is only available when Download Manager (bizhub) is installed. The Color Profile Management dialog box appears. Check that a list of available profiles that are additionally registered on the machine is displayed. 9-42 bizhub C353P...
  • Page 261 – The profile name can be changed from "New/Edit". The selected profile is added to "Driver Profile List". Then it can be selected in the Quality Adjustment dialog box from profile entries. Click the [OK] button. bizhub C353P 9-43...

  • Page 262: Banner Paper Printing Function

    Click the [OK] button. Note For the Konica Minolta PCL Printer Driver, custom size setting can also be preregistered on the Initial Setting tab in the printer driver activated from the Windows "Printer" window ("Printers and Faxes" for Windows XP/Server 2003).

  • Page 263: Printing

    609 is installed, slide the finisher away from this machine, and then load the banner paper that can be used for the paper transport on the finisher. Send and print the document data of the banner size via the computer. Open the bypass tray. bizhub C353P 9-45...
  • Page 264 Slide the lateral guides of the bypass tray to fit the size of paper being loaded. If the following screen appears, press the [Menu/Select] key. The data is printed. To continue printing, send the document data via the computer. 9-46 bizhub C353P...
  • Page 265 Function detail description To finish printing the job, press the [Cancel] key, select [Yes], and then press the [Menu/Select] key. Not to finish printing the job, select [No] to continue printing. bizhub C353P 9-47...
  • Page 266 Function detail description 9-48 bizhub C353P...
  • Page 267 Settings for control panel...

  • Page 269: Basic Operations

    Press the [,] key several times to select [User Settings], and then press the [Menu/Select] key. The User Setting Menu appears. Press the [,] key several times to select [Print Reports], and then press the [Menu/Select] key. The Print Reports Menu appears. bizhub C353P 10-3...
  • Page 270 When "ON" is specified for [Admin. Sec. Levels], the password is required to display the User Setting Menu. Specify the password in [Admin. Password] accessed by selecting [Admin. Settings] - [Security Settings]. When selecting a menu or item, you can press the [)] key instead of the [Menu/Select] key. 10-4 bizhub C353P...

  • Page 271: Operations For Changing Numeric Values

    Characters are displayed in the following order: [+] abcde···xyzABCDE···XYZ!#$%&'()*,-./:;<=>?@[\]^_`{|}~0123456789 [,] Press the [)] key to move the cursor to the second character place. If an incorrect value was entered, press the [*] key to move the cursor, and then specify the correct value. bizhub C353P 10-5...
  • Page 272 The Admin. Settings Menu appears where the desired Administrator Setting parameter can be changed. Note When selecting a menu or item, you can press the [)] key instead of the [Menu/Select] key. Specify the password in [Admin. Password] accessed by selecting [Admin. Settings] - [Security Settings]. 10-6 bizhub C353P...

  • Page 273: List Of "Utility" Menu Parameters

    ID, and then enter the password. When "Mode 2" is specified for [SecurePrintAccess], enter the ID, select a document, and then enter the password. If an incorrect password is entered, the box does not appear. bizhub C353P 10-7...

  • Page 274: Paper Setting Menu

    GDI Demo Page Statistics Page PS Font List PCL Font List Meter Count Consumables Consumables System Settings Language Setting PowerSave Setting Low Power Setting SleepMode Setting EnteringSleepMode EnteringPowerSave PaperTray Setting AutoTraySelection Tray Priority AutoTray Switch No Matching 10-8 bizhub C353P...
  • Page 275 [SleepMode Setting] is not displayed if [Restrict] is selected for [Don’t got to Sleep] in [Service Mode]. For details, contact your service representative. [Output Tray] and [Shift Each Job] appear when an optional finisher is installed. [Bin Assignment] appears when the Mailbin kit is installed on the optional finisher. bizhub C353P 10-9...

  • Page 276: System Setting Menu

    IPP Auth. Setting Accept IPP jobs Support Info. Printer Info. Print Setting WINS Direct Hosting Web Service WebServiceSetting Printer Setting SNMP SNMP Setting SNMP v1/v2c(IP) SNMP v3(IP) SNMP v1(IPX) UPD Port Number SNMPv1v2cSetting SNMP v3 Setting TRAP Setting 10-10 bizhub C353P...
  • Page 277 [OpenAPI Settings] - [SSL] are not displayed when the SSL certificate is not installed or "ON" is specified for [EnhancedSecurity]. [CallRemoteCenter] is not displayed if center registration performed by selecting [Service Mode] - [CS Remote Care] is not completed. For details, contact your service representative. bizhub C353P 10-11...

  • Page 278: Admin. Settings Menu

    BioAuth. Settings Beep Sound Operation Setting Touch & Print Touch&PrintUserBox Print Expert Adjustment PrinterAdjustment Leading Edge Adj. Centering Leading (Duplex) Centering (Duplex) Vertical Adj. EraseLeadingEdge Finisher Adjust Center Staple Pos Half-Fold Pos. DensityAdjustment Thick/Yellow Thick/Magenta Thick/Cyan Thick/Black BlackImageDensity 10-12 bizhub C353P...

  • Page 279: Banner Printing Menu

    Load paper of the appropriate size. To return to the original state, press the [Cancel] key on the Banner Printing screen, and then select "Yes" for [quite] or "No" for the [Banner Printing] menu. bizhub C353P 10-13...

  • Page 280: Parameters

    [Personal User Box] is displayed when using the User authentication function on the machine. [Account User Box] is displayed when using the Account Track function on the machine. The User Box function is available only if a hard disk is installed on this machine. 10-14 bizhub C353P...

  • Page 281: Printing Items

    Among the Paper Settings value, values marked with "-R" represent that the papers are set in the transversal direction, and values marked with "W" represents the wide papers. When "Custom Size" or "Wide Paper Size" is selected for [Paper Size] of [Bypass], specify a paper size using a numeric value. bizhub C353P 10-15...

  • Page 282: User Settings Menu

    Stop Printing: The machine stops operating. (Stop Print- ing) • Switch Trays: The specified paper trays are selected in the specified order of priority and, when the tray runs out of paper, the next paper tray is selected. (Switch Trays) 10-16 bizhub C353P...

  • Page 283: Printer Settings

    Left Bind Staple Select whether or not pages are to be stapled. Punch Select whether or not holes are to be punched in the pages. Banner PaperTray Select the paper tray used to print banner pages. Auto bizhub C353P 10-17...

  • Page 284: Font List

    New Century Schoolbook Italic Antique Olive Bold New Century Schoolbook Bold Italic Antique Olive Italic Times Roman Garamond Antiqua Times Bold Garamond Halbfett Times Italic Garamond Kursiv Times Bold Italic Garamond Kursiv Halbfett ITC Zapf Chancery Medium Italic Marigold Symbol 10-18 bizhub C353P...

  • Page 285: System Settings Menu

    Note [Date/TimeSettings] - [Time Adjustment] are displayed when "ON" is specified for [Network Settings] - [Detail Settings] - [TimeAdjustmentSet] - [NTP Setting]. [Management List] - [Counter List] appears when account track is enabled in this machine. bizhub C353P 10-19...
  • Page 286 – WINS Specify the WINS function for SMB. – Direct Hosting Specify whether or not Direct Hosting is used. Web Service WebServiceSetting Specify settings for using the Web service. – Printer Setting Specify the printer information. – 10-20 bizhub C353P...
  • Page 287 If the network settings are changed, restart the machine to apply changes. When the power is turned off, then on, turn off the power, wait at least 10 seconds, and then turn it on. Otherwise, the machine may not operate correctly. bizhub C353P 10-21...

  • Page 288: System Connection

    [OpenAPI Settings] - [SSL] are not displayed when the SSL certificate is not installed or "ON" is specified for [EnhancedSecurity]. [CallRemoteCenter] is not displayed if center registration performed by selecting [Service Mode] - [CS Remote Care] is not completed. For details, contact your service representative. 10-22 bizhub C353P...

  • Page 289: Security Settings

    Specify settings relating to handling of the Audit Log – function. EnhancedSecurity Settings necessary for applying enhanced security mode appear. Select whether or not to apply en- hanced mode settings when the necessary settings are specified. For details, contact your service repre- sentative. bizhub C353P 10-23...
  • Page 290 Restart the machine, wait for the time specified in "Release Time Settings", and then perform the administrator authentication. 10-24 bizhub C353P...

  • Page 291: User Box Settings

    Touch & Print Box until when they are au- tomatically deleted. Doc.Hold Specify to retain or to delete documents automatically when they are printed. Note [User Box Settings] is displayed when the hard disk drive is installed. bizhub C353P 10-25...

  • Page 292: Authdevicesetting

    For details on specifying authentication settings for the authentication unit (biometric type) and on registering finger vein patterns, refer to "Authentication unit (Biometric type AU-101)" on page 16-3 or "Authentication unit (IC card type AU-201)" on page 17-3. 10-26 bizhub C353P...

  • Page 293: Expert Adjustment

    Settings for [Center Staples Pos] and [Half-Fold Pos] in [Finisher Adjust] vary depending on the finisher installed. When FS-609 is installed, the values for position adjustment can only be specified. When FS-519 is installed, the values for position adjustment can be specified for each paper size or paper type. bizhub C353P 10-27...
  • Page 294 Settings for control panel 10-28 bizhub C353P...
  • Page 295 PageScope Web Connection...

  • Page 297: Accessing Pagescope Web Connection

    For details on specifying the IP address of this machine, refer to the "Specifying general settings for TCP/IP-based communication" on page 4-3. PageScope Web Connection has Flash and HTML display formats. For details, refer to "Logging on and logging off" on page 11-7. bizhub C353P 11-3...

  • Page 298: Web Browser Cache

    Click "Privacy", and then click the [Settings] button at the bottom of the dialog box. Select the "Cache" check box under "Private data", select the "Clear private data when closing Firefox" check box under "Settings", and then click the [OK] button. 11-4 bizhub C353P...

  • Page 299: Structure Of Pages

    The pages of PageScope Web Connection are constructed as shown below. Item Description Konica Minolta logo Click the logo to go to the Konica Minolta Web site at the following URL. http://konicaminolta.com PageScope Web Connection logo Click the logo to display the version information for PageScope Web Connection.
  • Page 300 The PageScope Web Connection pages appear differently depending on the options installed on the machine and the specified machine settings. For details on logging on as a different user or as the administrator, refer to "Logging on and logging off" on page 11-7. 11-6 bizhub C353P...

  • Page 301: Logging On And Logging Off

    When user authentication and account track settings are not specified The user logs in automatically as a public user. To log in as an administrator, log out. Log in again as an administrator. bizhub C353P 11-7...

  • Page 302: When User Authentication And Account Track Settings Are Specified

    When user authentication and account track settings are specified The User Authentication/Account Track screen appears. Enter the required information to log in. To log in as a different user or an administrator, log out. Log in again. 11-8 bizhub C353P...

  • Page 303: Logout

    User mode, you will automatically be logged off. For details on specifying the timeout periods for User mode and Administrator mode, refer to "Security" on page 11-19. bizhub C353P 11-9...

  • Page 304: Login

    Logging on as a public user If user authentication settings have not been specified on the machine, logon will be as a public user. In the logon page, select "Public user", and then click the [Login] button. 11-10 bizhub C353P...

  • Page 305: Logging On As A Registered User

    If "ProhibitFunctions" in [Admin. Settings] - [Security Details] is set to "Mode 2" and a user enters an incorrect password the specified number of times, that user is locked out and can no longer use the machine. Contact the administrator to cancel operation restrictions. bizhub C353P 11-11...

  • Page 306: Logging On To Administrator Mode

    The password input dialog box differs depending on the specified machine settings. Specify the password in [Admin. Password] accessed by selecting [Admin. Settings] - [Security Settings]. For details on the administrator password, refer to "Admin. Settings Menu" on page 10-23. 11-12 bizhub C353P...

  • Page 307: Overview Of User Mode

    Information on operations permitted by users and accounts can be displayed. mation Network Setting Information Network settings for the machine can be displayed. Print Setting Information Settings for the printer controller of the machine can be displayed. Print Information Font and settings information can be printed. bizhub C353P 11-13...
  • Page 308 Note Display items related to Copy, Scan or Fax are not available for this machine. 11.3.2 Item Description Current Jobs The running job and queued jobs can be displayed. Job History The completed jobs can be displayed. 11-14 bizhub C353P...
  • Page 309 Create System User Box New system user boxes can be created. This item appears when you have logged in as an administrator in the User mode. Note The Box tab appears only if the optional HDD is installed. bizhub C353P 11-15...

  • Page 310: Direct Print

    PageScope Web Connection 11.3.4 Direct Print Item Description Direct Print Files that are saved in a computer can be specified and printed with this machine. 11-16 bizhub C353P...

  • Page 311: Overview Of Administrator Mode

    Machine Setting The registered machine information can be changed. Online Assistance Specify the support information for the machine. To display this information, click the Information tab in User mode, and then click "Online Assistance" in the menu. bizhub C353P 11-17...
  • Page 312 Resets the network settings or controller settings. Header/Footer Registration The list of headers/footers can be displayed, and they can be registered or edited. Note Display items related to Copy, Scan or Fax are not available for this machine. 11-18 bizhub C353P...

  • Page 313: Security

    Specify the password for logging on to PageScope Web Connection in the Adminis- Setting trator mode. Note "Administrator Password Settings" does not appear in the following cases: No SSL certificate is installed. The "EnhancedSecurity" Mode is enabled. bizhub C353P 11-19...
  • Page 314 System user boxes (Annotation User Box) can be opened to work on a saved docu- ment or to change user box settings. Create System User Box New annotation user boxes can be created. Note The Box tab appears only if the optional HDD is installed. 11-20 bizhub C353P...

  • Page 315: Print Setting

    The default settings for PCL mode can be specified. PS Setting The default settings for PS mode can be specified. XPS Settings The XPS print settings can be specified. Interface Setting The interface timeout can be specified. bizhub C353P 11-21...

  • Page 316: Network

    PageScope Web Connection 11.4.5 Network 11-22 bizhub C353P...
  • Page 317 Not available for this machine. WebDAV Settings Not available for this machine. Open API Setting Specify OpenAPI settings. TCP Socket Setting Specify TCP Socket settings used for data transmissions between the computer ap- plication and this machine. bizhub C353P 11-23...

  • Page 318: Box Settings

    To change the user box password, select the check box. Specify the current password changed. and the new password (up to 8 characters). User Box Owner is To change the user box owner, select this check box to select the box type. changed. 11-24 bizhub C353P...

  • Page 319: Creating A New User Box

    Personal User Box: Available for an individual user. This User Box can be used when the user authentication function is available. Account User Box: Available for an individual account. This User Box can be used when the Account Track function is available. bizhub C353P 11-25...
  • Page 320 If you have already registered a user password containing less than eight characters, change it to one using eight characters before enabling "Password Rules". For details on the password rules, refer to "Admin. Settings Menu" on page 10-23. 11-26 bizhub C353P...

  • Page 321: Changing System Box Settings Or Deleting System Boxes

    If the user box contains documents, the setting cannot be specified. Change Stamp Elements To change the text, select the check box, and then specify settings for "Primary field", "Secondary Field", "Date/Time", "Print Position", "Density", and "Number Type". 11-27 bizhub C353P...

  • Page 322: Creating A New System User Box

    If you have already registered a user password containing less than eight characters, change it to one using eight characters before enabling "Password Rules". For details on the password rules, refer to "Admin. Settings Menu" on page 10-23. 11-28 bizhub C353P...

  • Page 323: Importing Or Exporting Setting Information

    When importing or exporting authentication data, operate user registration information in the same way. Operate the authentication data after operate the user authentication information. "Audit Log" is available when audit log setting is enabled on this machine. bizhub C353P 11-29...

  • Page 324: Specifying The Date And Time On This Machine

    Finish Detail The following sections contain descriptions on the settings to make this machine log in to the Active Directory. For details, refer to the respective sections. "Limiting users using this machine (Active Directory)" on page 11-38 11-30 bizhub C353P...

  • Page 325: Manual Setting

    Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. 11.7.3 Time Zone On the Manual Setting screen, specify setting for "Time Zone". For details, refer to "Manual Setting" on page 11-31. bizhub C353P 11-31...

  • Page 326: Time Adjustment Setting

    This item can also be specified with IPv6. Port Number Default setting: 123 Port number for the serv- Specify the port number. [Adjust] Connects to the NTP server with the specified conditions to adjust the time. 11-32 bizhub C353P...

  • Page 327: Limiting Users Using This Machine (Machine Authentication)

    For (3) Synchronize user authentication and account track, select "ON" for both "General Settings" and "Account Track", and select "Synchronize" for "Synchronize User Authentication & Account Track". For details, refer to "User Auth/Account Track" on page 11-34. bizhub C353P 11-33...

  • Page 328: User Auth/Account Track

    Specify the operation that is performed when the number of Reach Maximum copies or printouts have reached its maximum. Detail If "EnhancedSecurity" is set to "ON", the authentication method cannot be set to "OFF". In addition, "Public User Access" is set to "Restrict". 11-34 bizhub C353P...

  • Page 329: User Registration

    PageScope Web Connection 11.8.2 User Registration In Administrator mode of PageScope Web Connection, select the Security tab - "User Registration" - [New Registration]. Specify the following settings. bizhub C353P 11-35...
  • Page 330 If you have already registered a user password containing less than eight characters, change it to one using eight characters before enabling "Password Rules". For details on the password rules, refer to "Admin. Settings Menu" on page 10-23. 11-36 bizhub C353P...

  • Page 331: Account Track Registration

    If you have already registered a user password containing less than eight characters, change it to one using eight characters before enabling "Password Rules". For details on the password rules, refer to "Admin. Settings Menu" on page 10-23. bizhub C353P 11-37...

  • Page 332: Limiting Users Using This Machine (Active Directory)

    Specify settings to use this machine in a TCP/IP network environment. When using Active Directory, specify a DNS server synchronized with Active Directory in the DNS Server Settings of this machine. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. 11-38 bizhub C353P...

  • Page 333: External Server Registration

    Prior confirmation Displays the registration number. External Server Name Enter the name of the external authentication server (up to 32 characters). External Server Type Select "Active Directory". Default Domain Name Enter the default domain name. Default domain name bizhub C353P 11-39...

  • Page 334: User Auth/Account Track

    In Administrator mode of PageScope Web Connection, select the Security tab - "Authentication" - "User Auth/Account Track". Specify the following settings. Item Definition Prior confirmation General Settings Select "ON (External Server)". Ticket Hold Time Setting Specify the ticket hold time. (Active Directory) 11-40 bizhub C353P...

  • Page 335: Default Function Permission

    Print User Box Print Scan/Fax from User 11.9.5 Date/Time Setting When using Active Directory, specify the date and time on this machine. For details, refer to "Specifying the date and time on this machine" on page 11-30. bizhub C353P 11-41...

  • Page 336: Limiting Users Using This Machine (Windows Domain/Workgroup)

    IPv6 address is acquired. For details, refer to "Direct Hosting Setting" on page 4-12. 11.10.1 TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. 11-42 bizhub C353P...

  • Page 337: External Server Registration

    External Server Type Select "NTLM v1" or "NTLM v2". NTLMv2 is applied from Windows NT 4.0 (Service Pack 4). Default Domain Name Enter the default domain name. Default domain name Enter the default domain name in uppercase letters. bizhub C353P 11-43...

  • Page 338: User Auth/Account Track

    Specify the following setting. Item Definition Prior confirmation General Settings Select "ON (External Server)". 11.10.4 Default Function Permission Limits functions available to authorized users on this machine. For details, refer to "Default Function Permission" on page 11-41. 11-44 bizhub C353P...

  • Page 339: Client Setting

    Specify the following setting. Item Definition Prior confirmation User Authentication Select "ON". (NTLM) Detail Specifying "OFF" for "User authentication (NTLM)" when "OFF" is specified for "User authentication (NTLM)", "NTLM v1" or "NTLM v2" cannot be selected for External Server Type. bizhub C353P 11-45...

  • Page 340: Wins Setting

    B Node: Query by broadcast • P Node: Query to WINS server • M Node: Query in the order of broadcast, then WINS server • H Node: Query in the order of WINS server, then broad- cast 11-46 bizhub C353P...

  • Page 341: Limiting Users Using This Machine (Nds)

    Specify the settings according to the following flowchart. External |Server Setting User Auth/Account Track Default Function Permission NetWare Setting Finish Detail NDS is available only when IPX is used as the protocol. NDS is not available when IP is used. bizhub C353P 11-47...

  • Page 342: External Server Registration

    Enter the name of the external authentication server (up to 32 characters). External Server Type Select "NDS". Default NDS Tree Name Enter the default NDS tree name. Default NDS Context Enter the default NDS context name. Name 11-48 bizhub C353P...

  • Page 343: User Auth/Account Track

    Specify the following setting. Item Definition Prior confirmation General Settings Select "ON (External Server)". 11.11.3 Default Function Permission Limits functions available to authorized users on this machine. For details, refer to "Default Function Permission" on page 11-41. bizhub C353P 11-49...

  • Page 344: Netware Setting

    In Administrator mode of PageScope Web Connection, select the Network tab - "NetWare Setting" - "NetWare Setting". Specify the following settings. Item Definition Prior confirmation IPX Setting Select "ON". Ethernet Frame Type Specify the frame type to be used. Frame type User Authentication Set- Select "ON". ting 11-50 bizhub C353P...

  • Page 345: Limiting Users Using This Machine (Ldap)

    Communicate with the LDAP server using SSL? LDAP over SSL Finish 11.12.1 TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. bizhub C353P 11-51...

  • Page 346: External Server Registration

    Specify the maximum wait time for a search operation. Authentication Method Select the authentication method used for logging in to the Authentication method LDAP server. for the server Search Attribute If "Digest-MD5" is selected as the authentication method, specify the search attribute. 11-52 bizhub C353P...

  • Page 347: User Auth/Account Track

    Specify the following setting. Item Definition Prior confirmation General Settings Select "ON (External Server)". 11.12.4 Default Function Permission Limits functions available to authorized users on this machine. For details, refer to "Default Function Permission" on page 11-41. bizhub C353P 11-53...

  • Page 348: Ldap Over Ssl

    If "Continue" is selected, processing continues even if the date of the certificate is invalid. If "Delete the Job" is selected, the job is deleted if the date of the certificate is invalid. 11-54 bizhub C353P...

  • Page 349: Creating A Certificate For This Machine For Ssl-Based Communication

    "Using PageScope Web Connection" on page 4-5 "Specifying IPP print settings" on page 4-14 "Using SSL for communication from Vista to this machine with Web Service Function" on page 11-65 "Using the TCP Socket/OpenAPI/FTP server function" on page 11-94 bizhub C353P 11-55...

  • Page 350: Create A Self-Signed Certificate

    PageScope Web Connection 11.13.1 Create a self-signed Certificate In Administrator mode of PageScope Web Connection, select the Security tab - "SSL/TLS Setting" - "SSL/TLS Setting" - [Setup] - "Create a self-signed Certificate". Specify the following settings. 11-56 bizhub C353P...
  • Page 351 Enter the number of days from the starting date for the peri- od of validity for the certificate. Encryption Strength Specify the encryption method. Mode using SSL/TLS Specify the mode using SSL/TLS. [OK] Creates a self-signed certificate. It may take a few minutes to create a certificate. bizhub C353P 11-57...

  • Page 352: Request A Certificate

    CZ, China: CN, Denmark: DK, Germany: DE, Japan: JP, France: FR, Belgium: BE, Russia: RU Admin. E-mail Address Specify the address for the administrator (up to 127 charac- Address for the adminis- ters). trator [OK] Creates certificate signing request data. 11-58 bizhub C353P...
  • Page 353 PageScope Web Connection Item Definition Prior confirmation Certificate Signing Re- Displays certificate signing request data. quest Data [Save] Saves certificate signing request data in the computer as a file. bizhub C353P 11-59...

  • Page 354: Install A Certificate

    After requesting a certificate to the certification authority, install the certificate sent from the certification authority on this machine. Item Definition Prior confirmation Install a Certificate Paste text data sent from the certification authority. [OK] Moves to the Set an Encryption Strength and Set Mode us- ing SSL screen. 11-60 bizhub C353P...
  • Page 355 PageScope Web Connection Item Definition Prior confirmation Encryption Strength Specify the encryption method. Mode using SSL/TLS Specify the SSL/TLS application range. [Install] Installs the certificate. bizhub C353P 11-61...

  • Page 356: Set An Encryption Strength

    In Administrator mode of PageScope Web Connection, select the Security tab - "SSL/TLS Setting" - "SSL/TLS Setting" - [Setup] - "Set an Encryption Strength". Specify the following setting. Item Definition Prior confirmation Encryption Strength If necessary, change the set encryption strength. Specify the encryption strength. 11-62 bizhub C353P...

  • Page 357: Set Mode Using Ssl

    In Administrator mode of PageScope Web Connection, select the Security tab - "SSL/TLS Setting" - "SSL/TLS Setting" - [Setup] - "Set Mode using SSL". Specify the following setting. Item Definition Prior confirmation Mode using SSL/TLS If necessary, change the set SSL/TSL application range. Specify the SSL/TLS application range. bizhub C353P 11-63...

  • Page 358: Remove A Certificate

    In Administrator mode of PageScope Web Connection, select the Security tab - "SSL/TLS Setting"- "SSL/TLS Setting" - [Setup] - "Remove a Certificate". If necessary, remove the certificate installed on this machine. To remove the installed certificate, click [OK]. Detail If "EnhancedSecurity" is set to "ON", the certificate cannot be removed. 11-64 bizhub C353P...

  • Page 359: Using Ssl Communication Between Vista And This Machine With Web Service Function

    DNS server in advance, and specify settings for DNS at the computer side. When the certificate of this machine is not published by certificate authority, register the certificate of this machine to Windows Vista as a certificate of "Trusted Root Certification Authorities" for "Local Computer" in advance. bizhub C353P 11-65...

  • Page 360: Using Ssl For Communication From This Machine To Vista With Web Service Function

    In Administrator mode of PageScope Web Connection, select the Network tab - "Web Service Settings" - "Web Service Common Settings". Specify the following settings. Item Definition Prior confirmation Friendly Name Specify setting for Friendly Name (up to 62 characters). SSL Setting Select "ON". 11-66 bizhub C353P...

  • Page 361: Action For Invalid Certificate

    If "Continue" is selected, processing continues even if the date of the certificate is invalid. If "Delete the Job" is selected, the job is deleted if the date of the certificate is invalid. bizhub C353P 11-67...

  • Page 362: Performing Ip Address Filtering

    Specify the settings according to the following flowchart. TCP/IP Settings IP Filtering Finish 11.15.1 TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. 11-68 bizhub C353P...

  • Page 363: Ip Filtering

    Specify permitted addresses. (Format: "***.***.***.***", Range Permitted addresses for ***: 0 to 255) Deny Access To specify denied addresses, select "Enable". Set 1 to 5 Specify denied addresses. (Format: "***.***.***.***", Range for Denied addresses ***: 0 to 255) bizhub C353P 11-69...

  • Page 364: Communicating Using Ipv6

    DHCPv6 cannot be used. IP filtering is not available. The printer driver installer cannot be used. PageScope Web Connection cannot be displayed with Flash. Note For details on direct hosting service, refer to "Direct Hosting Setting" on page 4-12. 11-70 bizhub C353P...

  • Page 365: Tcp/Ip Setting

    PageScope Web Connection TCP/IP Setting In Administrator mode of PageScope Web Connection, select the Network tab - "TCP/IP Setting" - "TCP/IP Setting". Specify the following settings. bizhub C353P 11-71...
  • Page 366 Gateway Address When not automatically obtain the IPv6 address, specify the Gateway address IPv6 gateway address. Detail If necessary, specify settings for DNS. For details, refer to "Specifying general settings for TCP/IP- based communication" on page 4-3. 11-72 bizhub C353P...

  • Page 367: Communicating Using Ipsec

    Specify the settings according to the following flowchart. TCP/IP Settings IPsec IKE Setting SA Setting Peer Finish 11.17.1 TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. bizhub C353P 11-73...

  • Page 368: Ipsec

    PageScope Web Connection 11.17.2 IPsec In Administrator mode of PageScope Web Connection, select the Network tab - "TCP/IP Setting" - "IPsec". Specify the following setting. Item Definition Prior confirmation IPsec Select "ON". 11-74 bizhub C353P...

  • Page 369: Ike Setting

    11.17.4 SA Setting In Administrator mode of PageScope Web Connection, select the Network tab - "TCP/IP Setting" - "IPsec" - "SA" - [Edit]. Specify the following settings. (Up to eight groups can be registered in "SA".) bizhub C353P 11-75...

  • Page 370: Peer

    To increase the IKE strength, select "ON". Peer Specify the IP address of the peer. IP address of the peer Pre-Shared Key Text Specify the Pre-Shared Key text shared with the peer. Encapsulation Mode Specify the operation mode of IPsec. 11-76 bizhub C353P...

  • Page 371: Monitoring This Machine Using The Snmp Manager

    (2) Use IPX/SPX TCP/IP Settings NetWare Setting SNMP Setting Finish 11.18.1 TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. bizhub C353P 11-77...

  • Page 372: Netware Setting

    In Administrator mode of PageScope Web Connection, select the Network tab - "NetWare Setting" - "NetWare Setting". Specify the following settings. Item Definition Prior confirmation IPX Setting Select "ON". Ethernet Frame Type Specify the frame type to be used. Frame type 11-78 bizhub C353P...

  • Page 373: Snmp Setting

    Context Name Specify the context name (up to 63 characters). Discovery User Name Specify the user name for detection (up to 32 characters). Read User Name Specify the name of read only user (up to 32 characters). bizhub C353P 11-79...
  • Page 374 (up to 32 characters). priv-password Specify the reading/writing user privacy password to be used for privacy (encryption) (up to 32 characters). Encryption Algorithm Specify the encryption algorithm. Authentication Method Specify the authentication method. 11-80 bizhub C353P...

  • Page 375: Providing Notification Of The Status Of This Machine (E-Mail)

    (2) APOP? (1) POP over SSL (2) APOP Authentication Finish 11.19.1 TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. bizhub C353P 11-81...

  • Page 376: E-Mail Tx (Smtp)

    PageScope Web Connection 11.19.2 E-mail TX (SMTP) In Administrator mode of PageScope Web Connection, select the Network tab - "E-mail Setting" - "E- mail TX (SMTP)". Specify the following settings. 11-82 bizhub C353P...
  • Page 377 If the mail software used for receiving mails does not have mail soft the mail restore function, the mails may not be read. Divided Mail Size To divide the mail, specify a divided mail size. Receiving limit of the server bizhub C353P 11-83...

  • Page 378: Status Notification Setting

    Imaging Unit Yield Provides notification when the imaging unit must be re- placed. Fusing Unit Yield Provides notification when the fusing unit must be replaced. Transfer Belt Unit Yield Provides notification when the transfer belt must be re- placed. 11-84 bizhub C353P...

  • Page 379: Smtp Over Ssl/Start Tls

    Port number for the serv- If "Start TLS" is selected, specify the port number. Port No. (SSL) Default setting: 465 Port number for the serv- If "SMTP over SSL" is selected, specify the port number to be used for SSL communication. bizhub C353P 11-85...

  • Page 380: Action For Invalid Certificate

    If "Continue" is selected, processing continues even if the date of the certificate is invalid. If "Delete the Job" is selected, the job is deleted if the date of the certificate is invalid. 11-86 bizhub C353P...

  • Page 381: Smtp Authentication

    If the POP server is different from the SMTP server, the POP server informs the SMTP server that it has been logged in. Therefore, if the set POP before SMTP time is too short, messages may not be sent. bizhub C353P 11-87...

  • Page 382: E-Mail Rx (Pop)

    Specify the password for logging in to the POP server (up to 15 characters). Connection Timeout Specify the time period before the server connection times out. Port Number Default setting: 110 Port number for the serv- Specify the port number. 11-88 bizhub C353P...

  • Page 383: Pop Over Ssl

    If "Continue" is selected, processing continues even if the date of the certificate is invalid. If "Delete the Job" is selected, the job is deleted if the date of the certificate is invalid. bizhub C353P 11-89...

  • Page 384: Apop Authentication

    When the POP server is logged in with APOP, the password is encrypted with Digest-MD5. If "ON" is specified for APOP authentication, you cannot log in to the server if the POP server does not support APOP. 11-90 bizhub C353P...

  • Page 385: Providing Notification Of The Status Of This Machine (Trap)

    "Monitoring this machine using the SNMP manager" on page 11-77. 11.20.1 TCP/IP Settings Specify settings to use this machine in a TCP/IP network environment. For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. bizhub C353P 11-91...

  • Page 386: Netware Setting

    In Administrator mode of PageScope Web Connection, select the Network tab - "NetWare Setting" - "NetWare Setting". Specify the following settings. Item Definition Prior confirmation IPX Setting Select "ON". Ethernet Frame Type Specify the frame type to be used. Frame type 11-92 bizhub C353P...

  • Page 387: Trap Setting

    Status Notification Setting In Administrator mode of PageScope Web Connection, select the Maintenance tab - "Status Notification Setting" - "IP (IPX) Address" - [Edit]. For details on the settings, refer to "Status Notification Setting" on page 11-84. bizhub C353P 11-93...

  • Page 388: Using The Tcp Socket/Openapi/Ftp Server Function

    For details, refer to "Specifying general settings for TCP/IP-based communication" on page 4-3. 11.21.2 SSL/TLS Setting Specify settings for SSL-based communication. For details, refer to "Creating a certificate for this machine for SSL-based communication" on page 11-55. 11-94 bizhub C353P...

  • Page 389: Tcp Socket Setting

    To use SSL/TLS, select the "Use SSL/TLS" check box. Whether to use SSL/TLS Port No. (SSL) Specify the port number used in SSL communication. Detail If "EnhancedSecurity" is set to "ON", the "Use SSL/TLS" check box is selected. bizhub C353P 11-95...

  • Page 390: Openapi Setting

    To use SSL/TLS, select the "Use SSL/TLS" check box. Whether to use SSL/TLS Port No. (SSL/TLS) Specify the port number used in SSL communication. Detail If "EnhancedSecurity" is set to "ON", the "Use SSL/TLS" check box is selected. 11-96 bizhub C353P...

  • Page 391: Ftp Server Setting

    In Administrator mode of PageScope Web Connection, select the Network tab - "FTP Setting" - "FTP Server Setting". Specify the following setting. Item Definition Prior confirmation FTP Server Select "ON". Detail If "EnhancedSecurity" is set to "ON", "OFF" is selected. bizhub C353P 11-97...

  • Page 392: Other Items On The Maintenance Tab

    Specify the time period before the machine enters Low Power mode. ting Sleep Mode Setting Specify the time period before the machine enters Sleep mode. Power Save Key Manually specify the setting for the power save function (Low Power or Sleep mode). 11-98 bizhub C353P...

  • Page 393: Resetting Setting Information

    In Administrator mode of PageScope Web Connection, select the Maintenance tab - "Reset" - "Network Setting Clear". To reset to the factory default network settings, click [Clear]. Detail If "EnhancedSecurity" is set to "ON", this menu item does not appear. bizhub C353P 11-99...

  • Page 394: Reset

    PageScope Web Connection Reset In Administrator mode of PageScope Web Connection, select the Maintenance tab - "Reset" - "Reset". To reset the controller, click [Reset]. 11-100 bizhub C353P...

  • Page 395: Registering The Header Or Footer

    To print on this machine, register a text that can be printed as a header or footer. The header or footer registered here can be selected in the printer driver. Header/Footer Registration In Administrator mode of PageScope Web Connection, select the Maintenance tab - "Header/Footer Registration" - [Edit]. Specify the following settings. bizhub C353P 11-101...
  • Page 396 Specify the distribution number text. Select the output format, and then specify the start- ing number. Header/Footer Specify whether to print the following items. • Header String/Footer String (up to 40 characters each) • Date/Time Setting • Distribution Number • Job Number • Serial Number • User Name/Account Name 11-102 bizhub C353P...

  • Page 397: Other Items On The Security Tab

    Administrator mode. User Mode Logout Time Specify the time period before the user is automatically logged out when no operation is performed for a certain period of time in the user mode. bizhub C353P 11-103...

  • Page 398: Specifying The Administrator Password

    If you have already registered a user password containing less than eight characters, change it to one using eight characters before enabling "Password Rules". For details on the password rules, refer to "Admin. Settings Menu" on page 10-23. 11-104 bizhub C353P...

  • Page 399: Print Setting Tab Settings

    On the Print Setting tab, specify settings for the print function of this machine. 11.24.1 Specifying initial settings for the print function Specify initial settings for the print function. Basic Setting In Administrator mode of PageScope Web Connection, select the Print Setting tab - "Basic Setting". Specify the following settings. bizhub C353P 11-105...
  • Page 400 Binding Direction Adjust- Specify the binding direction adjustment method. ment Detail The staple function is available only if the optional finisher is installed. The punch function is available only if the optional finisher and punch kit are installed. 11-106 bizhub C353P...

  • Page 401: Specifying Settings For Pcl/Ps/Xps Print

    Specify the symbol set. Typeface Select the internal font ("Resident Font") or downloaded font ("Download Font"). Font Size Specify the font size. Line/Page Specify the number of lines per page. CR/LF Mapping Specify the text data CR/LF replacement method. bizhub C353P 11-107...

  • Page 402: Ps Setting

    Specify the default value of the profile when "Text" is selected by the printer driver. Figure/Table/Graph Specify the default value of the profile when "Figure/Table/Graph" is selected by the print- er driver. Simulation Profile Specify the default value of the ICC profile for simulation. 11-108 bizhub C353P...

  • Page 403: Xps Settings

    Specify whether to verify digital signature. When "ON" is selected, the document without ture a valid digital signature is not printed. Print XPS Errors Specify whether to print error message when an error occurs during XPS print. bizhub C353P 11-109...

  • Page 404: Specifying The Interface Timeout

    Interface Setting In Administrator mode of PageScope Web Connection, select the Print Setting tab - "Interface Setting". Specify the following settings. Item Definition Network Timeout Specify the reception timeout for the network. USB Timeout Specify the USB timeout. 11-110 bizhub C353P...
  • Page 405 Troubleshooting...

  • Page 407: When An Error Code Appears

    Write down the trouble code (for example, C-0001) in the call service representative screen. Use the power switch to turn off the machine. Unplug the machine. Contact the service representative, and inform them of the trouble code. bizhub C353P 12-3...

  • Page 408: When The Message "Misfeed Detected. Xxxx Remove Paper." Appears

    12.2.1 Paper misfeed indications 13,14,15,16,17,18 *The illustration above shows the main unit with optional finisher FS-519, mailbin kit and the double paper feed cabinet installed. 12-4 bizhub C353P...
  • Page 409 A paper misfeed in the finisher FS-519 (p. 12-32) 7218 A paper misfeed in the finisher FS-519 (p. 12-32) 7221 A paper misfeed in the finisher FS-519 (p. 12-32) 7225 A paper misfeed in the finisher FS-519 (p. 12-32) bizhub C353P 12-5...
  • Page 410 A paper misfeed in the finisher FS-609 (p. 12-38) 7221 A paper misfeed in the finisher FS-609 (p. 12-38) 7225 A paper misfeed in the finisher FS-609 (p. 12-38) 7281 A paper misfeed in the finisher FS-609 (p. 12-38) 12-6 bizhub C353P...

  • Page 411: Clearing A Paper Misfeed In The Fusing Unit

    If the paper cannot be removed by pulling it down, open the fusing unit upper cover, and then pull it up. – If the paper is zigzag folded and jammed in the fusing unit, open the fusing cover, and then remove the paper. bizhub C353P 12-7...
  • Page 412 Be careful not to spill toner inside the machine or get toner on your clothes or hands. If your hands become soiled with toner, immediately wash them with soap and water. If toner gets in your eyes, immediately flush them with water, and then seek professional medical attention. 12-8 bizhub C353P...
  • Page 413 Decreased image quality may result if the surface of the transfer belt or transfer roller is touched. Be careful not to touch the surface of the transfer belt or the transfer roller. Transfer belt Transfer roller Be careful not to touch the film with your hands. bizhub C353P 12-9...

  • Page 414: Clearing A Paper Misfeed In The Main Unit

    If the edge of the paper is around the timing roller, open the internal cover M1. Slowly remove any misfed paper from the timing roller. – Toner that did not pass through the fusing unit may get on your hands or clothes. Be extremely careful when removing the paper. 12-10 bizhub C353P...
  • Page 415 Be careful not to spill toner inside the machine or get toner on your service or hands. If your hands become soiled with toner, immediately wash them with soap and water. If toner gets in your eyes, immediately flush them with water, and then seek professional medical attention. bizhub C353P 12-11...
  • Page 416 Decreased image quality may result if the surface of the transfer belt or transfer roller is touched. Be careful not to touch the surface of the transfer belt or the transfer roller. Transfer belt Transfer roller Be careful not to touch the film with your hands. 12-12 bizhub C353P...

  • Page 417: Clearing A Paper Misfeed In The Automatic Duplex Unit

    For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. Open the door of the automatic duplex unit. Slowly remove any misfed paper from the automatic duplex unit. Close the door of the automatic duplex unit. Pull out the tray being used. Remove any misfed paper. bizhub C353P 12-13...
  • Page 418 Troubleshooting Close the tray. Reminder Be careful not to touch the film with your hands. 12-14 bizhub C353P...

  • Page 419: Clearing A Paper Misfeed In The Bypass Tray

    For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. Remove the paper from the bypass tray. Open the upper right-side door. Open the internal cover M1. Slowly remove any misfeed paper. bizhub C353P 12-15...
  • Page 420 Be careful not to spill toner inside the machine or get toner on your clothes or hands. If your hands become soiled with toner, immediately wash them with soap and water. If toner gets in your eyes, immediately flush them with water, and then seek professional medical attention. 12-16 bizhub C353P...

  • Page 421: Clearing A Paper Misfeed In The Paper Transport Section

    Detail For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. Pull up the center right-side door release lever, and then open the center right-side door. Carefully remove any misfed paper. bizhub C353P 12-17...
  • Page 422 Troubleshooting Close the center right-side door. Pull out the tray being used. Remove any misfed paper. Close the tray. Reminder Be careful not to touch the film with your hands. 12-18 bizhub C353P...

  • Page 423: Clearing A Paper Misfeed In Tray 1

    For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. Pull up the upper right-side door release lever, and then open the upper right-side door. Open the internal cover M1. Carefully remove any misfed paper. Close the upper right-side door. bizhub C353P 12-19...
  • Page 424 The area around the fusing unit is extremely hot. %Touching anything other than the indicated levers and dials may result in burns. If you get burnt, immediately cool the skin under cold water, and then seek professional medical attention. Fusing unit 12-20 bizhub C353P...
  • Page 425 Decreased image quality may result if the surface of the transfer belt or transfer roller is touched. Be careful not to touch the surface of the transfer belt or the transfer roller. Transfer belt Transfer roller Be careful not to touch the film. bizhub C353P 12-21...

  • Page 426: Clearing A Paper Misfeed In Tray 2

    For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. Pull up the center right-side door release lever, and then open the center right-side door. Carefully remove any misfed paper. Close the center right-side door. Pull out tray 2. 12-22 bizhub C353P...
  • Page 427 Troubleshooting Remove any misfed paper. Close the tray. Reminder Be careful not to touch the film with your hands. bizhub C353P 12-23...

  • Page 428: Clearing A Paper Misfeed In Paper Feed Cabinet (Tray 3/4)

    For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. Pull up the lower right-side door release lever, and then open the lower right-side door. Carefully remove any misfed paper. Close the lower right-side door. Pull out paper tray. 12-24 bizhub C353P...
  • Page 429 Troubleshooting Remove any misfed paper. Close the tray. Reminder Be careful not to touch the film with your hands. bizhub C353P 12-25...

  • Page 430: Clearing A Paper Misfeed In The Lct

    For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. Pull up the lower right-side door release lever, and then open the lower right-side door. Carefully remove any misfed paper. Close the lower right-side door. Press the tray release button, and then pull out the LCT. 12-26 bizhub C353P...
  • Page 431 Troubleshooting Remove any misfed paper. Close the LCT. Reminder Be careful not to touch the film with your hands. bizhub C353P 12-27...

  • Page 432: To Clear A Banner Paper Misfeed

    – If the end of the paper cannot be seen or cannot be grabbed, remove the paper in the direction of the arrow. Open inside cover M1. Remove any paper caught in the timing roller section. 12-28 bizhub C353P...
  • Page 433 Troubleshooting Push up the fusing unit upper cover, and then remove any misfed paper. Open the fusing cover M2. Remove any misfed paper. Remove any paper caught in the fusing unit. bizhub C353P 12-29...
  • Page 434 Troubleshooting Close the fusing cover M2. Close the fusing unit upper cover. Close the upper right-side door. 12-30 bizhub C353P...
  • Page 435 Decreased image quality may result if the surface of the transfer belt or the transfer roller is touched. Be careful not to touch the surface of the transfer belt or the transfer roller. Transfer belt Transfer roller bizhub C353P 12-31...

  • Page 436: Clearing A Paper Misfeed In Finisher Fs-519

    To move the finisher away from the main unit, be sure to grab it at "2". Do not grab the mailbins or saddle stitcher to move the finisher, otherwise they may be damaged. Open the front door. Raise lever FN1, turn dial FN2, and then remove any paper. 12-32 bizhub C353P...
  • Page 437 If the punch kit is installed, insert the punch scrap box FN3.1 into its original position. Turn dial FN4 to feed the paper, open the transport unit cover, and then remove any paper. Turn dial FN5 or dial FN6, and then remove any paper. bizhub C353P 12-33...
  • Page 438 Close the front door. Return the finisher to its original position. – When returning the finisher to its original position, do not grab the handle on the front door, the control panel, the mail bins, or the saddle stitcher. 12-34 bizhub C353P...

  • Page 439: Clearing A Paper Misfeed In The Mailbin

    For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. Open the front door. Turn dial FN5 or dial FN6 to feed out the paper. While pressing down lever FN7, remove any paper. Pull lever FN8 to open the misfeed-clearing door. bizhub C353P 12-35...
  • Page 440 Troubleshooting Remove any paper in the mailbin. Close the misfeed-clearing door. Close the front door. 12-36 bizhub C353P...

  • Page 441: Clearing A Paper Misfeed In The Saddle Stitcher

    For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. Open the front door. Turn dial FN5 or dial FN6 to feed out the paper. Remove all paper from the finishing tray. Open the misfeed-clearing door, and then remove any paper. bizhub C353P 12-37...

  • Page 442: To Clear A Paper Misfeed In Finisher Fs-609

    Turn misfeed-clearing dial 1 clockwise until the removal indicator is completely blue. Removal indicator What should be done if misfeed-clearing dial 1 is turned too far? % Turn the misfeed-clearing dial 1 counterclockwise to finely adjust it. Misfeed- clearing dial 1 12-38 bizhub C353P...
  • Page 443 If the paper could not be removed in step 10, turn the misfeed- Misfeed- clearing dial in the folding section clockwise. clearing dial in the folding Feed the paper into the output tray 2, and then remove it. section bizhub C353P 12-39...
  • Page 444 Do not remove paper remaining in the transfer unit with too much force, otherwise the folding unit may be damaged. Be careful that your fingers are not pinched when the front door is closed. For details on the positions of paper misfeeds, refer to "Paper misfeed indications" on page 12-4. 12-40 bizhub C353P...

  • Page 445: When The Message "Staple Jam Detection" Appears

    For details on clearing misfed paper in the finisher, refer to "Clearing a paper misfeed in finisher FS-519" on page 12-32. Remove all paper from the finisher. Open the front door. Turn the dial to the left to move the stapler toward the front. bizhub C353P 12-41...
  • Page 446 Insert the staple cartridge holder, sliding it along the rails in the compartment. – Check that the staple cartridge holder is securely inserted as far as possible. Close the front door. Reminder If stapling still cannot be resumed, even after performing the above procedure, contact your service representative. 12-42 bizhub C353P...

  • Page 447: Clearing Jammed Staples In The Saddle Stitcher

    Insert the staple cartridge holder, and then push it up until it locks into place. – When inserting the staple cartridge holder, be sure to insert it so that it faces the correct direction. Return the output tray to its original position. bizhub C353P 12-43...

  • Page 448: To Clear Jammed Staples In Finisher Fs-609

    The staple cartridge moves to a position from where it can be removed. What should be done if misfeed-clearing dial 2 is turned too far? % Turn the misfeed-clearing dial 2 counterclockwise to adjust it so the cartridge removal indicators are aligned. Misfeed-clearing dial 2 12-44 bizhub C353P...
  • Page 449 Insert the staple cartridge holder, making sure the tabs on the holder slide along the rails in the compartment. Insert the staple cartridge holder until it locks into place. – Check that the staple cartridge holder is securely installed. bizhub C353P 12-45...
  • Page 450 Slide the finisher back against the machine. Reminder Do not remove paper with too much force, otherwise the folding unit may be damaged. If stapling still cannot be resumed, even after performing the above procedure, contact your service representative. 12-46 bizhub C353P...

  • Page 451: When The Message "Replenish Paper" Appears

    The number of pages that can be printed after the message "Replace XXXX soon." appears and before the message "Please replace XXXX." appears differs depending on the printing conditions, the consumables and the part to be replaced. bizhub C353P 12-47...

  • Page 452: When The Message "Please Replace Xxxx." Appears

    This message appears when the machine is being accessed in Administrator mode of PageScope Web Connection. Reminder Do not turn off the machine while this message is displayed. After access to the machine with PageScope Web Connection has ended, the Basic screen appears again. 12-48 bizhub C353P...

  • Page 453: Simple Troubleshooting

    Punch Kit is installed on Finisher) If any message other than those listed above appears, perform the operation described in the message. If the problem is not corrected after the described operation is performed, contact your technical representative. bizhub C353P 12-49...
  • Page 454 The watermark is not correctly set. Check the watermark settings. printed. The watermark density is set to a Check the density settings. level that is too low. Watermarks cannot be printed in No watermark can be printed in graphics applications. this case. 12-50 bizhub C353P...
  • Page 455 The access number can- To specify access numbers, a HDD Add a HDD in the Option tab of the not be specified. must be added in the Option tab of printer driver. the printer driver. bizhub C353P 12-51...

  • Page 456: Main Messages And Their Remedies

    The machine malfunctioned and is Inform your service representative of unable to make prints. the code displayed on the display panel. If any message other than those listed above appears, perform the operation described in the message. 12-52 bizhub C353P...
  • Page 457 Replacing consumables...

  • Page 459: Replacing The Toner Cartridge

    For details on replacing the toner cartridge, refer to "To replace the toner cartridge" on page 13-4. 7 CAUTION Handling toner and the toner cartridges Do not throw toner or the toner cartridge into a fire. Toner expelled from the fire may cause burns. bizhub C353P 13-3...

  • Page 460: To Replace The Toner Cartridge

    Can a toner cartridge of a different color be installed? % The toner cartridge of a color different than the one that was removed cannot be installed. If the wrong toner cartridge is installed with extreme force, the machine may be damaged. 13-4 bizhub C353P...
  • Page 461 Next, slowly push in the charger-cleaning tool as far as possible. Repeat the above operations three times. Close the front door. Reminder When replacing a toner cartridge, be sure to clean the electrostatic charger wire corresponding to the color of the replaced toner cartridge. bizhub C353P 13-5...

  • Page 462: Replacing The Waste Toner Box

    When it is time to replace the waste toner box (and if it is replaceable by the user), the message "Wasre Toner Box Full Please replace the Waste Toner Box." appears and the machine stops operating. 13-6 bizhub C353P...

  • Page 463: To Replace The Waste Toner Box

    Replacing consumables 13.2.1 To replace the waste toner box Open the machine’s front door. Lift up and remove the waste toner box. Install the new waste toner box. Close the front door. bizhub C353P 13-7...
  • Page 464 If toner gets in your eyes, immediately flush them with water, and then seek professional medical attention. Reminder Do not tilt the removed waste toner box, otherwise waste toner may spill. Do not throw away used waste toner boxes. Instead, keep them in their boxes to be collected by your service representative. 13-8 bizhub C353P...

  • Page 465: Replacing An Imaging Unit

    Be sure to replace the imaging unit only after the message "IU needs to be replaced. [x]" appears. In addition, do not replace the imaging unit of any color other than the one indicated in the message on the message window. bizhub C353P 13-9...

  • Page 466: To Replace The Imaging Unit

    – Do not hold the top part of the imaging unit, otherwise the PC drum may be damaged, resulting in decreased image quality. 13-10 bizhub C353P...
  • Page 467 Tilt the imaging unit to the left and lightly shake it twice in the direction of the tilt, and then tilt the unit to the right and lightly shake it twice in the direction of the tilt. Peel off the tape. bizhub C353P 13-11...
  • Page 468 – Make sure that the imaging unit is fully inserted into its compartment. Lift up and slowly pull out the handle of the protective sheet for the PC drum. Push the imaging unit until it bottoms. 13-12 bizhub C353P...
  • Page 469 If your hands become soiled with toner, immediately wash them with soap and water. If toner gets in your eyes, immediately flush them with water, and then seek professional medical attention. Reminder Be careful not to touch the PC drum. bizhub C353P 13-13...

  • Page 470: Replacing The Staple Cartridge

    Open the front door. Remove the staple cartridge holder. – Pull the staple cartridge holder toward you to remove it. – Only touch the blue parts of the staple cartridge. Remove the empty cartridge from the staple cartridge holder. 13-14 bizhub C353P...
  • Page 471 Check that the staple cartridge holder is securely installed. Close the front door. Reminder Replace the staple cartridge only after the message has appeared. If the staple cartridge is replaced before the message appears, the machine may be damaged. bizhub C353P 13-15...

  • Page 472: To Replace The Staple Cartridge In Saddle Stitcher

    Raise the output tray, and then push down the staple cartridge holder and remove it. Press in the area marked "PUSH" to unlock the staple cartridge holder. Remove the empty staple cartridge from the staple cartridge holder. 13-16 bizhub C353P...
  • Page 473 Insert the staple cartridge holder, and then push it up until it locks into place. – When inserting the staple cartridge holder, be sure to insert it so that it faces the correct direction. Return the output tray to its original position. bizhub C353P 13-17...

  • Page 474: To Replace The Staple Cartridge For Finisher Fs-609

    Open the front door of the finisher. Slowly pull out the stapler unit as far as possible. Stapler unit Grasp both sides of the staple cartridge holder, lift it up, and Staple cartridge holder then pull it out. 13-18 bizhub C353P...
  • Page 475 Pull up the staple case. Remove the staple cartridge from the staple case. Staple cartridge Load the new staple cartridge into the staple cartridge holder. – Fully insert the staple cartridge as far as possible. Press the staple case down. bizhub C353P 13-19...
  • Page 476 Carefully move the stapler unit back into its original position. Close the front door. Reminder Replace the staple cartridge only after the message has appeared. If the staple cartridge is replaced before the message appears, the machine may be damaged. 13-20 bizhub C353P...

  • Page 477: Emptying The Punch Scrap Box

    The default setting is "Service". If a message appears, immediately contact the service representative. 13.5.1 To empty the punch scrap box in the finisher FS-519 Follow the procedure described below to empty the punch scrap box. Open the front door. Pull out the punch scrap box FN3.1. bizhub C353P 13-21...
  • Page 478 Replacing consumables Empty the punch scrap box. Insert the punch scrap box into its original position. Close the front door. 13-22 bizhub C353P...

  • Page 479: To Empty The Punch Scrap Box In The Finisher Fs-609

    Follow the procedure described below to empty the punch scrap box. Slide the finisher away from the machine. Pull out the punch scrap box. Empty the punch scrap box. Insert the punch scrap box into its original position. Slide the finisher back against the machine. bizhub C353P 13-23...
  • Page 480 Replacing consumables 13-24 bizhub C353P...
  • Page 481 Care of the machine...

  • Page 483: Cleaning

    Clean the control panel by wiping it with a soft, dry cloth. Reminder Pressing too hard on a key in the control panel may damage it. In addition, never use a mild household detergent, glass cleaner, benzene or thinner to clean the control panel. bizhub C353P 14-3...

  • Page 484: Electrostatic Charger Wire

    Slowly pull out the charger-cleaning tool as far as possible. Next, slowly push in the charger-cleaning tool as far as possible. Repeat the above operations three times. Securely insert the charger-cleaning tool, and then close the front door. 14-4 bizhub C353P...

  • Page 485: Print Head

    Remove the print head glass cleaning tool from the front door of the machine. Insert the print head glass cleaning tool into the print head cleaning opening, pull it out, and then repeat this back-and- forth movement twice or three times. bizhub C353P 14-5...

  • Page 486: When The Message "Time For Periodic Device Check." Appears

    Care of the machine 14.2 When the message "Time for periodic device check." appears If the message "Time for periodic device check." appears, contact Technical support and request a periodic maintenance inspection. 14-6 bizhub C353P...
  • Page 487 Specifications...

  • Page 489: Main Unit

    Ethernet 802.3 Ethernet II Ethernet SNAP Supported protocols TCP/IP (IPv4/IPv6), BOOTP, ARP, ICMP, DHCP, AutoIP, SNMP, LPR/LPD, RAW Socket, SMB over TCP/IP, IPP, HTTP, POP, SMTP, LDAP, NTP, SSL, IPX/SPX, Ap- pleTalk, Bonjour, NetBEUI, DPWS, IPsec, DNS, DynamicDNS bizhub C353P 15-3...
  • Page 490 457.2 , which is one size larger than A3. The indicated space requirements represent the space required to open the paper trays. In order to incorporate improvements, these product specifications are subject to change without notice. 15-4 bizhub C353P...

  • Page 491: Automatic Duplex Unit

    There are five Foolscap sizes: 220 e 330 w, 8-1/2 e 13 w, 8-1/4 e 13 w, 8-1/8 e 13-1/4 w and 8 e 13 w. Any one of these sizes can be selected. For details, contact your service representative. bizhub C353P 15-5...

  • Page 492: Paper Feed Cabinet Pc-405

    Supplied from main unit Power consumption Less than 66 W Dimensions 352mm (W) e 471mm (D) e 573mm (H) When the tray is pulled out: 435mm (W) Weight Approx. 33.2 kg Consumables Staples SK-602 (containing 5,000 staples) e 1 15-6 bizhub C353P...

  • Page 493: Punch Kit Pk-515

    Paper capacity Plain paper 60g/m to 90g/m : 200 sheets Thick paper 91g/m to 271g/m , postcards, envelopes, OHP, or label sheets, letterheads: 20 sheets Dimensions 282mm (W) e 368mm (D) e 57mm (H) Weight 0.7 kg bizhub C353P 15-7...

  • Page 494: Mailbin Kit Mt-502

    The number of pages that can be bound together differs depending on the paper weight. If 64g/m paper is used, 6 to 15 pages can be bound together. If 80g/m paper is used, 6 to 10 pages can be bound together. 15-8 bizhub C353P...

  • Page 495: Punch Kit Pk-501

    Number of punched 2, 3, 4 holes Paper types Plain paper 60g/m to 90g/m thick paper 91g/m to 209g/m Power requirements Supplied from finisher Dimensions 90mm (W) e 560mm (D) e 170mm (H) Weight Approx. 3 kg bizhub C353P 15-9...
  • Page 496 Specifications 15-10 bizhub C353P...
  • Page 497 Authentication unit (Biometric type AU-101)

  • Page 499: Important Information

    Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help bizhub C353P 16-3...

  • Page 500: Product Features

    Authenticating/scanning Lit (red) Authentication failed/scanning failed This device is not detected. Tone Device status One short beep Starting to scan One short beep Retrying after authentication failed One short beep Authentication completed Two short beeps Authentication failed 16-4 bizhub C353P...

  • Page 501: Using Authentication Unit (Biometric Type) Au-101

    Lightly stretch out your fingers, and then position the finger to be registered or authenticated on this device. Align the tip of the finger with the notch, and lightly position the finger so that the tab can be felt at the tip of the finger. bizhub C353P 16-5...
  • Page 502 The finger should not The middle section of the be positioned out of finger is not positioned line to the left or right. off the scanner. 16-6 bizhub C353P...

  • Page 503: Machine Settings

    From the Auth Device Setting screen, select "Bio Auth. Setting", and then press the [Menu/Select] key. Specify the settings for "Beep Sound" and "Operation Setting". – For "Beep Sound", specify whether or not to raise an electric sound when scan of the vein patterns in the finger is successfully completed. bizhub C353P 16-7...
  • Page 504 Specify the settings for "Touch & Print User Box" and "Print". – If "OFF" is selected for "Touch & Print User Box", the Touch & Print function cannot be used. – If "ON" is selected for "Touch & Print User Box", "1-to-1 Auth." cannot be selected. 16-8 bizhub C353P...
  • Page 505 Print All Jobs.:Select this setting to print all documents after completed authentication once when multiple documents are saved in the Touch & Print user box. Print Each Job.:Select this setting to print one document saved in the Touch & Print user box each time authentication is completed. bizhub C353P 16-9...

  • Page 506: Registering Users

    Select the language, and then click [OK]. The installer starts up. Follow the instructions that appear on the screen to complete the installation. Click [Next]. Select "I accept the terms of the license agreement", and then click [Next]. 16-10 bizhub C353P...

  • Page 507: Registering Users

    When using a USB hub, be sure to use a self-powered USB hub that can provide 500 mA or more. After connecting this device, wait at least 5 seconds before operating it. bizhub C353P 16-11...
  • Page 508 Connect this device to the USB port of the computer installed with PageScope Data Administrator. Start up PageScope Data Administrator, and then import the device information for the machine. – For details on importing the device information, refer to the user manual for PageScope Data Administrator. The Device information pane appears. 16-12 bizhub C353P...
  • Page 509 Authentication unit (Biometric type AU-101) Select "User authentication settings" in the Function selection pane, and then click [Add]. Select a template, and then click [OK]. The User settings dialog box appears. bizhub C353P 16-13...
  • Page 510 – If desired, type in the e-mail address. Position the finger on this device, and then click [Start reading]. – Scan the finger vein pattern three times, removing and repositioning the same finger each time. Click [Register]. 16-14 bizhub C353P...
  • Page 511 Authentication unit (Biometric type AU-101) Click [OK]. – Repeat steps 5 through 10 until all users have been registered. Click [Export to the device]. – To change the registered data, select the user name, and then click [Edit]. bizhub C353P 16-15...
  • Page 512 The machine may not operate correctly if it is turned on immediately after being turned off. Hold the plug when plugging and unplugging the USB cable, otherwise the cable may be damaged. 16-16 bizhub C353P...

  • Page 513: Care Of Authentication Unit (Biometric Type) Au-101

    Care of the cover Frequency: Once a month, or when it is dirty or covered with fingerprints Clean the scanner with a soft cloth. If it is extremely dirty, remove the dirt before cleaning it. bizhub C353P 16-17...

  • Page 514: Specifications

    Microsoft Internet Explorer 6.0 (Service Pack 1) or later Microsoft .NET Framework (Service Pack 1) or later Interface USB 1.1 or later Supported operating systems Windows 2000 Professional (Service Pack 4) Windows XP Professional Edition (Service Pack 2) 16-18 bizhub C353P...

  • Page 515: Troubleshooting

    Turn the machine off with the power device was connected to it? switch and temporarily disconnect the USB cable from this device or the ma- chine before connecting it again and waiting 10 seconds before turning on the machine with the power switch. bizhub C353P 16-19...
  • Page 516 Add New Hardware Wizard may start. Use the same USB port used when the driver was installed. If the problem is not corrected after the described operation is performed, contact your technical representative. 16-20 bizhub C353P...
  • Page 517 Authentication unit (IC card type AU-201)

  • Page 519: For Safe Use

    Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help bizhub C353P 17-3...

  • Page 520: Interference-Causing Equipment Standard (Ices- 003 Issue 4 For Canada Users)

    IC cards when using machines with user authentication settings specified. 17.3 Part names and their functions Part name Description Card scanning area Position the IC card on this area. USB cable Used for connecting this device to the machine. 17-4 bizhub C353P...

  • Page 521: Using Authentication Unit (Ic Card Type) Au-201

    For details on displaying the Admin. Settings screen, refer to "Operations for changing numeric values" on page 10-5. From the Auth Device Setting screen, select [Card Auth. Setting], and then press the [Menu/Select] key. Specify the settings for "IC Card Type" and "Operation Setting". bizhub C353P 17-5...
  • Page 522 If "Card + Password" is selected, the Touch & Print function cannot be used. Press the [*] key twice. The Auth Device Setting screen appears again. Select [Touch & Print], and then press the [Menu/Select] key. Specify the settings for "Touch & Print User Box" and "Print". 17-6 bizhub C353P...

  • Page 523: Registering Users

    PageScope Data Administrator ver. 3.0 or later must first be installed on the computer. For details on the operating environment and installation procedure for PageScope Data Administrator, refer to the user manual for the PageScope Data Administrator. bizhub C353P 17-7...

  • Page 524: Setup

    Follow the instructions that appear on the screen to complete the installation. Click [Next]. Select "I accept the terms of the license agreement", and then click [Next]. Click [Install]. Click [Finish]. Data Administrator IC Card Plugin is installed, and the setup is completed. 17-8 bizhub C353P...

  • Page 525: Registering Users

    When using a USB hub, be sure to use a self-powered USB hub that can provide 500 mA or more. After connecting this device, wait at least 5 seconds before operating it. bizhub C353P 17-9...
  • Page 526 Connect this device to the USB port of the computer installed with PageScope Data Administrator. Start up PageScope Data Administrator, and then import the device information for the machine. – For details on importing the device information, refer to the user manual for PageScope Data Administrator. The Device information pane appears. 17-10 bizhub C353P...
  • Page 527 Authentication unit (IC card type AU-201) Select "User authentication settings" in the Function selection pane, and then click [Add]. Select a template, and then click [OK]. The User settings dialog box appears. bizhub C353P 17-11...
  • Page 528 Position the IC card on this device, and then click [Start reading]. – The card ID can also be registered by selecting "Input the card ID directly". Click [OK]. – Repeat steps 5 through 9 until all users have been registered. 17-12 bizhub C353P...
  • Page 529 Authentication unit (IC card type AU-201) Click [Export to the device]. – To change the registered data, select the user name, and then click [Edit]. Click [Write]. The registered user data is specified on the machine. Click [OK]. bizhub C353P 17-13...
  • Page 530 The machine may not operate correctly if it is turned on immediately after being turned off. Hold the plug when plugging and unplugging the USB cable, otherwise the cable may be damaged. 17-14 bizhub C353P...

  • Page 531: Care Of Authentication Unit (Ic Card Type) Au-201

    Wipe this device with a soft, dry cloth. If this device cannot be cleaned by wiping it, wash it with a cloth dampened with a mild detergent and wrung out well. After this device is cleaned, rinse the cloth and wring it out well before wiping off the detergent. bizhub C353P 17-15...

  • Page 532: Specifications

    Add New Hardware Wizard may start. Use the same USB port used when the driver was installed. If the problem is not corrected after the described operation is performed, contact your technical representative. 17-16 bizhub C353P...
  • Page 533 Appendix...

  • Page 535: Configuration Page

    Appendix Appendix 18.1 Configuration page bizhub C353P 18-3...

  • Page 536: Pcl Font List

    Appendix 18.2 Font list 18.2.1 PCL Font List 18-4 bizhub C353P...

  • Page 537: Ps Font List

    Appendix 18.2.2 PS Font List bizhub C353P 18-5...

  • Page 538: Demo Page

    Appendix 18.2.3 Demo page 18-6 bizhub C353P...

  • Page 539: Ppd Driver (For Linux And Applications)

    In the Choose a driver dialog box, click the [Import] button. Select "KONICA MINOLTA C353 OpenOffice PPD", and then click the[OK] button. From the "Please Select a Suitable driver." list, select "KONICA MINOLTA C353 OpenOffice PPD", and then click the [Next] button.

  • Page 540: To Print With Openoffice

    To print with OpenOffice From the [File] menu in OpenOffice, select "Print". Select "KONICA MINOLTA C353 OpenOfficePPD" in "Printer name". Click the [Properties] button. Select the desired setting from the "Page size" drop-down list, and then click the [OK] button. To specify settings other than the page size, click the [Configure Printer] button in CUPS Printing System.

  • Page 541: Netware

    Specify settings for printing in a NetWare environment. Before printing in the NetWare environment, settings for using this machine in the NetWare environment must be specified. In Administrator mode of PageScope Web Connection, select the Network tab - "NetWare Setting" - "NetWare Setting". bizhub C353P 18-9...

  • Page 542: For Remote Printer Mode With Netware 4.X Bindery Emulation

    If necessary, specify the password for the printer server (up to 63 characters). Polling Interval* Specify an interval to make queries for jobs. Bindery/NDS Setting Select "NDS/Bindery". File Server Name Specify the priority file server name for Bindery mode (up to 47 characters). 18-10 bizhub C353P...

  • Page 543: For Netware 4.X Remote Printer Mode (Nds)

    Bindery/NDS Setting Select "NDS". NDS Context Name Specify the NDS context name connected with the print server (up to 191 characters). NDS Tree Name Specify the NDS tree name connected with the printer server (up to 63 characters). bizhub C353P 18-11...

  • Page 544: For Netware 5.X/6 Novell Distributed Print Service (Ndps)

    Enter the IP address set for this machine as the host address, enter "Print" as the printer name, and then click the "Finish" button to register the settings. The printer driver registration screen appears. Select "None" for each operating system to complete the registration. 18-12 bizhub C353P...

  • Page 545: Netware Status

    Select the specified folder according to the printer driver to be used, the operating system, and the language. Printer drivers that can be selected: Windows 2000/XP/Vista/Server 2003: PCL driver, PS driver Windows NT4.0: PCL driver Follow the on-screen instructions to complete the installation. bizhub C353P 18-13...
  • Page 546 Appendix 18-14 bizhub C353P...
  • Page 547 Index...
  • Page 549 Copy Protect 7-16 8-19 11-105 Basic Setting 10-19 Counter List Basic Settings 10-17 Cover Mode tab 7-14 Basic tab 8-16 Cover Mode/Transparency Interleave 10-26 Beep Sound 10-18 CR/LF Mapping 10-17 Bin Assignment 11-56 Create a self-signed Certificate bizhub C353P 19-3...
  • Page 550 11-75 IKE Setting 8-12 Encryption Passphrase 7-22 Image Compression Encryption passphrase 9-34 7-12 8-14 8-30 Image Shift 10-24 EncryptionPassphrase 13-9 Imaging unit 10-24 EncryptionSetting Importing 11-29 10-23 EnhancedSecurity 11-13 Information 10-16 EnteringPowerSave Initial settings 11-105 EnteringSleepMode 10-16 19-4 bizhub C353P...
  • Page 551 10-7 Main Menu Output Method 7-10 8-10 8-31 Main unit 12-10 15-3 10-17 Output Settings 11-17 Maintenance 7-13 8-15 8-30 10-17 Output Tray 11-98 Maintenance tab Output tray OT-602 15-7 9-40 Manage Profile 8-14 Overlap width line bizhub C353P 19-5...
  • Page 552 8-24 10-22 7-22 8-24 PortNumberSetting Quality Adjustment 8-14 7-22 Poster Mode Quality tab PostScript 3-35 3-18 Power Save mode 10-20 RAW Port Number Power Save Setting 11-98 Recalling a job 9-15 9-20 9-23 9-33 2-18 Power source 19-6 bizhub C353P...
  • Page 553 10-21 SNMP Tray 2 3-24 12-22 11-77 SNMP manager 3-24 12-24 Tray 3 11-79 SNMP Setting 3-24 12-24 Tray 4 2-17 Space requirements Tray Priority 10-16 Special paper 3-21 12-3 Trouble code 10-17 Spool Setting Troubleshooting 12-49 bizhub C353P 19-7...
  • Page 554 WebServiceSetting When InvalidCert. 10-21 3-33 Windows 5-22 Windows 2000 5-27 Windows NT 4.0 Windows Server 2003 Windows Vista 5-13 10-20 WINS WINS Setting 4-13 11-46 4-11 Workgroup 10-18 XPS Setting 11-109 XPS Settings 10-21 Zone Name Zoom 19-8 bizhub C353P...

Table of Contents
