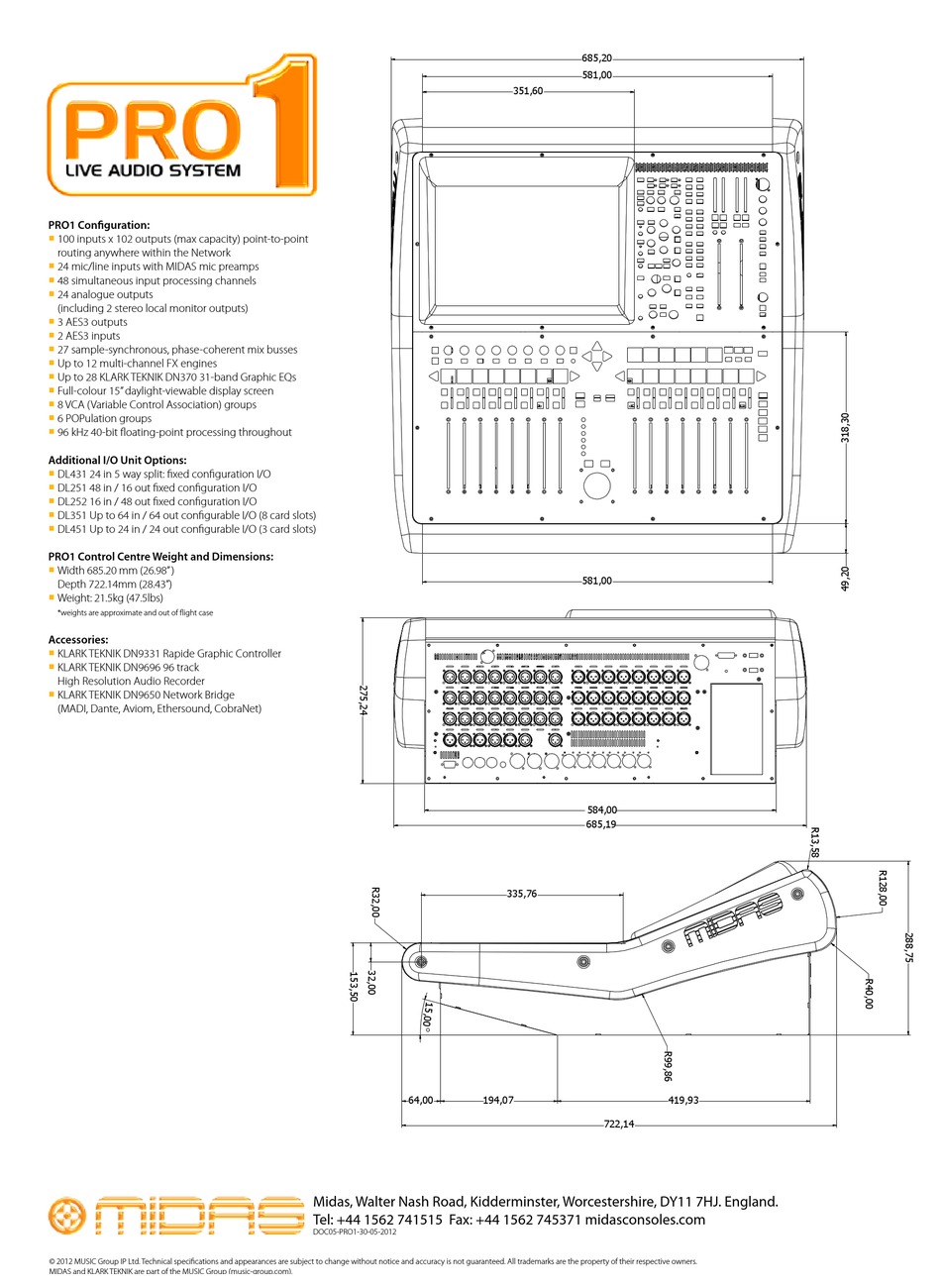

Pro1 Configuration; Additional I/O Unit Options; Pro1 Control Centre Weight And Dimensions; Accessories - Midas PRO 1 Overview

UNIT CONSOLE WEIGHT 21.5kG

PRO1 Configuration:

100 inputs x 102 outputs (max capacity) point-to-point
A
routing anywhere within the Network
24 mic/line inputs with MIDAS mic preamps
A
48 simultaneous input processing channels
A
24 analogue outputs
A
(including 2 stereo local monitor outputs)
3 AES3 outputs
A
2 AES3 inputs
A
27 sample-synchronous, phase-coherent mix busses
A
Up to 12 multi-channel FX engines
A
Up to 28 KLARK TEKNIK DN370 31-band Graphic EQs
A
Full-colour 15" daylight-viewable display screen
A
8 VCA (Variable Control Association) groups
A
6 POPulation groups
A
96 kHz 40-bit floating-point processing throughout
A

Additional I/O Unit Options:

DL431 24 in 5 way split: fixed configuration I/O
A
DL251 48 in / 16 out fixed configuration I/O
A
DL252 16 in / 48 out fixed configuration I/O
A
DL351 Up to 64 in / 64 out configurable I/O (8 card slots)
A
DL451 Up to 24 in / 24 out configurable I/O (3 card slots)
A

PRO1 Control Centre Weight and Dimensions:

Width 685.20 mm (26.98" )
A
Depth 722.14mm (28.43")
Weight: 21.5kg (47.5lbs)
A
*weights are approximate and out of flight case

Accessories:

KLARK TEKNIK DN9331 Rapide Graphic Controller
A
KLARK TEKNIK DN9696 96 track
A
High Resolution Audio Recorder
KLARK TEKNIK DN9650 Network Bridge
A
(MADI, Dante, Aviom, Ethersound, CobraNet)
© 2012 MUSIC Group IP Ltd. Technical specifications and appearances are subject to change without notice and accuracy is not guaranteed. All trademarks are the property of their respective owners.
MIDAS and KLARK TEKNIK are part of the MUSIC Group (music-group.com).
64,00 194,07
Midas, Walter Nash Road, Kidderminster, Worcestershire, DY11 7HJ. England.
Tel: +44 1562 741515 Fax: +44 1562 745371 midasconsoles.com
DOC05-PRO1-30-05-2012
685,20
581,00
351,60
581,00
584,00
685,19
335,76
419,93
722,14
