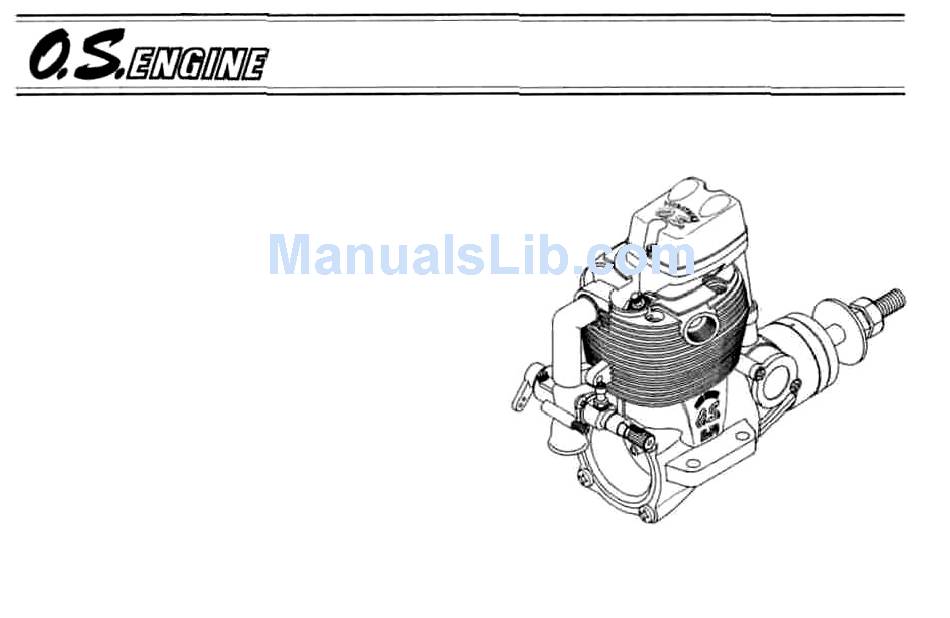

FOUR CYCLE ENGINE
OWNER'S INSTRUCTION MANUAL
It is of vital importance, before attempting to
operate your engine, to read the general
•SAFETY INSTRUCTIONS AND WARNINGS'
section on pages 2-6 of this booklet and to strictly
adhere to the advice contained therein.
• Also, please study the entire contents of this
instruction manual, so as to familiarize yourself
with the controls and other features of the
engine.
• Keep these instructions in a safe place so that
you may readily refer to them whenever
necessary.
• It is suggested that any instructions supplied
with the aircraft, radio control equipment, etc.,
are accessible for checking at the same time.
FL-70
Advertisement
Table of Contents
Related Manuals for O.S. engine FL-70
Summary of Contents for O.S. engine FL-70
- Page 1 FL-70 FOUR CYCLE ENGINE OWNER'S INSTRUCTION MANUAL It is of vital importance, before attempting to operate your engine, to read the general •SAFETY INSTRUCTIONS AND WARNINGS' section on pages 2-6 of this booklet and to strictly adhere to the advice contained therein.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS AND WARNINGS TYPE 60W CARBURETOR, STARTING -------- 25-27 ABOUT YOUR O.S. ENGINE ---------------- 2-6 RUNNING -IN, CARBURETOR -------------------- 27-30 ENGINE CONSTRUCTION - - - - - - - - - - - - - - - - - - - - - - - - 7 CARBURETOR AIR-BLEED ADJUSTMENT - - - - - - - - 31 NOTES WHEN APPLYING AN ELECTTRIC STARTER ---- 8 TROUBLE SHOOTING WHEN THE... -
Page 3: Safety Instructions And Warnings Aboutyour O.s. Engine
SAFETY INSTRUCTIONS AND WARNINGS ABOUTYOUR O.S. ENGINE Remember that your engine is not a "toy", but a highly efficient internal- combustion machine whose power is capable of harming you, or others, if it is misused. As owner, you, alone, are responsible for the safe operation of your engine, so act with discretion and care at all times. - Page 4 WARNINGS Never touch, or allow any object to come Model engine fuel is also highly into contact with, the rotating flammable. Keep it away from open flame, excessive heat, sources of sparks, or propeller and do not crouch anything else which might over the engine when it is ignite it.
-
Page 5: Glowplug 2
NOTES This engine was designed for model If you remove the glowplug from the engine aircraft. Do not attempt to use it for any and check its condition by connecting the other purpose. battery leads to it, do not hold the plug with bare fingers.Use an appropriate tool or a Mount the engine in your model securely, folded piece of cloth. - Page 6 NOTES Always check the tightness of the propeller Discard any propeller which has become nut and retighten it, if necessary, before split, cracked, nicked or otherwise rendered restarting the engine, particularly in the unsafe. Never attempt to repair such a case of four-stroke-cycle engines.
- Page 7 NOTES Adjust the throttle linkage so that the engine For their safety, keep onlookers stops when the throttle stick and trim lever (especially small children) well back (at on the transmitter are fully retarded. least 20 feet or 6 meters) when preparing Alternatively, the engine may be stopped by your model for flight.
-
Page 8: Engine Construction
ENGINE CONSTRUCTION With this engine, the piston will feel tight at the top of its stroke Piston (TDC) when the engine is cold. Cylinder Liner This is normal. The cylinder bore Is a little tapered. Crankshaft The piston and cylinder are A little tapered designed to achieve a perfect running clearance when they... -
Page 9: Notes When Applying An Electtric Starter
NOTES WHEN APPLYING AN ELECTRIC STARTER Do not over-prime. This could cause hydraulic lock and damage the engine on application of the electric starter. If over-primed, remove glowplug, close needle-valve and apply starter to pump out surplus fuel. Cover the head with waste to prevent pumped out fuel coming into your eyes. -
Page 10: Introduction
INTRODUCTION STANDARD ACCESSOIES The FL-70 is an air-cooled, overhead- Glow Plug Type F valve four stroke engine for model aircraft (fitted with the engine) use. This engine is suitable for trainer, sport and scale models. This engine reduces maintenance by... -
Page 11: Before Starting
BEFORE STARTING FUEL The FL-70 should be operated on a methanol Tools, accessories, etc.The following items are based fuel containing not less than 20% necessary for operating the engine. (volumetric) castor oil, or a top quality synthetic Items necessary for starting... - Page 12 Reminder! O.S. Non-Bubble Weight Model engine fuel is poisonous. Do not To prevent the pickup from adhering to allow it to come into contact with the eyes or the tank wall under suction and mouth. Always store it in a clearly marked restricting fuel flow, slots may be filed container and out of the reach of children.
- Page 13 Spinner than those shown in the table may be used, Since the FL-70 is intended to be but remember that the propeller noise will started with an electric starter, the increase if blade tip is raised, due to higher addition of a spinner assembly for rpm or if a larger-diameter/lower-pitched prop centering the starter sleeve is desirable.
- Page 14 • TOOLS LONG SOCKET WRENCH WITH PLUG GRIP Recommended easy removal HEX WRENCH replacement of the angled and recessed Necessary for engine installation. glowplug, the O.S.Long Socket Wrench 1.5mm, 2mm, 2.5mm, 3mm opposite side incorporates a special grip. Plus Threaded Drivers No.1,No.2,etc.
-
Page 15: Engine Parts Name
Engine Parts Name F-4030 Silencer Assembly Rocker Cover Exhaust Header Pipe Nipple No.1 Glow Plug (Larger hole) Nipple No.5 Lock Nut Set (Smaller hole) Lock Nut Silencer Body Propeller Washer Drive Hub Rotor Guide Screw Crankcase Carburetor Needle Beam Mount Type 60W Throttle Lever Cover Plate... -
Page 16: Installation
INSTALLATION Because the FL-70 is a powerful, large-displacement, single-cylinder four-stroke-cycle engine, it is essential to use very substantial engine mounting. Conventional wooden mounting beams should be of rigid hardwood and of at least 15mm or 5/8-in square section. Make sure that the mounting beams are parallel and that their top surfaces are in the same plane. - Page 17 How to fasten the mounting screws. • Make sure that these mounting beams are accurately aligned and firmly integrated with Hardwood mounting beams the airframe, reinforcing the adjacent Tighten second nut structure to absorb vibration. Use 3mm or firmlydown onto first nut. 3mm steel nuts larger steel screws, preferably Allen type Tighten this nut first.
-
Page 18: Silencer & Exhaust Header Pipe Installation
SILENCER & EXHAUST HEADER PIPE INSTALLATION Screw the header pipe into the cylinder head Lock Nut until it "bottoms" , then unscrew sufficiently to achieve the desired exhaust angle and tighten the lock nut securely with a 14mm wrench. Screw the silencer onto the outer end of the header pipe and tighten the other locknut. -
Page 19: Fuel Tank & Lines
FUEL TANK & LINES Piping suitable for acrobatic flights Make sure that the tank is well rinsed out with methanol or glow fuel before installation With the general piping, the fuel in the tank and that the pickup weight is well clear of the may flow into the silencer when the throttle is bottom of the tank when held vertically. - Page 20 Note: When cutting silicone tubing, Fig. 1 General Piping use knife or razor blade. No.5 Nipple (smaller hole) Do not use wire cutter Silicone Tubing or pliers. No.1 Nipple (larger hole) If you should need to clean out silicone tubes, use methanol or glow fuel, not gasoline or kerosene.
- Page 21 Fig. 2 Piping suitable for acrobatic flights No.5 Nipple (smaller hole) No.1 Nipple (larger hole) Install the fuel tank so that carburetor center line and fuel tank center line may come to as much close as possible. Fuel Filter T Nipple (supplied) (commercially available) Fuel Stopper (commercially...
-
Page 22: Throttle Linkage, Needle-Valve Extension
THROTTLE LINKAGE NEEDLE-VALVE EXTENSION The needle-valve supplied with this engine is Before connecting the throttle to its servo, designed to incorporate an extension so that, make sure that the throttle arm and linkage when the engine is enclosed within the safely clear any adjacent part of the airframe fuselage, the needle-valve may be adjusted structure, etc., as the throttle is opened and... -
Page 23: Propeller & Spinner Attachment
PROPELLER & SPINNER ATTACHMENT There is a risk, particularly with powerful four- 3. Add the specially tapered and slotted stroke engines, of the propeller flying off if the locknut and secure with a 10mm wrench prop loosens detonation while holding the prop nut with the 13mm ("knocking") in the combustion chamber when wrench. - Page 24 Note: Some spinners which are fixed at the top of the cone cannot be used with the prop locknut supplied with the engine. In this case, optional locknut sets are available from O.S. - Propeller Locknut Set for Spinner (Code No.45810200) and Propeller Locknut Set for Tru Turn Spinner (Code No.145810300).
-
Page 25: Glowplug
GLOWPLUG The FL-70 supplied with an O.S. Type F glowplug, Install a plug suitable for the engine. specially designed for O.S. four-stroke engines. Use fuel containing a moderate percentage of nitromethane unless more is essential for racing The role of the glowplug events. -
Page 26: Type 60W Carburetor, Starting
STARTING TYPE 60W CARBURETTOR Two adjustable controls are provided on this The FL-70 is not equipped with manual carburettor. choke controls, as it is intended for use They are as follows: with an electric starter only. A high-torque electric starter not only... - Page 27 3. Check that the current to the glowplug is Element glows when energized. switched off. Pliers Close 4. To close the needle-valve, turn it clockwise, while to open the Open needle-valve, turn it counter- clockwise. Turn the needle-valve Replace the plug when the Close clockwise slowly until it stops.
-
Page 28: Running -In, Carburetor
8. Make sure that the rotating direction of the RUNNING-IN ("Breaking-in") electric starter is correct. Energize the glowplug and apply the starter. For long life and peak performance, every engine needs special treatment when new, 9. When the engine starts, slowly open the know as "running-in"... - Page 29 On the contrary, prolonged low speed running 5. Repeat this process, alternately running the may cause the oil in the fuel gelled, which may engine fast and slow by means of the result in seizure of the piston and cylinder liner. needle-valve, while keeping the throttle fully The recommended procedure is as follows: open, then begin to extend the short...
- Page 30 8. With each successive flight, close the CARBURETOR needle-valve very slightly until, at the end of These engines are equipped with a throttle about 10 flights, the needle is set for full type car-buretor which provides a wide range power. Do not "over-lean" the mixture in an of engine speed control.
-
Page 31: Engine Stops
Start the engine Make sure that the throttle is fullyopen 20-30' open from maximum Adjust the neede-valve. rp.m setting. Close the throttle gradually The position where the lowest Find the idling position. possible r p m .with steady running, is obtained. Set the throttle opening by Fix the idling position. -
Page 32: Carburetor Air-Bleed Adjustment
CARBURETOR AIR-BLEED ADJUSTMENT Pre-Flight Check Start engine and adjust needle- valve as previouslv described. Close the throttle gradually. Find the idling position. approx 15 degrees Hold the model. Hold model level, then slowly raise the nose. If rpm increases. If engine runs unevenly or stops. Stop the engine. -
Page 33: Trouble Shooting When The Engine Fails To Start
TROUBLE SHOOTING WHEN THE ENGINE FAILS TO START Four key points For quick, reliable starting, the following four conditions are required. (1.) Good compression. (2.) Adequate "glow" at glowplug. (3.) Correct mixture. (4) Sufficient electric starter rotating speed. If the engine fails to start, or does not keep running after being started, check symptoms against the following chart and take necessary corrective action. - Page 34 Corrective action Symptom Factor Cause Incorrect heating of ..Voltage too high or too low. Re-check and readjust referring to "BEFORE Engine fires glowplug. STARTING". Intermittently but Over priming. . . • • • • • • Continue applying an electric starter. II the engine does not start after more does not run.
-
Page 35: Valve Adjusting
VALVE ADJUSTING Valve clearances are correctly set before any O.S. engine leaves the factory and, in normal use, will seldom require adjustment. However, if, after a very considerable amount of running time has been consumed, a loss of power is detected, engine been... -
Page 36: How To Set The Camshaft Timing
HOW TO SET THE CAMSHAFT TIMING The relation of position between ' • ' mark of When replacing the camshaft, set the timing as follows. the gear and teeth may differ from the sketch, by each model. 1. Secure propeller. NOTE: crankcase If propeller is not secured, crankshaft may... -
Page 37: Care And Maintenance
CARE AND MAINTENANCE Please attention matters • Fit an in-line fuel filter between the tank and described below to ensure that your engine carburetor to prevent dist and dust in the serves you well in regard to performance, tank entering the carburetor. reliability and long life. - Page 38 • When the engine is not to be used for some The use of nitromethane in the fuel can also months (for example, as between flying contribute to the problem. As a primary seasons), a worthwhile precaution is to defense, users are advised to avoid running remove it from the airframe and, after the engine on too lean a mixture - i.e.
-
Page 39: Engine Exploded Views & Parts List
ENGINE EXPLODED VIEW *Type of screw C Cap Screw B..Binding Head Screw M.. Oval Fillister-Head Screw F...Flat Head Screw N. .Round Head Screw S...Set Screw... - Page 40 Description Code No Rocker Cover 44404200 Rocker Support Assembly 45961400 Rocker Support 45961410 Rocker Arm Retainer (2pcs.) 45761600 Rocker Arm Assembly (1pair) 44753000 Rocker Arm (1pc.) 44753100 Tappet Adjusting Screw 45761200 44460000 Intake Valve Assembly (1 pair) Intake Valve (1pc.) 44460100 45960210 Valve Spring (1pc.)
-
Page 41: Carburetor Exploded View
CARBURETOR EXPLODED VIEW * Type of screw C Cap Screw B Binding Head Screw M Oval Fillister-Head Screw F...Flat Head Screw N . Round Head Screw S .Set Screw... -
Page 42: Parts List
CARBURETTOR PARTS LIST Code No. Description 22081408 Throttle Lever Assembly Throttle Lever Retaining Screw 22081313 Carburetor Rotor 44481200 Carburetor Body 44481100 Carburetor Rubber Gasket 45915000 Needle-valve Assembly 22681980 "0" Ring (2pcs.) 24981837 Set Screw 26381501 44481960 Nozzle Assembly 26711305 Ratchet Spring Nozzle Retaining Screw (2pcs.) 45281920 22681953... -
Page 43: O.s. Genuine Parts & Accessories
O.S. GENUINE PARTS & ACCESSORIES O.S.GLOW PLUG BOOSTER CABLE SET BOOSTER PROPELLER TYPEF (72200110) TERMINAL KIT LOCKNUT SET (71615009) (72200130) (45810100) (45810200 For Spinner) Needle Valve Extension Cable Set _ (72200080) PROPELLER LOCKNUT SET FLEXIBLE EXHAUST PIPES EXHAUST HEADER PIPES FOR TRU-TURN SPINNER (72109500) (72109600) - Page 44 LONG SOCKET WRENCH VALVE ADJUSTING NON-BUBBLE WEIGHT TOOL LIT (71531000) WITH PLUG GRIP (72200060) (71521000) SUPER FILTER (L) (72403050) BLIND NUT (10pcs./sets) CAP SCREW SETS (10pcs./sets) LOCK WASHER (10sets) M2.6x8 (79871025) M3 (79870030) M3 (55500002) M2.6x10(79871030) M3.5x12(79871080) M3.5x20(79871100) The specifications are subject to alteration (or improvement without notice.
-
Page 45: Three View Drawing
THREE VIEW DRAWING Dimension(mm) Specification 11.45cc(0.698cu.in.) Displacement 27.7mm (1.090 in.) Bore 19.0mm (0.748 in.) Stroke Practical R.P.M. 2.300-12.000 r.p.m. 1.1ps/ 11.000 r.p.m. Power output 467g (16.480Z.) Weight (Silencer including 51.5g(1.8oz.) exhaust header pipe) - Page 46 6-15 3-Chome Imagawa Higashisumiyoshi-ku Osaka 546-0003. Japan TEL. (06) 6702-0225 FAX. (06) 6704-2722 URL: http://www.os-engines.co.jp (C) Copyright 2004 by O.S.Engines Mfg. Co.. Ltd. All rights reserved. Printed in Japan. 60091500 050400...
