Gas 20-inch wide conventional free-standing ranges
Hide thumbs Also See for CPL1100BDW16:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual See also: Owner's Manual
INSTALLER:
LEAVE
THESE
INSTRUCTIONS
WITH THE APPLIANCE

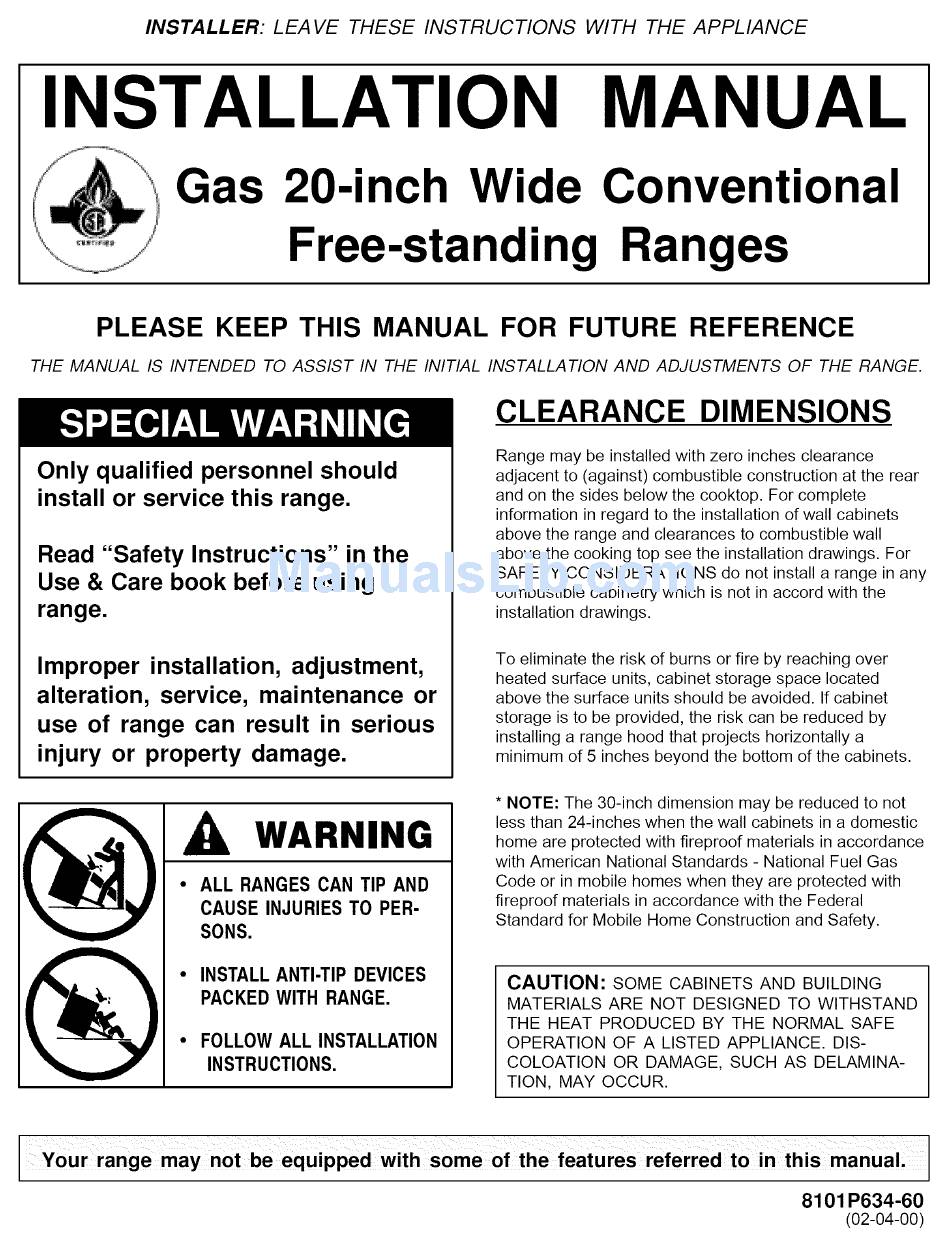

INSTALLATION
MANUAL
Gas 20-inch Wide Conventional
Free-standing Ranges
PLEASE
KEEP THIS MANUAL FOR FUTURE REFERENCE
THE MANUAL IS INTENDED
TO ASSIST IN THE INITIAL INSTALLATION
AND ADJUSTMENTS
OF THE RANGE.
Only qualified personnel should
install or service this range.
Read "Safety Instructions" in the
Use & Care book before using
range.
Improper installation, adjustment,
alteration, service, maintenance or
use of range can result in serious
injury or property damage.
CLEARANCE
DIMENSIONS
Range may be installed with zero inches clearance
adjacent to (against) combustible construction at the rear
and on the sides below the cooktop. For complete
information in regard to the installation of wall cabinets
above the range and clearances to combustible wall
above the cooking top see the installation drawings. For
SAFETY CONSIDERATIONS
do not install a range in any
combustible cabinetry which is not in accord with the
installation drawings.
To eliminate the risk of burns or fire by reaching over
heated surface units, cabinet storage space located
above the surface units should be avoided. If cabinet
storage is to be provided, the risk can be reduced by
installing a range hood that projects horizontally a
minimum of 5 inches beyond the bottom of the cabinets.
•
CAN TIP AND
INJURIES TO PER-
=
• INSTALL ANTI-TIP DEVICES
PACKED WITH RANGE.
• FOLLOW ALL INSTALLATION
INSTRUCTIONS.
* NOTE: The 30-inch dimension may be reduced to not
less than 24-inches when the wall cabinets in a domestic
home are protected with fireproof materials in accordance
with American National Standards - National Fuel Gas
Code or in mobile homes when they are protected with
fireproof materials in accordance with the Federal
Standard for Mobile Home Construction and Safety.
CAUTION:
SOME CABINETS AND BUILDING
MATERIALS ARE NOT DESIGNED TO WITHSTAND
THE HEAT PRODUCED
BY THE NORMAL SAFE
OPERATION OF A LISTED APPLIANCE.
DIS-
COLOATION
OR DAMAGE, SUCH AS DELAMINA-
TION, MAY OCCUR.
Your range
may not be equipped
With some of the features
referred
to in this manual:
8101 P634-60
(02-04-00)
